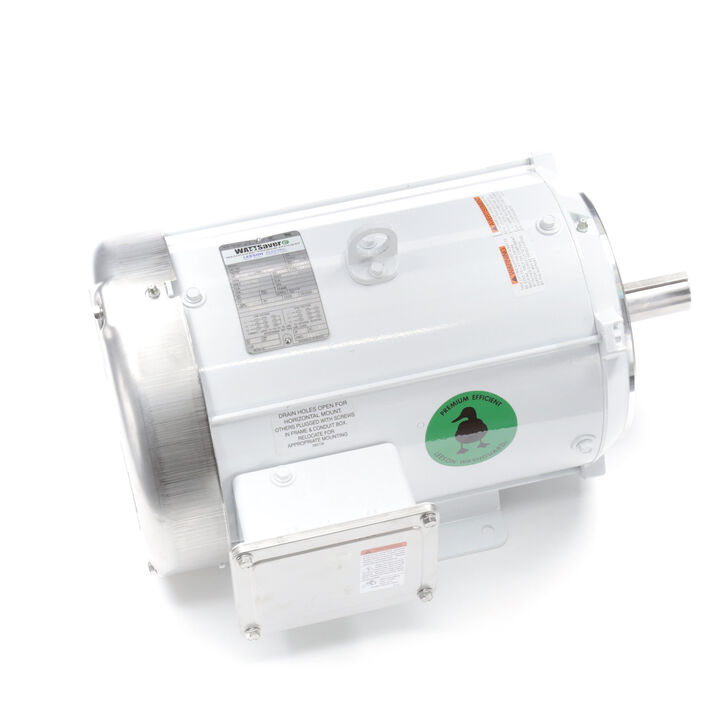

LEESON 140822.00 C213T17WK9A General Purpose Motor, 7.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Wednesday, Dec 24
10.00% off
€3,019.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | 210-010 |
| Bearing Type | Ball |
| Body Dia. | 9.63" |
| Bolt Circle Dia. | 7 1/4" |
| Cc Number | CC005A |
| Code | J |
| Color | White |
| Conduit Box Location | Exterior |
| Design | B |
| Drive End Bearing Size | 6209 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Enclosure Type | Tefc |
| Finish | Epoxy Coated |
| Frame | 213TC |
| Frame Material | Rolled Steel |
| Frame Type | 213TC |
| Frequency | 60 Hz |
| Full Load Amps | 21.6-22.4/10.8A |
| Grease Type | Polyrex EM |
| Hp | 7 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 5.6 kW |
| Length Less Shaft | 15 9/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CWSE |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 18 11/16" |
| Packaging | B |
| Phase | 3 |
| Power | 5.6 kW |
| Power Factor | 72 |
| Product Type | Washdown Brake Motor |
| Removable Base | No |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Standards | Bissc, Ce, Csa, Ul |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Weight | 157 lbs. |
Shipping Info:
| Ship weight (kg) | 70.65 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 57.48 |
| Ship width (cm) | 40.97 |
| Country of Origin | MX |
Product Details:
- Bearing OPE: 6206
- CC Number: CC005A
- Bearing PE: 6209
- Nameplate: 081341
- Winding: T9495
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 26-25.2 / 12.6
- Eff 100%: 91.7 / 89.5
Product Variants
| Product | Model | Voltage | Hp | Finish | Nameplate Rpm | Frame | Full Load Amps | Motor Mounting Type | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
112429.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 1800 RPM | 56C | 1.9-2/1A | - | 40°C | €669.17 | |
 |
112430.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 1800 RPM | 56C | 2.8-2.7/1.4A | - | 40°C | €1,690.22 | |
 |
112547.00 | 208-230/460V | 33/100 hp | Unfinished | 1725 RPM | 56C | 1.5-1.7/0.85A | Face, Base | 104°F | €723.20 | |
 |
113586.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 1725 RPM | 56C | 1.8A | Face, Base | 104°F | €1,045.80 | |
 |
113587.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 1725 RPM | 56C | 1.2A | Face, Base | 104°F | €772.43 | |
 |
113590.00 | 230/460V | 1 hp | Epoxy Coated | 3450 RPM | 56C | 1.3A | Face, Base | 104°F | €1,047.84 | |
 |
113591.00 | 230/460V | 1 1/2 hp | Epoxy Coated | 3450 RPM | - | 1.9A | Rigid Base | 104°F | €1,342.84 |
