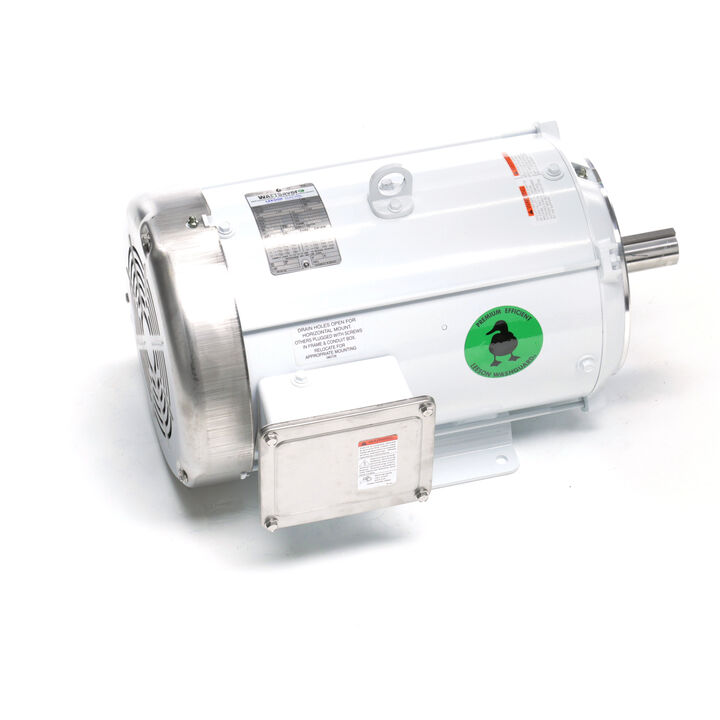

LEESON 140821.00 C215T17WK9A Washdown Motor 50-60 Hertz | AJ2TAU 48ZG14 / C215T17WK9A

LEESON 140821.00 C215T17WK9A General Purpose Motor, 10 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AJ2TAUModel: 140821.00Cross Ref: 48ZG14 / C215T17WK9A
Check Availability
In Stock

Get it by Tuesday, Dec 23

€3,113.54 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 104°F
Application Washdown
Assembly 210-010
Bearing Type Ball
Body Dia. 9.63"
Bolt Circle Dia. 7 1/4"
Cc Number CC005A
Code H
Color White
Conduit Box Location Exterior
Drive End Bearing Size 6209
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 91.7%
Enclosure Type Tefc
Finish Epoxy Coated
Frame 215TC
Frame Material Rolled Steel
Frame Type 215TC
Frequency 50/60 Hz
Frequency 60 Hz
Full Load Amps 26.8/13.4A
Grease Type Polyrex EM
Hp 10 hp
Hz 50/60 Hz
Ins. Class Class F
Insulation Class Class F
Kw 7.5 kW
Length Less Shaft 16 9/16"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.25
Motor Shaft Rotation CWSE
Motor Shaft Rotation Counter Clockwise Shaft End
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1765 RPM
Nema Design B
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 91.5%
Opp. Drive End Bearing Size 6206
Opp. Drive End Bearing Type Ball
Overall Length 19 11/16"
Packaging F
Phase 3
Power 7.5 kW
Power Factor 77
Product Type Washdown Brake Motor
Removable Base No
Rotation Reversible
Rpm 1700-1800 RPM
Service Factor 1.25
Shaft Dia. 1 3/8"
Shaft Length 3.38"
Standards Bissc, Ce, Csa, Ul
Thermal Protection None
Type TF
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V
Weight 179 lbs.

Shipping Info:

Ship weight (kg) 80.46
Ship height (cm)36.2
Ship length (cm)57.48
Ship width (cm)40.97
Country of OriginMX

Product Details:

    • Eff 100%: 91.7
    • Bearing OPE: 6206
    • CC Number: CC005A
    • Bearing PE: 6209
    • Winding: T9497
    • GROUP: 3
    • Paint: WHITE - LEESON (EPOXY)
    • S. F Amps: 32.4 / 16.2
