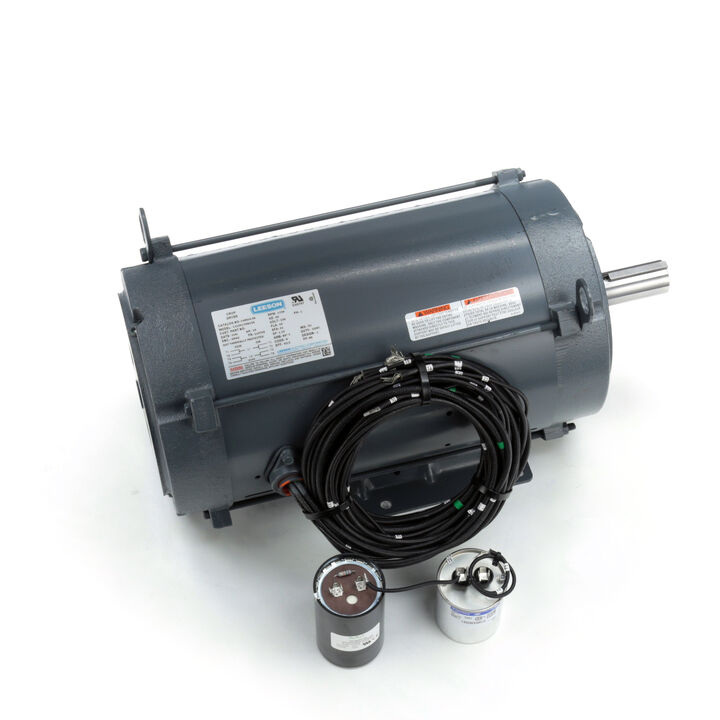

LEESON 140816.00 C215K17DB13A General Purpose Farm Duty Motor, 10 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Get it by Monday, Dec 22
€2,492.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 80°C |
| Code | G |
| Design | G, L |
| Drive End Bearing Size | 6307 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure Type | Odpao |
| Frame | 215TVZ |
| Frame Material | Rolled Steel |
| Frame Type | 215TVZ |
| Frequency | 60 Hz |
| Full Load Amps | 44A |
| Grease Type | DC 44M |
| Hp | 10 hp |
| Insulation Class | Class H |
| Kw | 7.5 kW |
| Motor Enclosure Design | Dripproof Air Over |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Poles | 4 |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 7.5 kW |
| Packaging | F |
| Phase | 1 |
| Power | 7.5 kW |
| Power Factor | 89 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Thermal Protection | None |
| Type | KD |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 67.5 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | US |
Product Details:
- S. F Amps: 51
- Eff 100%: 82.5
- Bearing OPE: 6206
- CC Number: EXEMPT
- Bearing PE: 6307
- Winding: BK104121
- GROUP: 2
- Paint: GRAY - LEESON (EPOXY)
Product Variants
| Product | Model | Hp | Full Load Amps | Efficiency | Power Factor | Output Kw | Motor Enclosure Design | Voltage | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

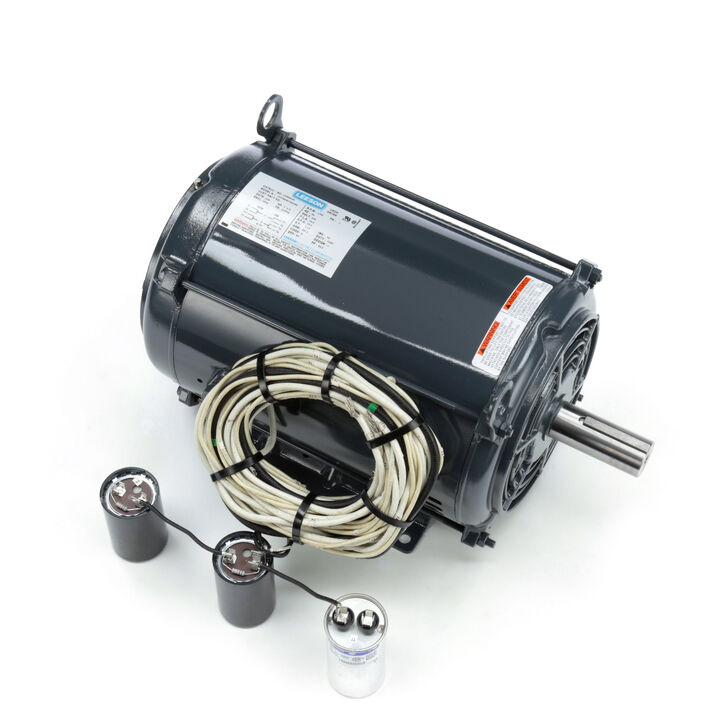

140830.00 | 7 1/2 hp | 34.5A | 84% | 85.5 | 5.6 kW | Dripproof Air Over | 230V | 1 | €1,671.94 |
