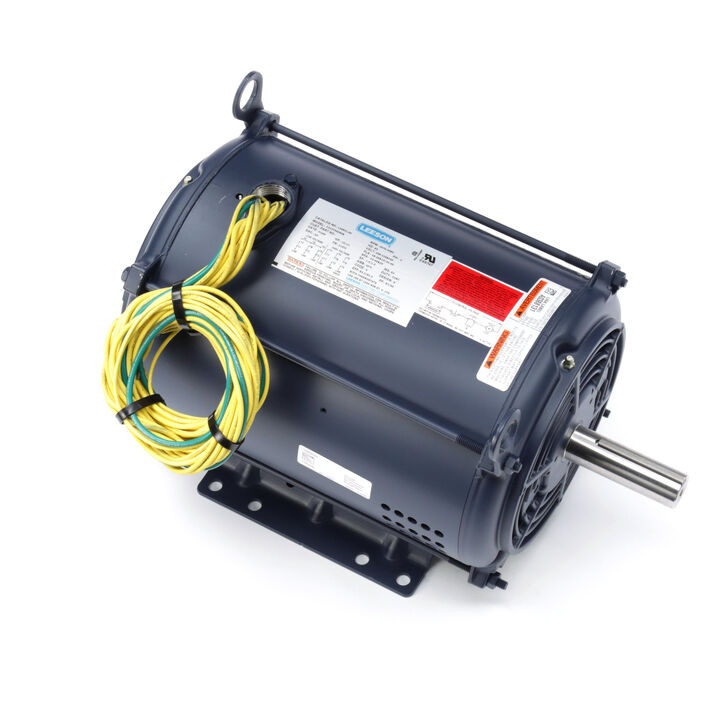

LEESON 140641.00 C215T34DB3B Crop Dryer Motor, 10/15 HP, 3 Phase, 60/60 Hz, 208-220/440 and 208-220/440V, 3600 RPM
Get it by Tuesday, Dec 23
€1,547.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | G |
| Design | B, G |
| Drive End Bearing Size | 307 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure Type | ODP |
| Frame | 215TZ |
| Frame Material | Rolled Steel |
| Frame Type | 215TZ |
| Frequency | 60 Hz |
| Full Load Amps | 26-28/13A |
| Hp | 10 hp |
| Insulation Class | Class B |
| Kw | 7.5 kW |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| No. Of Poles | 2 |
| Opp. Drive End Bearing Size | 206 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 7.5/11.2 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 87, 90 |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.5, 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 3.59" |
| Thermal Protection | Thermostat |
| Type | TD |
| Voltage | 208-220/440V |
Shipping Info:
| Ship weight (kg) | 51.3 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.7 |
| Country of Origin | MX |
Product Details:
- Bearing OPE: 206
- CC Number: EXEMPT
- Bearing PE: 307
- Nameplate: 92005
- Winding: K213279
- GROUP: 4
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 42-40 / 20
- Eff 100%: 85.5 / 81.5
