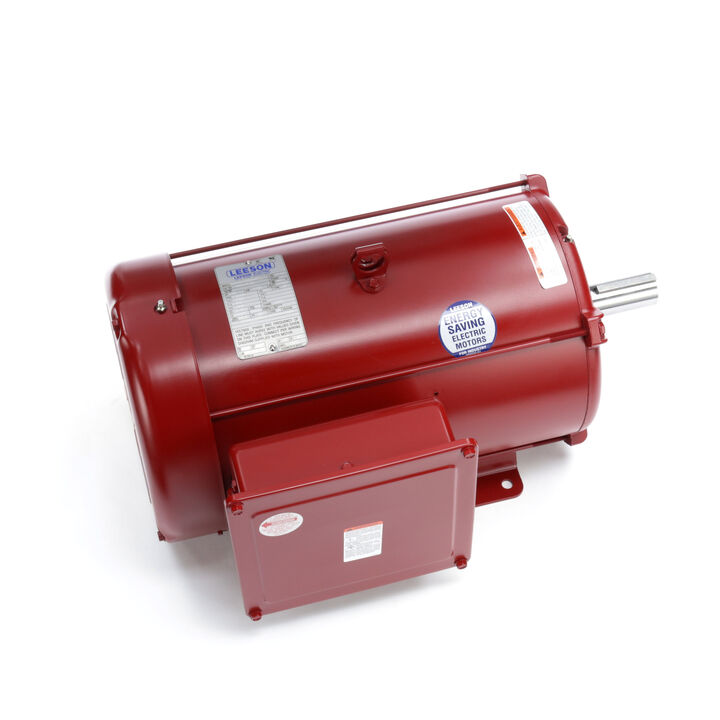

LEESON 140414.00 P215K17FB6H Agricultural Motor, 10 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Get it by Tuesday, Feb 17
€2,155.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Application | Farm Duty |
| Assembly | 210-005.02 |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Code | H |
| Drive End Bearing Size | 6207 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Type | Tefc |
| Finish | Enamel |
| Frame | 215T |
| Frame Material | Rolled Steel |
| Frame Type | 215T |
| Frequency | 60 Hz |
| Full Load Amps | 40A |
| Hp | 10 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 7.5 kW |
| Length Less Shaft | 17 5/16" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Thermal Protection | Manual |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| Nema Design | H |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 7.5 kW |
| Overall Length | 20 11/16" |
| Packaging | B |
| Phase | 1 |
| Power | 7.5 kW |
| Power Factor | 95 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Thermal Protection | Manual |
| Type | KF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 70.2 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 57.48 |
| Ship width (cm) | 40.97 |
| Country of Origin | MX |
Product Details:
- S. F Amps: 45
- Eff 100%: 86.5
- Bearing OPE: 6206
- CC Number: EXEMPT
- Bearing PE: 6207
- Nameplate: 081285.02
- Winding: K9427
- GROUP: 2
- Paint: RED - LEESON FARM DUTY
