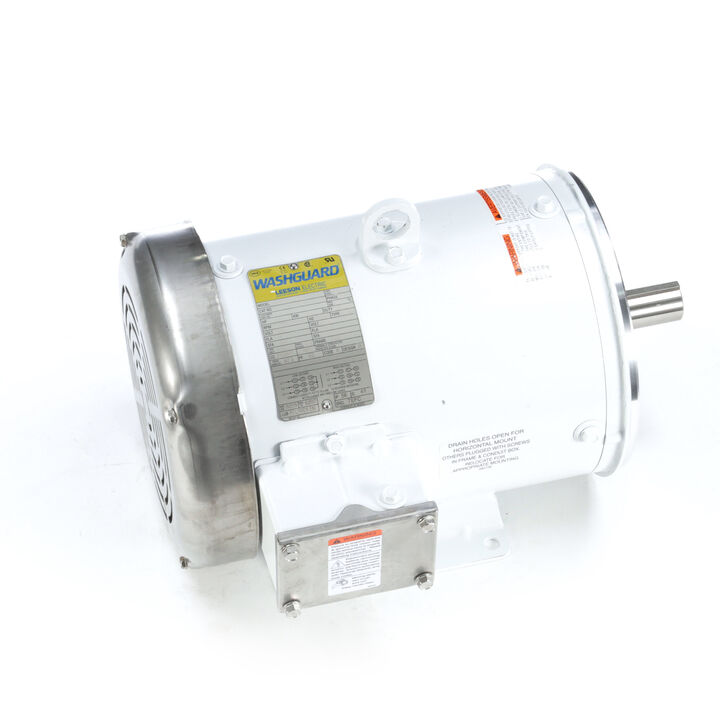

LEESON 132563.00 Washdown Motor, 3-Phase, 1 1/2 HP, 1, 170 Nameplate RPM, 230/460VAC, 182TC | CR8PUM 61KJ25

LEESON 132563.00 C182T11WK1A General Purpose Motor, 1.50 HP, 3 Phase, 60 Hz, 230/460V, 1200 RPM

Item: CR8PUMModel: 132563.00Cross Ref: 61KJ25 / C182T11WK1A
Check Availability
In Stock

Get it by Monday, Dec 22

€2,647.58
10.00% off
€2,382.82 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 40°C
Bearing Type Ball
Body Dia. 8 1/2"
Bolt Circle Dia. 7 1/4"
Conduit Box Location Exterior
Drain Plug Location Conduit Box
Drain Plugs (1) Drain Plugs In Conduit Box
Drive End Bearing Size 6207
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 87.5%
Enclosure Type Tefc
Endshield Material Steel
Finish Epoxy Painted
Frame 182TC
Frame Material Rolled Steel
Frame Type 182TC
Frequency 60 Hz
Full Load Amps 2.6A
Hp 1 1/2 hp
Hz 60 Hz
Ins. Class Class F
Insulation Class Class F
Kw 1.1 kW
Length Less Shaft 12 1/16"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.2
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Type Three Phase
Mounting Stud Length 6 1/2"
Mounting Type Rigid Base
Nameplate Rpm 1170 RPM
No. Of Drain Plugs 1
No. Of Poles 6
No. Of Speeds 1
Nominal Efficiency 87.5%
Opp. Drive End Bearing Size 6205
Opp. Drive End Bearing Type Ball
Overall Length 15"
Phase 3
Product Type Washdown Motor
Rpm 1100-1200 RPM
Service Factor 1.2
Shaft Dia. 1 1/8"
Shaft Length 2 22/25"
Shaft Material Stainless Steel
Standards Bissc Approved, Ce, Csa Certified, Ul Recognized
Stud Length 6 1/2"
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V
Weight 89 lbs.

Shipping Info:

Ship weight (kg) 40.05
Ship height (cm)32.23
Ship length (cm)45.57
Ship width (cm)33.17
Country of OriginUS

Product Variants

ProductModelVoltageNameplate RpmHpFull Load AmpsService FactorPhaseMounting TypeMotor TypePrice
LEESON 116466.00 Washdown Brake Motor, 3-Phase, 1/3 HP, 1, 725 Nameplate RPM, 208-230/460VAC, 56C | CR8PMF 48ZF09 116466.00208-230/460V1725 RPM33/100 hp0.65A1.153Face/BaseThree Phase€1,321.26
LEESON 122197.00 Washdown Brake Motor, 3-Phase, 2 HP, 1, 745 Nameplate RPM, 208-230/460VAC, 145TC | CR8PMG 48ZF15 122197.00208-230/460V1745 RPM2 hp2A1.153Rigid BaseThree Phase€2,541.76
LEESON 141427.00 Washdown Brake Motor, 3-Phase, 7 1/2 HP, 1, 750 Nameplate RPM, 230/460VAC, 215TZ | CR8PMH LM24804 141427.00230V1750 RPM7 1/2 hp26.4/13.2A1.153Rigid BaseThree Phase€1,864.33
LEESON 119458.00 Washdown Jet Pump Motor, 3-Phase, 1 1/2 HP, 3, 490 Nameplate RPM, 208-230/460VAC, 56J | CR8PPQ 48ZF59 119458.00208-230/460V3490 RPM1 1/2 hp4.4-4/2A1.153Face/BaseThree Phase€1,533.65
LEESON 119462.00 Washdown Jet Pump Motor, 3-Phase, 3 HP, 3, 490 Nameplate RPM, 208-230/460VAC, 56J | CR8PPR 48ZF66 119462.00208-230/460V3490 RPM3 hp8.8-8/4A1.153FaceThree Phase€1,599.38
LEESON 141358.00 Washdown Pump Motor, 3-Phase, 10 HP, 3, 495 Nameplate RPM, 230/460VAC, 213JM | CR8PPT 798GD5 141358.00230/460V3495 RPM15 hp35/17.6A1.153Rigid BaseThree Phase€5,484.32
LEESON 141275.00 Washdown Pump Motor, 3-Phase, 10 HP, 3, 525 Nameplate RPM, 230/460VAC, 215JM, 141275.00 | CR8PPU 798GE3 141275.00230/460V3525 RPM10 hp23.6/11.8A1.153Rigid BaseThree Phase€7,441.39
