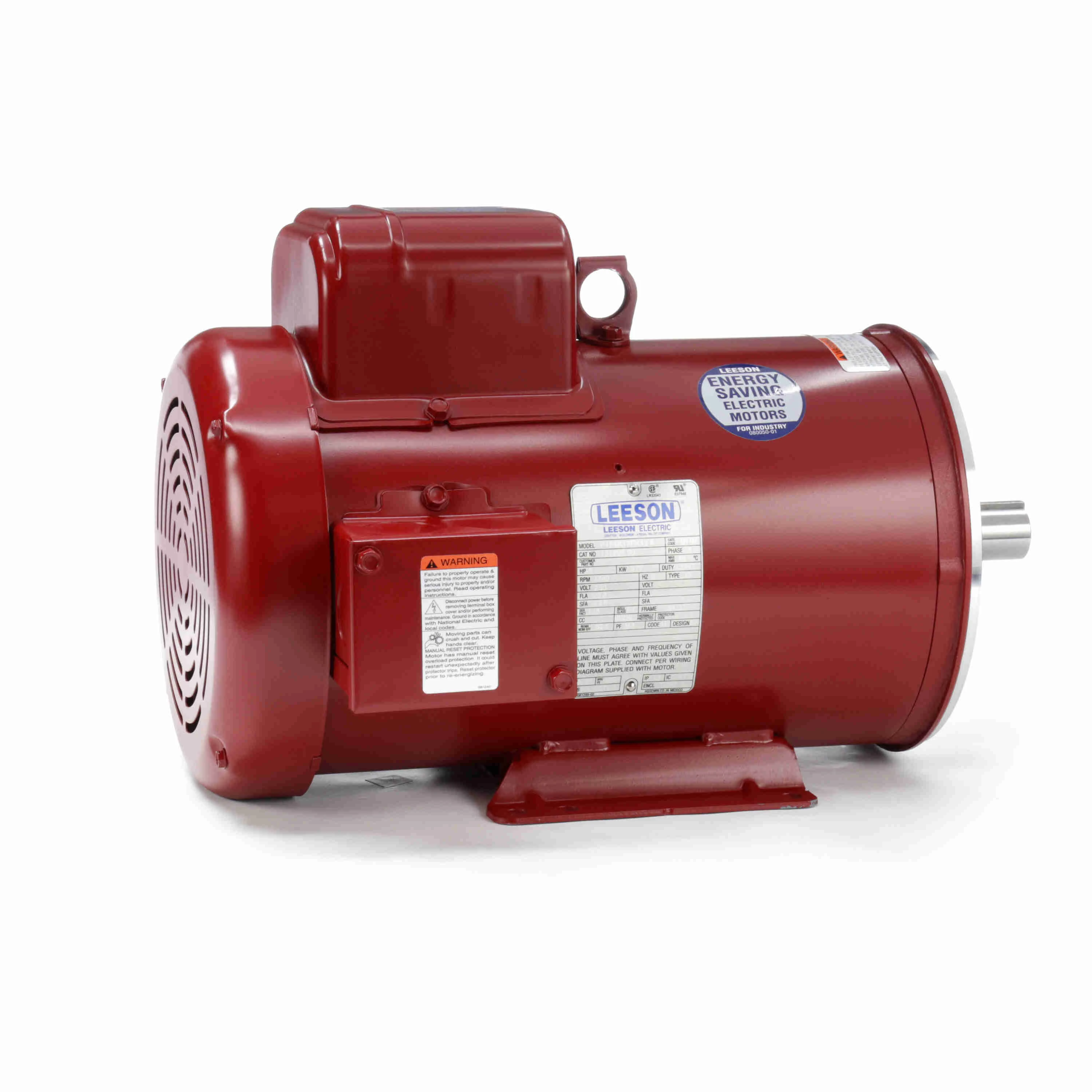

LEESON 131995.00 P184K17FK13A Agricultural Motor, 5 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Get it by Wednesday, Dec 24
€1,432.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Code | H |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure Type | Tefc |
| Frame | 184TC |
| Frame Material | Rolled Steel |
| Frame Type | 184TC |
| Frequency | 60 Hz |
| Full Load Amps | 20.5A |
| Grease Type | Polyrex EM |
| Hp | 5 hp |
| Insulation Class | Class F |
| Kw | 3.7 kW |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | L |
| No. Of Poles | 4 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 3.7 kW |
| Packaging | B |
| Phase | 1 |
| Power | 3.7 kW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | Manual |
| Type | KF |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 45 |
| Ship height (cm) | 31.45 |
| Ship length (cm) | 51.13 |
| Ship width (cm) | 37.16 |
| Country of Origin | MX |
Product Details:
- S. F Amps: 23.6
- Eff 100%: 82.5
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6206
- Nameplate: 081285
- Winding: K8483
- GROUP: 2
- Paint: RED - LEESON FARM DUTY
