LEESON 131638.00 C184K28FB2C Special Voltage Motor, 5 HP, 1 Phase, 50 Hz, 220V, 3000 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,725.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 50 Hz Motor |
| Application | General Application |
| Bearing Type | Ball |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 81.5% |
| Enclosure Type | Tefc |
| Frame Material | Rolled Steel |
| Frame Type | 184T |
| Frequency | 50 Hz |
| Full Load Amps | 20.5A |
| Full Load Amps @ 50hz | 20.5A |
| Full Load Efficiency | 81.5% |
| Hp | 5 hp |
| Hp @ 50hz | 5 hp |
| Hz | 50 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 3.7 kW |
| Length Less Shaft | 14 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 2875 RPM |
| Nema Design | None |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 17 7/16" |
| Phase | 1 |
| Rpm | 2875 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 220V |
| Weight | 101 lbs. |
Shipping Info:
| Ship weight (kg) | 45.45 |
| Ship height (cm) | 31.45 |
| Ship length (cm) | 51.13 |
| Ship width (cm) | 37.16 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Thermal Protection | Motor Type | Frame | Overall Length | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110064.00 | 110/220V | 1/2 hp | 1425 RPM | No Protection | Capacitor Start | 56 | 11 1/2" | Rolled Steel | €674.69 | |
 |
110066.00 | 110/220V | 1 hp | 1425 RPM | No Protection | Capacitor Start | 56H | 13" | Rolled Steel | €1,475.47 | |
 |

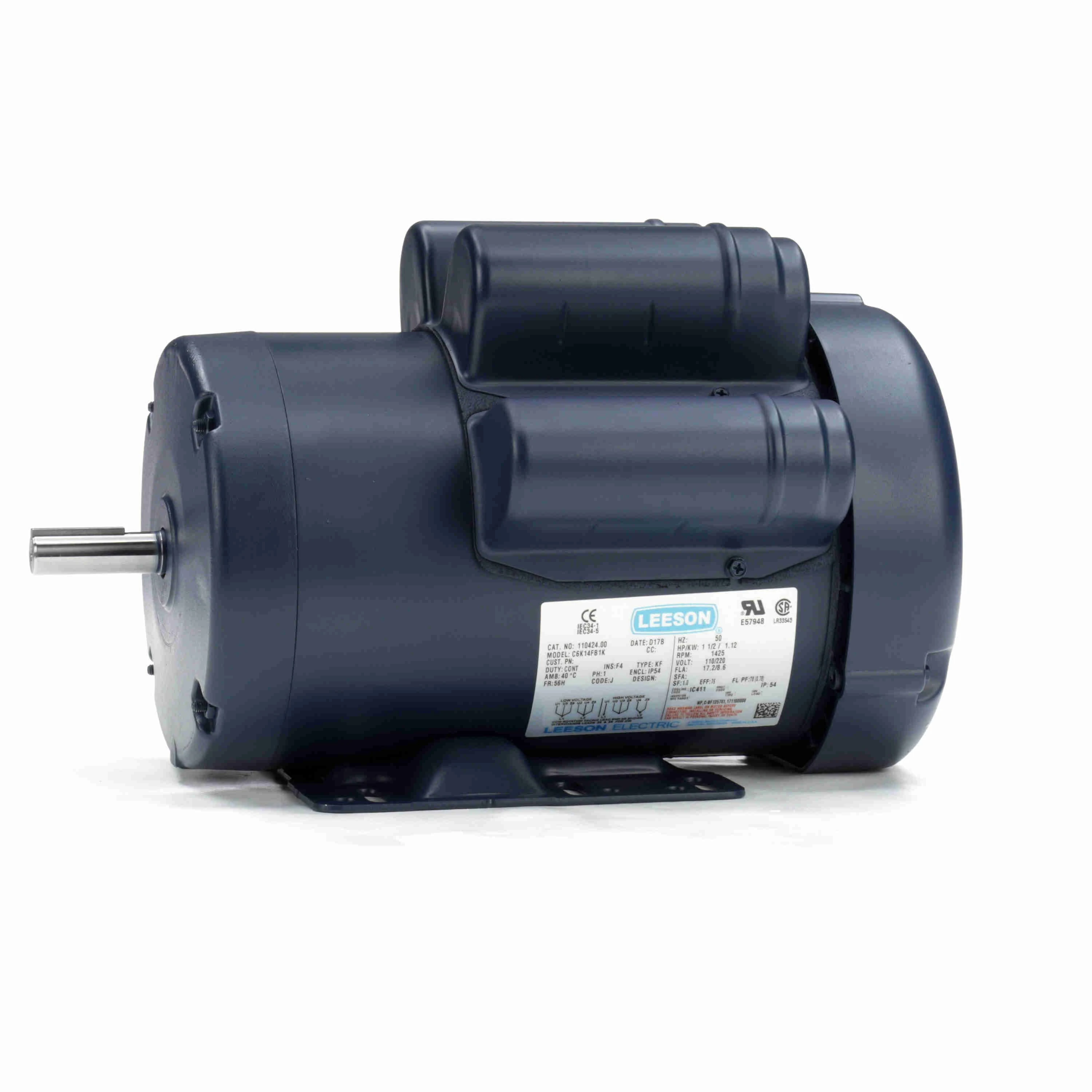

110424.00 | 110/220V | 1 1/2 hp | 1425 RPM | No Protection | Capacitor Start | 56H | 13 1/2" | Rolled Steel | €1,050.53 | |
 |
113908.00 | 110/220V | 33/100 hp | 1425 RPM | Manual | - | 56 | 11" | Rolled Steel | €858.38 | |
 |
113910.00 | 110/220V | 3/4 hp | 1425 RPM | Manual | Capacitor Start | 56 | 11 1/2" | Rolled Steel | €773.72 | |
 |
113911.00 | 110/220V | 1 hp | 1425 RPM | Manual | Capacitor Start | 56 | 12 1/2" | Rolled Steel | €1,442.65 | |
 |

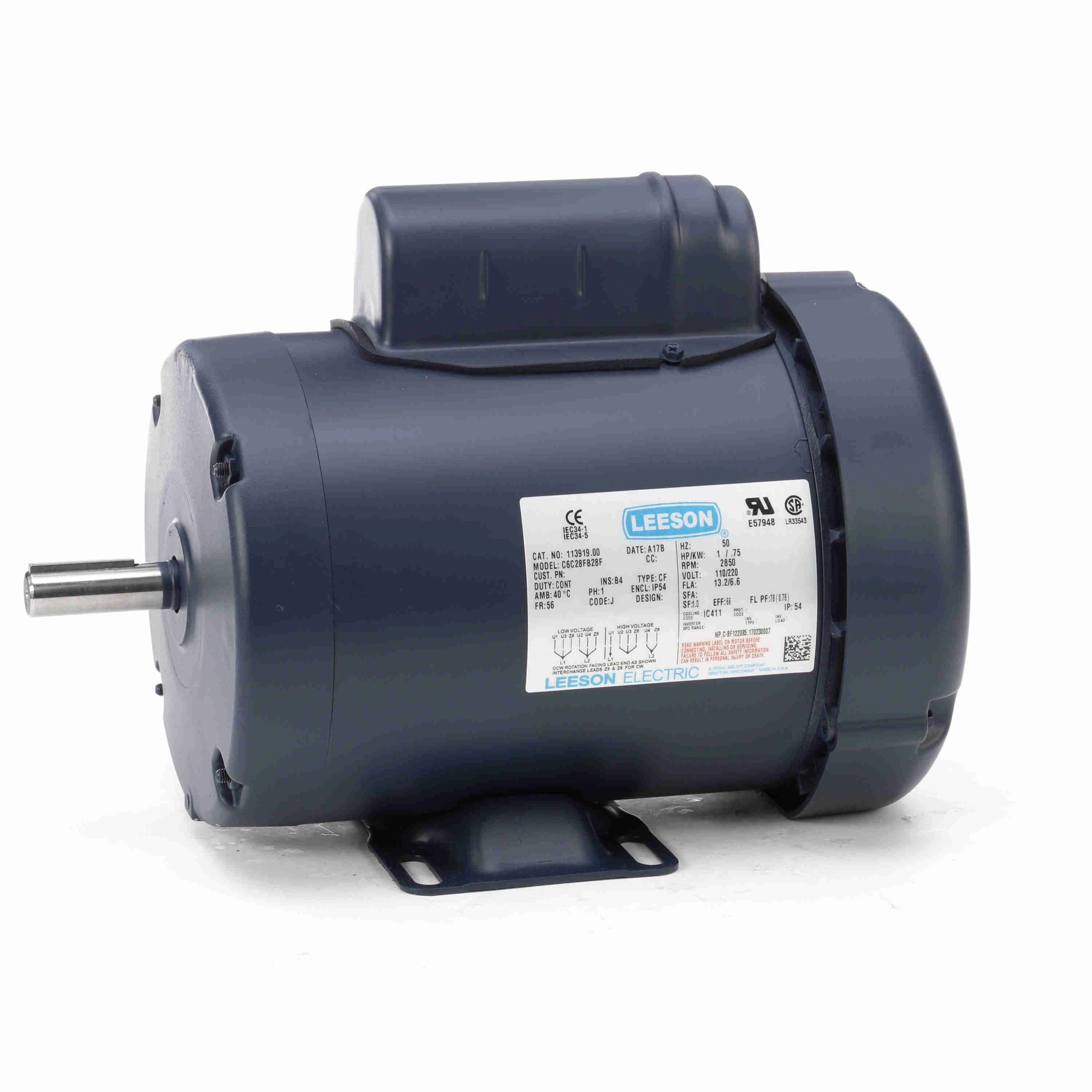

113919.00 | 110/220V | 1 hp | 2850 RPM | No Protection | Capacitor Start | 56 | 12" | Rolled Steel | €632.90 |
