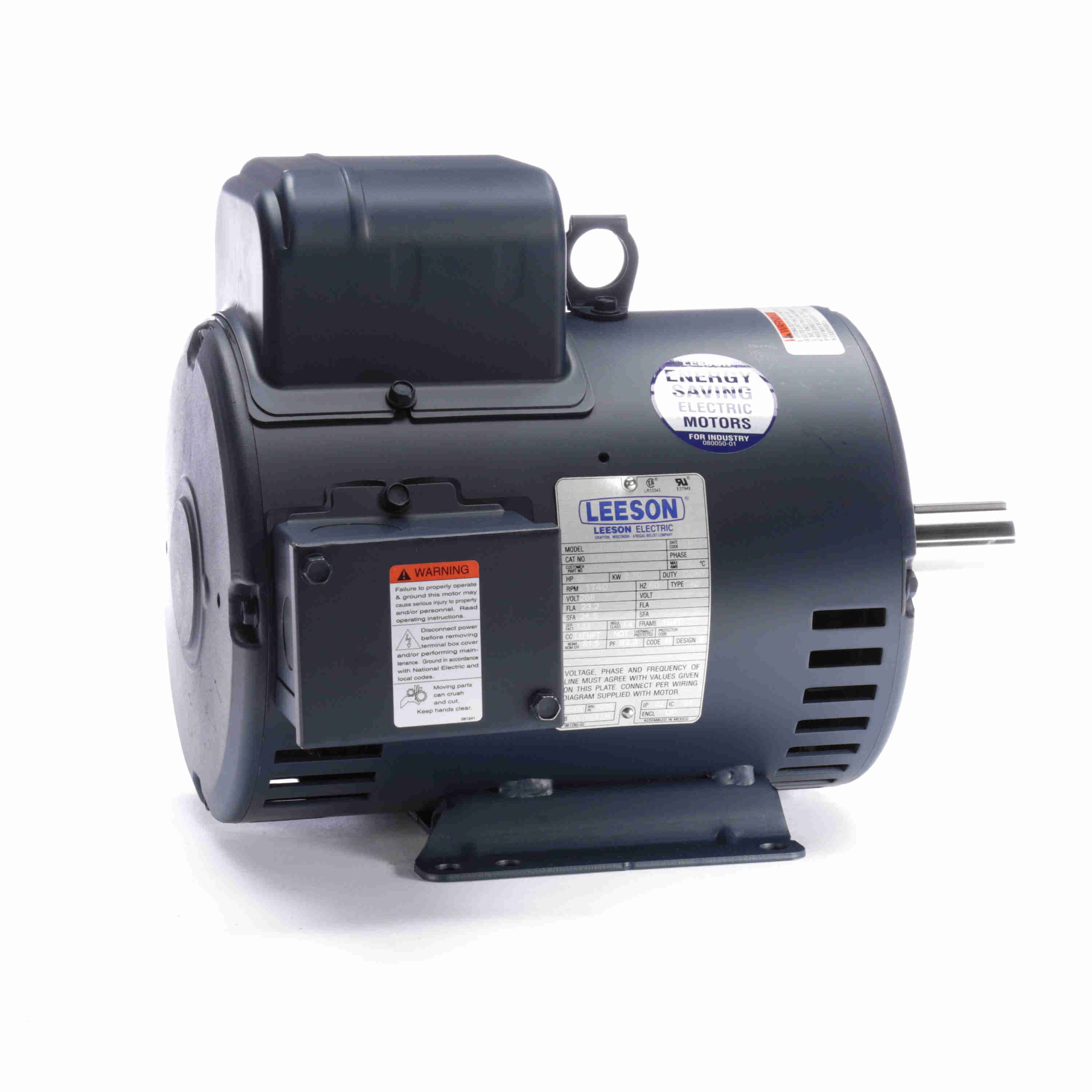

LEESON 131560.00 C184K17DB32A General Purpose Motor, 5 HP, 1 Phase, 60 Hz, 208V, 1800 RPM
Get it by Tuesday, Dec 23
€890.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Assembly | 180-006 |
| Code | H |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 81.5% |
| Enclosure Type | ODP |
| Frame | 184T |
| Frame Material | Rolled Steel |
| Frame Type | 184T |
| Frequency | 60 Hz |
| Full Load Amps | 23.2A |
| Grease Type | Polyrex EM |
| Hp | 5 hp |
| Insulation Class | Class F |
| Kw | 3.7 kW |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | H, L |
| No. Of Poles | 4 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 3.7 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 92.3 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Type | KD |
| Voltage | 208V |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
Product Details:
- S. F Amps: 26.5
- Eff 100%: 81.5
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6206
- Nameplate: 080032
- Winding: K8450
- GROUP: 4
- Paint: BLUE - LEESON (ENAMEL)
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Motor Type | Service Factor | Frame | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

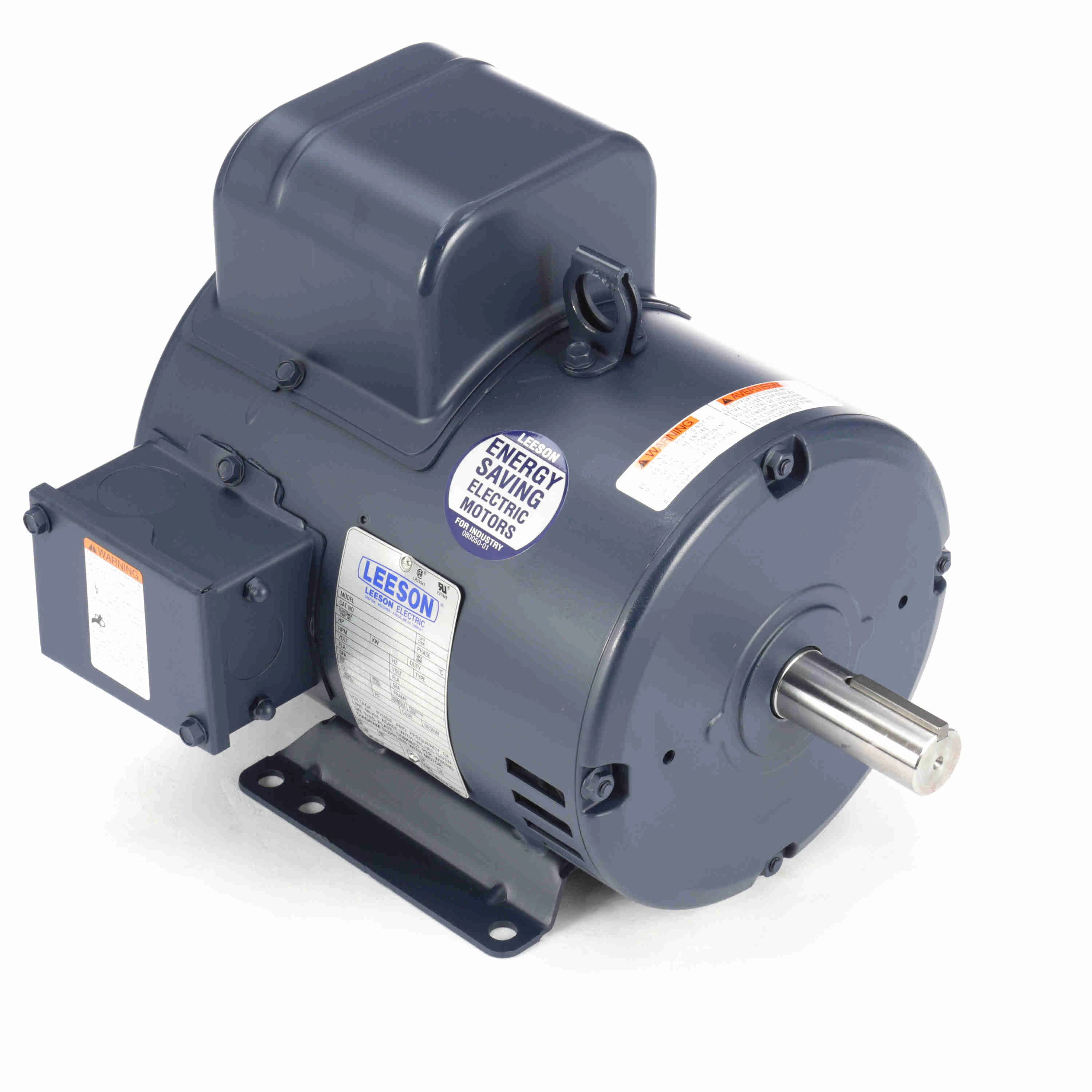

131530.00 | 115V | 1800 RPM | 3 hp | 33.8/16.9A | Capacitor Start | 1.15 | 184T | Class F | €999.79 | |
 |

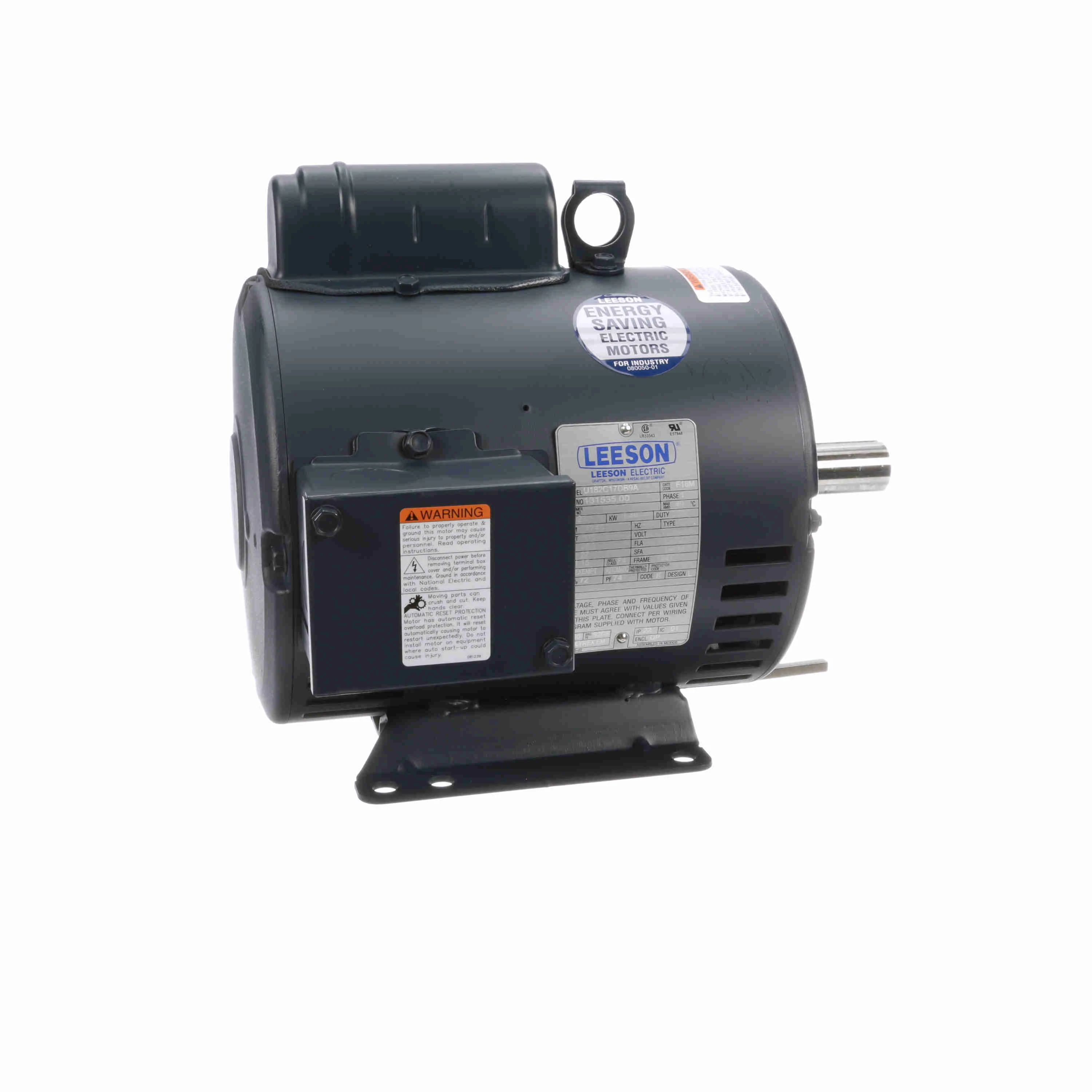

131535.00 | 115/208-230V | 1800 RPM | 2 hp | 24.5/13-12.4A | Capacitor Start/Run | 1.15 | 182T | Class F | €805.01 | |
 |

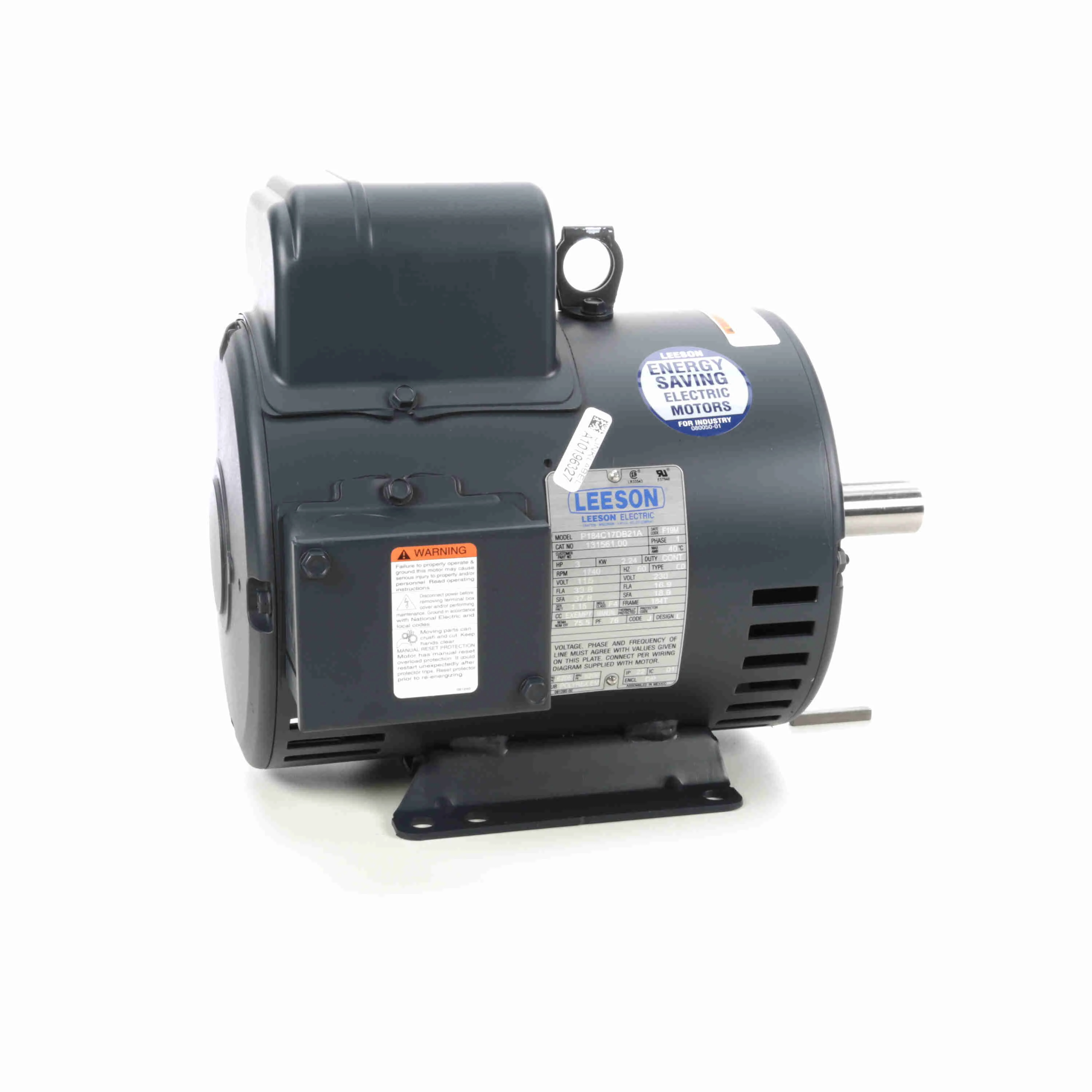

131561.00 | 115-230V | 1800 RPM | 3 hp | 33.8/16.9A | Capacitor Start/Run | 1.15 | 184T | Class F | €967.42 | |
 |

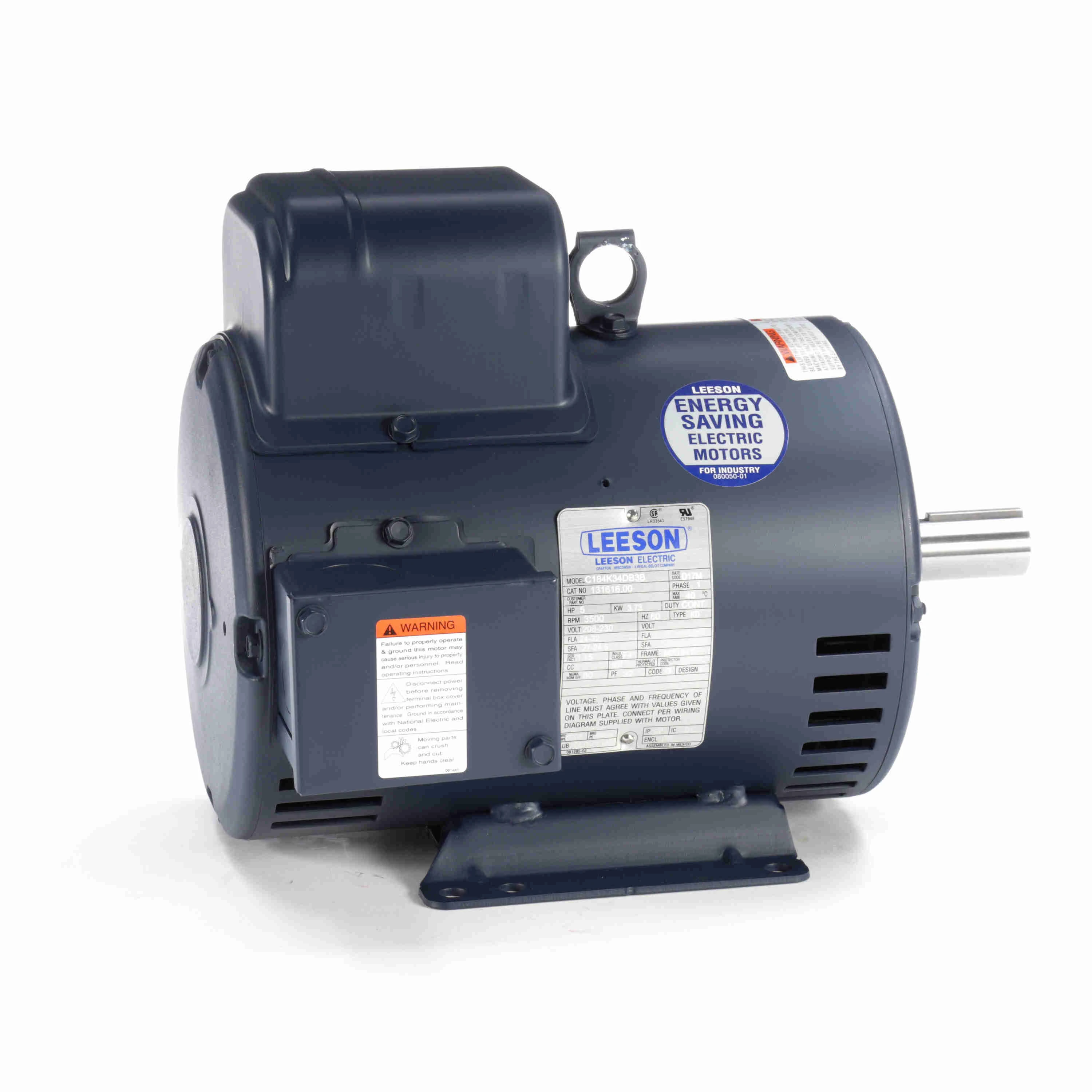

131616.00 | 208-230V | 3600 RPM | 5 hp | 22-24A | Capacitor Start/Run | 1.15 | MX184T | Class F | €1,044.75 | |
 |

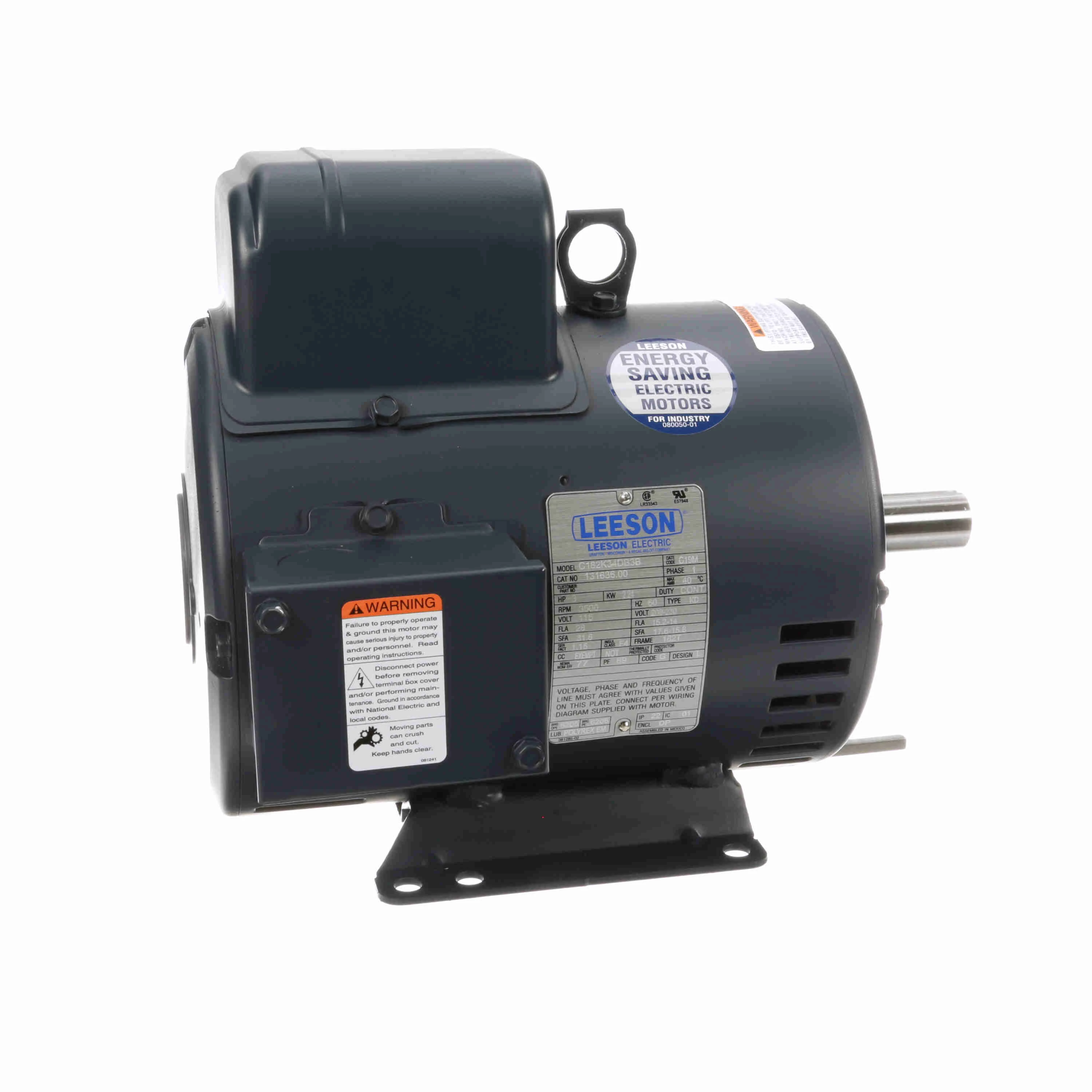

131636.00 | 115/208-230V | 3600 RPM | 3 hp | 28/15.2-14A | Capacitor Start/Run | 1.15 | 182T | Class F | €869.22 | |
 |

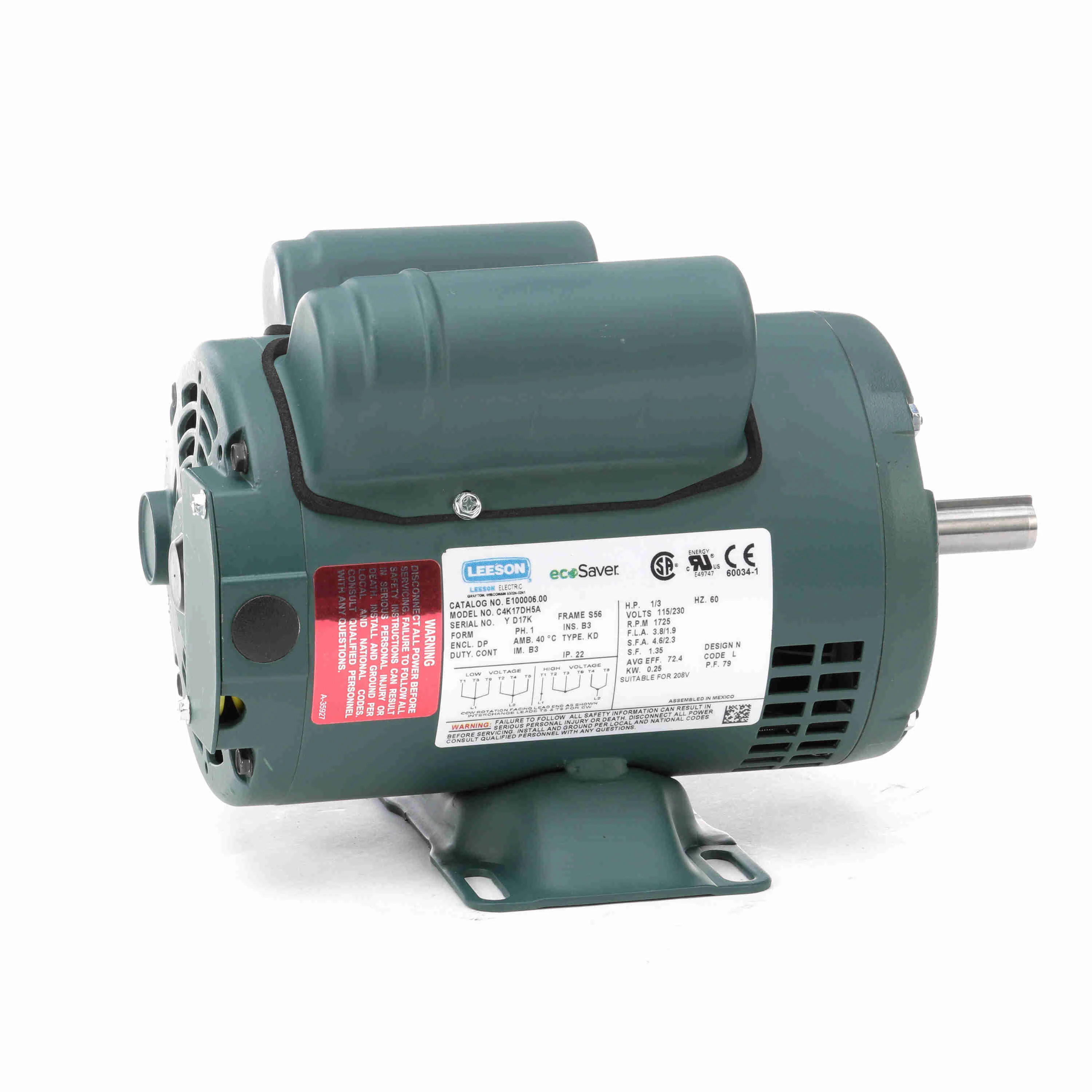

E100006.00 | 115/230V AC | 1800 RPM | 33/100 hp | 3.8/1.9A | Capacitor Start/Run | 1.35 | S56 | Class B | €814.98 | |
 |
E100116.00 | 115/230V AC | 1800 RPM | 33/100 hp | 3.8/1.9A | Capacitor Start/Run | 1.35 | 48 | Class F | €602.01 |
