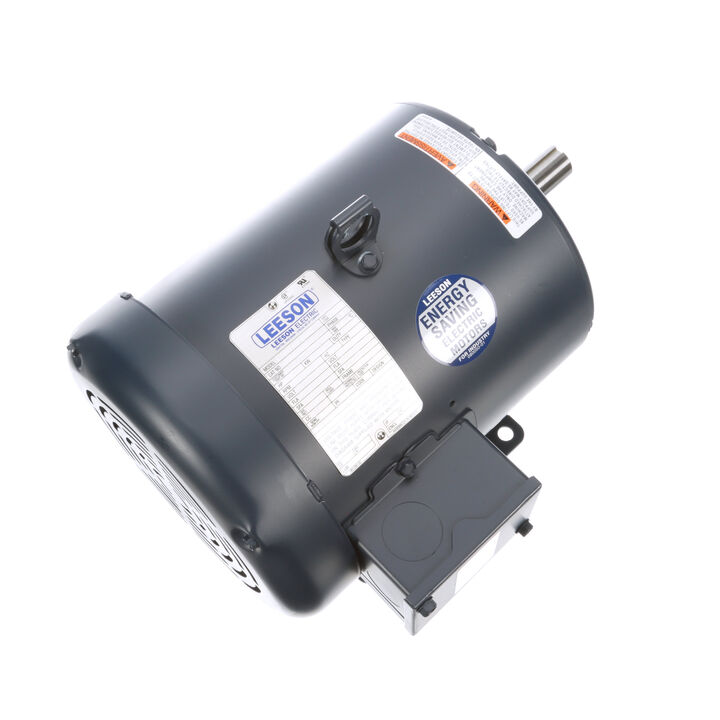

LEESON 131471.00 C184T48FB64C Fan and Blower Motor, 2 and 1 HP, 3 Phase, 60 Hz, 460V, 1800 and 1800 RPM
Get it by Monday, Dec 22
€1,584.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | H |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Enclosure Type | Tefc |
| Frame | 184T |
| Frame Material | Rolled Steel |
| Frame Type | 184T |
| Frequency | 60 Hz |
| Full Load Amps | 2.9A |
| Grease Type | Polyrex EM |
| Hp | 2 hp |
| Insulation Class | Class F |
| Kw | 1.5 kW |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B, H |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49/0.75 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 88.6, 49.5 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | None |
| Type | TF |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 31.95 |
| Ship height (cm) | 34.14 |
| Ship length (cm) | 46.51 |
| Ship width (cm) | 34.29 |
| Country of Origin | MX |
Product Details:
- Bearing OPE: 6205
- Bearing PE: 6206
- Nameplate: 004001
- Winding: T8(4-8)2
- GROUP: 2
- Paint: BLUE - LEESON (ENAMEL)
- Eff 100%: 80 / 64
Product Variants
| Product | Model | Hp | Full Load Amps | Frame | Shaft Dia. | Shaft Length | Power Factor | Nema Design | Output Kw | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

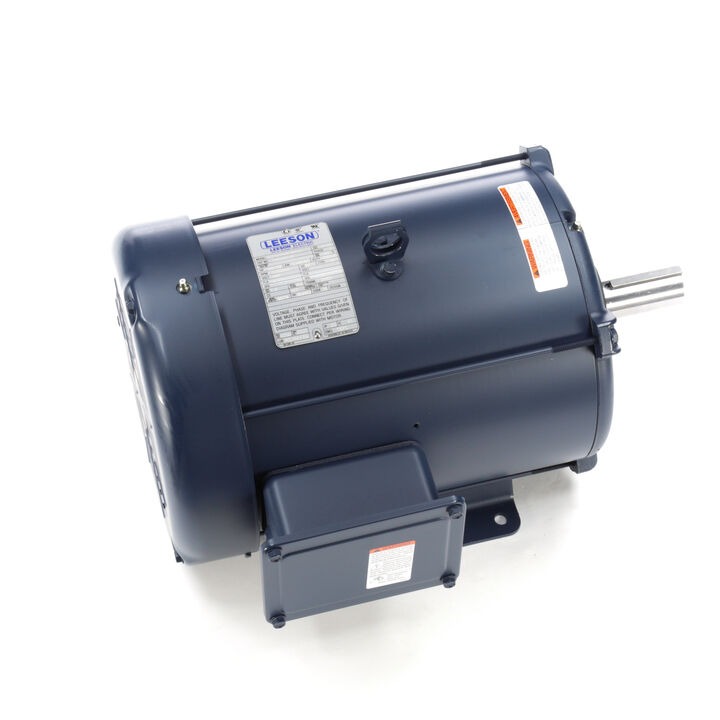

140445.00 | 5 hp | 6.7/7A | 215T | 1 3/8" | 3.38" | 88.8, 48.8 | H | 3.7/1.87 kW | €2,348.68 |
