LEESON 122330.00 C145T17WK65A General Purpose Motor, 2 HP, 3 Phase, 60 Hz, 575V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€2,132.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°F |
| Amps | 2.3A |
| Application | Washdown |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 7.3" |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drain Plug | (1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Finish | Unfinished |
| Frame | 145TC |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 2.3A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 13/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°F |
| Max. Rpm | 1745 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 15/16" |
| Packaging | B |
| Phase | 3 |
| Power | 1.49 kW |
| Power Factor | 75.6 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Resistance Main | 9.76 ohms |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Material | Stainless Steel |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 575V |
| Weight | 45 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- S. F Amps: 2.6
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: 081362
- Winding: T634340
- GROUP: 4
- Paint: WHITE - LEESON (EPOXY)
Product Variants
| Product | Model | Hp | Nameplate Rpm | Frame | Motor Mounting Type | Full Load Amps | Ambient Temp. | Shaft Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

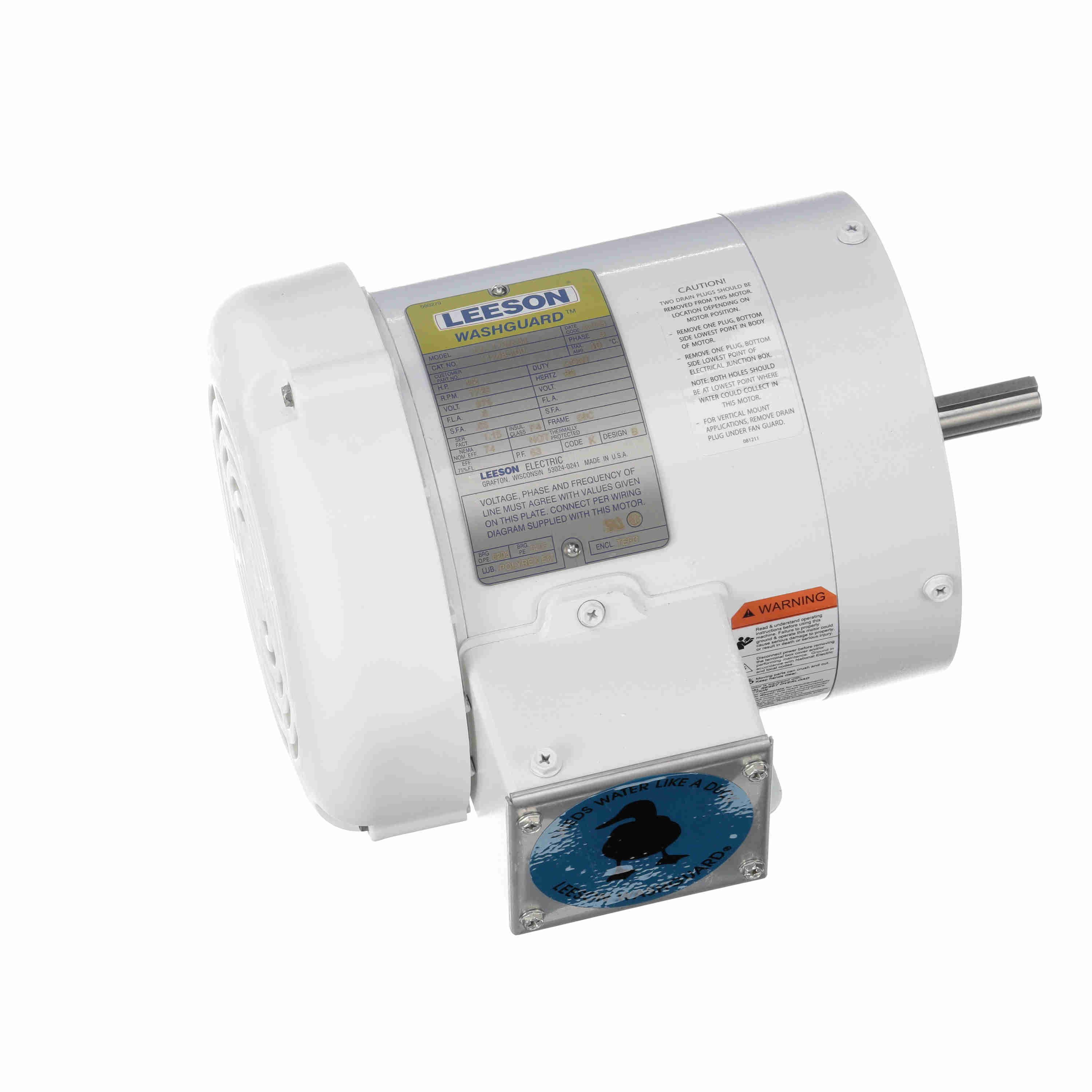

112483.00 | 1/2 hp | 1725 RPM | 56C | Face, Base | 0.8A | 104°F | 5/8" | 10 5/8" | €669.17 |
