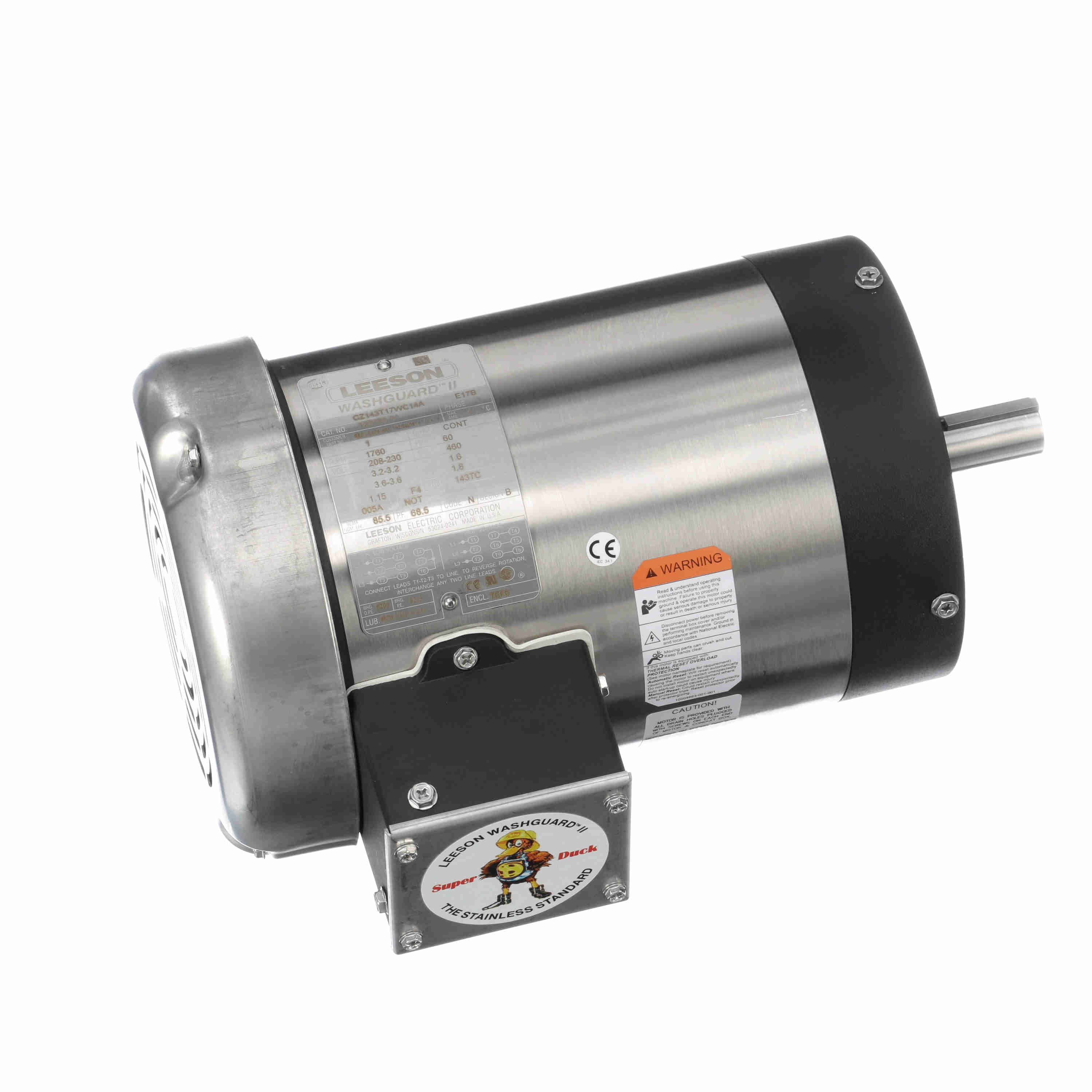

LEESON 122198.00 CZ143T17WC14A General Purpose Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Monday, Jul 6
€1,107.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 3.2/1.6A |
| Assembly | 42507 |
| Code | N |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Frame | 143TC |
| Frame Length | 7" |
| Frame Material | Stainless Steel |
| Frame Type | 143TC |
| Frequency | 60 Hz |
| Full Load Amps | 3.2/1.6A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | No |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Max. Speed | 1760 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Round |
| Nameplate Speed | 1800 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 68.5 |
| Product Datasheet | leeson-122198-00.pdf |
| Resistance Main | 12.96 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 3/25" |
| Shaft Type | T |
| Speed | 1700-1800 RPM |
| Starting Method | Line Or Inverter |
| Thermal Protection | Thermostat |
| Type | TF |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 121109.00
- Eff 100%: 85.5
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: 080502
- Winding: T634342
- GROUP: 3
- S. F Amps: 3.6-3.6 / 1.8
Documentation:
Product Variants
| Product | Model | Hp | Frame | Full Load Amps | Ambient Temp. | Motor Type | Type | Shaft Dia. | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

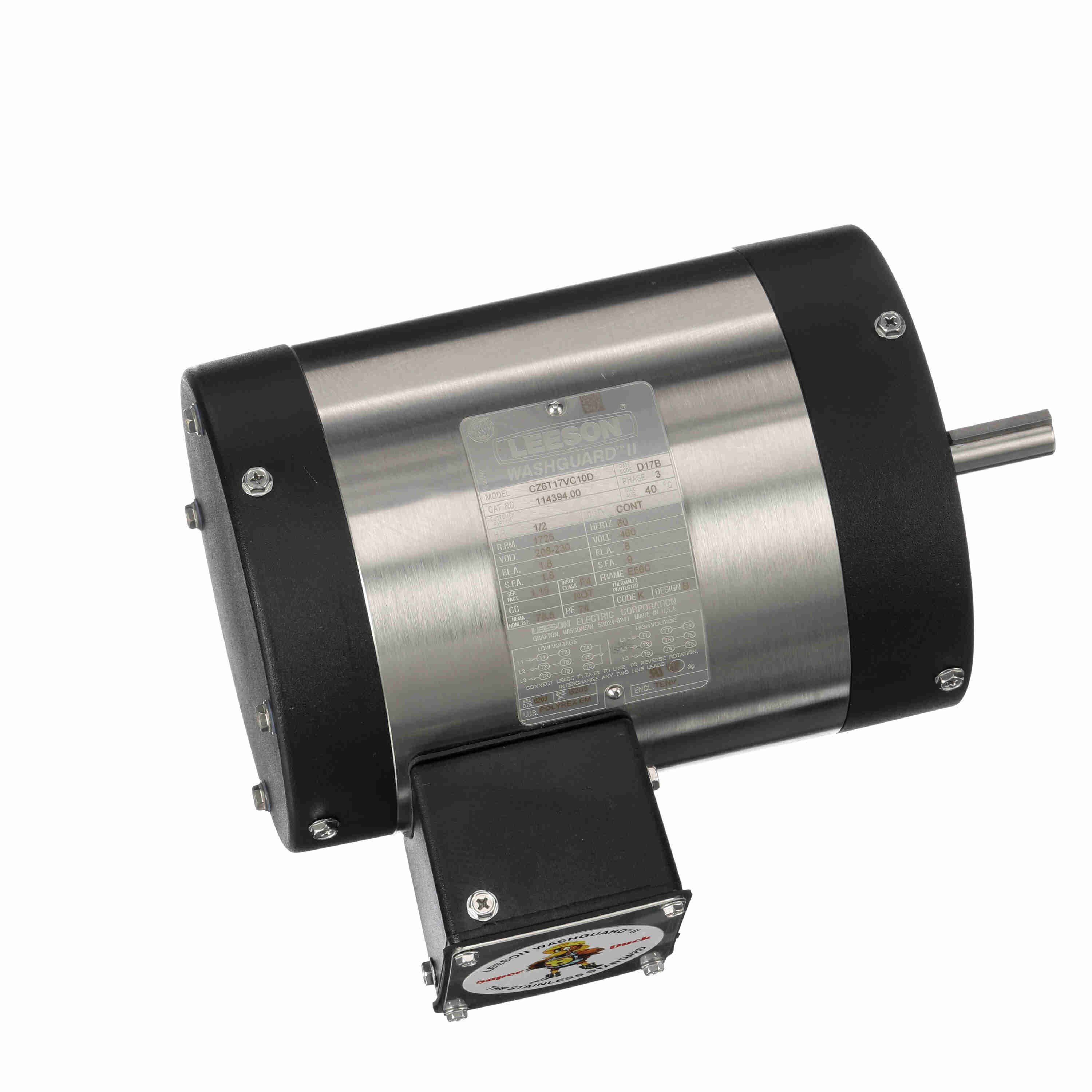

114394.00 | 1/2 hp | 56C | 1.6/0.8A | 40°C | Squirrel Cage Induction Run | TN | 5/8" | 74 | €1,427.04 | |
 |

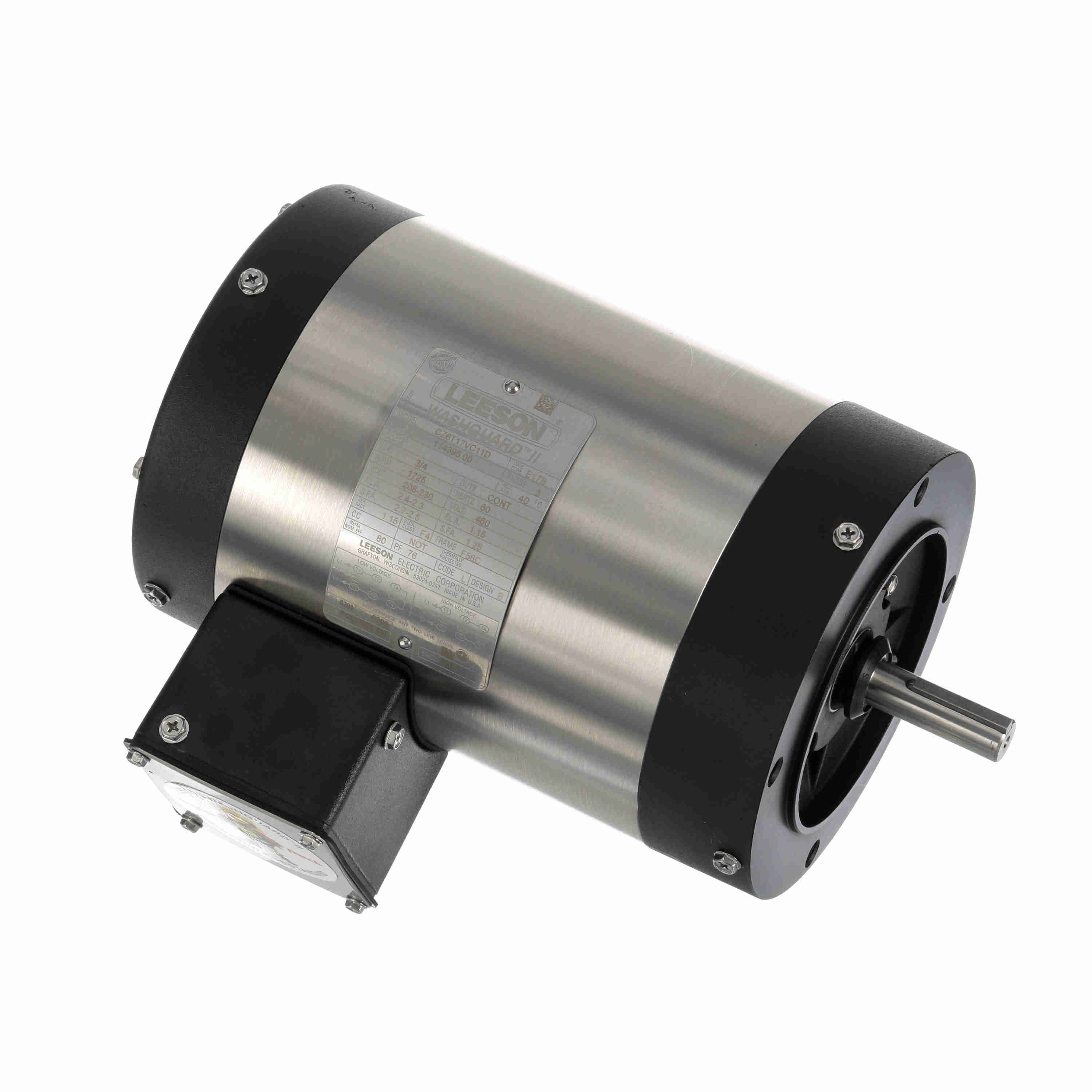

114395.00 | 3/4 hp | F56C | 2.4-2.3/1.15A | 40°C | Squirrel Cage Inverter Rated | TN | 5/8" | 76 | €877.72 | |
 |

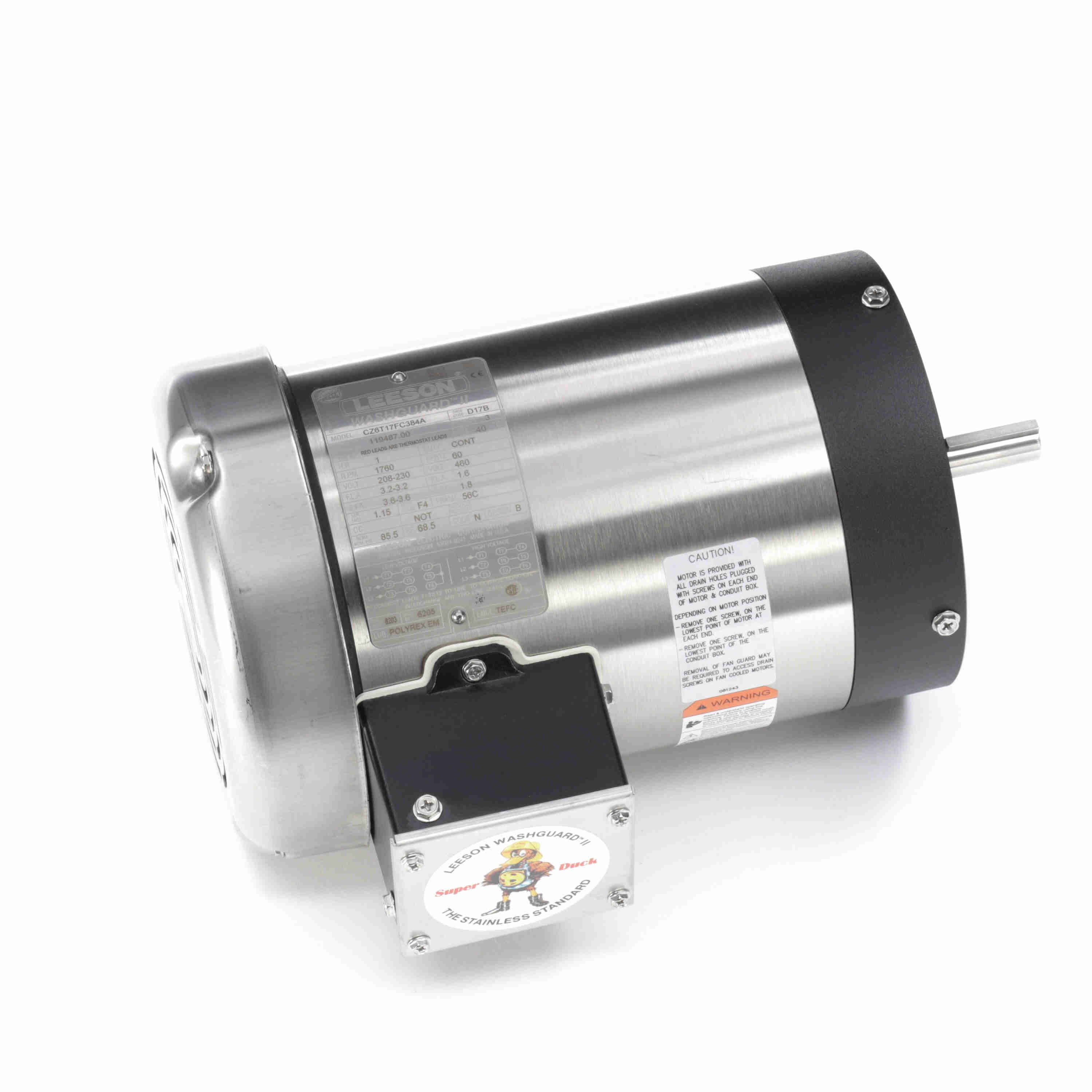

119487.00 | 1 hp | 56C | 3.2/1.6A | 104°F | Three Phase | TF | 5/8" | 68.5 | €1,107.90 | |
 |

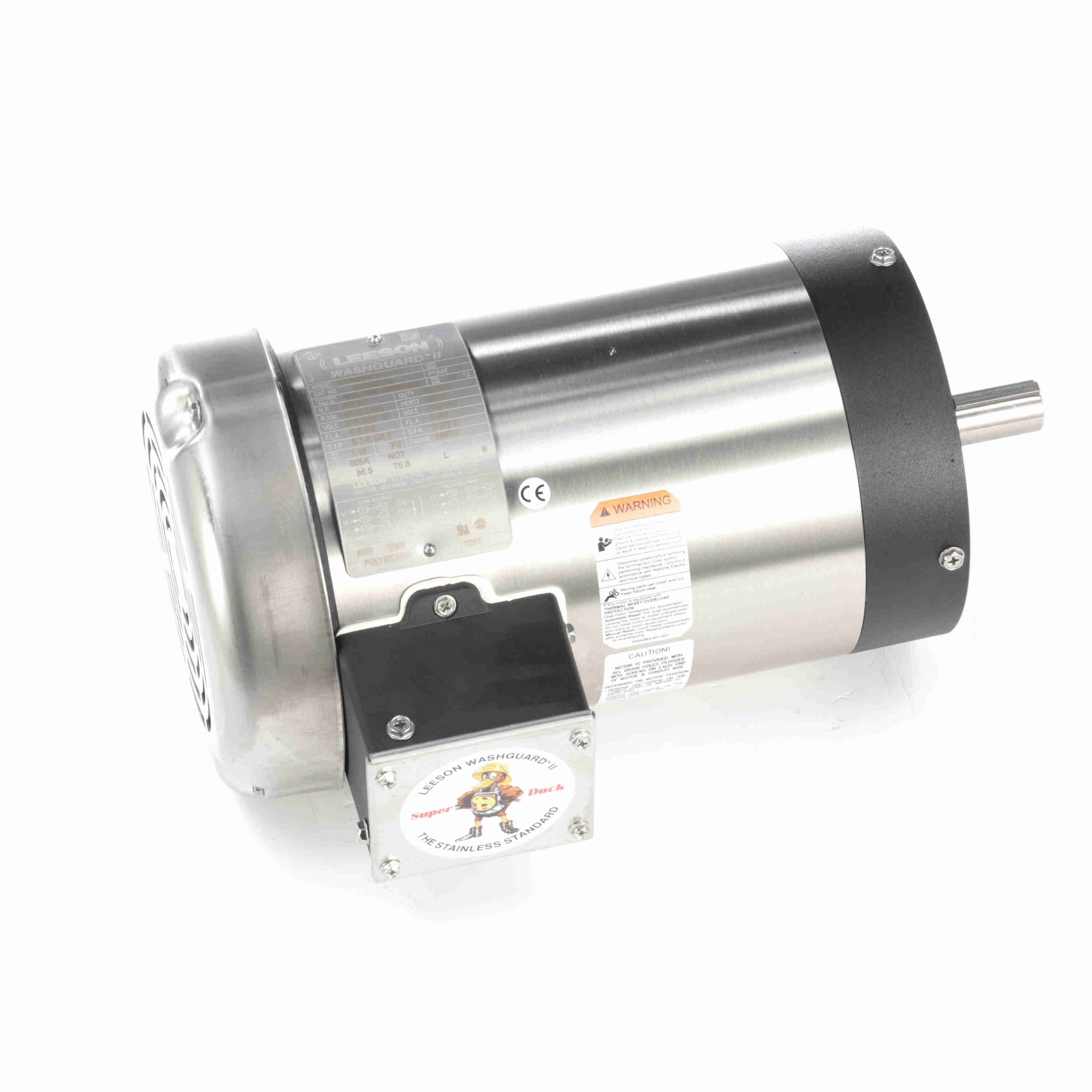

122200.00 | 2 hp | 145TC | 6-5.8/2.9A | 40°C | Squirrel Cage Inverter Rated | TF | 7/8" | 75.6 | €2,511.98 |
