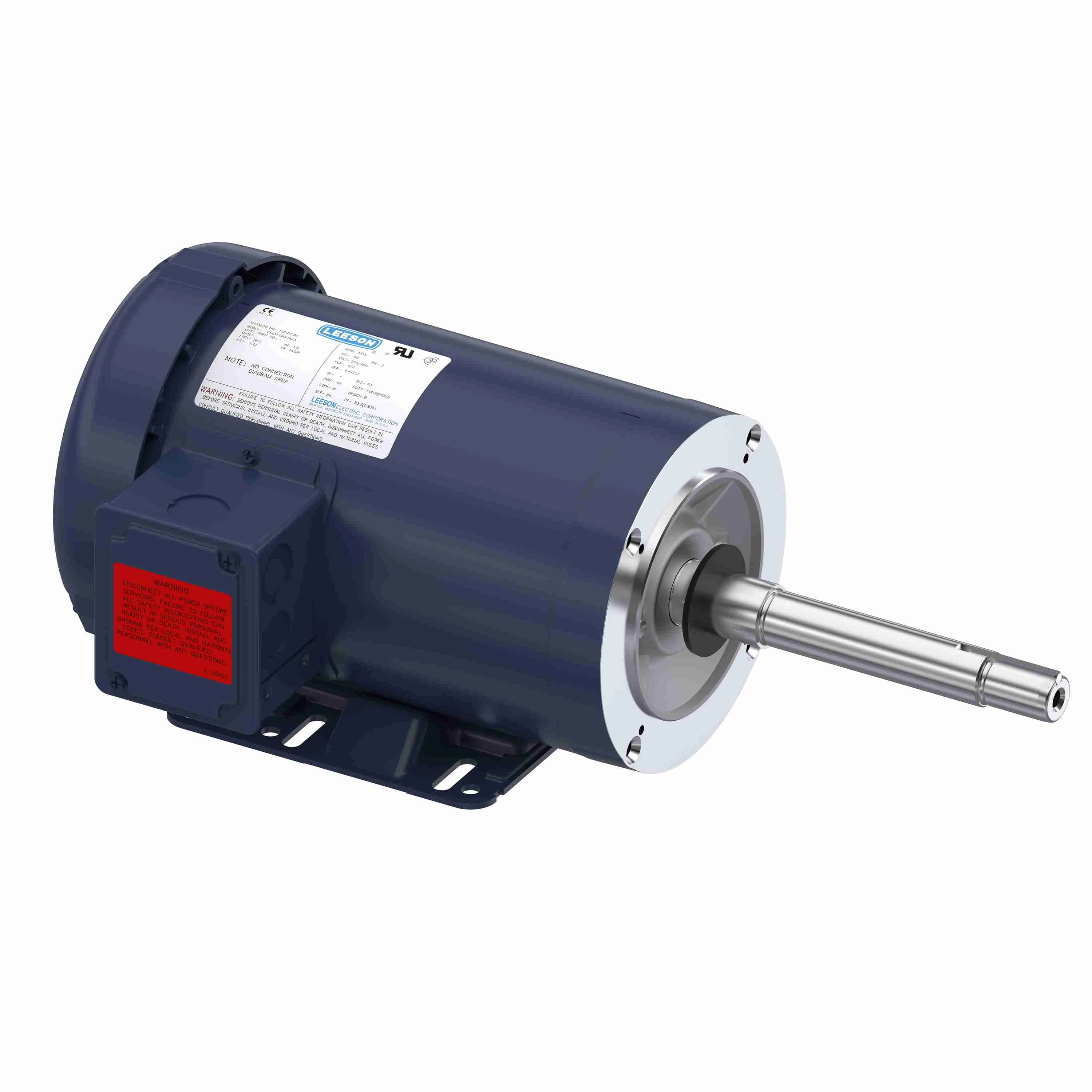

LEESON 122107.00 C143T34FK18AA Close-Coupled Pump Motor, 1.50 And 1 HP, 3 Phase, 230/460 And 190/380V
Get it by Tuesday, Aug 18
€219.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Composition | Steel |
| Drive End Bearing Size | 6206 |
| Efficiency | 84% |
| Electrical Phase | 3 |
| Enclosure | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors |
| Frame Material | Rolled Steel |
| Frame Size | 143jp |
| Frequency | 60 Hz |
| Full Load Amps | 1.7/2/3.4/4A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Kw | 1.1 kW |
| Mounting Type | C Face |
| No. Of Poles | 2 |
| Nominal Voltage | 240/480V AC |
| Opp Drive End Bearing Size | 6203 |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 0.875 |
| Shaft Length | 7.31 |
| Speed | 3515 RPM |
| Type | General Purpose |
| Voltage | 230/460V |
| Voltage Ac | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 28.35 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Shaft Dia. | Hp | Frame | Motor Mounting Type | Efficiency | Mounting Type | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143TTFR16046 | 575V AC | 7/8" | 1 hp | 143JMV | Rigid Base | 85.5% | C Face, Rigid Base | 4 1/4" | €179.15 | |
 |
143TTFR16013 | 575V AC | 7/8" | 1 1/2 hp | 143JMV | Rigid Base | 84% | C Face, Rigid Base | 4 1/4" | €168.95 | |
 |
145TTFR16067 | 200V AC | 7/8" | 2 hp | 145JMV | Rigid Base | 86.5% | C Face, Rigid Base | 4 1/4" | €220.74 | |
 |
145TTFR16074 | 230/460V AC | 7/8" | 1 1/2 hp | 145JMV | C Face, Footless | 86.5% | C Face, Footless | 4 1/4" | €1,008.13 | |
 |
145TTFR16071 | 575V AC | 7/8" | 2 hp | 145JMV | Rigid Base | 86.5% | C Face, Rigid Base | 4 1/4" | €192.62 | |
 |
143TTFR16047 | 200V AC | 7/8" | 1 hp | 143JMV | Rigid Base | 85.5% | C Face, Rigid Base | 4 1/4" | €183.45 | |
 |
145TTFR16036 | 230/460V AC | 7/8" | 1 1/2 hp | 145JM | Face, Base | 86.5% | - | 4 1/4" | €1,157.15 |
