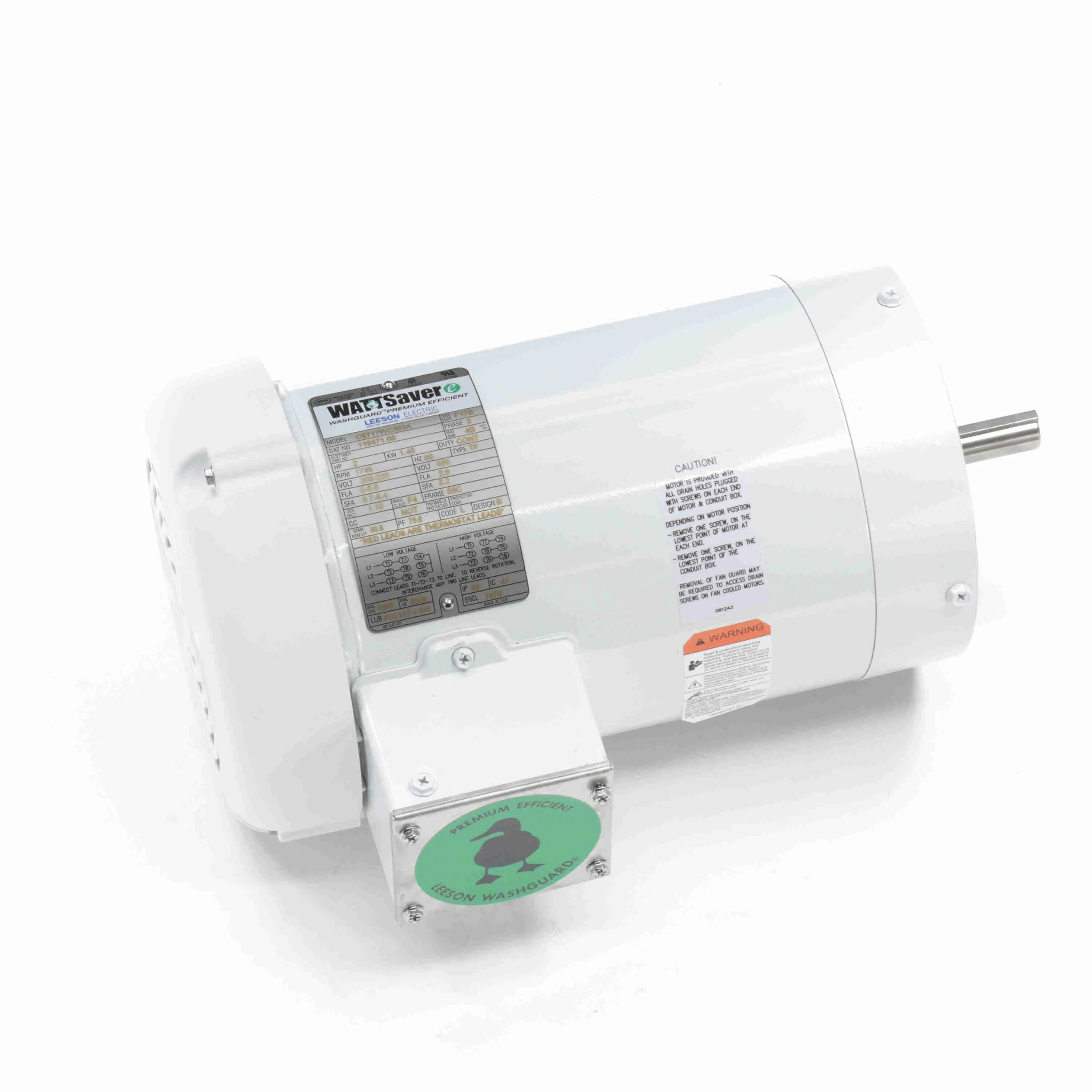

LEESON 119471.00 C6T17WC383A General Purpose Motor, 2 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: AJ2RCMModel: 119471.00Cross Ref: 48ZG33 / C6T17WC383A

Check Availability

In Stock

Get it by Wednesday, Dec 24

~~€1,452.68~~

10.00% off

€1,307.41 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	5.8/2.9A
Application	Washdown
Bearing Type	Ball
Body Dia.	7.38"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Code	L
Color	White
Conduit Box Location	Exterior
Conduit Box Position	F1
Design	B
Design Code	B
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	86.5%
Electrical Type	Squirrel Cage, Induction Run
Enclosure Type	Tefc
Finish	Epoxy Coated
Frame	56C
Frame Length	8"
Frame Material	Rolled Steel
Frame Type	56C
Frequency	60 Hz
Full Load Amps	6-5.8/2.9A
Grease Type	Polyrex EM
Height	10 22/25"
Hp	2 hp
Hz	60 Hz
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP55
Kva Code	L
Kw	1.5 kW
Length	19 1/2"
Length Less Shaft	11 15/16"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	1745 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Type	Face
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Counter Clockwise Shaft End
Motor Shaft Rotation	CWSE
Motor Type	Three Phase
Mounting Type	Round
Nameplate Rpm	1745 RPM
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	86.5%
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Overall Length	13 7/8"
Packaging	B
Phase	3
Power	1.49 kW
Power Factor	75.6
Product Type	Washdown Brake Motor
Resistance Main	6 ohms
Rotation	Reversible
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	1 22/25"
Shaft Type	NEMA 56
Standards	Bissc Approved, Ce, Csa Certified, Ul Recognized, Usda Approved
Starting Method	Across The Line
Thermal Protection	Thermostat
Type	TF
Usable @ 200v	No
Voltage	208-230/460V
Weight	50 lbs.
Width	10 11/25"

Shipping Info:

Ship weight (kg)	22.5
Ship height (cm)	27.64
Ship length (cm)	49.53
Ship width (cm)	26.52
Country of Origin	US

Product Details:

Supersedes Leeson - 114616.00 / C6T17WC12G
Eff 100%: 86.5
Bearing OPE: 6203
CC Number: EXEMPT
Bearing PE: 6205
Nameplate: 081341
Winding: T634340
GROUP: 3
Paint: WHITE - LEESON (EPOXY)
S. F Amps: 6.7-6.4 / 3.2

Product Variants

Model	Voltage	Hp	Finish	Frame	Nameplate Rpm	Full Load Amps	Service Factor	Shaft Dia.	Price
113019.00	208-230/460V	3/4 hp	Epoxy Coated	56C	1725 RPM	1.2A	1.15	5/8"	€1,226.31
113022.00	208-230/460V	3/4 hp	Epoxy Coated	56C	3450 RPM	1.1A	1.15	5/8"	€657.42
113023.00	230/460V	1 hp	Epoxy Coated	56C	3450 RPM	1.3A	1.15	5/8"	€1,084.50
113024.00	230/460V	1 1/2 hp	Epoxy Coated	56C	3450 RPM	1.9A	1.15	5/8"	€1,337.51
113473.00	208-230/460V	1/2 hp	Epoxy Coated	56C	1725 RPM	1.8A	1.15	5/8"	€909.17
113649.00	208-230/460V	1/4 hp	Epoxy Coated	56C	-	1.1A	1.15	5/8"	€792.46
116644.00	208-230/460V	1/2 hp	Epoxy Coated	56C	1725 RPM	2A	1.15	5/8"	€1,020.64
