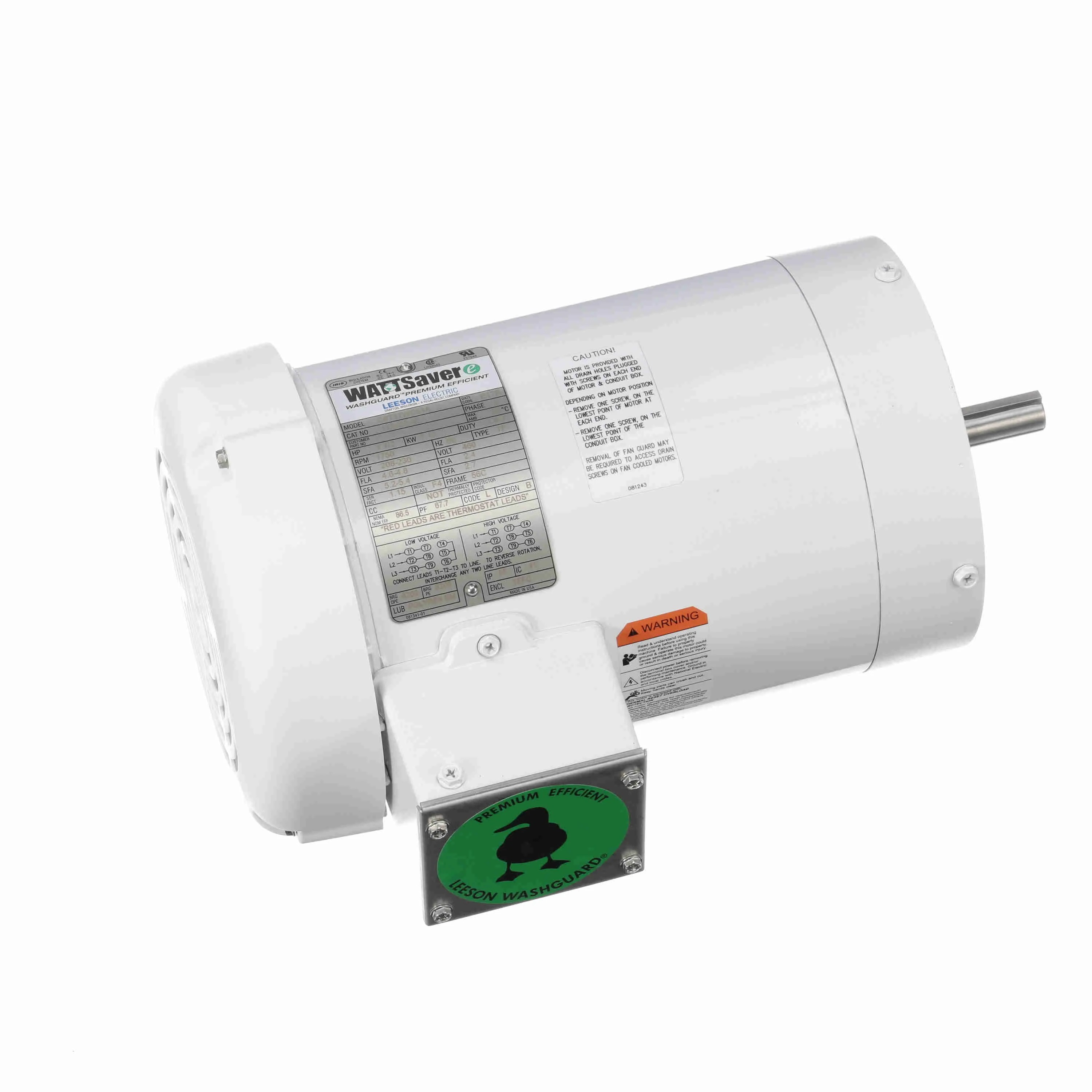

LEESON 119469.00 C6T17WC51A General Purpose Motor, 1.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Thursday, Dec 25
€947.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 4.8/2.4A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 7.38" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | L |
| Color | White |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Finish | Epoxy Coated |
| Frame | 56C |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 4.6-4.8/2.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 1.1 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 7/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CWSE |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 3/8" |
| Packaging | B |
| Phase | 3 |
| Power | 1.12 kW |
| Power Factor | 67.7 |
| Product Type | Washdown Brake Motor |
| Removable Base | No |
| Resistance Main | 9.12 ohms |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Standards | Bissc, Ce, Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 40 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 116647.00, 113021.00
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081341
- Winding: T634341
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 5.2-5.4 / 2.7
Product Variants
| Product | Model | Voltage | Hp | Finish | Frame | Nameplate Rpm | Full Load Amps | Service Factor | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
113019.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 56C | 1725 RPM | 1.2A | 1.15 | 5/8" | €1,226.31 | |
 |
113022.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 56C | 3450 RPM | 1.1A | 1.15 | 5/8" | €657.42 | |
 |
113023.00 | 230/460V | 1 hp | Epoxy Coated | 56C | 3450 RPM | 1.3A | 1.15 | 5/8" | €1,084.50 | |
 |
113024.00 | 230/460V | 1 1/2 hp | Epoxy Coated | 56C | 3450 RPM | 1.9A | 1.15 | 5/8" | €1,337.51 | |
 |
113473.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 56C | 1725 RPM | 1.8A | 1.15 | 5/8" | €909.17 | |
 |
113649.00 | 208-230/460V | 1/4 hp | Epoxy Coated | 56C | - | 1.1A | 1.15 | 5/8" | €792.46 | |
 |
116644.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 56C | 1725 RPM | 2A | 1.15 | 5/8" | €1,020.64 |
