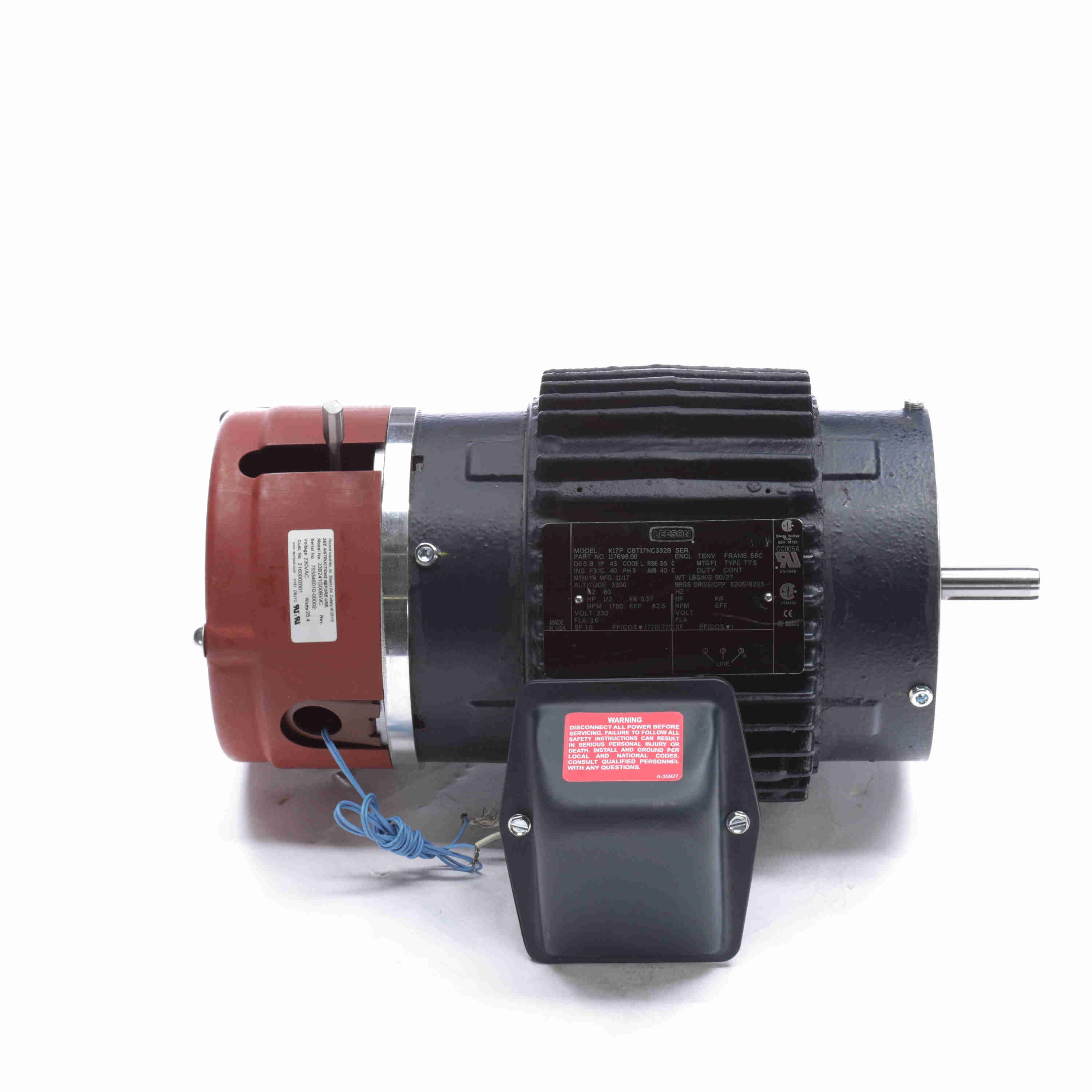

LEESON 117698.00 C6T17NC332B Brake Motor, 0.50 HP, 3 Phase, 60 Hz, 230V, 1800 RPM
Get it by Tuesday, Dec 23
€537.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Amps | 1.6A |
| Break-down Torque | 6.3 lbs.-ft. |
| Code | L |
| Conduit Box Position | F1, F2 |
| Design | B, L |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Frame | 56C |
| Frame Length | 5 1/4" |
| Frame Material | Cast Iron |
| Frame Type | 143TCZ |
| Frequency | 60 Hz |
| Full Load Amps | 1.6A |
| Height | 12.62" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 0.37 kW |
| Length | 19.69" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | C Face Footless |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 1800 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Packaging | B |
| Phase | 3 |
| Power | 0.37 kW |
| Power Factor | 72 |
| Resistance Main | 34.4 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | Single Special Extension |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TTS |
| Voltage | 230V |
| Width | 12.31" |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 32.05 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 31.27 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 82.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 92720P1
- Winding: ZT470
- GROUP: 3
- Paint: VERIFY
