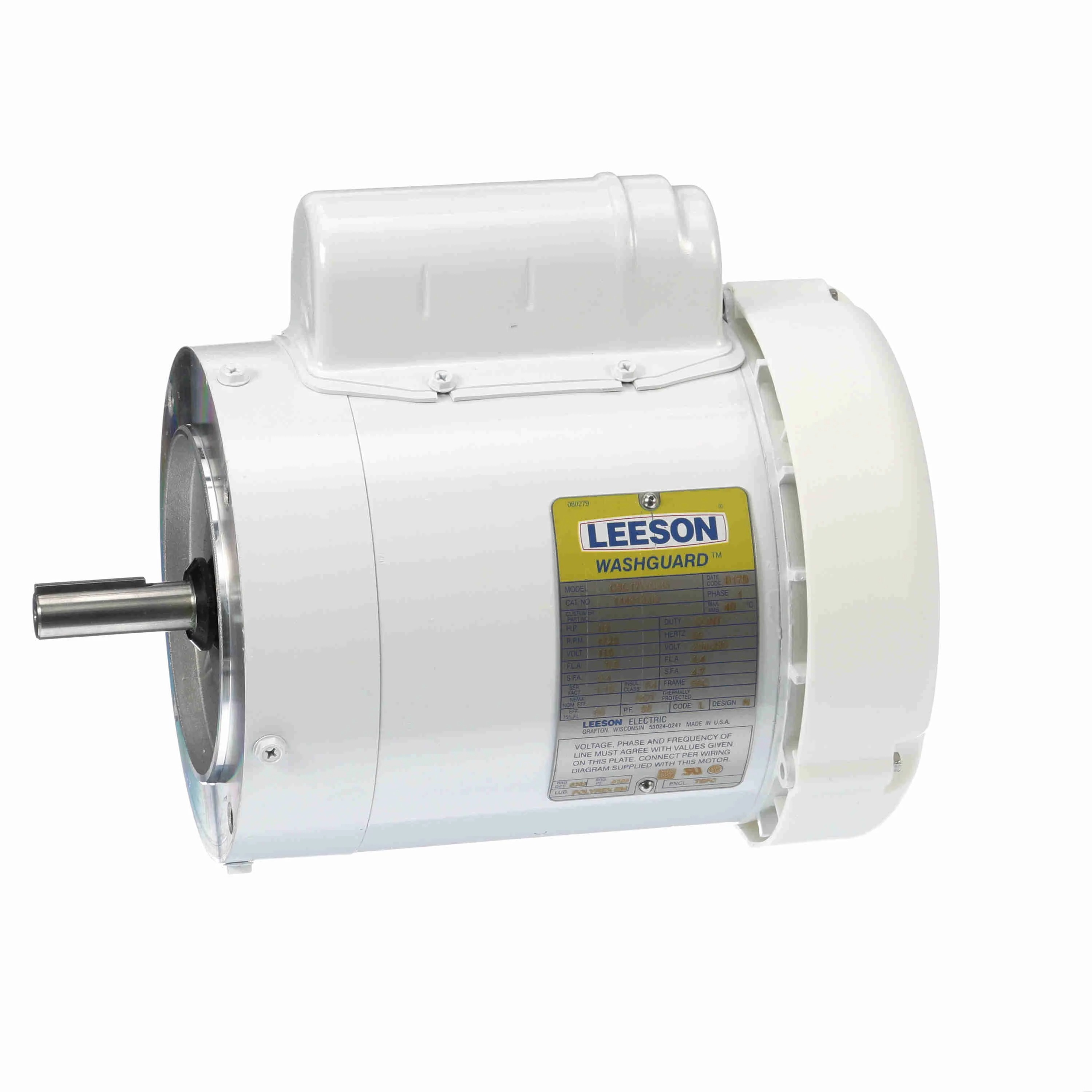

LEESON 114313.00 C6C17WC3G General Purpose Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Friday, Jul 3
5.00% off
€858.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 8.8/4.4A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 7.38" |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Color | White |
| Conduit Box Position | F1 |
| Design Code | No |
| Drain Plug | (4) Each End, (2) In Conduit Box |
| Drain Plugs | (4) Each End, (2) Conduit Box |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| End Shield Material | Cast Aluminum |
| Finish | Epoxy Coating |
| Frame | 56C |
| Frame Length | 5" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 4.3A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Included | Splice Kit |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 0.37 kW |
| Length | 14 11/25" |
| Length Less Shaft | 8 15/16" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1725 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Round |
| Nameplate Speed | 1725 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 10 7/8" |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 58 |
| Product Datasheet | leeson-114313-00.pdf |
| Product Type | Washdown Motor |
| Removable Base | No |
| Resistance Main | 3.4 ohms |
| Rotation | Selective Counter Clockwise |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Speed | 1700-1800 RPM |
| Standards | Bissc, Ce, Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 11.03 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 66
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 080279
- Winding: C634257
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 9.4 / 4.7
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Thermal Protection | Nominal Efficiency | Shaft Length | Overall Length | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

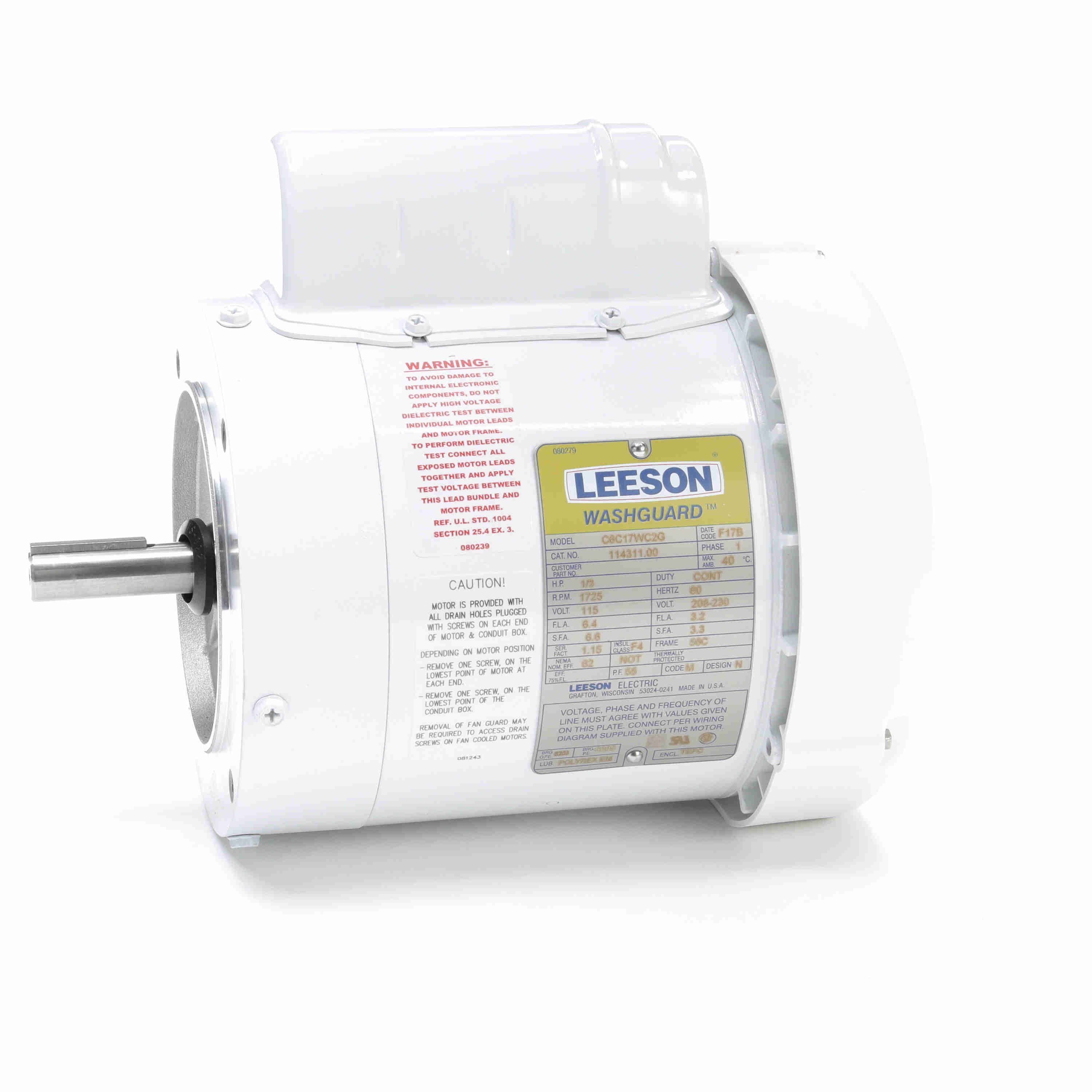

114311.00 | 115/208-230V | 33/100 hp | 3.1A | No Protection | 62% | 1 22/25" | 10 3/8" | 55 | €618.29 | |
 |
114317.00 | 115/208-230V | 1 hp | 6.4A | No Protection | 75% | 1 22/25" | 12 1/8" | 68 | €1,320.05 | |
 |

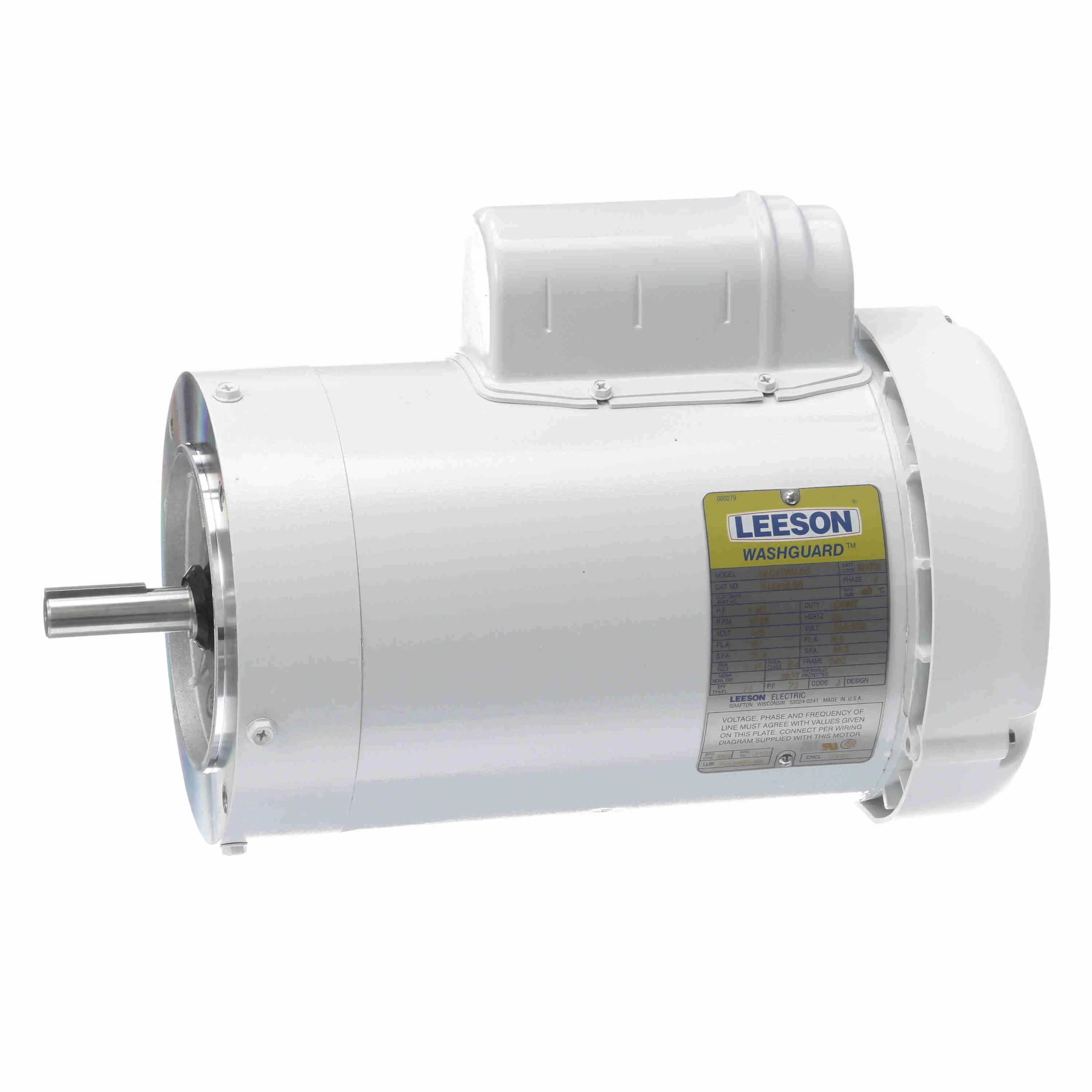

114319.00 | 115/208-230V AC | 1 1/2 hp | 9.9A | None | 71% | 1 7/8" | - | - | €1,065.21 | |
 |

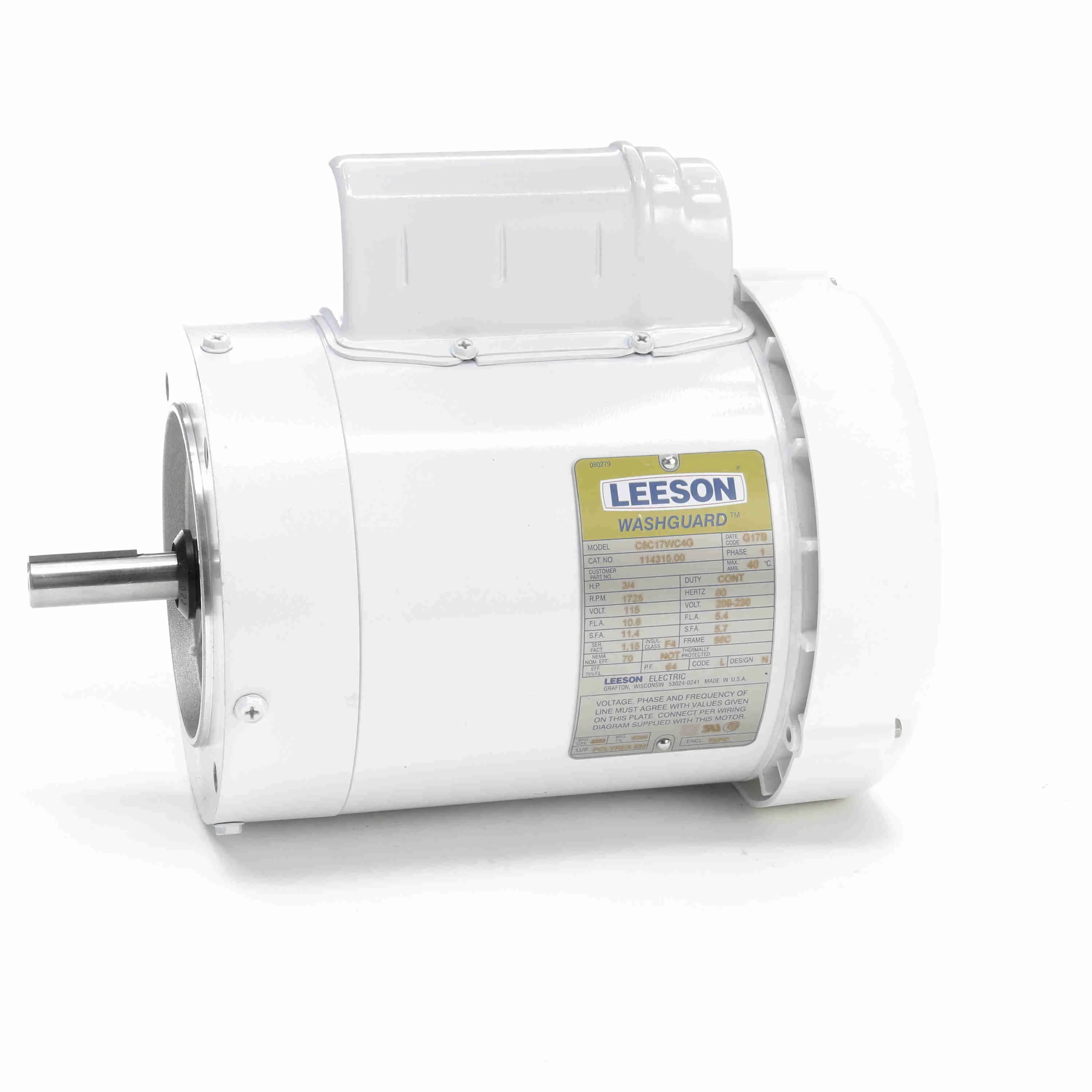

114315.00 | 115/208-230V | 3/4 hp | 5.4A | No Protection | 70% | 1 22/25" | 11 3/8" | 64 | €1,155.28 |
