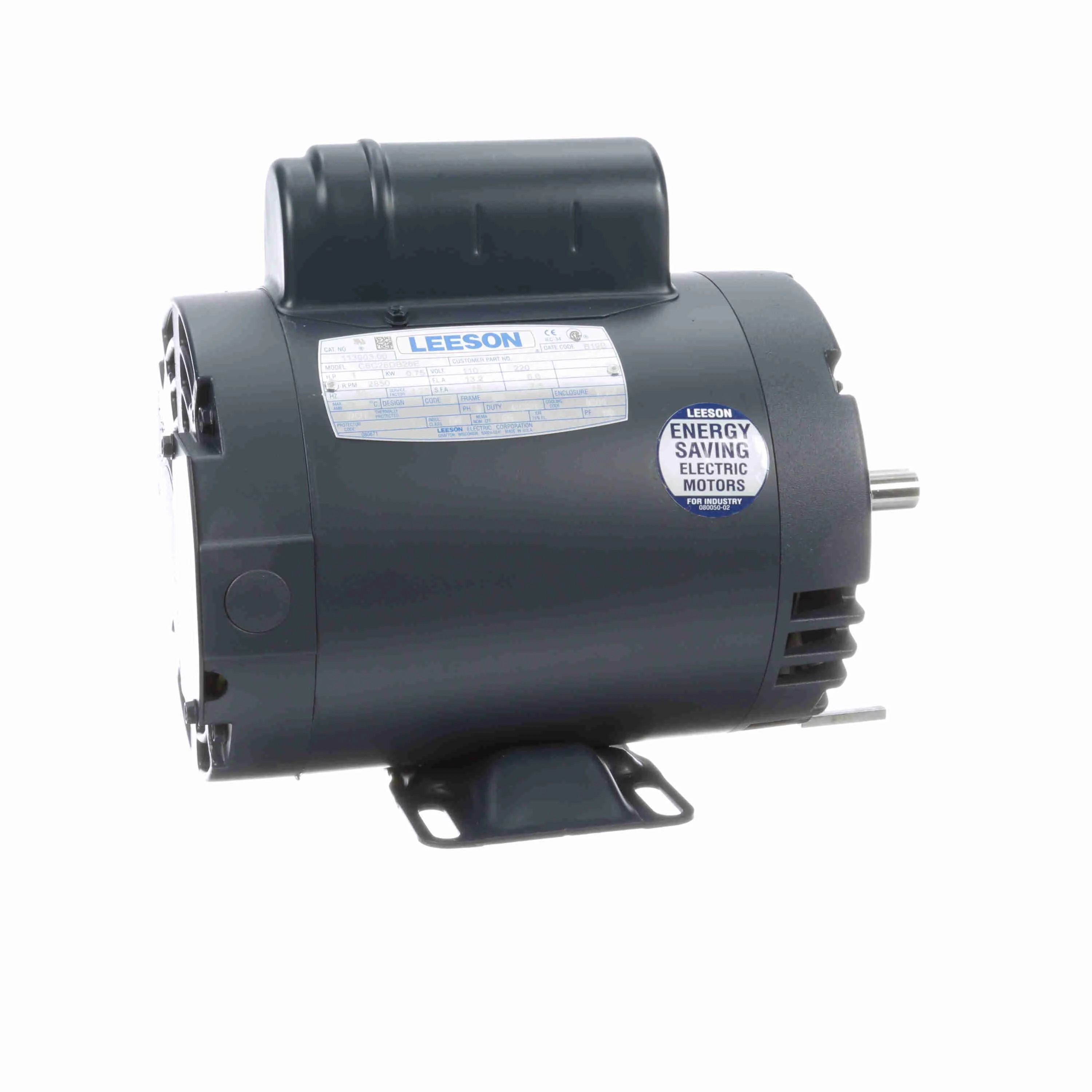

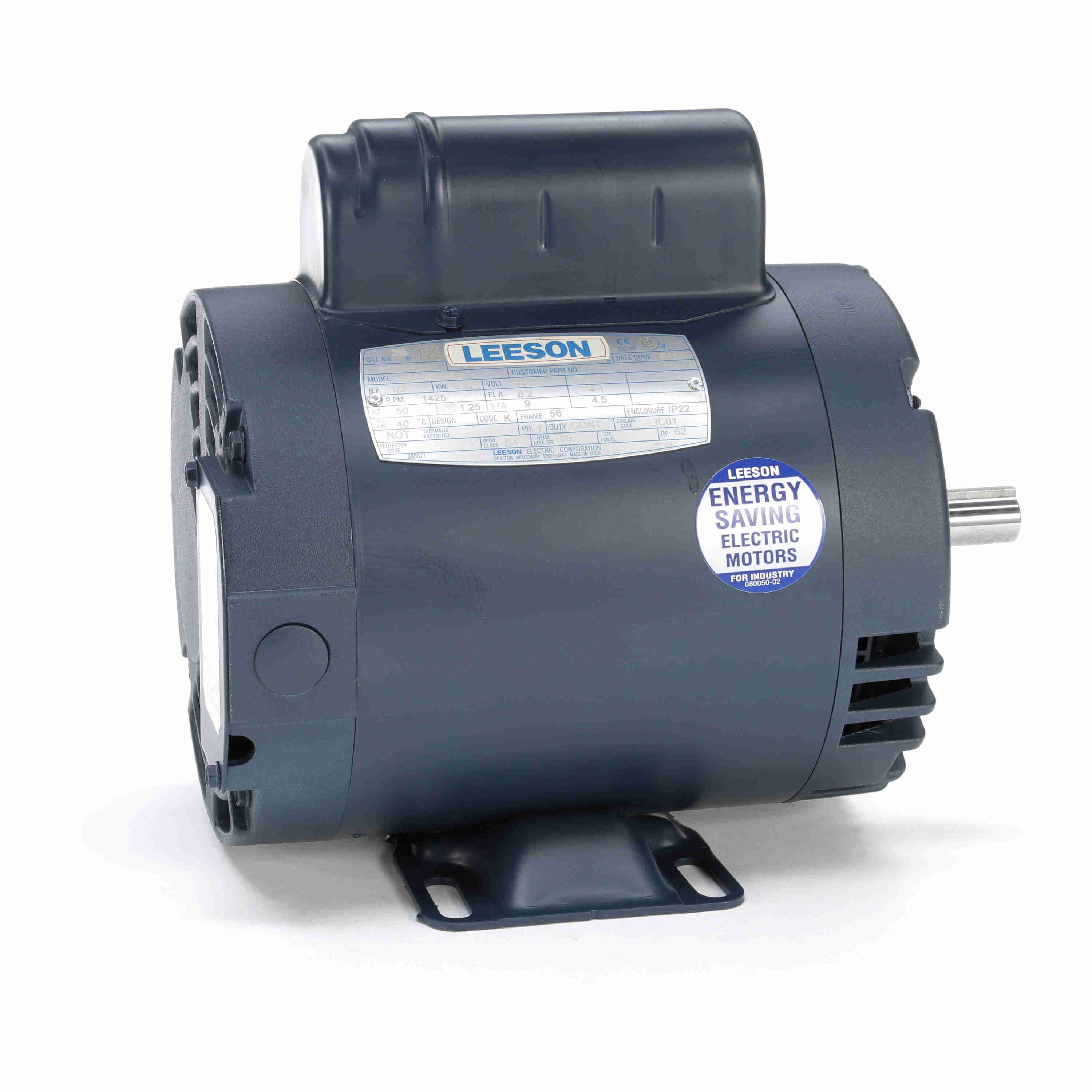

LEESON 114233.00 C6K14DR13D Special Voltage Motor, 2 HP, 1 Phase, 50 Hz, 220V, 1500 RPM
Get it by Tuesday, Dec 23
€1,118.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 50 Hz Motor |
| Amps | 9.6A |
| Application | General Application |
| Bearing Type | Ball |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | ODP |
| Frame | 56H |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 56H |
| Frequency | 50 Hz |
| Full Load Amps | 9.6A |
| Full Load Amps @ 50hz | 9.6A |
| Full Load Efficiency | 78% |
| Height | 10 22/25" |
| Hp | 2 hp |
| Hp @ 50hz | 2 hp |
| Hz | 50 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | H |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12" |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Cradle Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Nameplate Rpm | 1440 RPM |
| Nema Design | None |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Phase | 1 |
| Power Factor | 92 |
| Rpm | 1440 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Usable @ 208v | No |
| Voltage | 220V |
| Weight | 52 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501406040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Service Factor | Power Factor | Full Load Efficiency | Amps | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
114225.00 | 110/220V | 1/2 hp | 1425 RPM | 1.25 | 62 | 69% | 8.2/4.1A | 56H | €1,105.95 |
