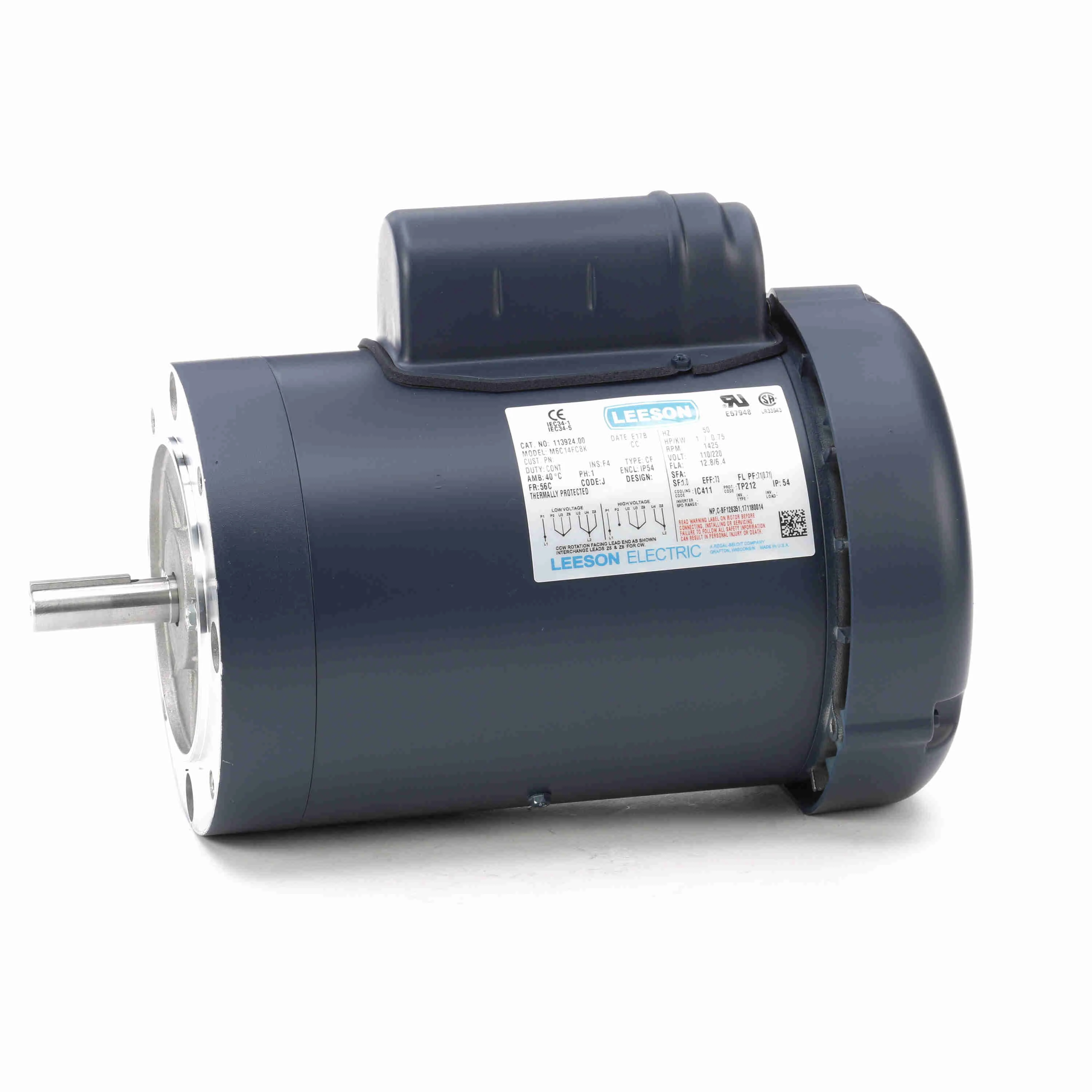

LEESON 113924.00 M6C14FC8K Special Voltage Motor, 1 HP, 1 Phase, 50 Hz, 110/220V, 1500 RPM
Get it by Tuesday, Dec 23
€807.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 50 Hz Motor |
| Amps | 12.8/6.4A |
| Application | General Application |
| Bearing Type | Ball |
| Conduit Box Position | F1 |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 73% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 7" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 50 Hz |
| Full Load Amps | 12.8/6.4A |
| Full Load Amps @ 50hz | 12.8/6.4A |
| Full Load Efficiency | 73% |
| Height | 12 22/25" |
| Hp | 1 hp |
| Hp @ 50hz | 1 hp |
| Hz | 50 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP54 |
| Kva Code | J |
| Kw | 0.75 kW |
| Length | 17.94" |
| Length Less Shaft | 10 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Rpm | 1425 RPM |
| Nema Design | None |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 73% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 12 1/2" |
| Phase | 1 |
| Power Factor | 71 |
| Resistance Main | 2.12 ohms |
| Rpm | 1425 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 110/220V |
| Weight | 37 lbs. |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| HS code | 8501405040 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Type | Frame | Thermal Protection | Service Factor | Power Factor | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
113921.00 | 33/100 hp | 1425 RPM | Capacitor Start | 56C | Manual | 1 | 60.5 | 11" | €1,103.01 | |
 |

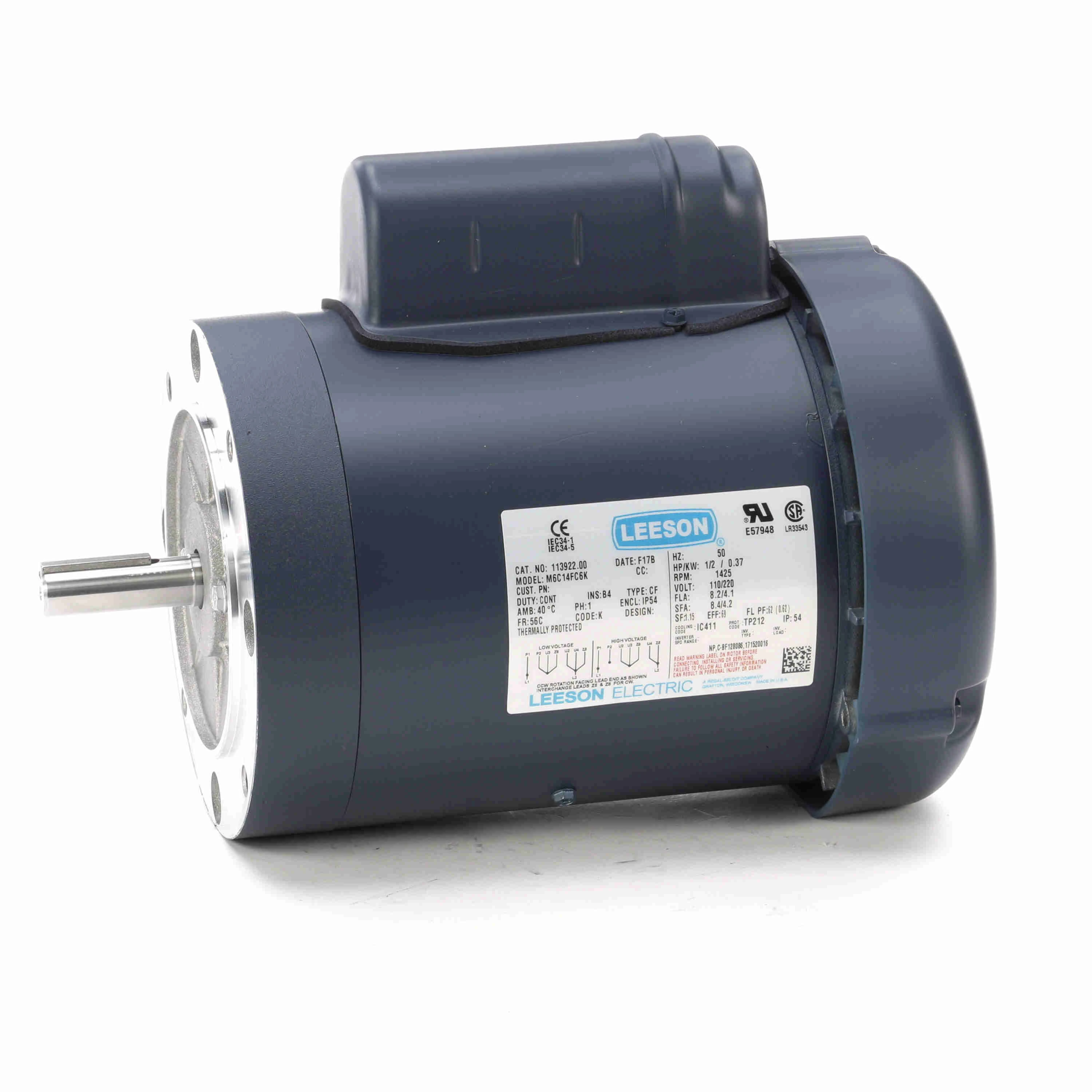

113922.00 | 1/2 hp | 1425 RPM | Capacitor Start | 56C | Manual | 1.15 | 62 | 11 1/2" | €671.21 | |
 |
113923.00 | 3/4 hp | 1425 RPM | Capacitor Start | 56C | Manual | 1 | 66 | 12" | €1,406.77 | |
 |

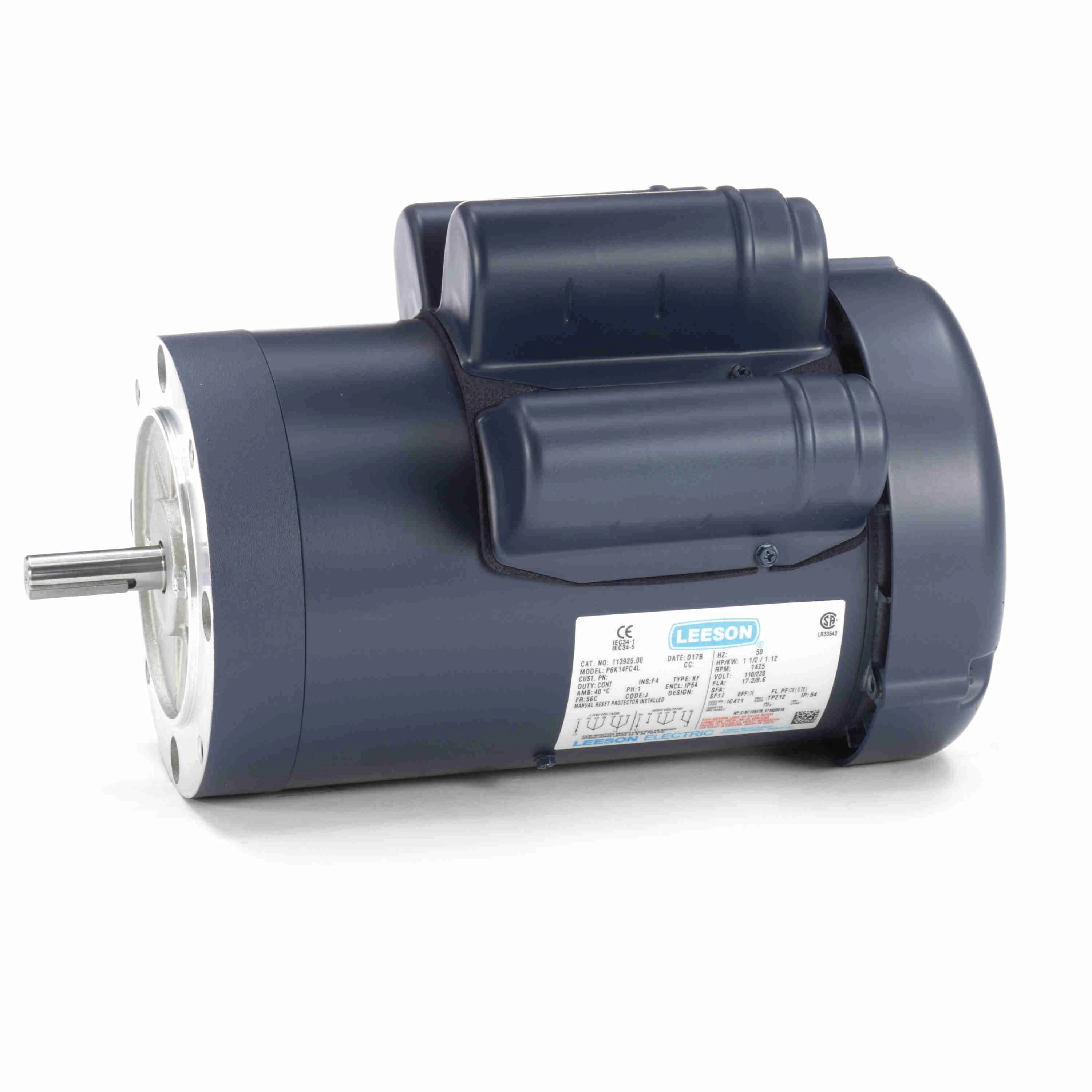

113925.00 | 1 1/2 hp | 1425 RPM | Capacitor Start | 56C | Manual | 1 | 78 | 13 1/2" | €1,600.68 | |
 |

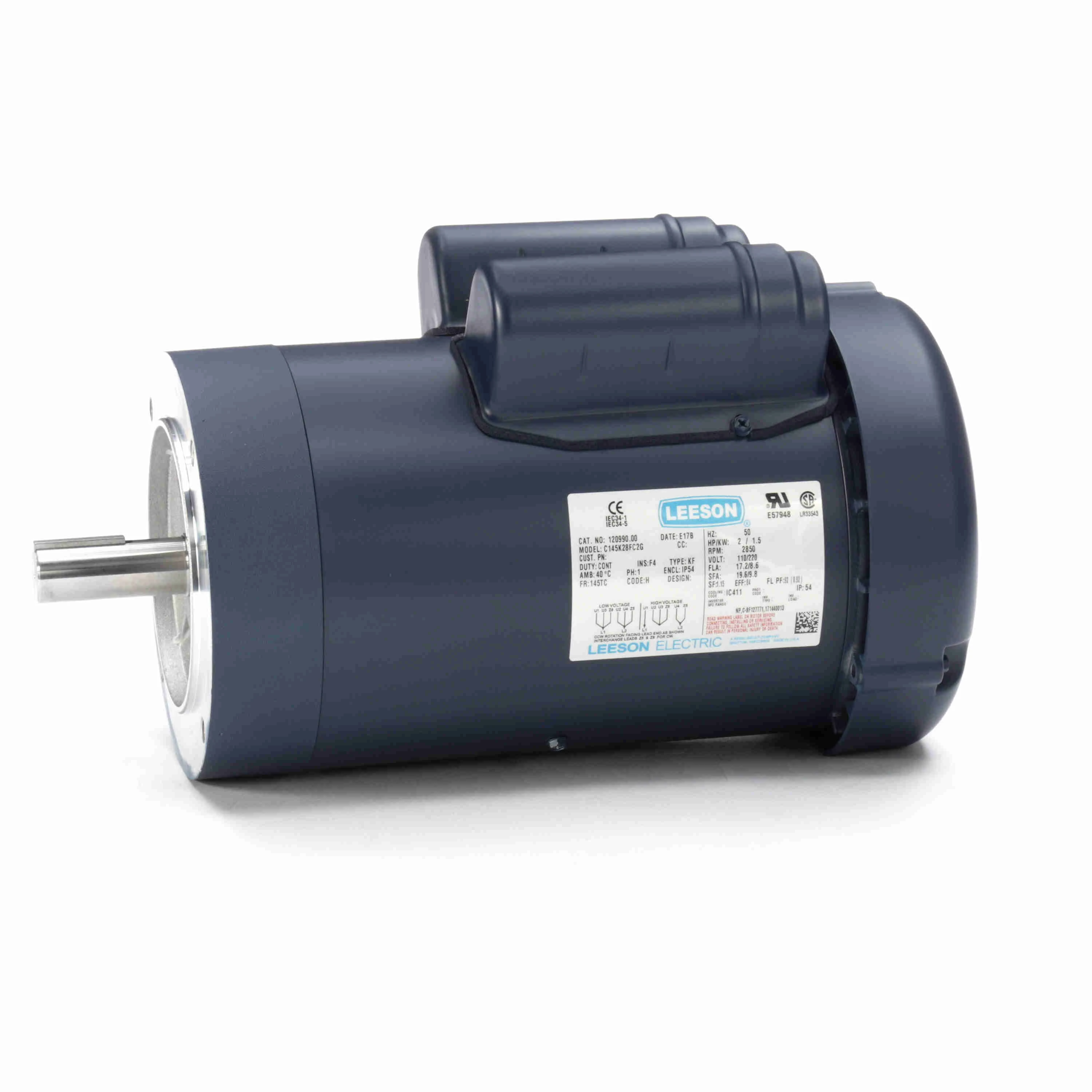

120990.00 | 2 hp | 2850 RPM | Capacitor Start/Run | 145TC | No Protection | 1.15 | 92 | 13 15/16" | €1,193.88 |
