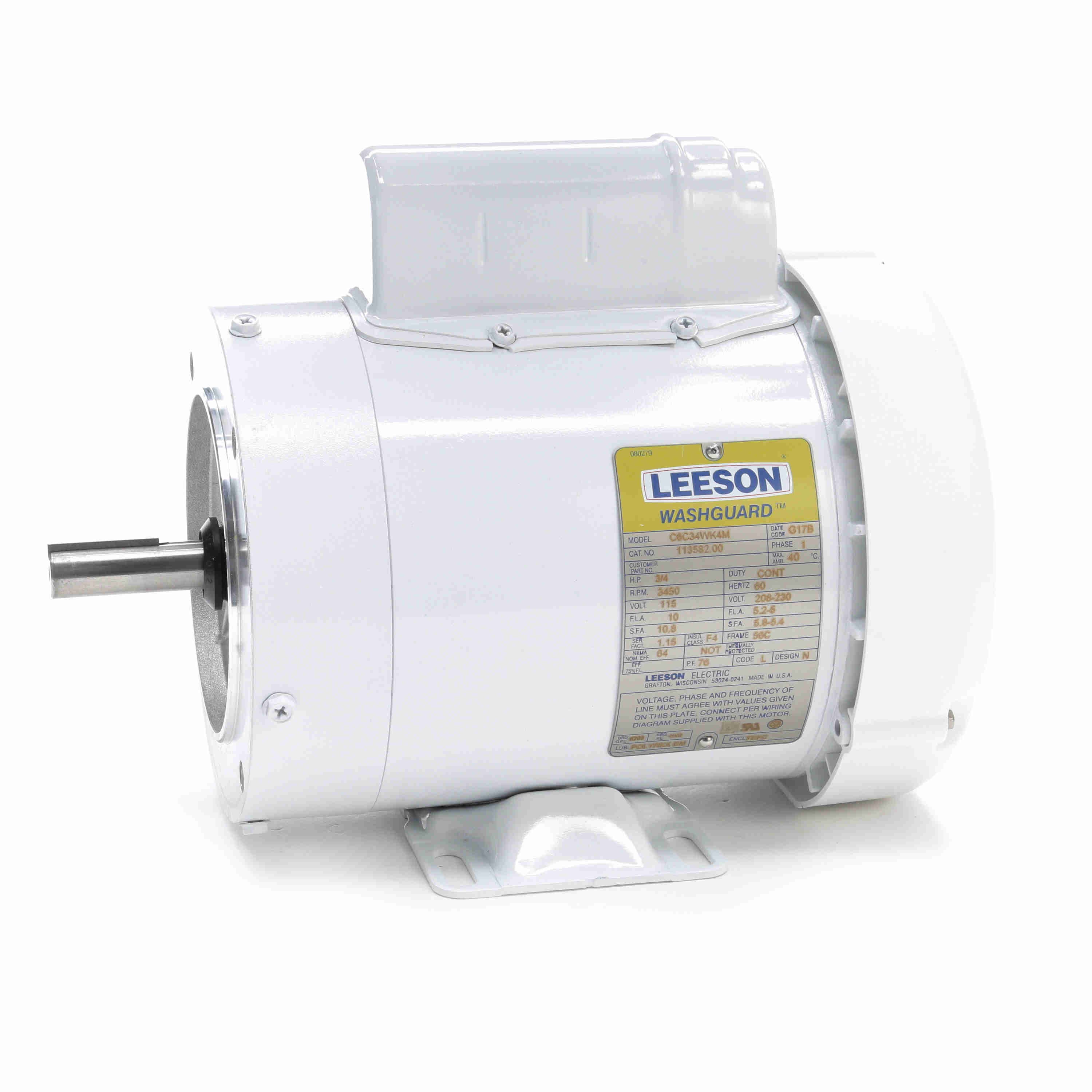

LEESON 113582.00 C6C34WK4M General Purpose Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM

Item: AJ2QKDModel: 113582.00Cross Ref: 48ZF42 / C6C34WK4M

Check Availability

In Stock

Get it by Tuesday, Dec 23

~~€1,144.93~~

10.00% off

€1,030.43 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	10/5A
Application	Washdown
Bearing Type	Ball
Body Dia.	7.38"
Bolt Circle Dia.	5 7/8"
Code	L
Color	White
Design Code	No
Drain Plug	(4) Each End, (2) In Conduit Box
Drain Plugs	(4) Each End, (2) Conduit Box
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	64%
Electrical Type	Capacitor Start, Induction Run
Enclosure Type	Tefc
Endshield Material	Cast Aluminum
Finish	Epoxy Coated
Frame	56C
Frame Length	5 1/2"
Frame Material	Rolled Steel
Frame Type	56C
Frequency	60 Hz
Full Load Amps	5A
Grease Type	Polyrex EM
Height	10 22/25"
Hp	3/4 hp
Hz	60 Hz
Includes	Splice Kit
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP55
Kva Code	L
Kw	0.56 kW
Length	14 11/25"
Length Less Shaft	9 7/16"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	3450 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	Capacitor Start
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face, Base
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Type	Capacitor Start
Mounting Type	Rigid Base
Nameplate Rpm	3450 RPM
Nema Design	B
No. Of Poles	2
No. Of Speeds	1
Nominal Efficiency	64%
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Overall Length	11 3/8"
Phase	1
Power	0.56 kW
Power Factor	76
Product Type	Washdown Motor
Removable Base	No
Resistance Main	2.4 ohms
Rotation	Selective Counter Clockwise
Rpm	3400-3600 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	1 22/25"
Shaft Material	Stainless Steel
Shaft Type	NEMA 56
Standards	Bissc, Ce, Csa, Ul
Starting Method	Across The Line
Thermal Protection	No Protection
Type	CF
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	115/208-230V
Weight	28 lbs.
Width	10 11/25"

Shipping Info:

Ship weight (kg)	12.6
Ship height (cm)	27.64
Ship length (cm)	36.68
Ship width (cm)	26.52
Country of Origin	US

Product Details:

Eff 100%: 64
Bearing OPE: 6203
CC Number: EXEMPT
Bearing PE: 6205
Nameplate: 080279
Winding: C632210
GROUP: 3
Paint: WHITE - LEESON (EPOXY)
S. F Amps: 10.8 / 5.8-5.4

Product Variants

Model	Hp	Nameplate Rpm	Full Load Amps	Overall Length	Power Factor	Nominal Efficiency	No. Of Poles	Power	Price

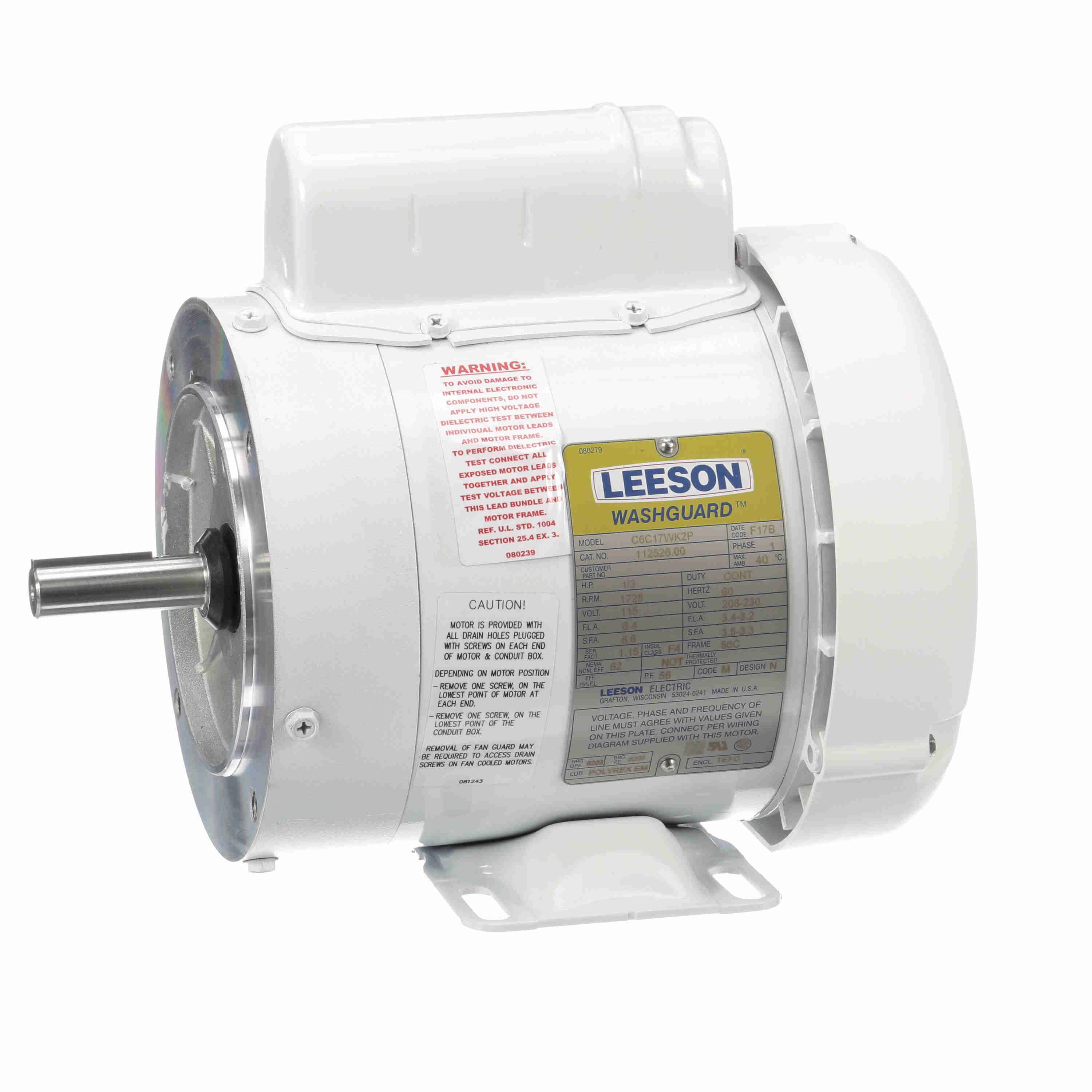

112526.00	33/100 hp	1725 RPM	3.1A	10 3/8"	55	62%	4	0.246 kW	€1,081.26

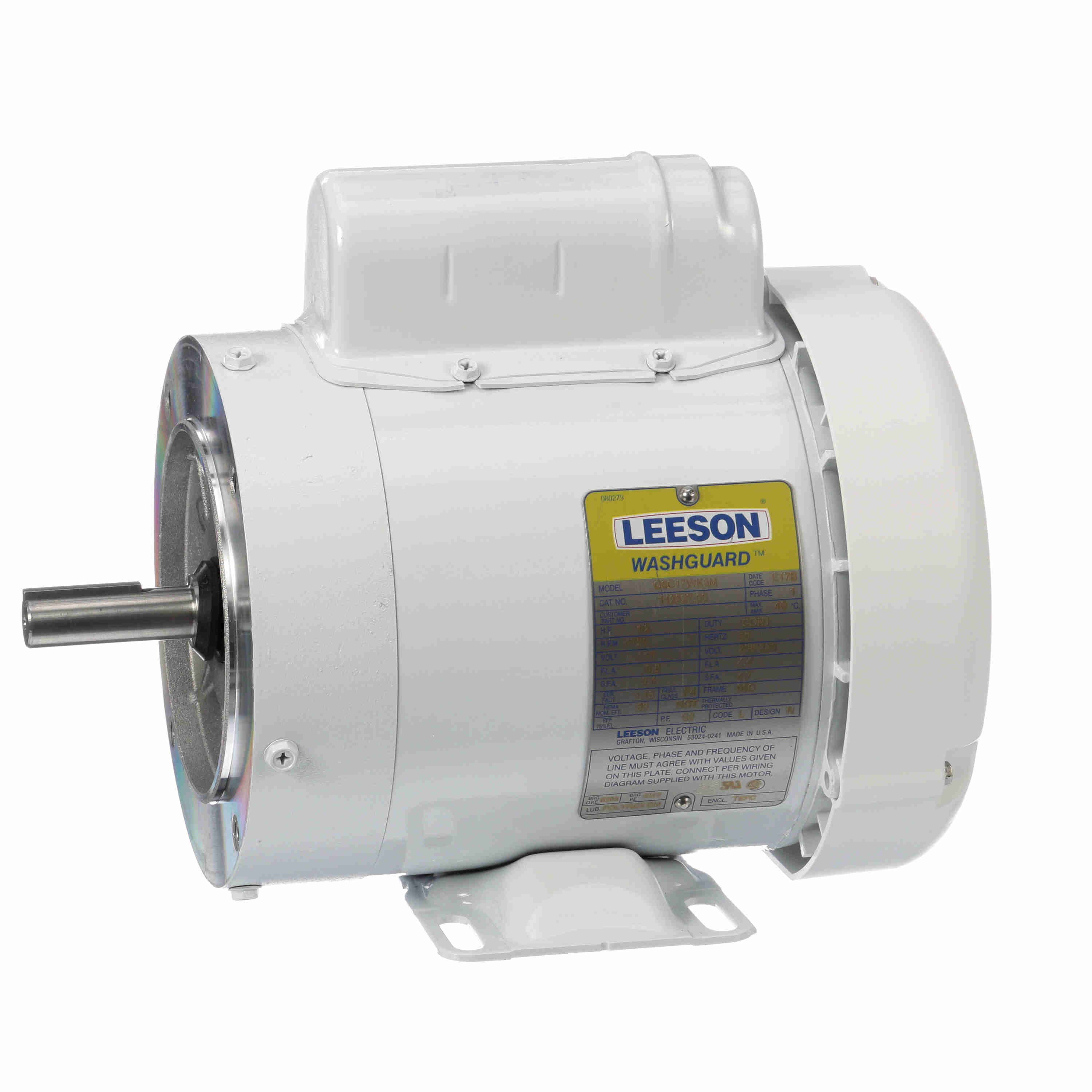

112527.00	1/2 hp	1725 RPM	4.3A	10 7/8"	58	66%	4	0.37 kW	€1,026.53

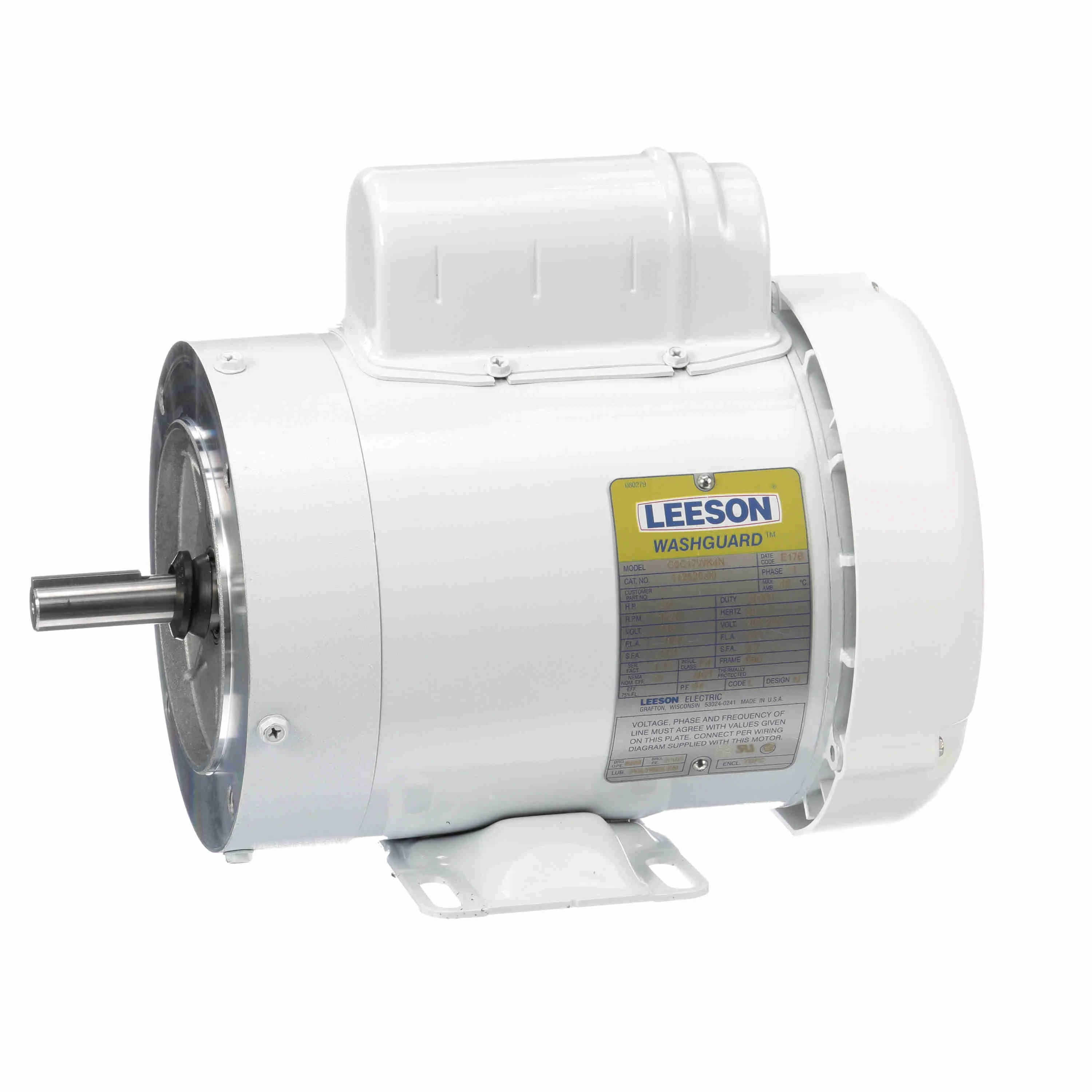

112528.00	3/4 hp	1725 RPM	5.4A	11 5/8"	64	70%	4	0.56 kW	€727.69
112529.00	1 hp	1725 RPM	6.4A	12 1/8"	68	75%	4	0.75 kW	€1,150.99

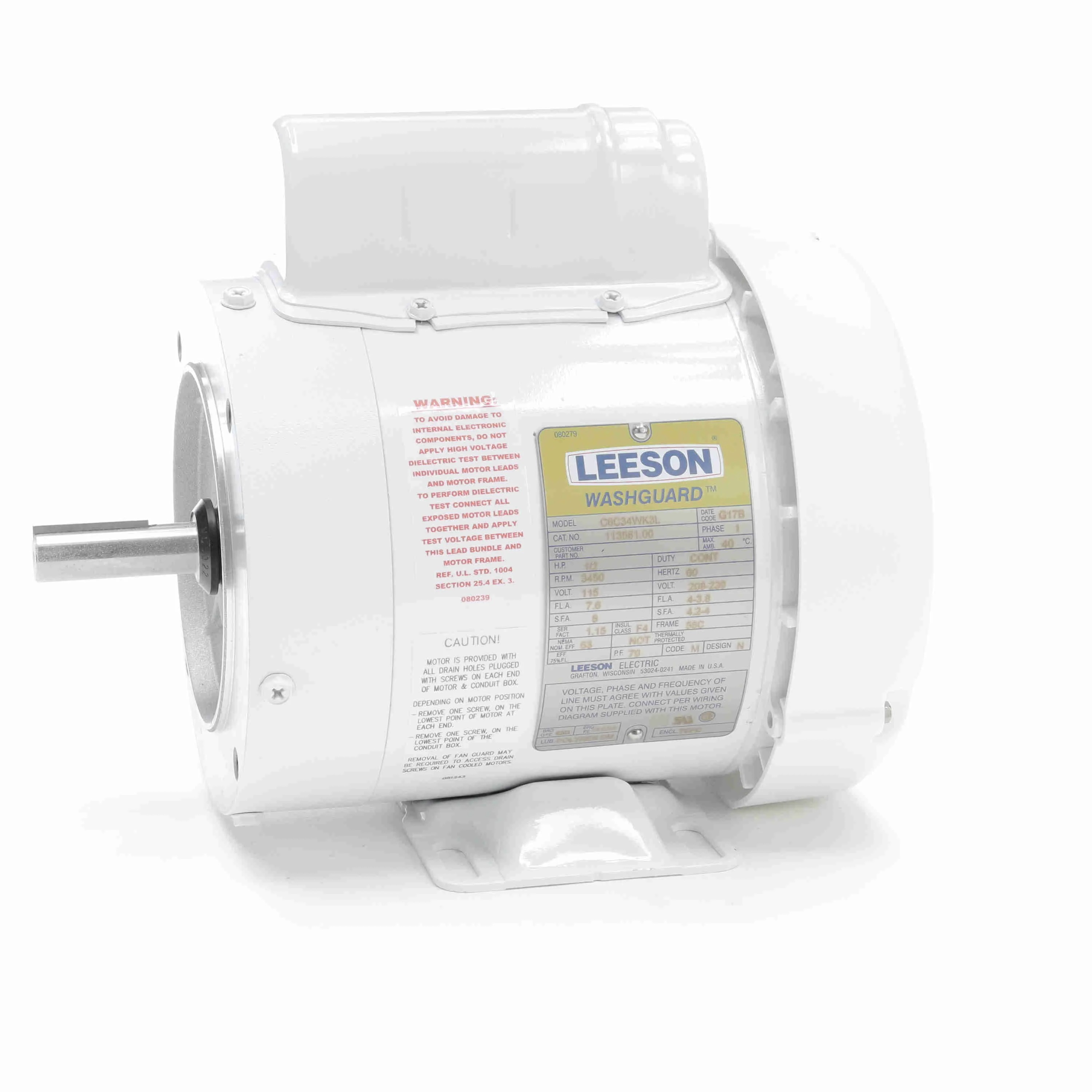

113581.00	1/2 hp	3450 RPM	7.6/3.8A	10 3/8"	70	63%	2	0.37 kW	€989.81
113583.00	1 hp	3450 RPM	6A	11 7/8"	76	70%	2	0.75 kW	€1,087.51

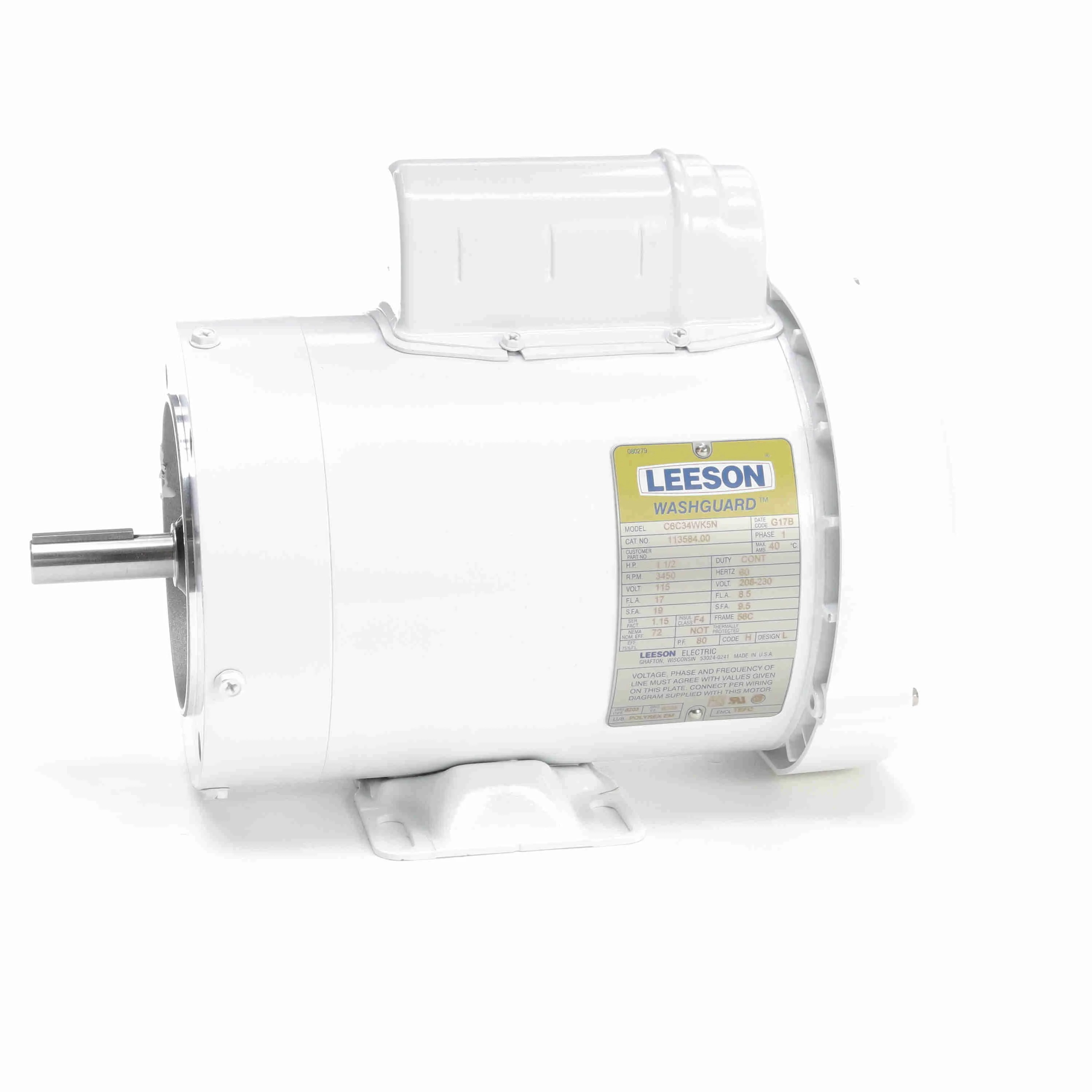

113584.00	1 1/2 hp	3450 RPM	8.5A	12 3/8"	80	72%	2	1.12 kW	€922.74
