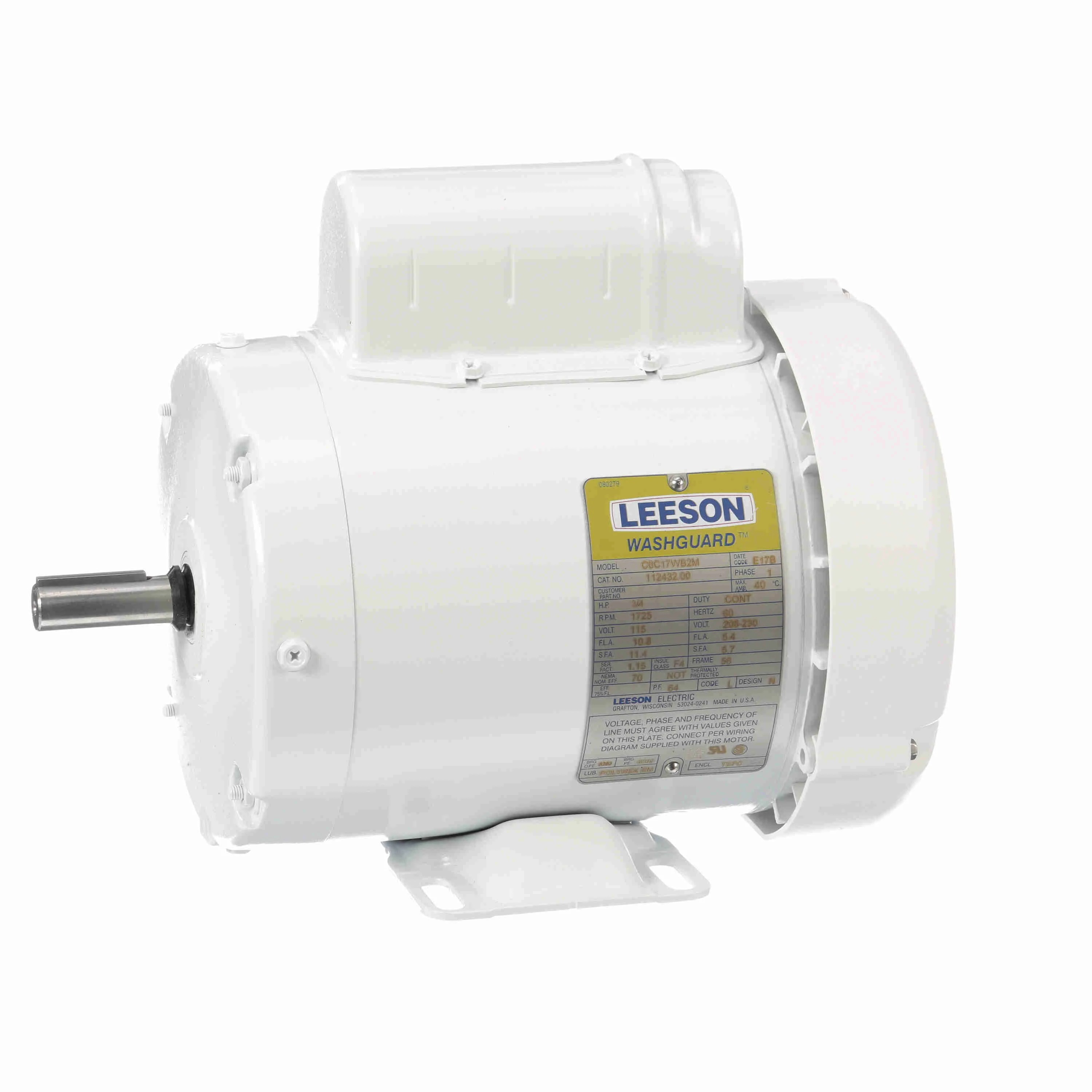

LEESON 112432.00 C6C17WB2M Washdown Motor, 0.75 HP, 60 Hz, 115/230V, 1800 RPM

Item: EC3KXDModel: 112432.00Cross Ref: 48ZF24 / C6C17WB2M
In Stock

Get it by Tuesday, Aug 18

€729.63 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Bearing Type 11.31
Body Dia. 7.38"
Duty Cycle Continuous
Electrical Phase 1
Enclosure Totally Enclosed Fan Cooled
End Shield Material Cast Aluminum
Family Series Leeson Motors, Washguard Series
Frame Material Rolled Steel
Frequency 60 Hz
Full Load Amps 5.4A
Insulation F
Kw 0.56 kW
Length Less Shaft 9 5/16"
Motor Application Washdown
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Position Horizontal
Motor Shaft Design Keyed
Motor Shaft Rotation CCW, CW
Mounting Type Foot Mount, Rigid
Nema Design N
Nominal Voltage 120/208/240V AC
Overall Length 11 1/4"
Product Datasheet leeson-112432-00.pdf
Rotation Selective CCW
Shaft Dia. 5/8"
Shaft Length 1 7/8"
Shaft Material Stainless Steel
Speed 1800 RPM
Type Washdown
Usable @ 208 V Yes
Voltage 115/208-230V AC

Shipping Info:

Ship weight (kg) 15.3
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
Country of OriginUS

Documentation:

Datasheet
