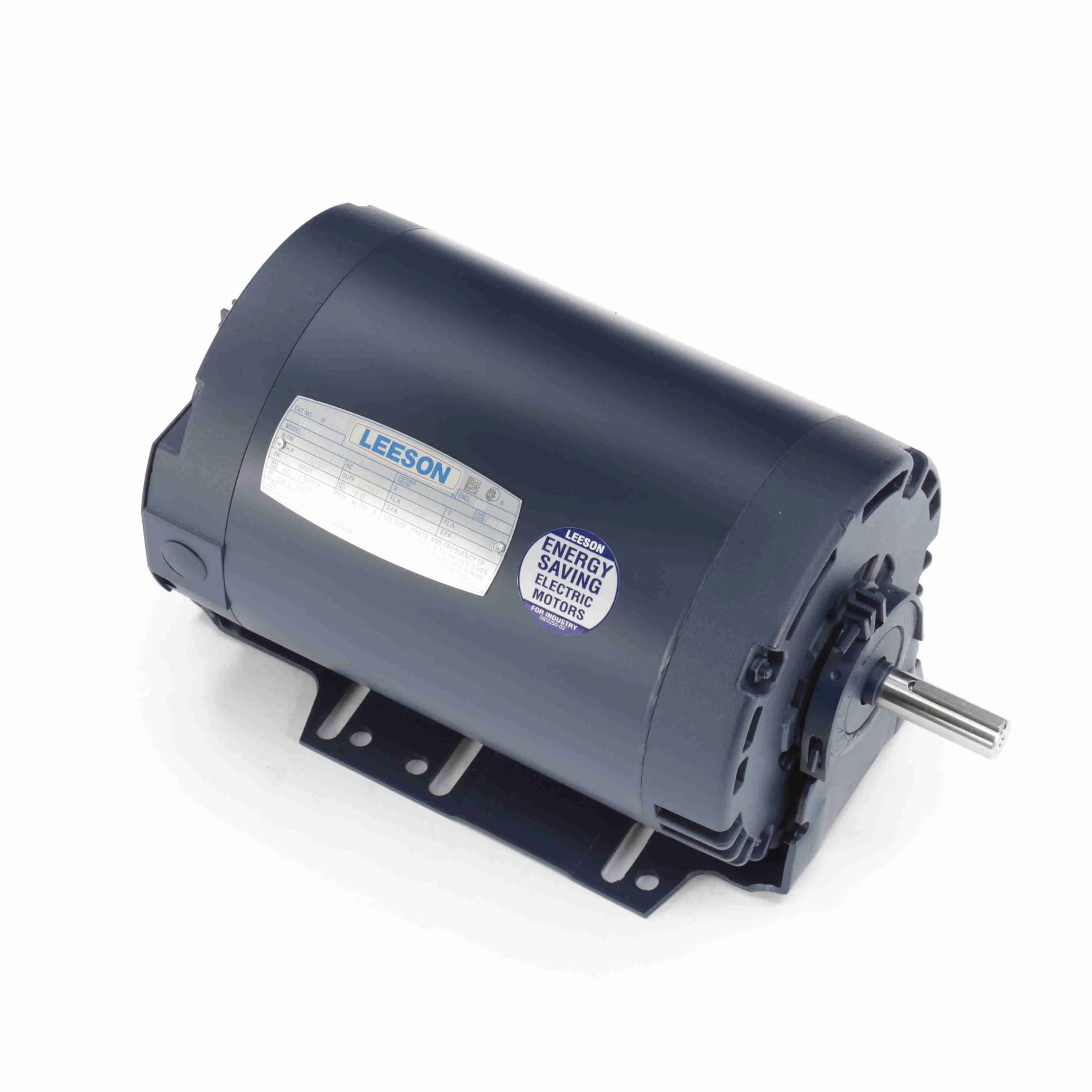

LEESON 111963.00 C6T46DR8D Definite Purpose Motor, 1.50/0.67 HP, 3 Phase, 60/60 Hz, 460V, 1800 and 1800 RPM
Get it by Tuesday, Dec 23
€1,325.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 2.5A |
| Assembly | 42506 |
| Code | K |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 79.3% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 56H |
| Frame Length | 7" |
| Frame Material | Rolled Steel |
| Frame Type | 56H |
| Frequency | 60 Hz |
| Full Load Amps | 2.5/1.3A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP22 |
| Kva Code | K |
| Kw | 1.1 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | TD |
| Mounting Type | Resilient Base |
| Nema Design | K |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 3 |
| Power | 1.12 kW |
| Power Factor | 70.7 |
| Resistance Main | 40.7 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Voltage | 460V |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 20.17 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 004001
- Winding: T63(4-6)22
- GROUP: 2
- Paint: BLUE - LEESON (ENAMEL)
Product Variants
| Product | Model | Voltage | Efficiency | Power Factor | Amps | Hp | No. Of Speeds | Frame | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

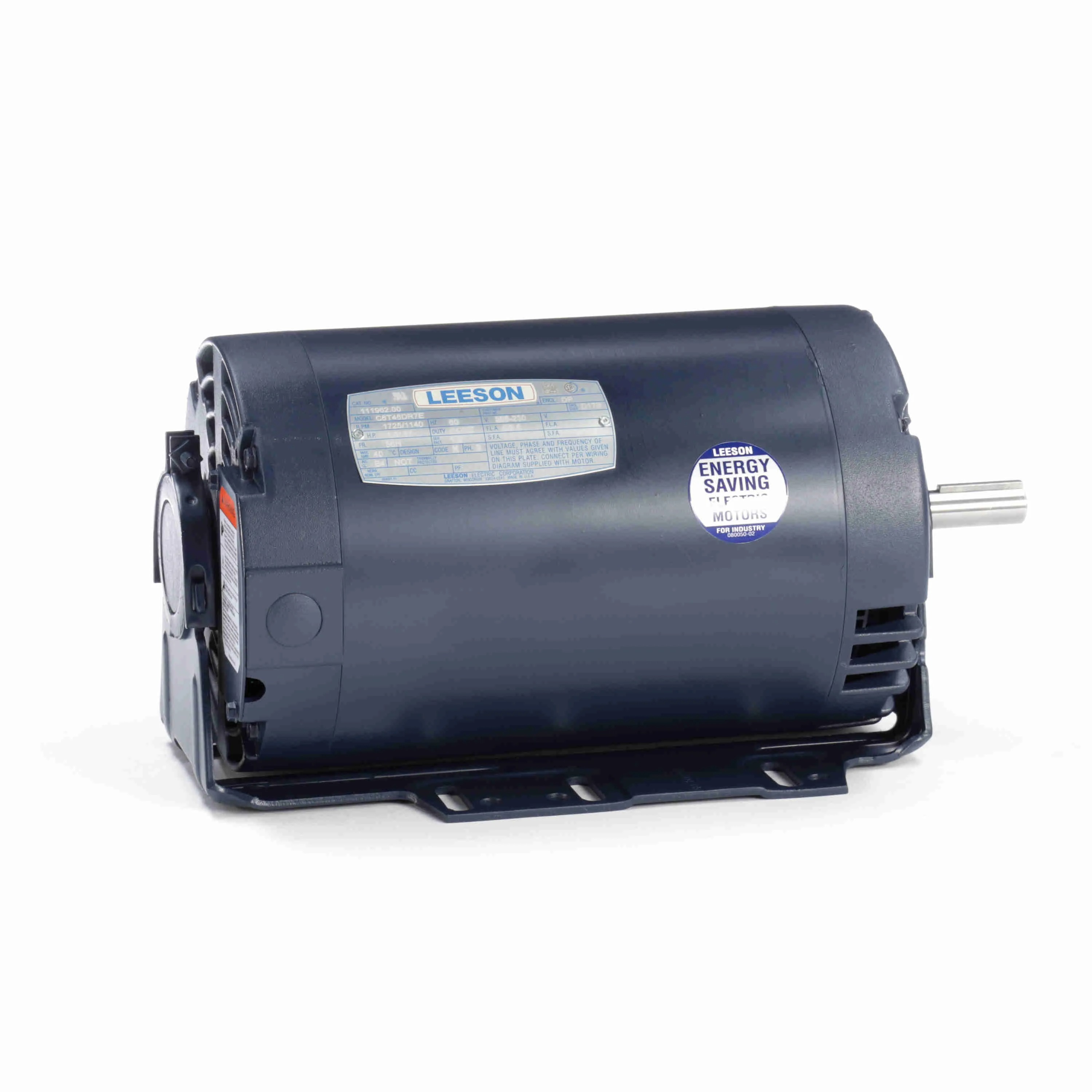

111962.00 | 208-230V | 79.2% | 70.5 | 5A | 1 1/2 hp | 1 | 56H | 3 | €1,325.68 |
