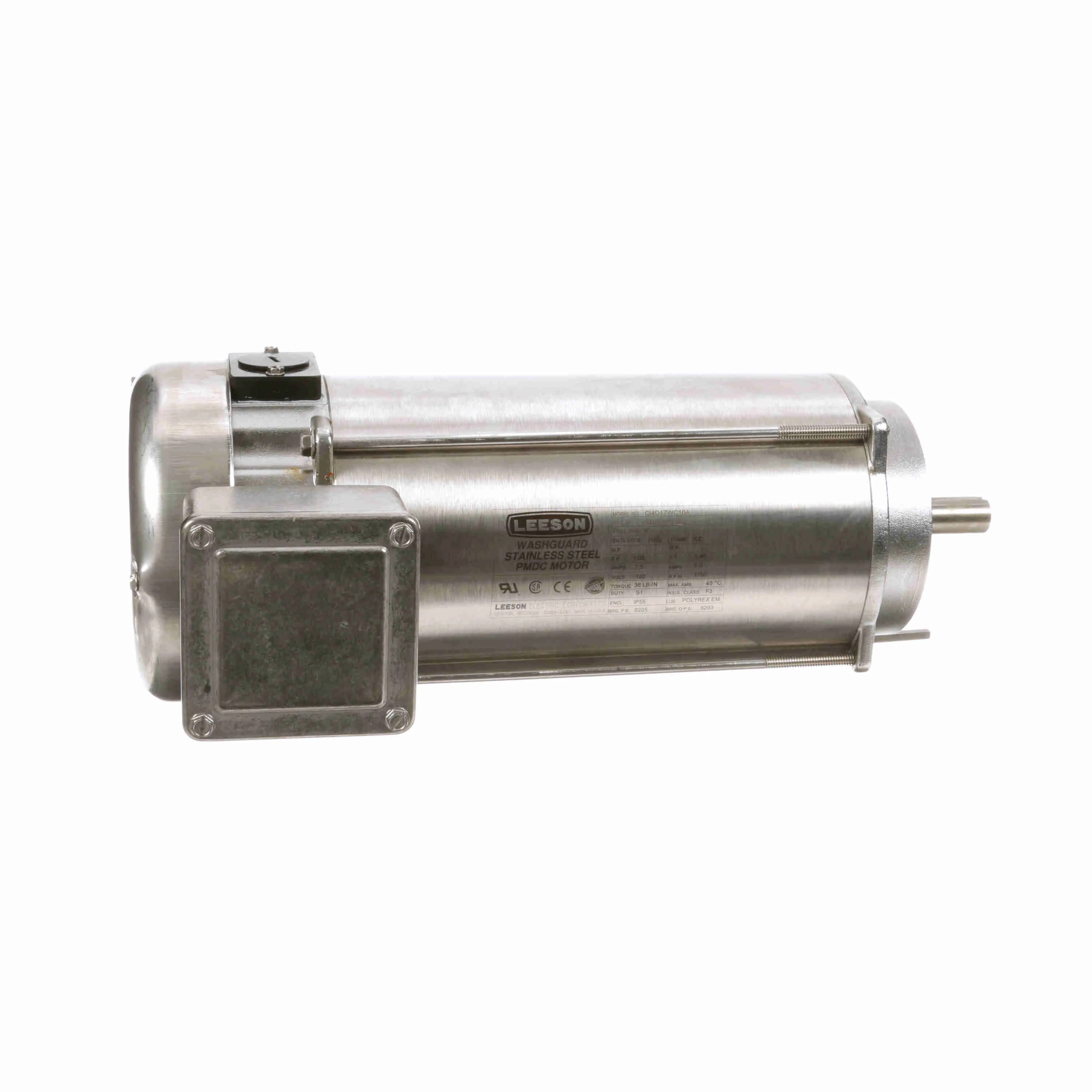

LEESON 109090.00 CI4D17WC10A Washdown Motor, 180V, 1750 RPM
Get it by Wednesday, Dec 24
€690.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Ambient Temp. | 40°C |
| Amps | 7.5A |
| Armature Amps | 7.5A |
| Assembly | 40025 |
| Conduit Box Position | F1 |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | S1 |
| Efficiency | 85.3% |
| Enclosure Type | IP55 |
| Finish | Unfinished |
| Form Factor | 1.05 |
| Frame | 80D |
| Frame Length | 9.62" |
| Frame Material | Stainless Steel |
| Frame Type | 80D |
| Full Load Amps | 7.5A |
| Full Load Efficiency | 85.3% |
| Full Load Torque | 36 lbs.-in. |
| Full Load Torque | 36 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 3/4 hp |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| Kw | 1.1 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1750 RPM |
| Motor Shaft Rotation | Reconn |
| Mounting Type | C Face, Footless |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 1.1 kW |
| Packaging | PG659401.04B |
| Power | 1.1 kW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 2.05" |
| Thermal Protection | No Protection |
| Type | Z80-14 |
| Voltage | 180V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- KW2: 0.75
- Form Factor 2: 1.40
- FLA2: 5.0
- Bearing OPE: 6203
- Bearing PE: 6205
- Eff 100%: 85.3%
- Nameplate: 08116801
- Winding: D55298
- GROUP: 1 P
- Sub Group: P
