LEESON 109082.00 C4D17WC2A Washdown Motor, 0.50 HP, 90V, 1750 RPM
Get it by Wednesday, Dec 24
10.00% off
€2,443.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 5.2A |
| Application | Washdown |
| Assembly | 40025 |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 79% |
| Enclosure Type | Tefc |
| Finish | Unfinished |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 7 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | US56C |
| Frequency | 60 Hz |
| Full Load Amps | 5.2A |
| Full Load Torque | 18 lbs.-in. |
| Full Load Torque | 18 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 15/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | C Face |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 79% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 7/8" |
| Packaging | PG659401.04B |
| Phase | 1 |
| Rotation | Reconn |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.05" |
| Thermal Protection | No Protection |
| Type | DF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 90V |
| Weight | 46 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- Bearing PE: 6205
- Eff 100%: 79%
- Nameplate: 08113201
- Winding: D552691
- GROUP: 1 A
- Sub Group: A
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Type | Overall Length | Nominal Efficiency | Full Load Torque | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

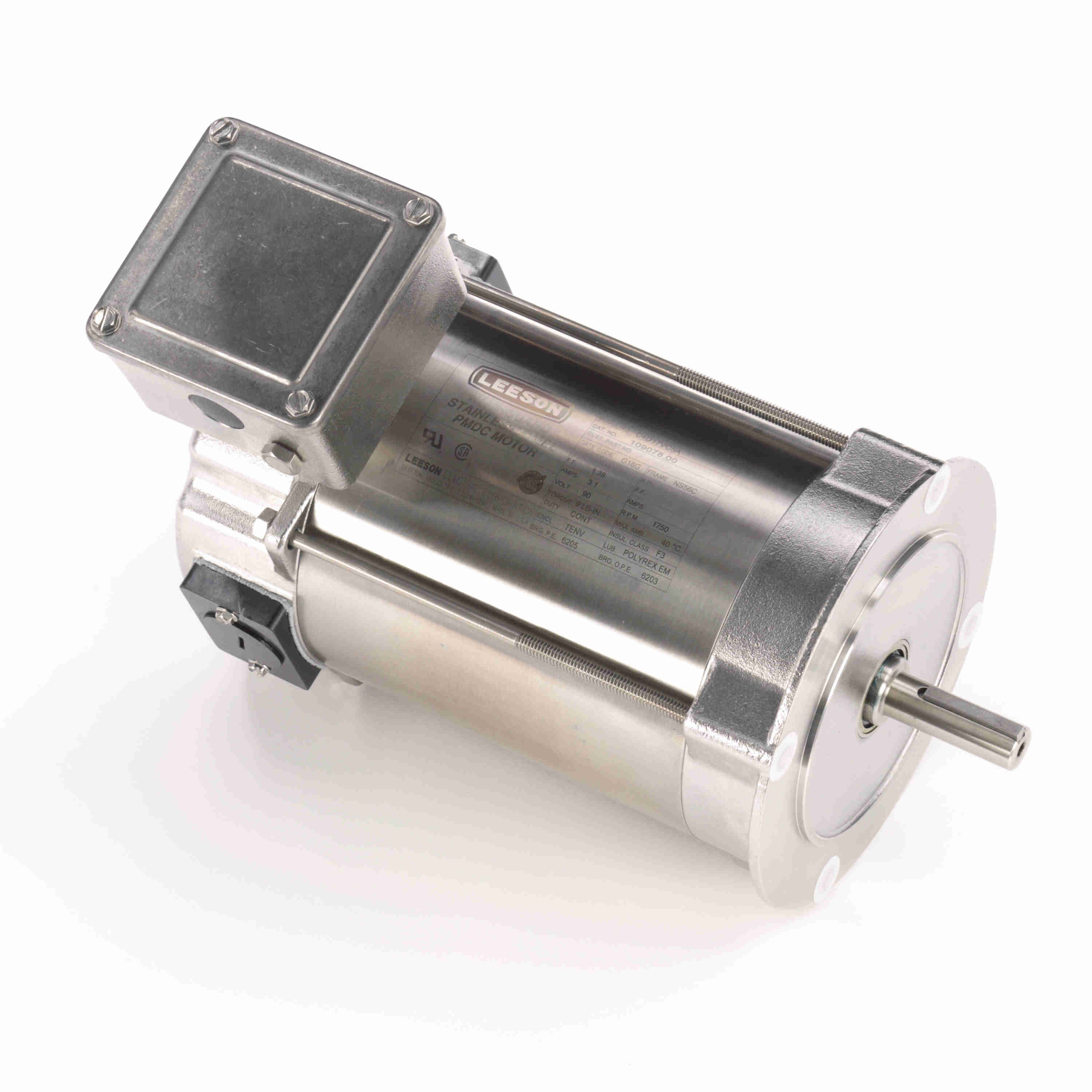

109078.00 | 90V | 1/4 hp | 3.1A | DN | 11 13/16" | 67.5% | 9 lbs.-in. | 67.5% | €2,223.15 | |
 |

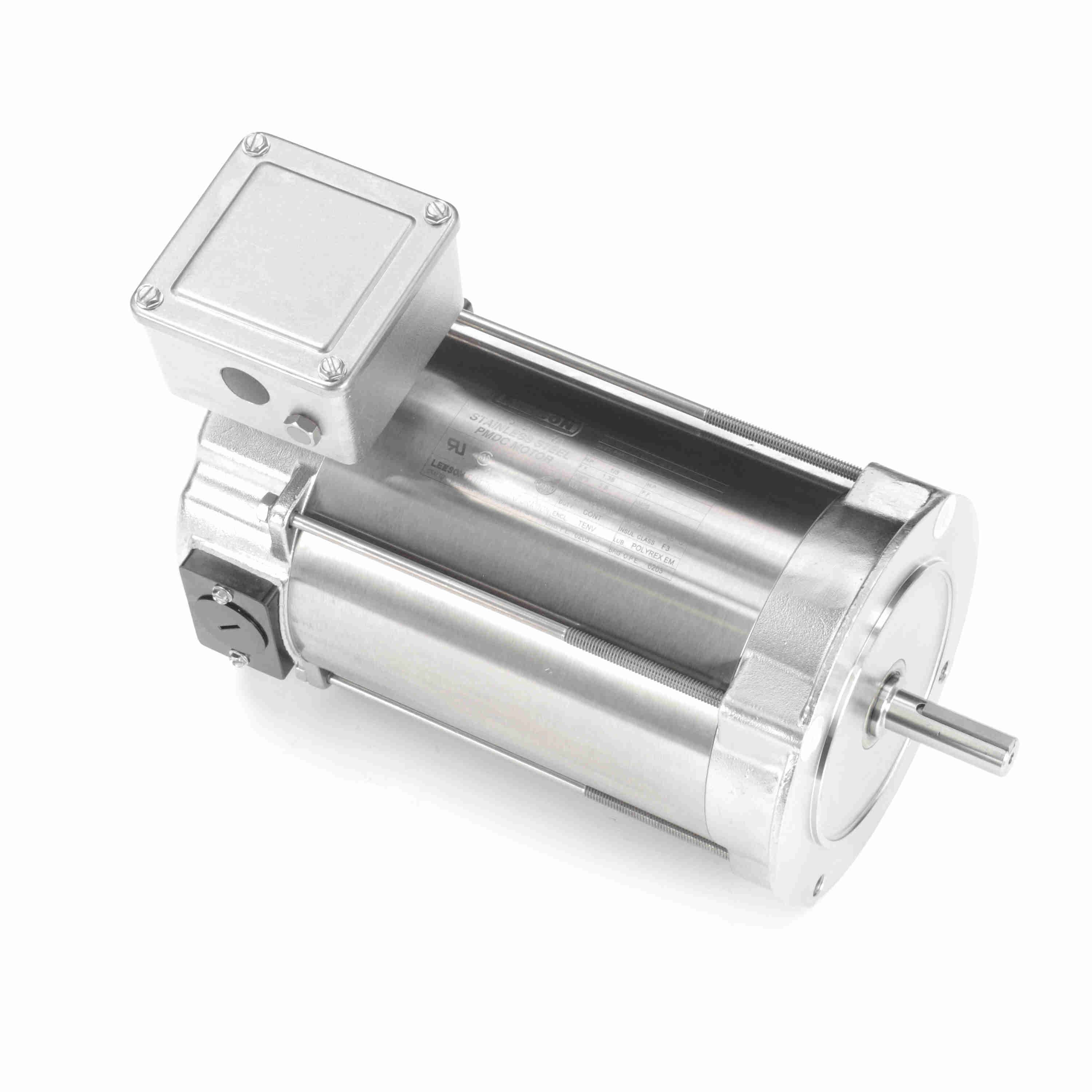

109079.00 | 90V | 33/100 hp | 3.8A | DN | 12 13/16" | 74% | 12 lbs.-in. | 74% | €2,562.28 | |
 |
109083.00 | 180V | 1/2 hp | 2.7A | DF | 13 7/8" | 73.7% | 18 lbs.-in. | 77.3% | €3,105.52 | |
 |

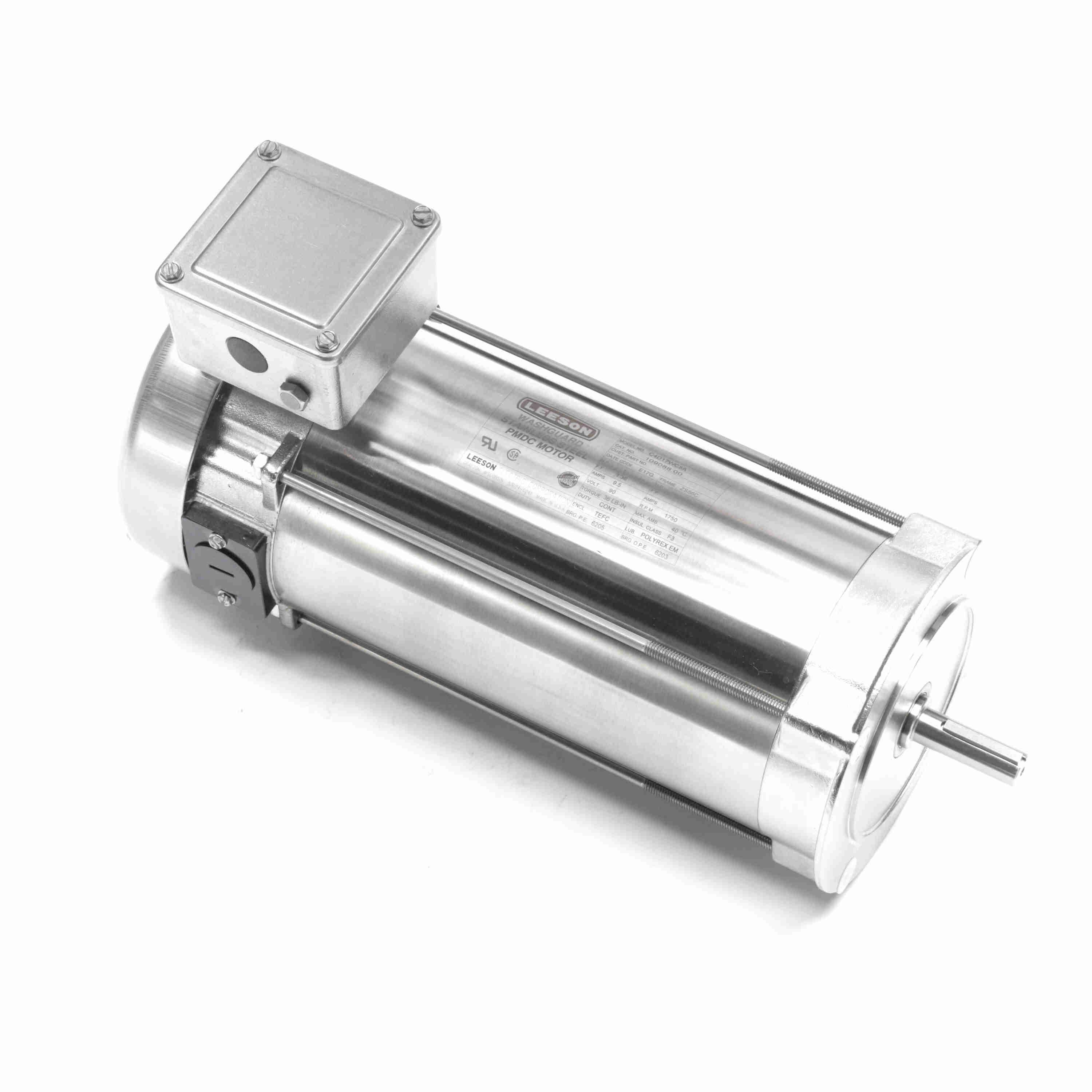

109088.00 | 90V | 1 hp | 9.5A | DF | 16 3/8" | 81.6% | 36 lbs.-in. | 81.6% | €3,788.65 | |
 |

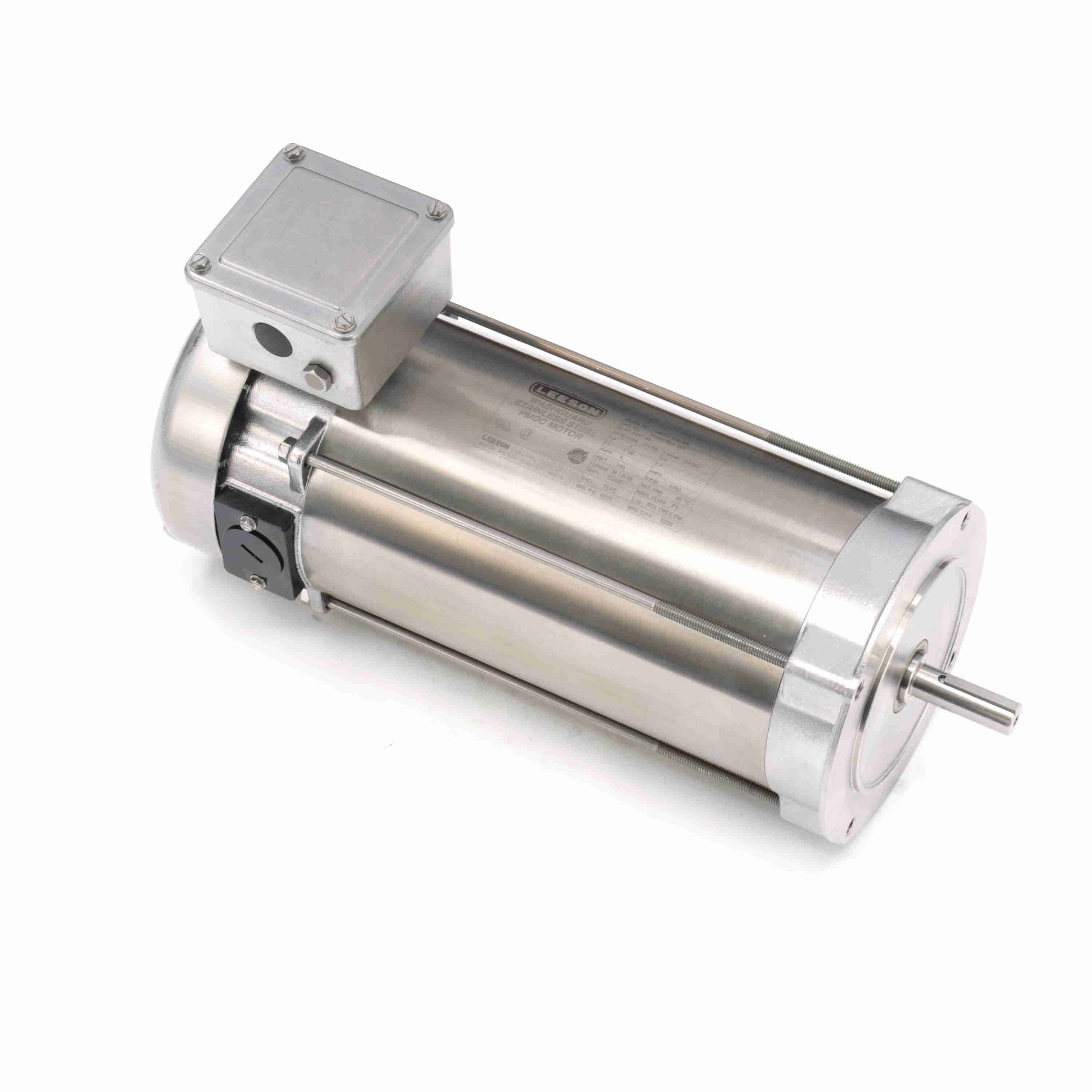

109089.00 | 180V | 1 hp | 5A | DF | 16 3/8" | 85.3% | 36 lbs.-in. | 85.3% | €3,765.65 |
