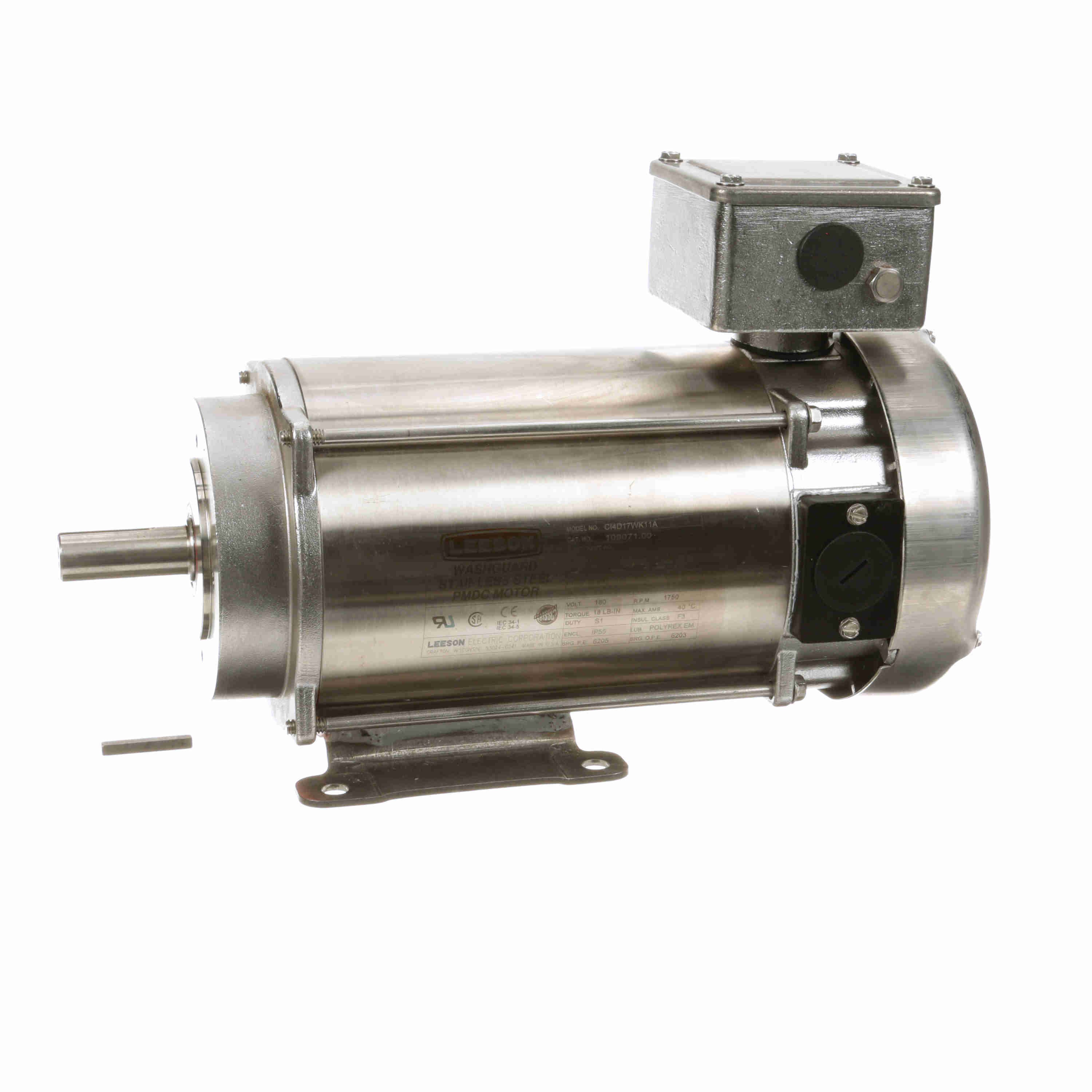

LEESON 109071.00 CI4D17WK11A Washdown Motor, 180V, 1750 RPM
Get it by Wednesday, Dec 24
€661.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 3.8A |
| Assembly | 40023 |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | S1 |
| Efficiency | 77.3% |
| Enclosure Type | IP55 |
| Finish | Unfinished |
| Form Factor | 1.05 |
| Frame | 80D |
| Frame Length | 7 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 80D |
| Full Load Amps | 3.8A |
| Full Load Torque | 18 lbs.-in. |
| Full Load Torque | 18 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| Kw | 0.55 kW |
| Length | 19 1/2" |
| Max. Rpm | 1750 RPM |
| Motor Enclosure Design | Non Standard |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1750 RPM |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | PG659401.04A |
| Phase | 1 |
| Power | 0.55 kW |
| Rotation | Reconn |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 2.05" |
| Thermal Protection | No Protection |
| Type | U80-14 |
| Voltage | 180V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- KW2: 0.37
- Form Factor 2: 1.38
- FLA2: 2.7
- Bearing OPE: 6203
- Bearing PE: 6205
- Eff 100%: 77.3%
- Nameplate: 08116801
- Winding: D552692
- GROUP: 1 B
- Sub Group: B
