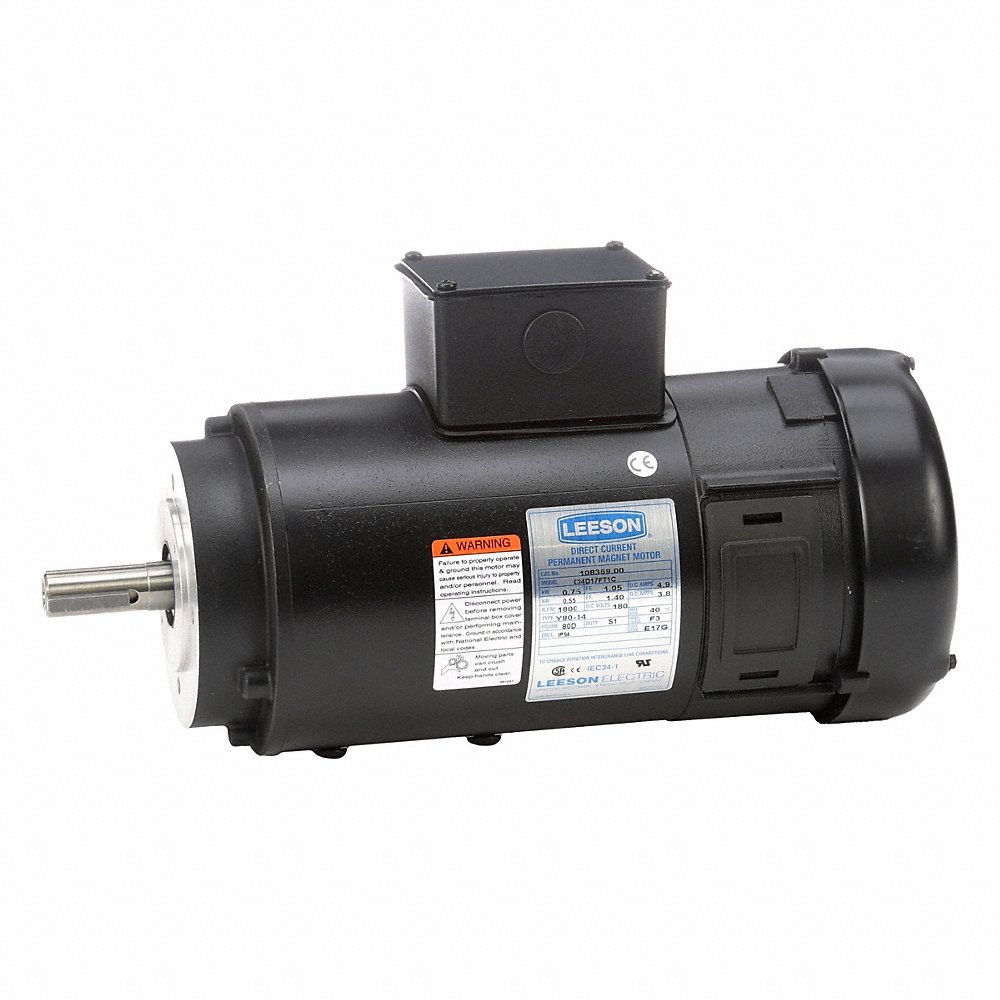

LEESON 108369.00 CI4D17FT1C DC Permanent Magnet Motor, 3/4 HP, 1,800 RPM, 80 Frame, Special Mounting, 180V DC

Leeson 108369.00 CI4D17FT1 metric motor is used for powering lathes, milling machines and grinders. It can also be used to drive fans and blowers for ventilation and cooling in buildings and factories.

Features:

• It features a cast aluminum conduit box for durability and corrosion resistance.
• This metric motor has oversized brushes for extended operational life.
• It comes with a rolled steel frame, providing structural rigidity and stability during operation.
• This metric motor offers reversible rotation.
• It is equipped with die-cast aluminium end shields with steel bearing inserts for smooth operation.
• This metric motor has a terminal board for easy installation.

Frequently Asked Questions:

Q. What type of bearings does the motor come equipped with?

A. This motor has permanently lubricated sealed ball bearings that provide low rotational friction.

Q. How to install this Leeson 108369.00 CI4D17FT1 metric motor?

A.

• Ensure proper alignment of the motor shaft with driven equipment.
• Mount the motor securely to a stable surface using appropriate mounting hardware.
• Connect electrical supply to motor terminals according to the wiring diagram provided.
• Verify proper voltage, phase, and rotation direction before energizing the motor.
• Ensure adequate ventilation around the motor for cooling purposes.
• Periodically inspect motor for any signs of damage or malfunction.
