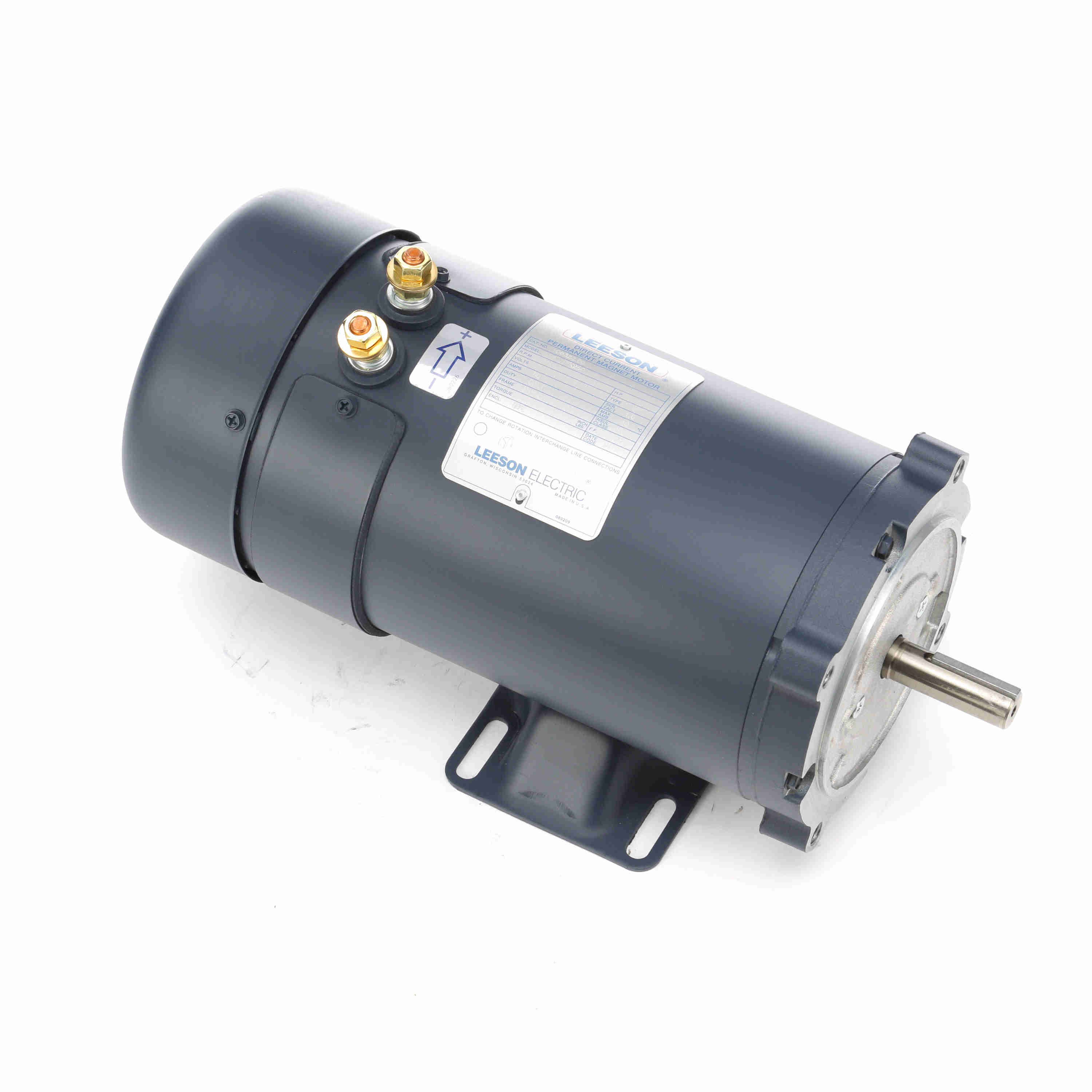

LEESON 108322.00 C4D17FK28C Low Voltage Motor, 1 HP, 12V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,584.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 80A |
| Bearing Type | Ball |
| Brush Material | Carbon |
| Brush Type | Carbon |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 77.9% |
| Enclosure Type | Tefc |
| Form Factor | 1 |
| Frame | 56C |
| Frame Length | 8 1/2" |
| Frame Type | S56C |
| Full Load Amps | 80A |
| Full Load Torque | 35 lbs.-in. |
| Full Load Torque | 35 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Ins. Class | Class H |
| Insulation Class | Class H |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 7/8" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1800 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Studs | 4 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 13/16" |
| Packaging | PG659401.04Z |
| Power | 0.75 kW |
| Removable Base | Yes |
| Rotation | Reconn |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Stud Size | 3/8"-16 |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 12V |
| Weight | 35 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- Bearing PE: 6203
- Eff 100%: 77.9%
- Nameplate: 080209
- Winding: D55477
- GROUP: 1 A
- Sub Group: A
- Paint: 305000.01
Product Variants
| Product | Model | Voltage | Hp | Mounting Type | Shaft Dia. | Efficiency | Full Load Torque | Type | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
098381.00 | 36V | 1/2 hp | Rigid Base | 5/8" | 74.1% | 17.5 lbs.-in. | DF | 2.06" | €228.13 | |
 |

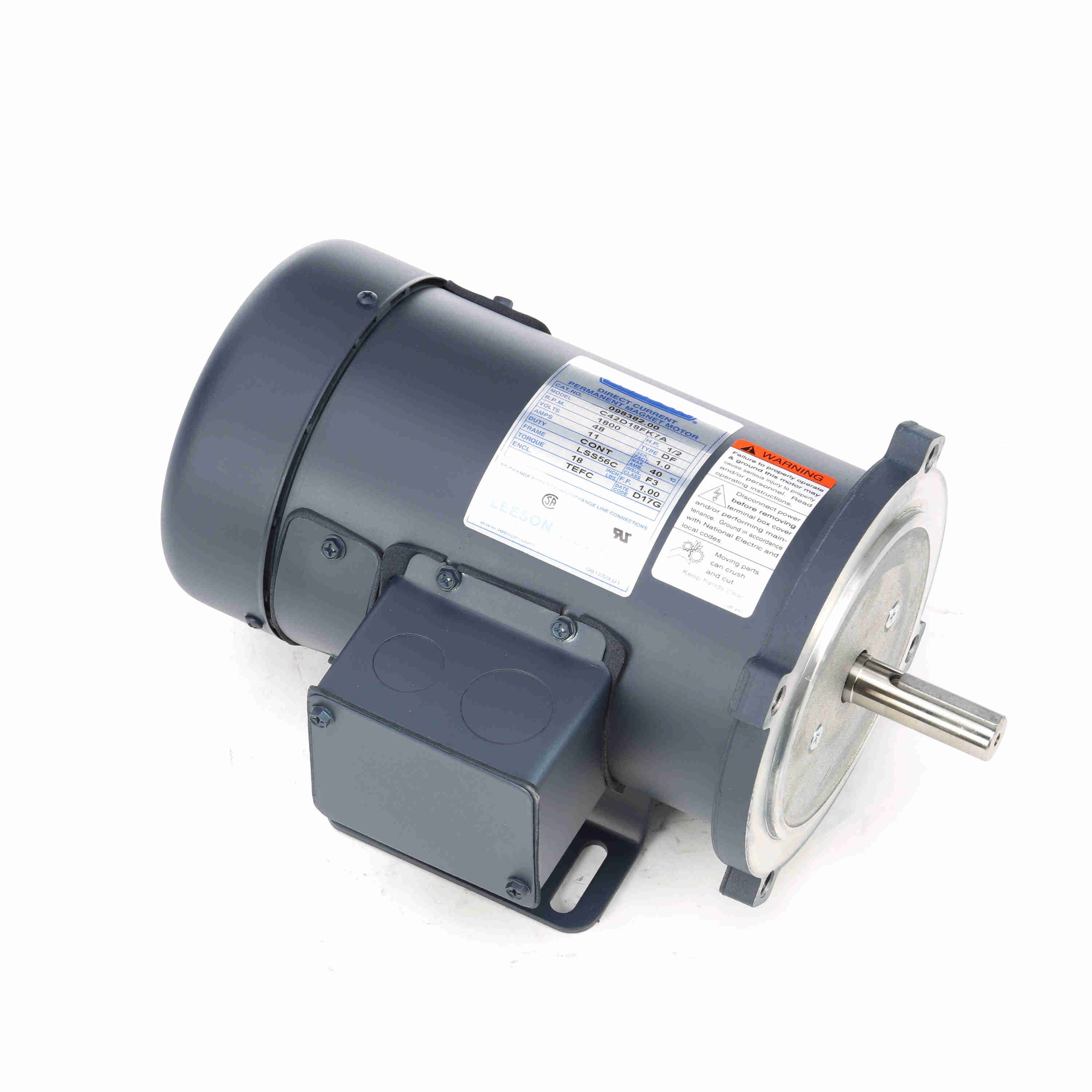

098382.00 | 48V | 1/2 hp | Rigid Base | 5/8" | 76.5% | 18 lbs.-in. | DF | 2.06" | €709.62 | |
 |
108045.00 | 12V | 1/4 hp | Face/Base | 5/8" | 72.1% | 8.75 lbs.-in. | DN | 2.06" | €1,076.54 | |
 |

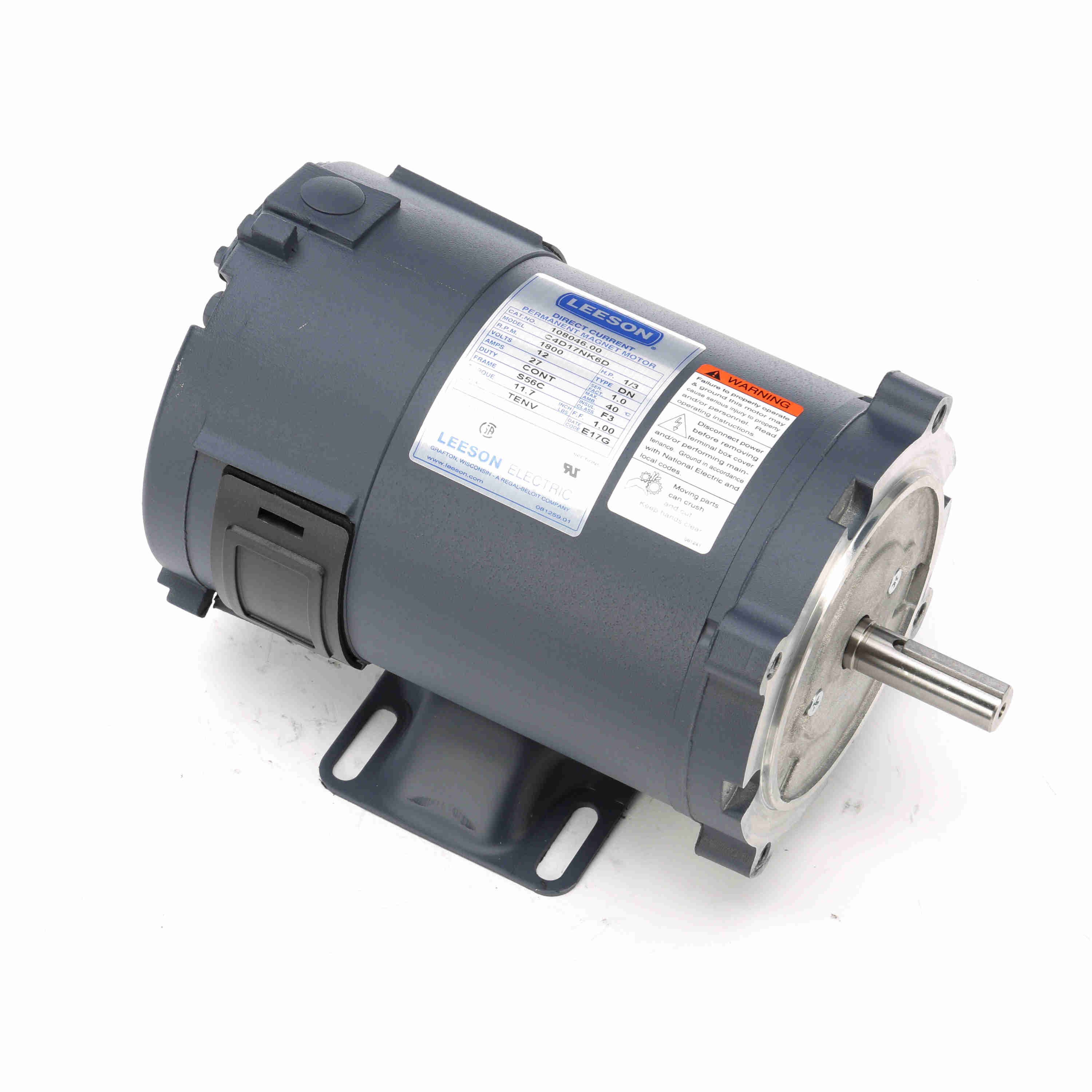

108046.00 | 12V | 33/100 hp | Face/Base | 5/8" | 70.1% | 11.7 lbs.-in. | DN | 2.06" | €1,171.82 | |
 |

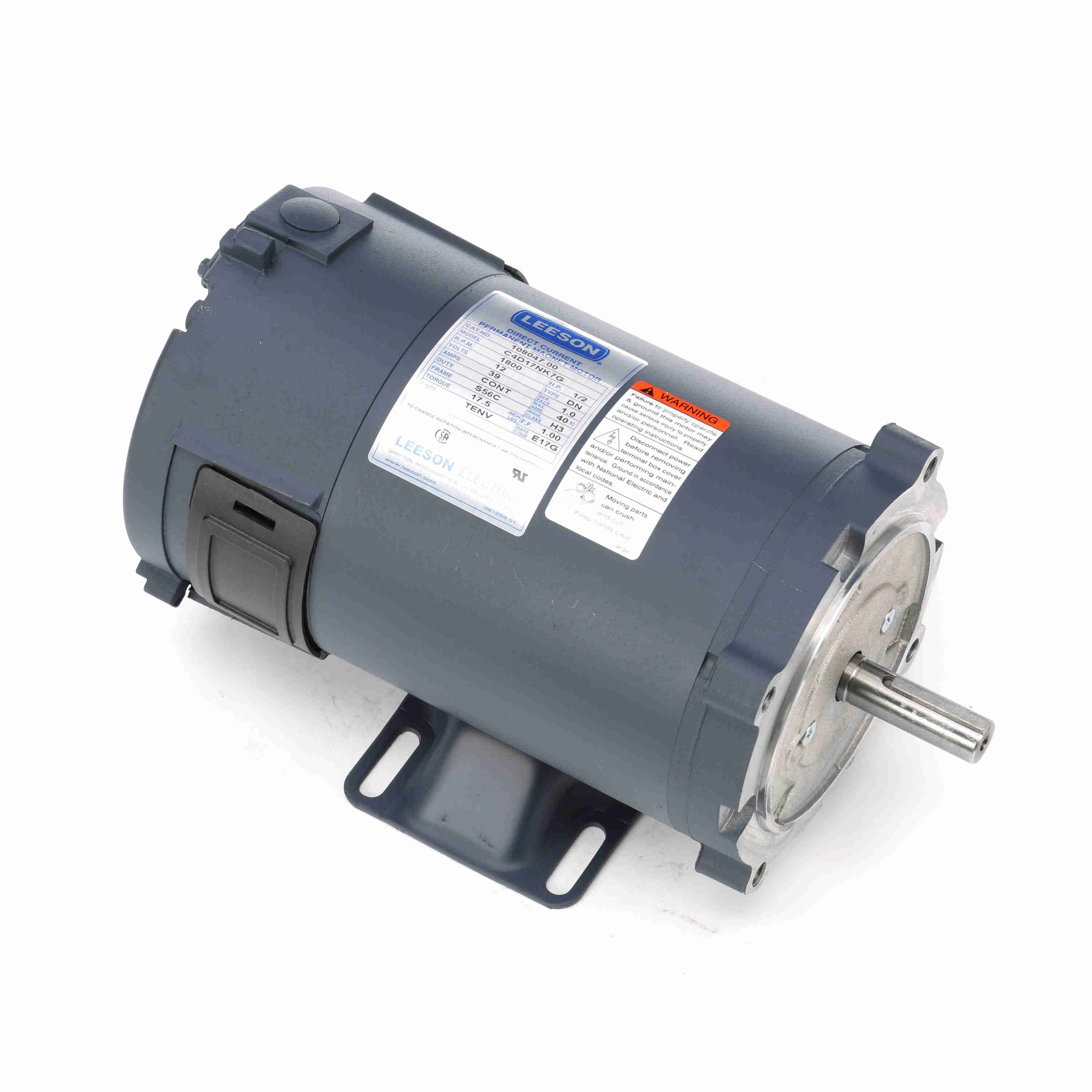

108047.00 | 12V | 1/2 hp | Rigid Base | 5/8" | 83.6% | 17.5 lbs.-in. | DN | 2.06" | €1,241.73 | |
 |
108048.00 | 12V | 3/4 hp | Rigid Base | 5/8" | 79.9% | 26.3 lbs.-in. | DF | 2.06" | €889.75 | |
 |

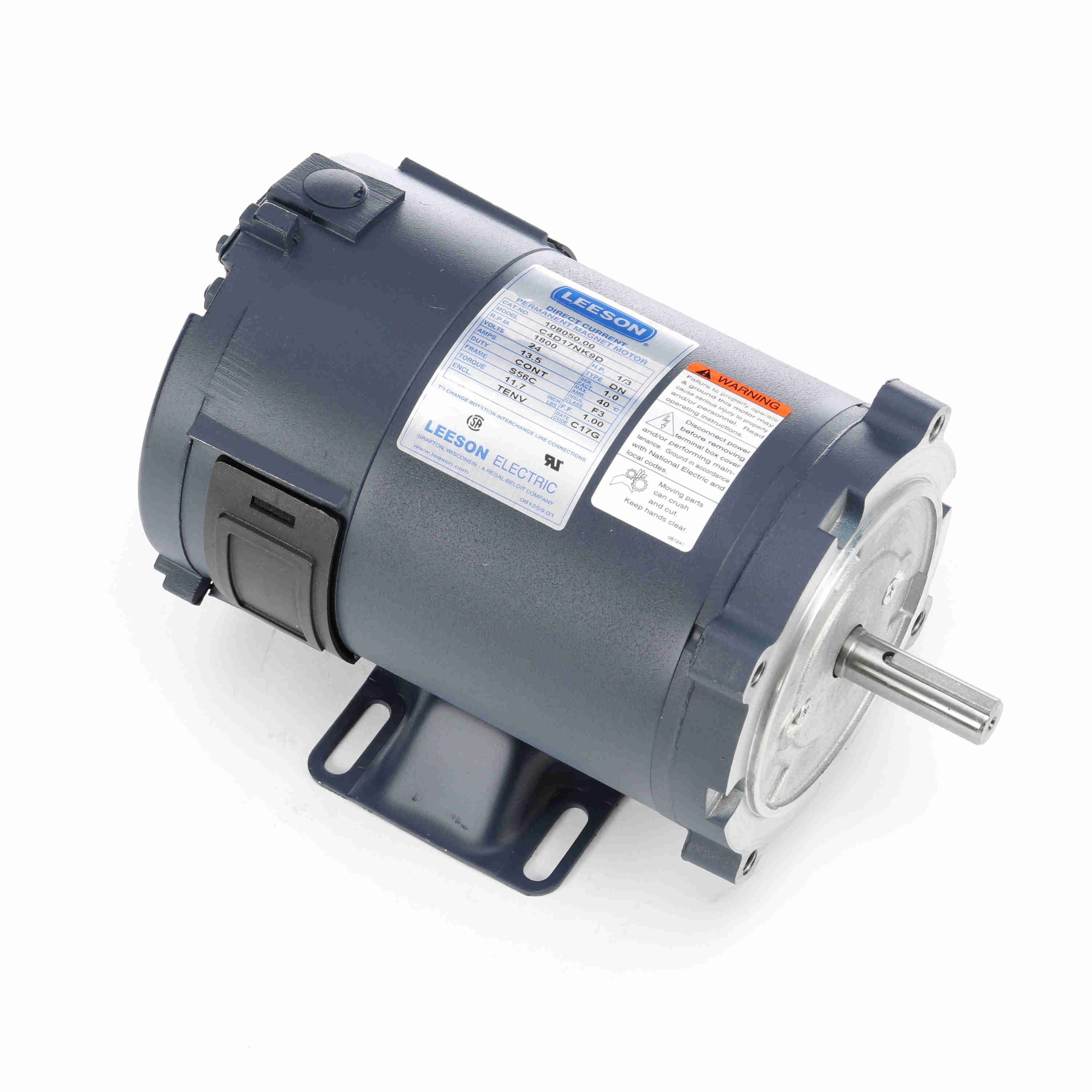

108050.00 | 24V | 33/100 hp | Rigid Base | 5/8" | 70.3% | 11.7 lbs.-in. | DN | 2.06" | €1,155.22 |
