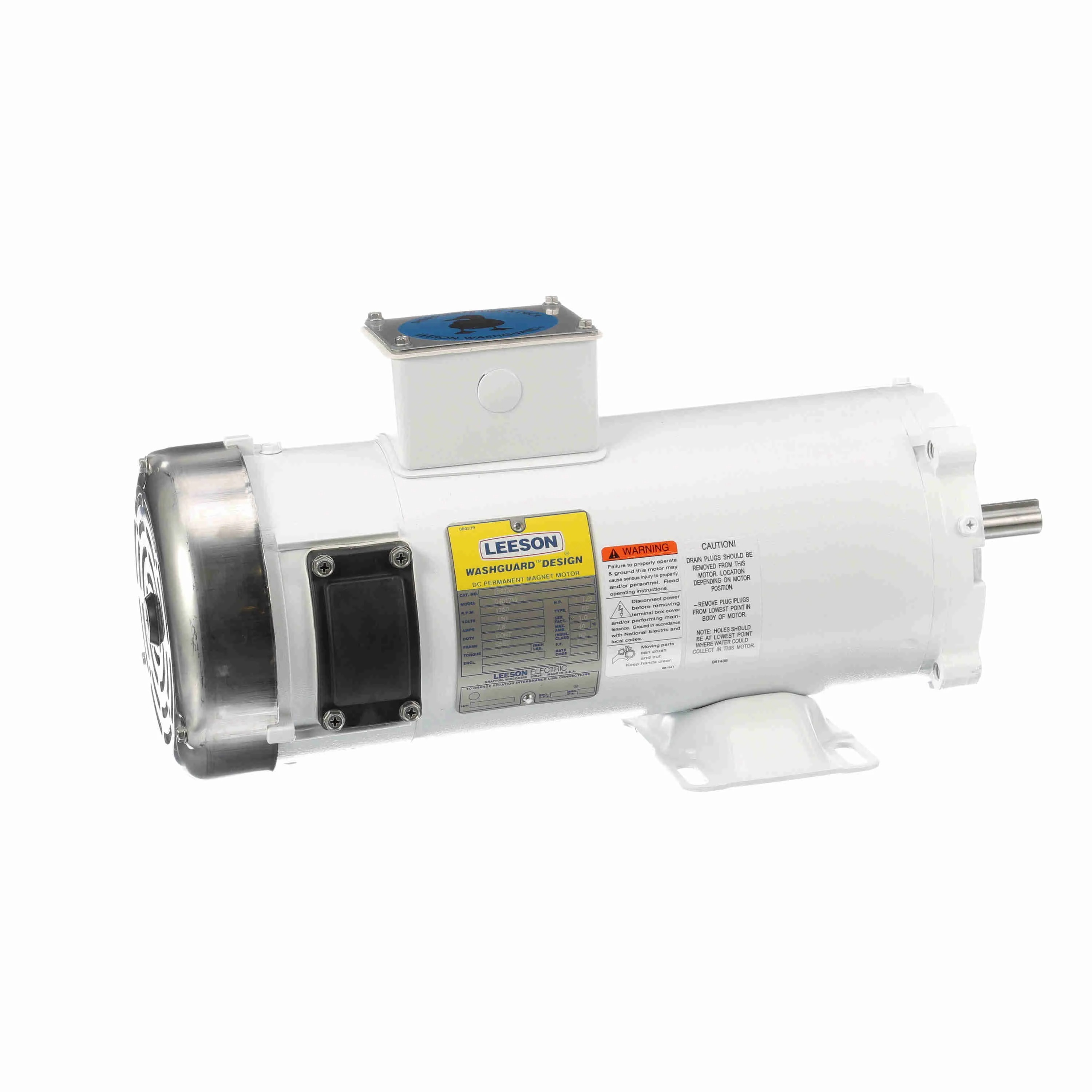

LEESON 108232.00 C4D17WK3G Washdown Motor, 1.50 HP, 180V, 1750 RPM
Get it by Tuesday, Dec 23
10.00% off
€2,644.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 7.6A |
| Application | Washdown |
| Body Dia. | 5 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Color | White |
| Conduit Box Location | Exterior |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Type | Tefc |
| Endshield Material | Stainless Steel |
| Finish | Epoxy Coated |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 9.47" |
| Frame Material | Stainless Steel |
| Frame Type | S56C |
| Frequency | 60 Hz |
| Full Load Amps | 7.6A |
| Full Load Torque | 54 lbs.-in. |
| Full Load Torque | 54 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class H |
| Kw | 1.1 kW |
| Length | 19 1/2" |
| Length Less Shaft | 14 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | Washdown |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Phase | 3 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 16 13/16" |
| Packaging | PG659401.04N |
| Phase | 1 |
| Rotation | Reconn |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Shaft Material | Stainless Steel |
| Thermal Protection | No Protection |
| Type | DF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 180V |
| Weight | 53 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- Bearing PE: 6203
- Eff 100%: 86.5%
- Nameplate: 080339
- Winding: D56275
- GROUP: 1 A
- Sub Group: A
- Paint: 305053.01
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Insulation Class | Type | Overall Length | Full Load Torque | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

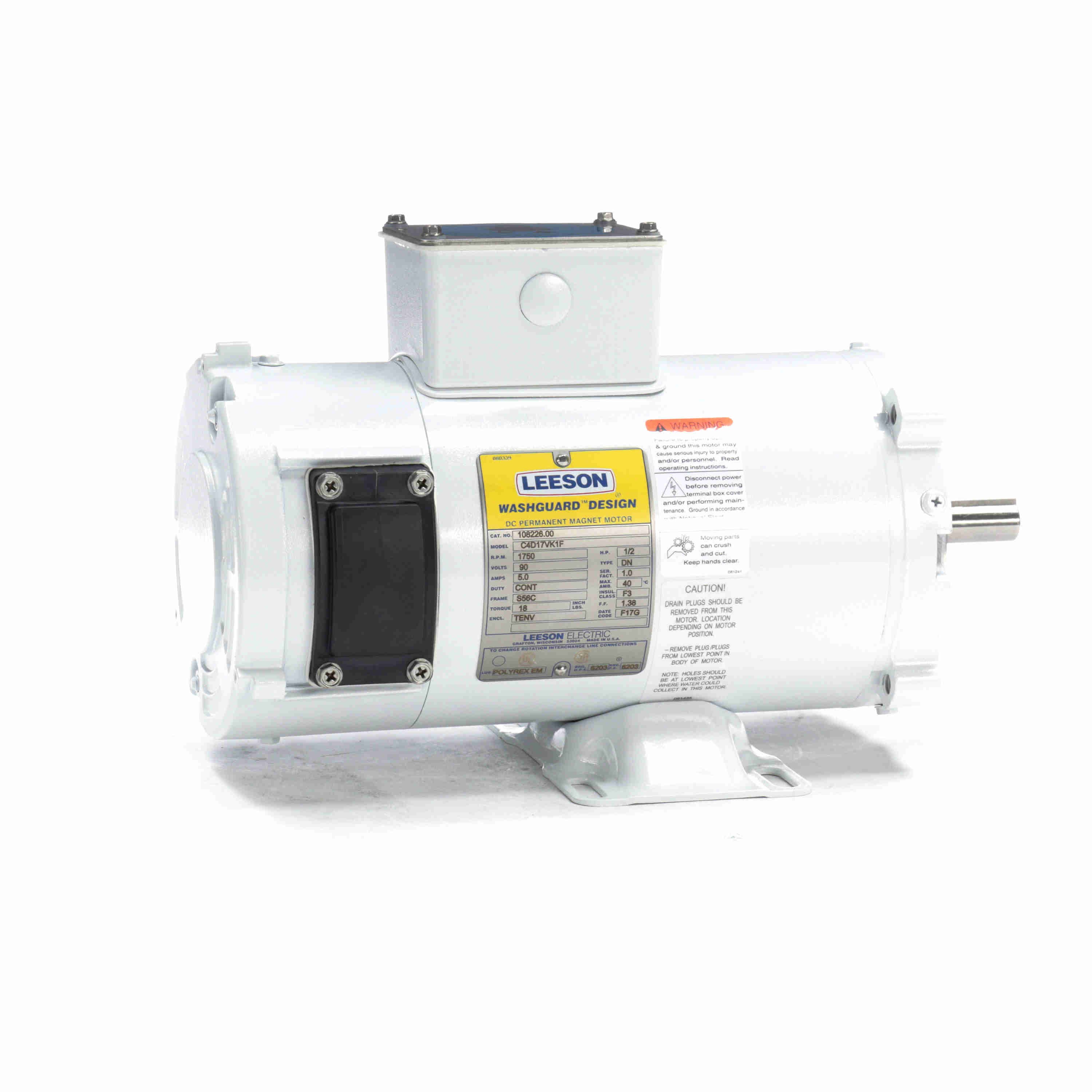

108226.00 | 90V | 1/2 hp | 5A | Class F | DN | 13 1/8" | 18 lbs.-in. | 81.1% | €1,568.38 | |
 |

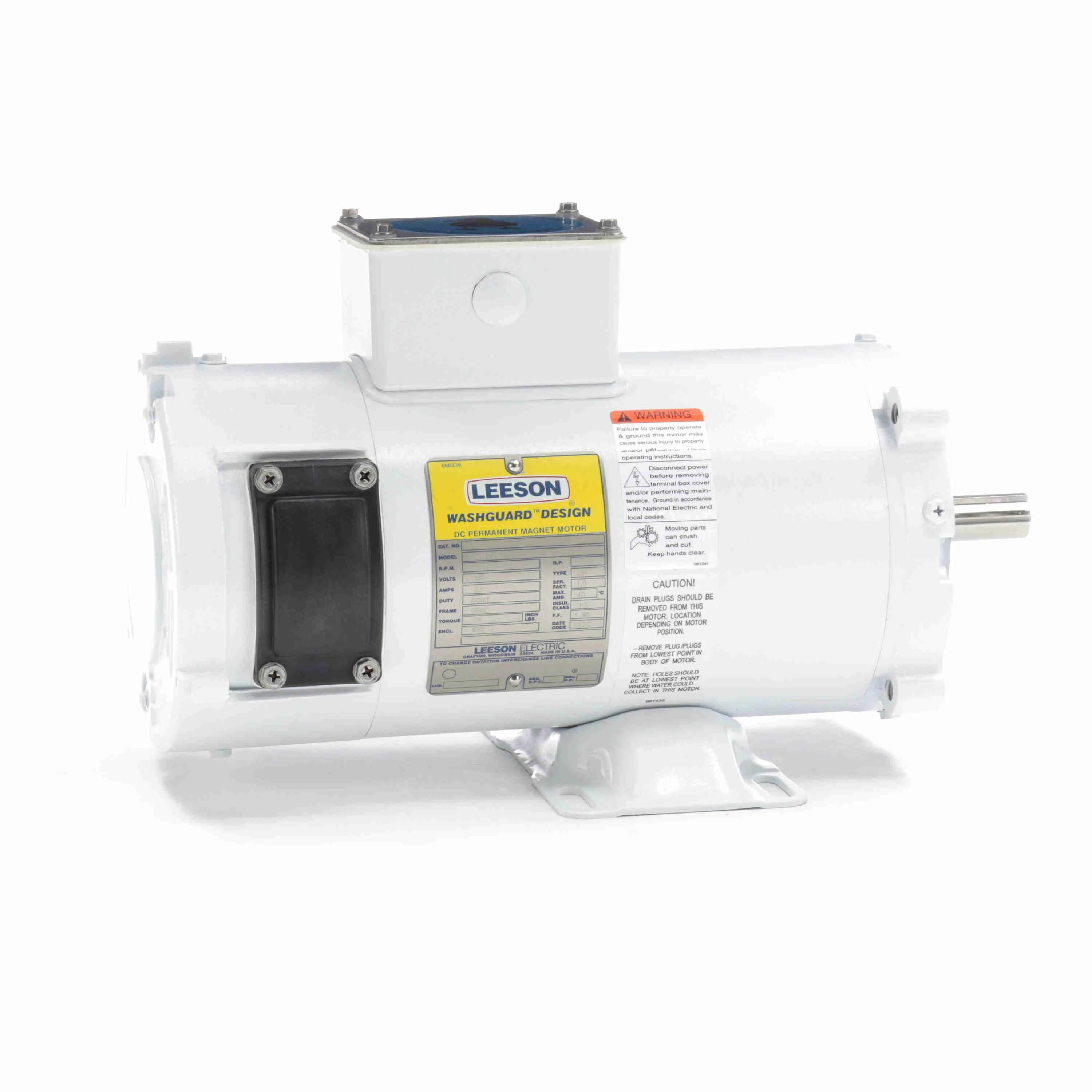

108227.00 | 180V | 1/2 hp | 2.5A | Class F | DN | 13 5/8" | 18 lbs.-in. | 81.7% | €996.74 | |
 |

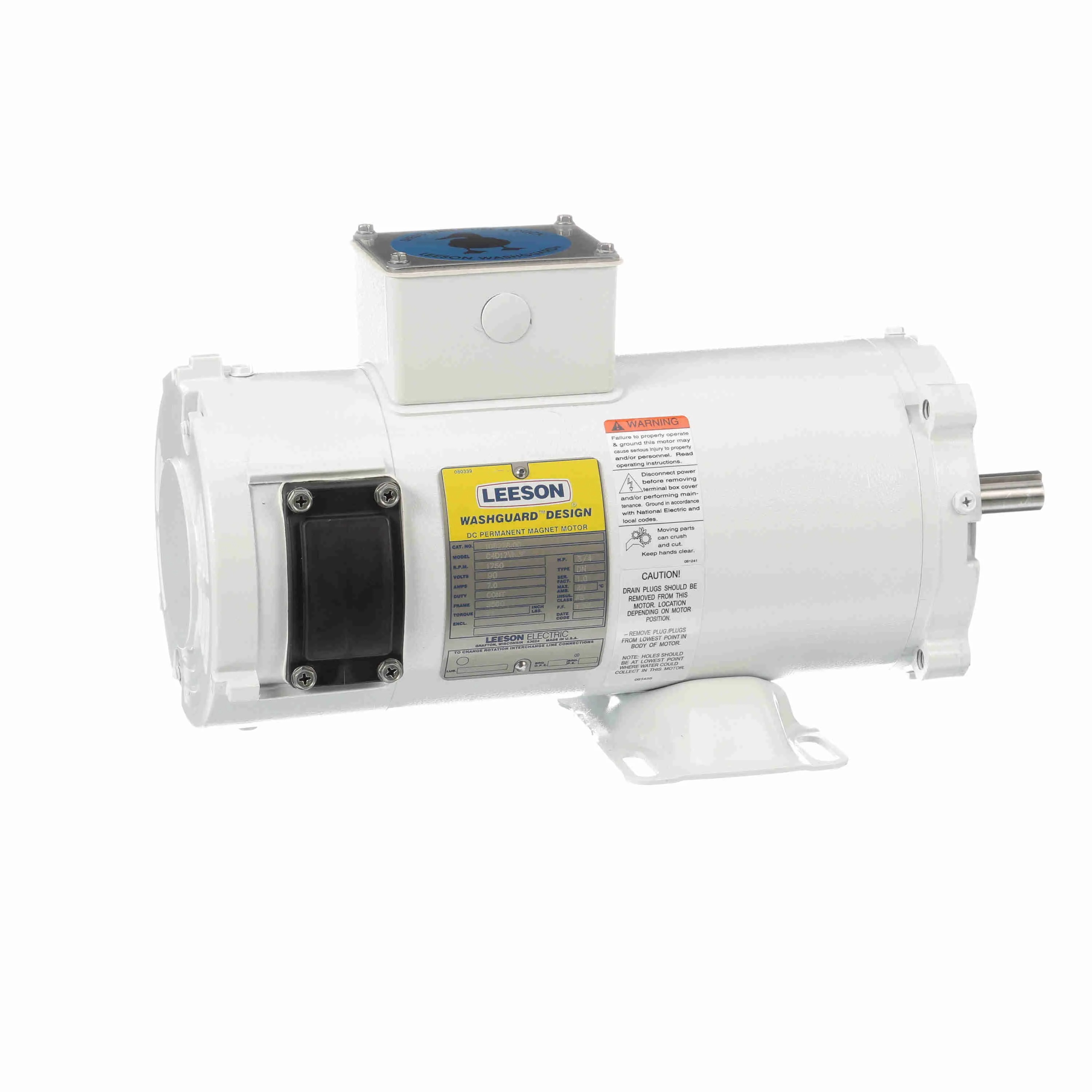

108228.00 | 90V | 3/4 hp | 7A | Class F | DN | 14 5/8" | 27 lbs.-in. | 85.2% | €1,983.08 | |
 |

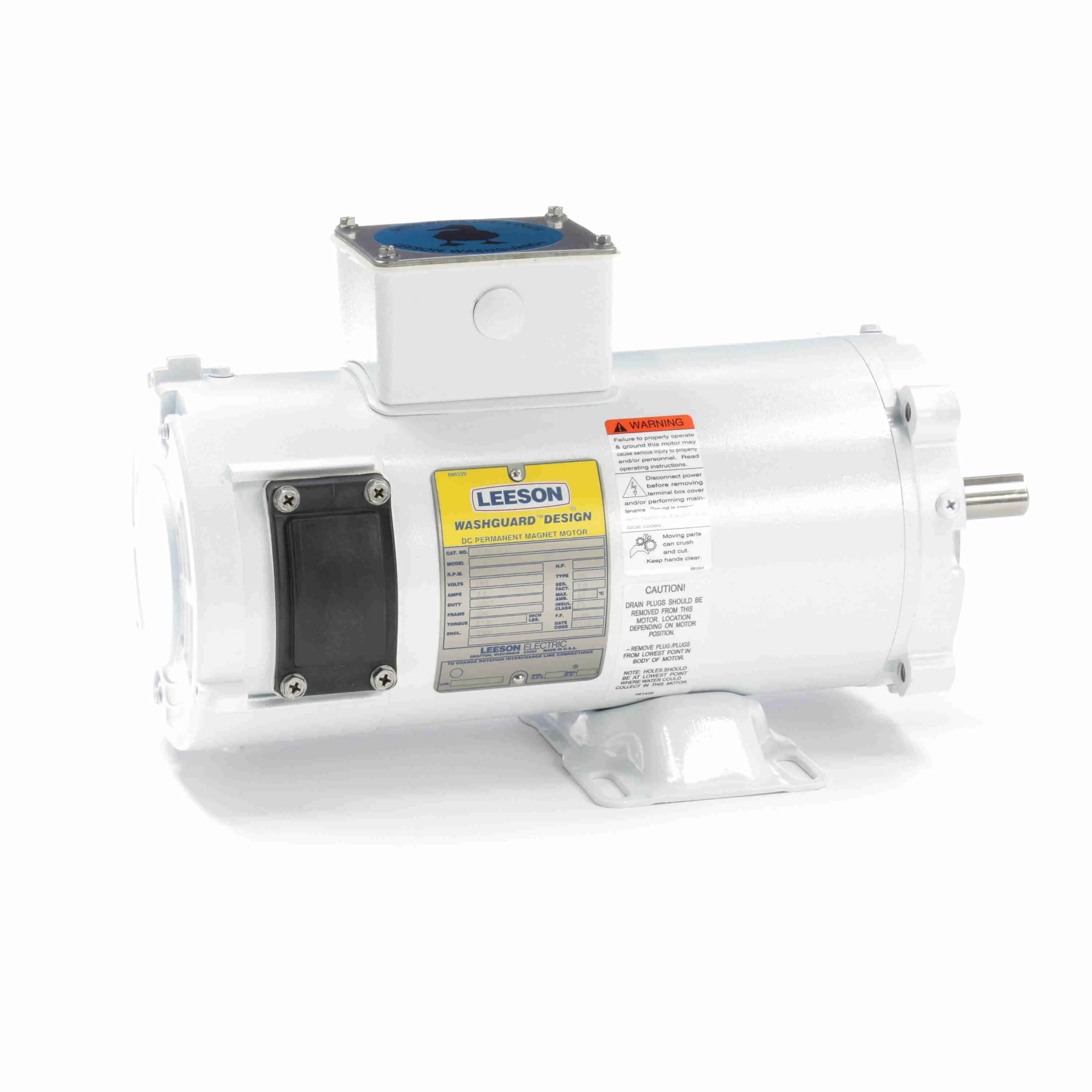

108229.00 | 180V | 3/4 hp | 3.7A | Class F | DN | 14 1/8" | 27 lbs.-in. | 85% | €1,851.81 | |
 |

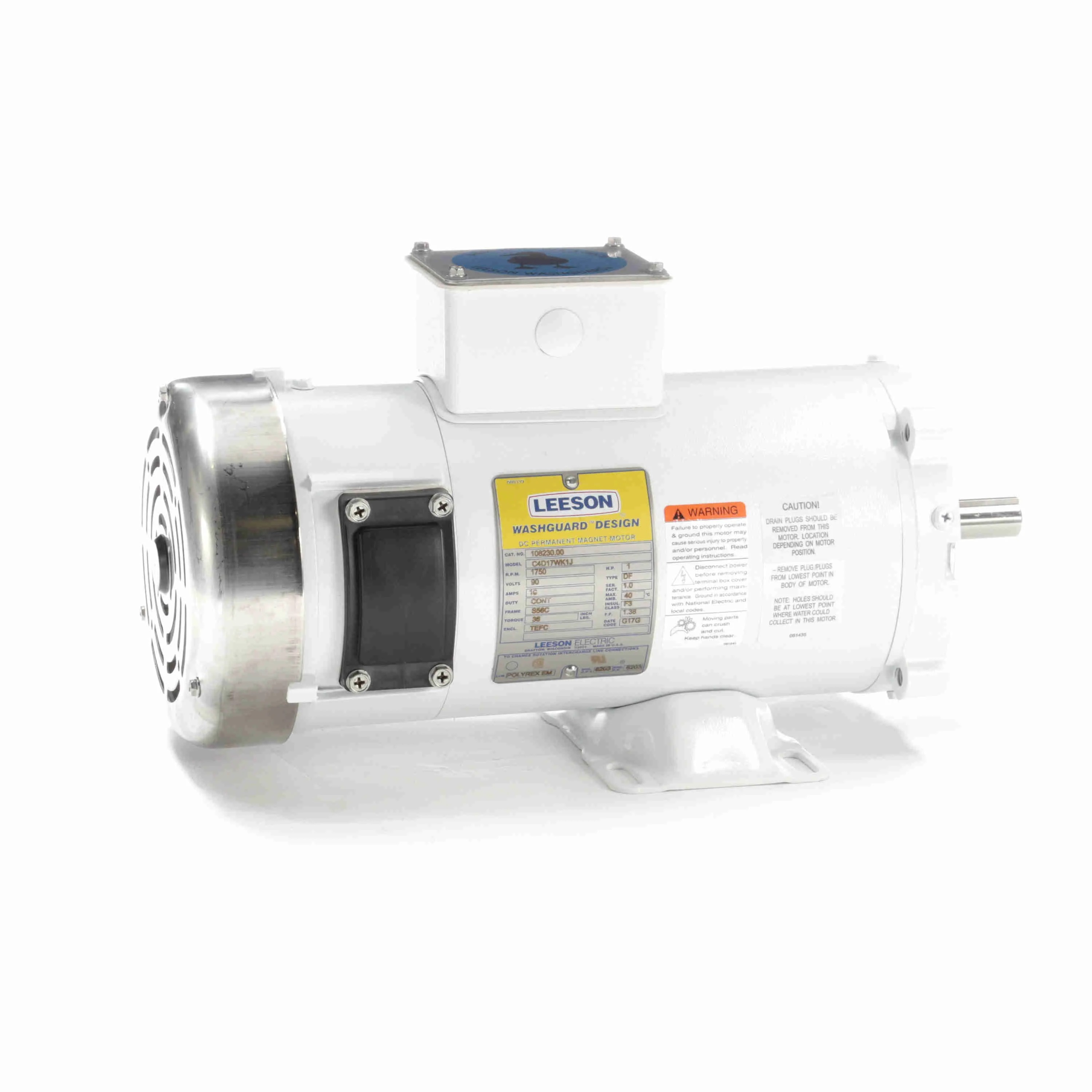

108230.00 | 90V | 1 hp | 10A | Class F | DF | 14 13/16" | 36 lbs.-in. | 83.7% | €2,367.18 | |
 |

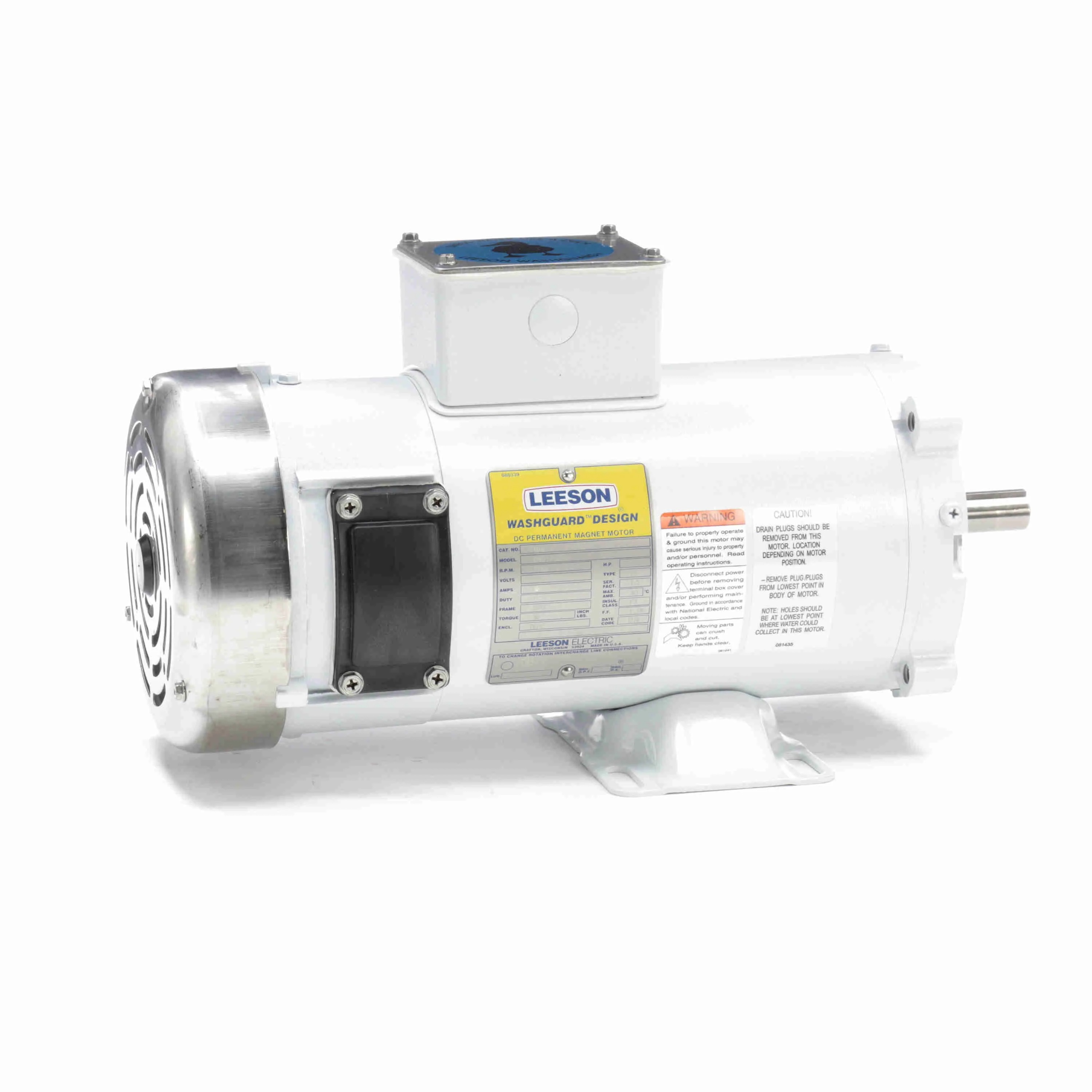

108231.00 | 180V | 1 hp | 5A | Class F | DF | 14 13/16" | 36 lbs.-in. | 85% | €2,342.94 | |
 |

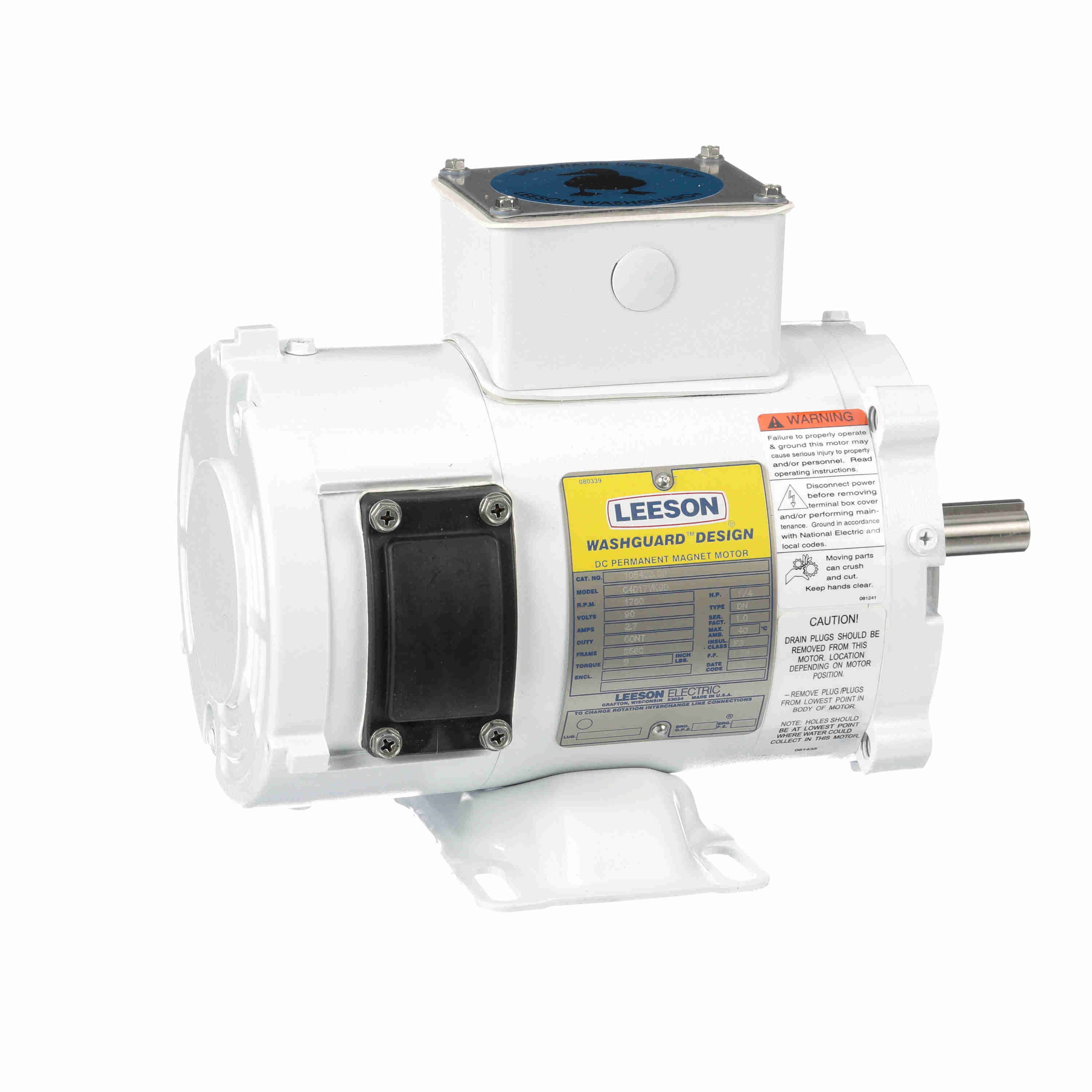

108423.00 | 90V | 1/4 hp | 2.7A | Class F | DN | 10 5/8" | 9 lbs.-in. | 68% | €1,358.13 |
