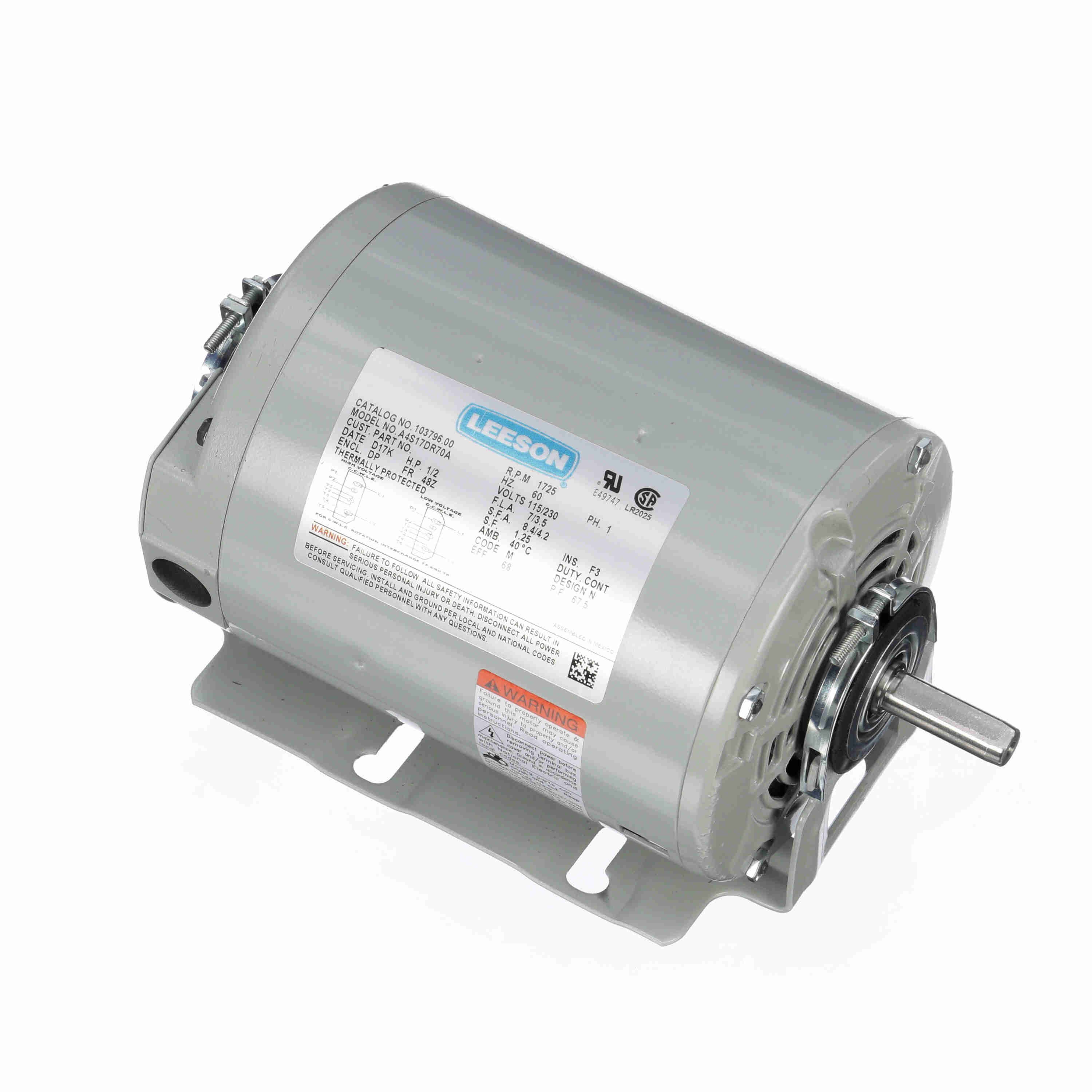

LEESON 103796.00 A4S17DR70A Refrigeration Motor, 0.50 HP, 1 Ph, 60 Hz, 115/230 V, 1800 RPM
Get it by Monday, Jul 6
€321.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 104°F |
| Amps | 7/3.5A |
| Application | General Application |
| Bearing Type | Ball |
| Code | M |
| Design | M, N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Electrical Type | Split Phase |
| Enclosure Type | ODP |
| Frame | 48Z |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 7/3.5A |
| Grease Type | Multemp SRL |
| Height | 8 3/4" |
| Hp | 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | M |
| Kw | 0.37 kW |
| Length | 13 3/4" |
| Length Less Shaft | 8 13/16" |
| Lubrication | Multemp SRL |
| Max. Ambient Temp. | 104°F |
| Max. Speed | 1725 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Split Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | Refrigeration |
| Motor Thermal Protection | Auto |
| Motor Type | SD |
| Mounting Type | Resilient Base |
| Nameplate Speed | 1725 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68% |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Overall Length | 10 3/8" |
| Packaging | F |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 67.5 |
| Product Datasheet | leeson-103796-00.pdf |
| Service Factor | 1.25 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 6/25" |
| Shaft Type | Single Special Extension |
| Speed | 1700-1800 RPM , 1701-1800 RPM |
| Standards | Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Usable @ 208v | Yes |
| Voltage | 115-230V |
| Width | 7 22/25" |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - 191870.00 / A4S17DR57A
- Eff 100%: 68
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 92005-198
- Winding: SE48452
- GROUP: 3
- Paint: GRAY - LIGHT
- S. F Amps: 8.4 / 4.2
Documentation:
Product Variants
| Product | Model | Motor Enclosure Design | Hp | Full Load Amps | Service Factor | Frame | Ambient Temp. | Insulation Class | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

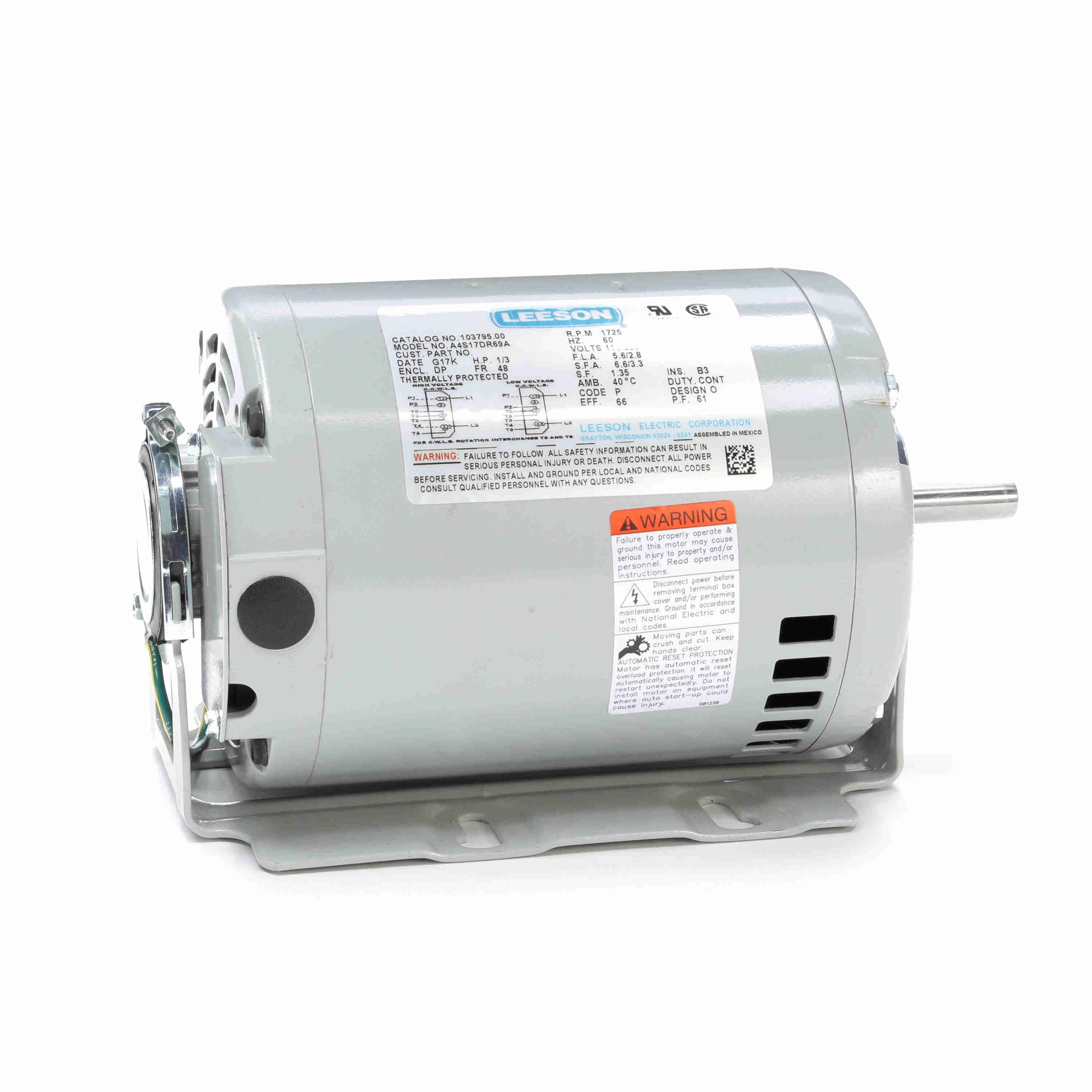

103795.00 | Dripproof | 33/100 hp | 5.6/2.8A | 1.35 | 48 | 40°C | Class B | Selective Counter Clockwise | €512.46 |
