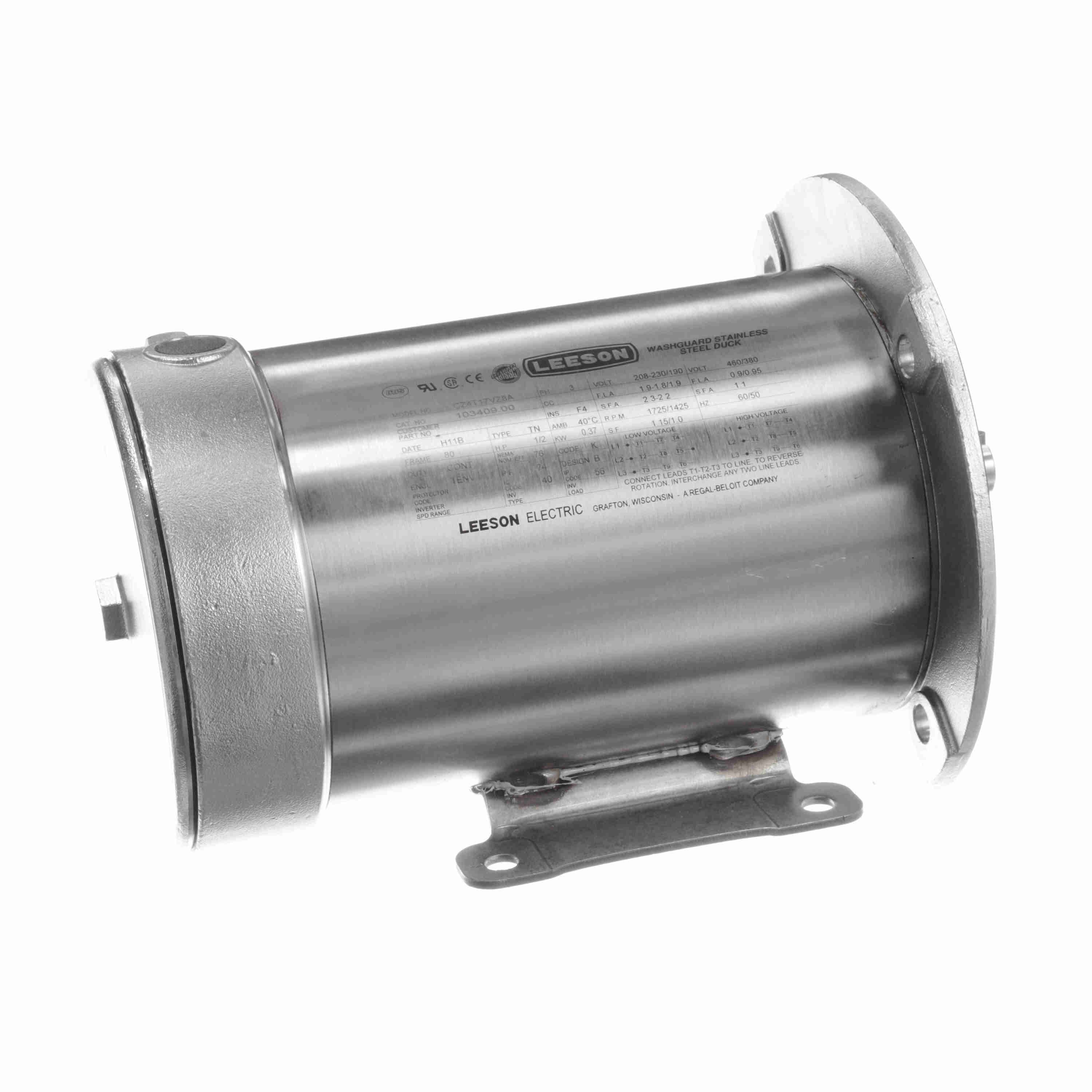

LEESON 103409.00 CZ4T17VZ8A General Purpose, 0.50 HP, 3 phase, 1800 RPM
Get it by Monday, Dec 22
€508.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 1.8-1.9/0.9A |
| Assembly | 40027 |
| Code | K |
| Design Code | B |
| Drive End Bearing Size | 6204 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 76% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Frame | 80 |
| Frame Length | 7 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 80 |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 1.9-1.8/0.9A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP56 |
| Kva Code | K |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6204 |
| Opp. Drive End Bearing Type | Ball |
| Phase | 3 |
| Power | 0.37 kW |
| Power Factor | 74 |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1.57" |
| Shaft Type | IEC |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TN |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 76
- Bearing OPE: 6204
- CC Number: EXEMPT
- Bearing PE: 6204
- Nameplate: 081120
- Winding: T55464
- GROUP: 3
- S. F Amps: 2.3-2.2 / 1.1
