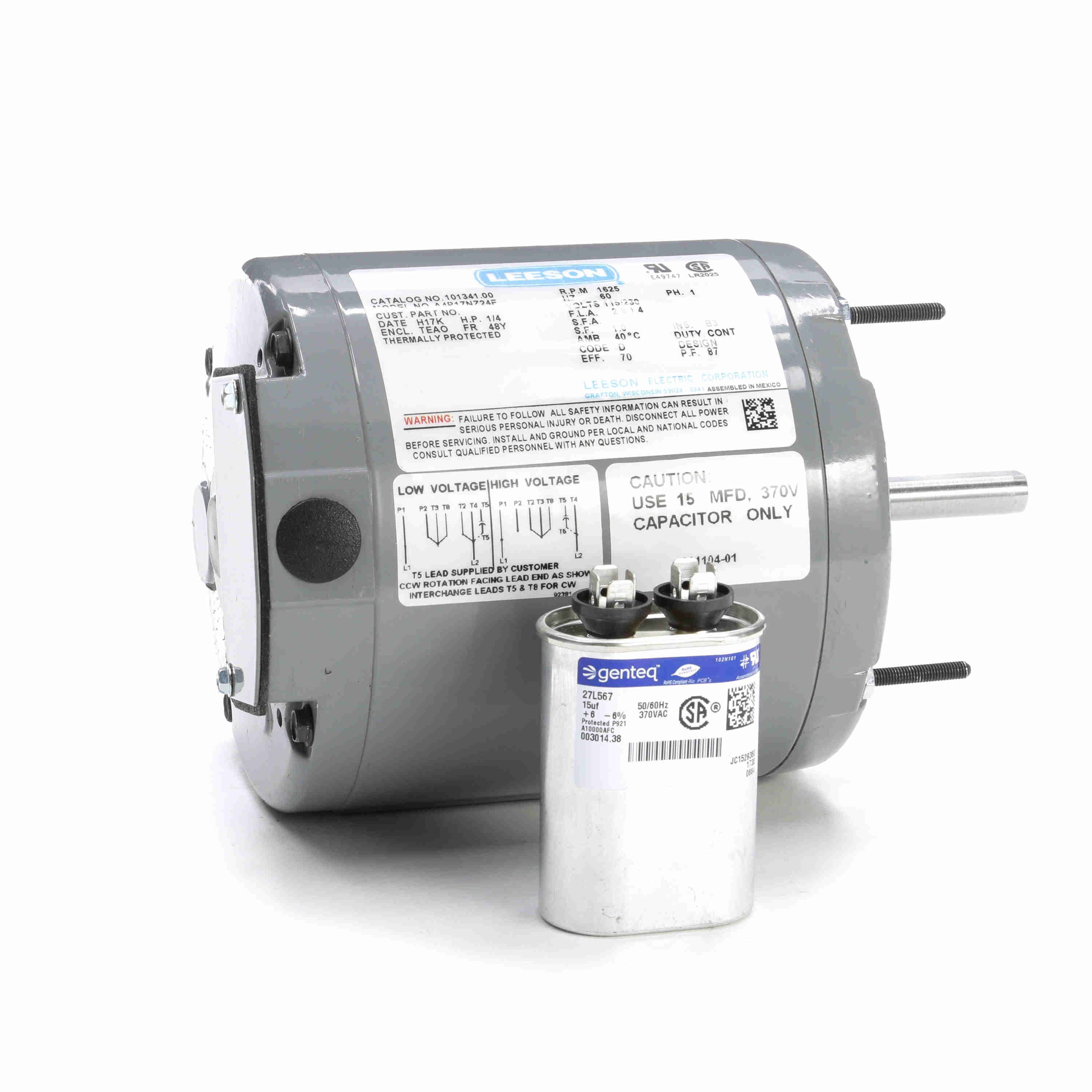

LEESON 101341.00 A4P17NZ24F Poultry Fan Motor, 0.25 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, Dec 24
€338.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Amps | 2.8/1.4A |
| Assembly | LO101341 |
| Code | D |
| Conduit Box Position | F1 |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Teao |
| Frame | 48Y |
| Frame Length | 4 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 2.8/1.4A |
| Height | 8 3/4" |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | D |
| Kw | 0.19 kW |
| Length | 13 3/4" |
| Max. Ambient Temp. | 40°F |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1625 RPM |
| Nema Design | D |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 0.187 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.187 kW |
| Power Factor | 87 |
| Resistance Main | 9.88 ohms |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2.13" |
| Shaft Type | NEMA 48 |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Type | PLE |
| Voltage | 115-230V |
| Width | 7 22/25" |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 70
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 92005-42
- Winding: PE484448
- GROUP: 3
- Paint: GRAY - LIGHT
Product Variants
| Product | Model | Voltage | Hp | Frame | Insulation Class | Mounting Type | Power Factor | Efficiency | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103878.00 | 115/230V AC | 1/3 hp | 48Z | Class F | Round Extended Studs | 94 | 68% | PN | - | RFQ
|
