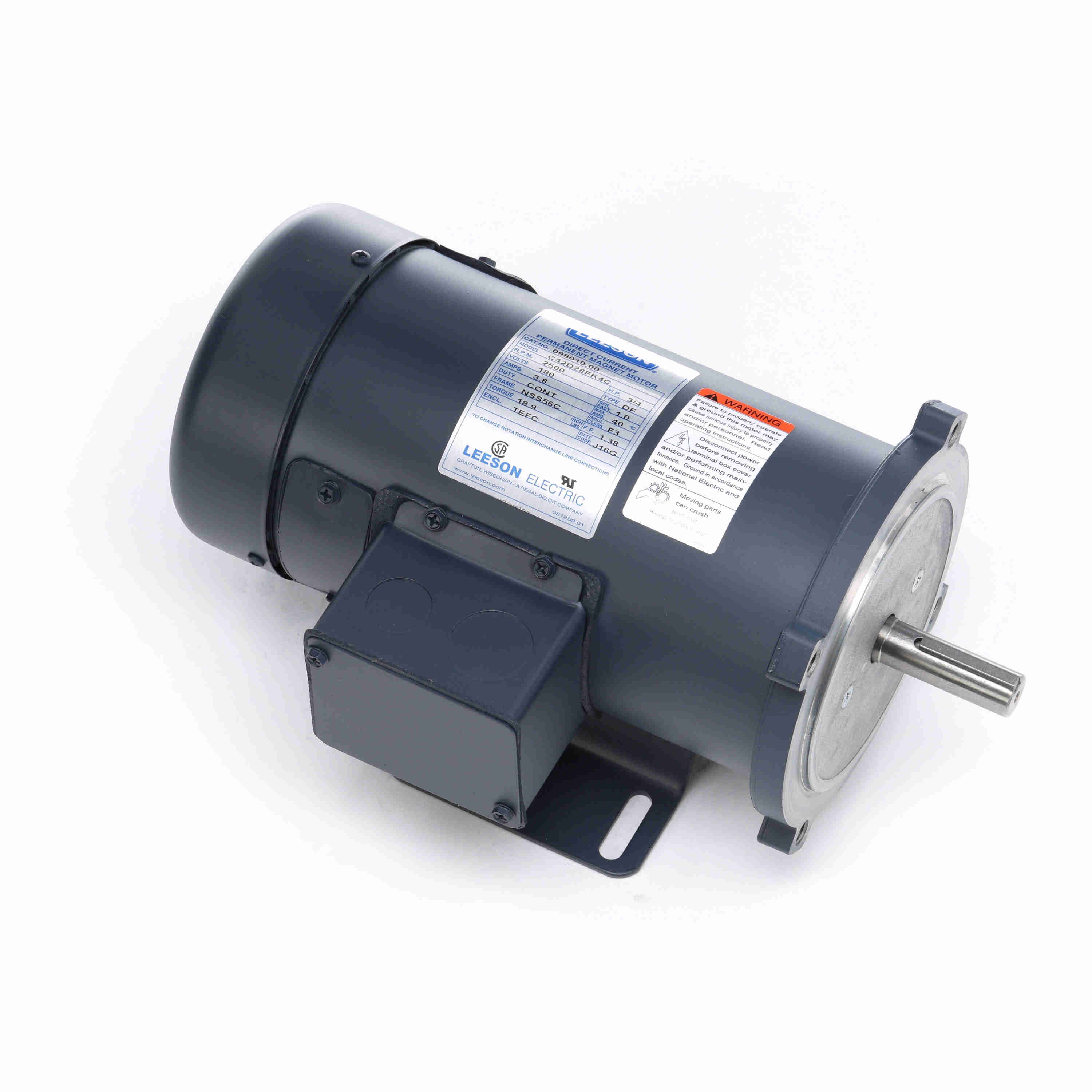

LEESON 098010.00 C42D28FK4C SCR Motor, 0.75 HP, 180V, 2500 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,332.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 3.8A |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72.1% |
| Enclosure Type | Tefc |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 7 1/2" |
| Frame Type | SS56C |
| Full Load Torque | 18.9 lbs.-in. |
| Full Load Torque | 18.9 in.-lbs. |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Kw | 0.56 kW |
| Length | 14 11/25" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 2500 RPM |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | PG659201.04A |
| Power | 0.56 kW |
| Rpm | 2500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 180V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 72.1%
- Nameplate: 081259
- Winding: D4725
- GROUP: 1 A
- Sub Group: A
- Paint: 305000.01
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Mounting Type | Thermal Protection | Motor Application | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
098000.00 | 90V | 1/2 hp | 1750 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €1,072.63 | |
 |
098002.00 | 90V | 1/4 hp | 1750 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €818.74 | |
 |
098003.00 | 180V | 1/4 hp | 1750 RPM | 56C | Rigid Base | No Protection | General Purpose | 5/8" | €878.49 | |
 |
098004.00 | 90V | 33/100 hp | 1750 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €932.08 | |
 |
098006.00 | 90V | 1/2 hp | 2500 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €995.73 | |
 |
098007.00 | 180V | 1/2 hp | 2500 RPM | 56C | Rigid Base | No Protection | - | 5/8" | €548.36 | |
 |
098008.00 | 180V | 1/2 hp | 1750 RPM | 56C | Face/Base | No Protection | General Application | 5/8" | €1,210.31 |
