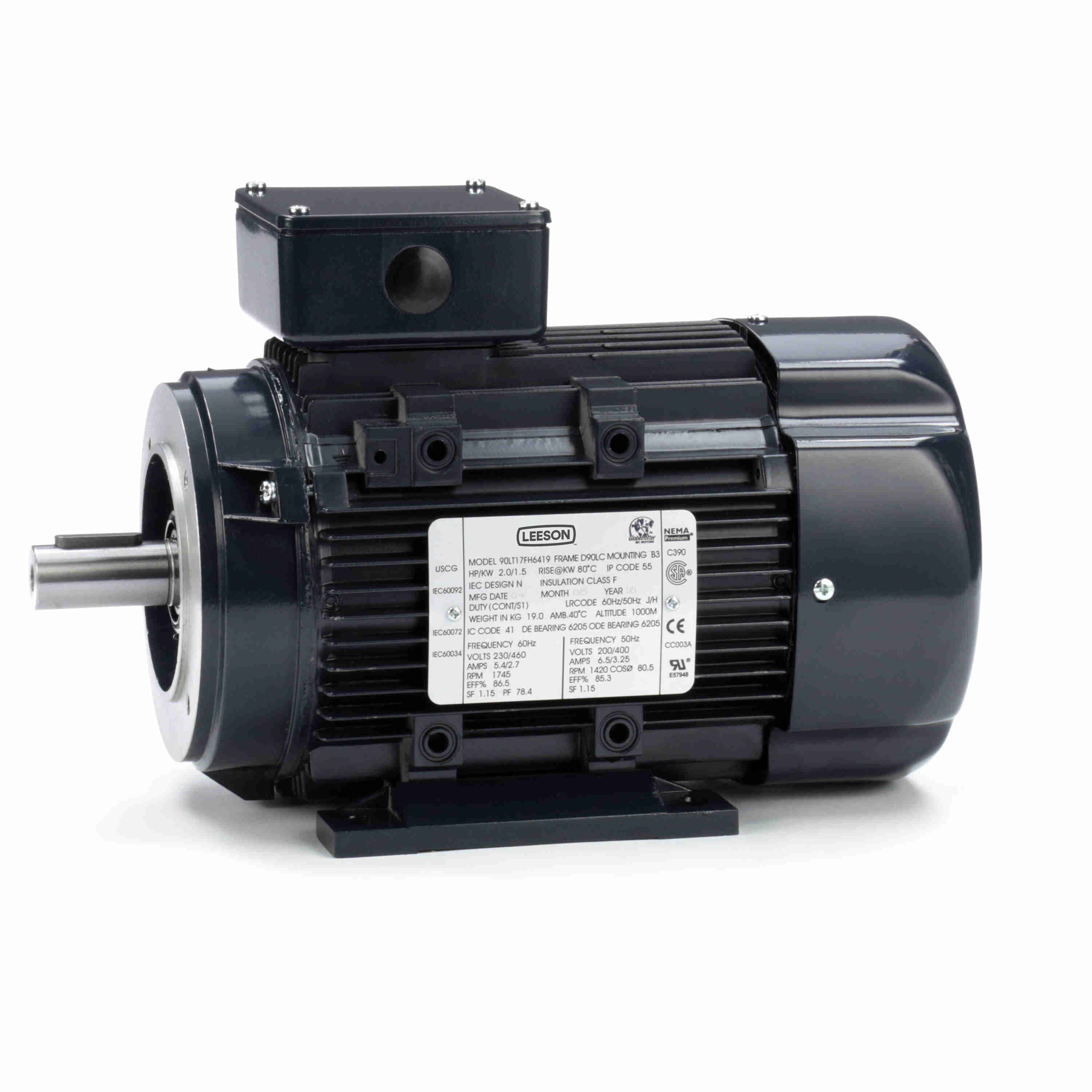

LEESON 090LT17FH6419 R378A / 90LT17FH6419A IEC Aluminium Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 200/400V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,423.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 90L |
| Frame Material | Aluminum |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.4/2.7A |
| Full Load Amps @ 50hz | 5.4/2.7A |
| Hp | 2 hp |
| Hp @ 50hz | 2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length | 326 mm |
| Length Less Shaft | 276 mm |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| Nominal Efficiency | 86.5% |
| Number | CC003A |
| Number Of Speeds | 1 |
| Overall Length | 326 mm |
| Phase | 3 |
| Power | 1.49 kW |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 24 mm |
| Shaft Length | 50 mm |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 44 lbs. |
Shipping Info:
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 27 |
| Ship length (cm) | 39.5 |
| Ship width (cm) | 24.51 |
| HS code | 8501524000 |
| Country of Origin | CN |
Product Details:
- Supersedes Marathon - R378 / 090LT17FH5419
Product Variants
| Product | Model | Hp | Frame | Nominal Efficiency | Full Load Amps | Shaft Dia. | Shaft Length | Power | Full Load Amps @ 50hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

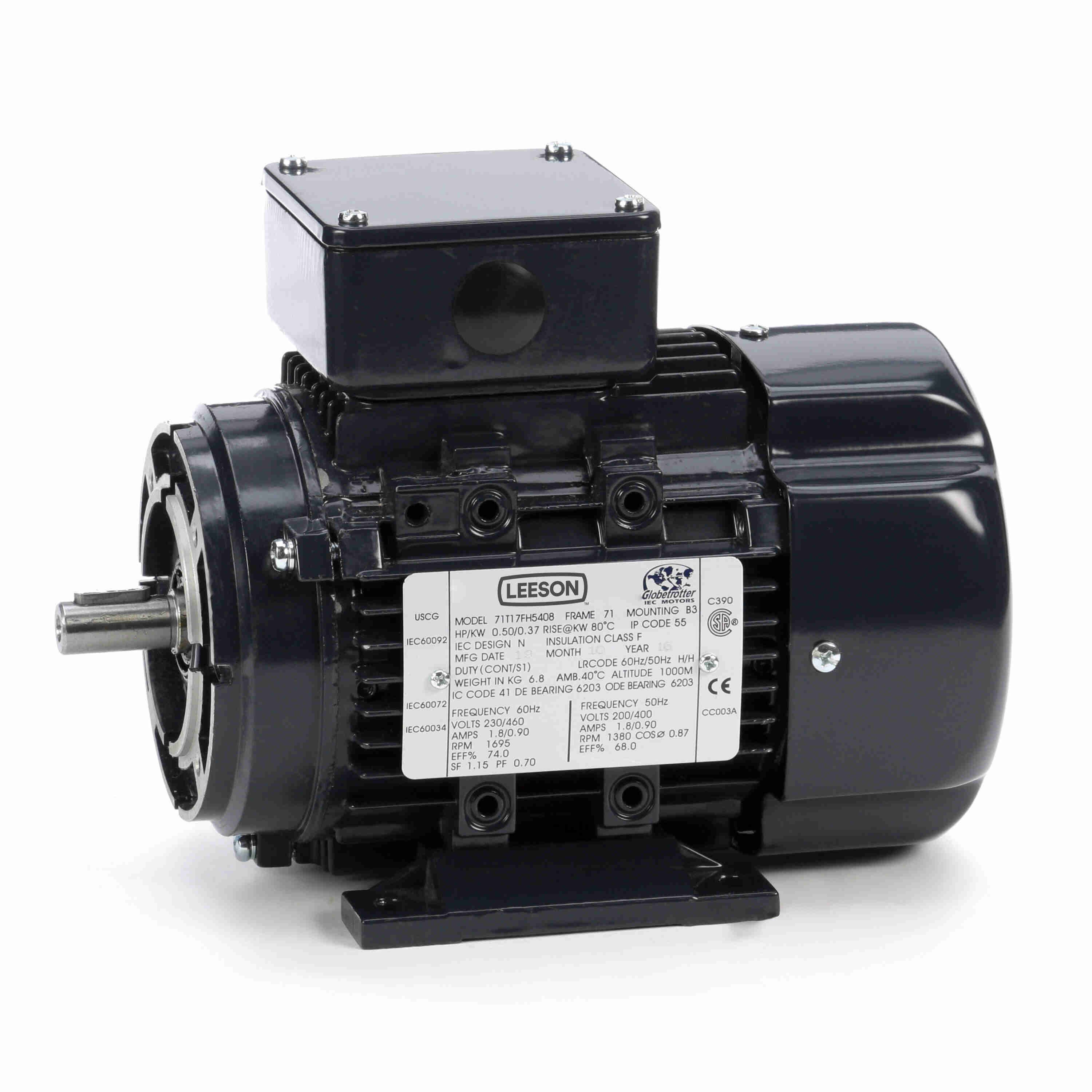

071T17FH5408 | 1/2 hp | 71 | 74% | 1.8/0.9A | 14 mm | 30 mm | 0.37 kW | 1.8/0.9A | €535.15 | |
 |

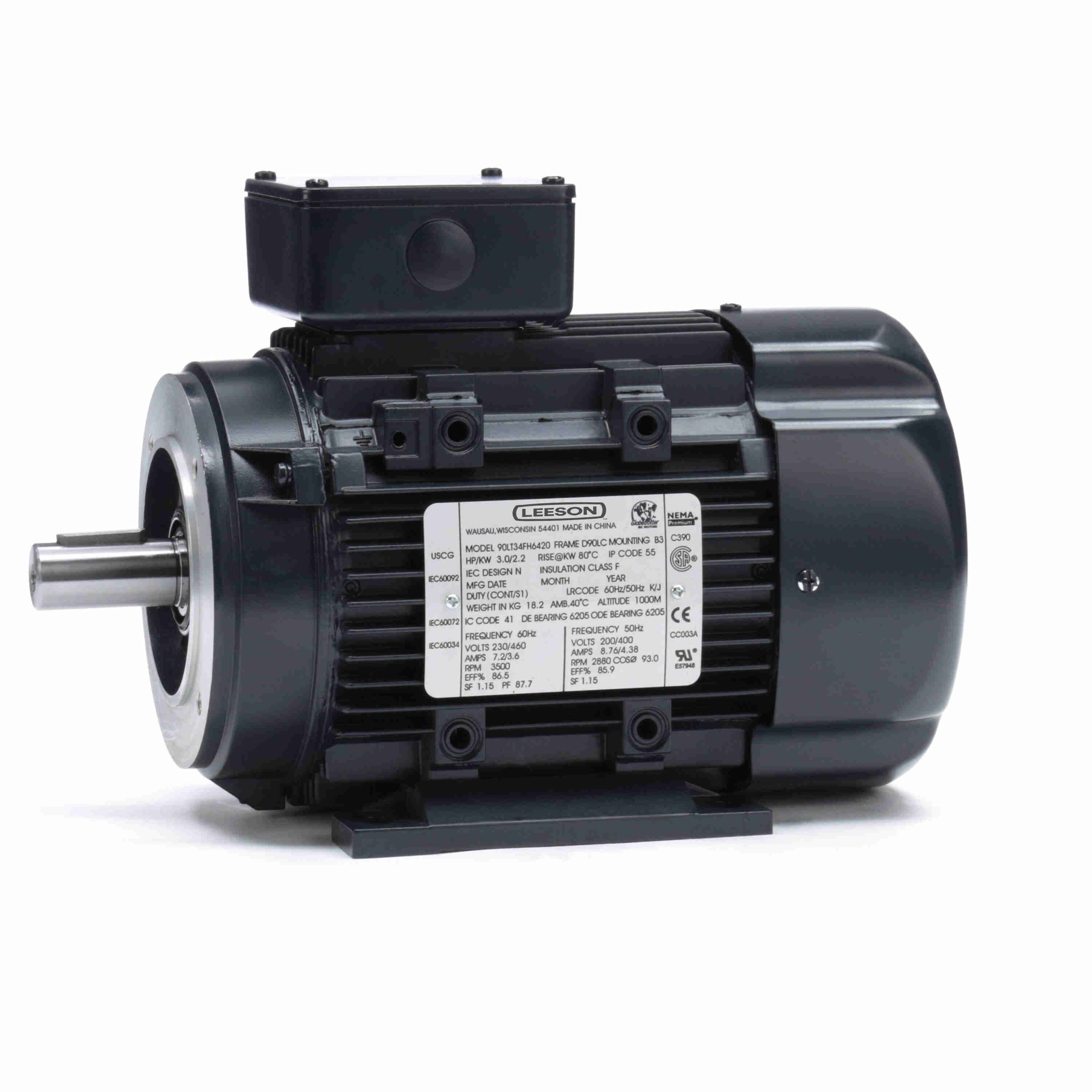

090LT34FH6420 | 3 hp | 90L | 87.5% | 7.2/3.6A | 24 mm | 50 mm | 2.24 kW | 7.2/3.6A | €1,259.72 | |
 |

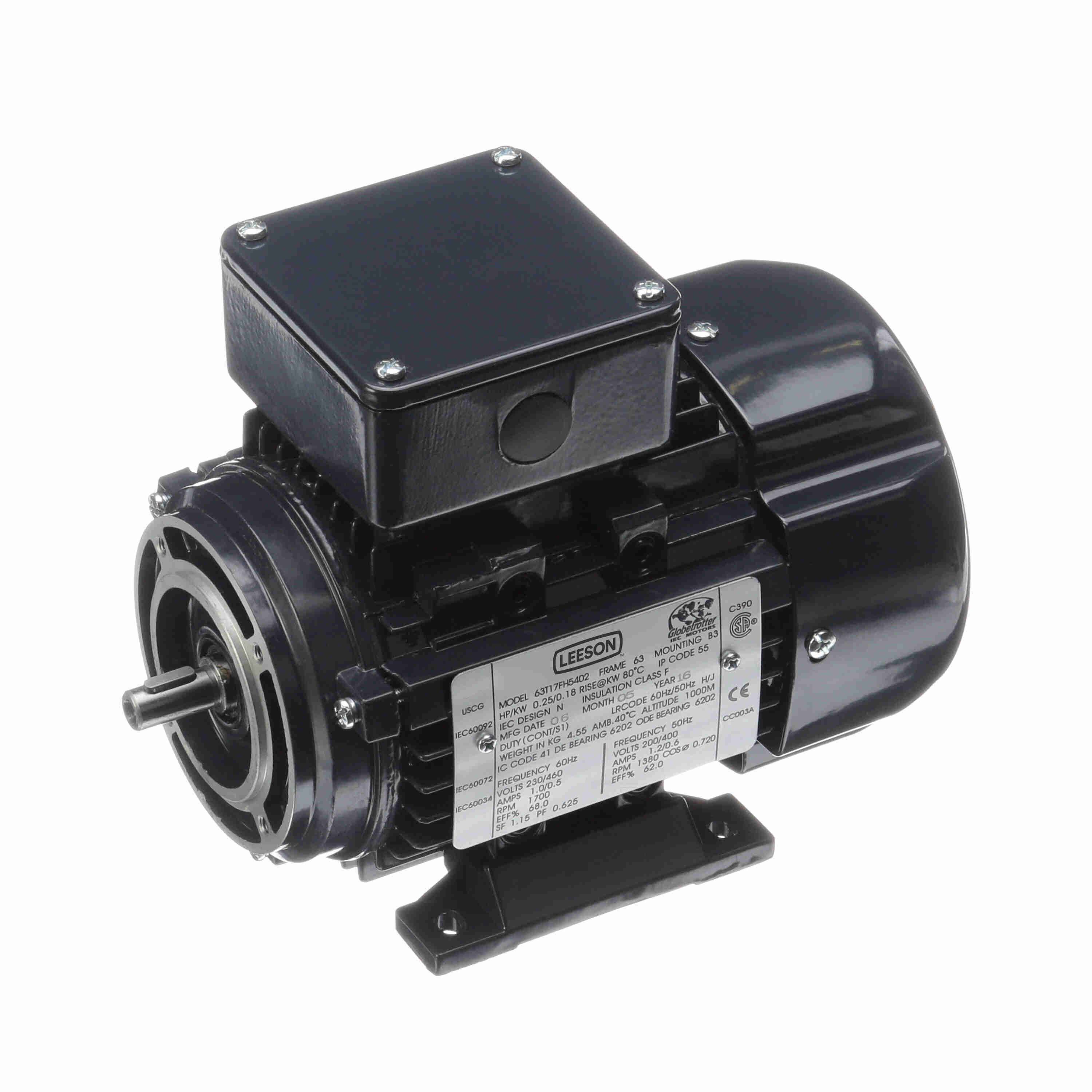

063T17FH5402 | 1/4 hp | 63C | 68% | 1/0.5A | 11 mm | 23 mm | 0.18 kW | 1/0.5A | €592.70 |
