LEESON 056T34F15601 56T34F15601A / J066A Jet Pump Motor, 3 and 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
Get it by Monday, Aug 24
€954.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jet Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 7 2/5" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 56HJ |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Hp | 3 hp |
| Included | Drip Cover |
| Insulation Class | Class F |
| Length Less Shaft | 12 1/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal, Vertical Shaft Down |
| Motor Mounting Type | Face, Base |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | No |
| Mounting Type | Face, Base |
| Nameplate Speed | 3450 RPM |
| Nema Design | B |
| No. Of Speed | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 14 13/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/8" |
| Shaft Material | Stainless Steel |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Hp | Frequency | Mounting Type | Phase | Full Load Amps | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
K1100 | Open Dripproof | 115/230V AC | 1 hp | 60 Hz | Face | 1 | 6.2/12.4A | Capacitor Start | €571.28 | |
 |
T1102 | Open Dripproof | 115/230V AC | 1 hp | 60 Hz | Face | 1 | 6.2/12.4A | Capacitor Start | €628.03 | |
 |
T1052 | Open Dripproof | 115/230V AC | 1/2 hp | 60 Hz | Face | 1 | 4.3/8.6A | Capacitor Start | €459.15 | |
 |
H706ES | Totally Enclosed Fan Cooled | 230/460V AC | 2 hp | 60 Hz | Face | 3 | 5.2/2.6A | Three Phase | €1,219.95 | |
 |

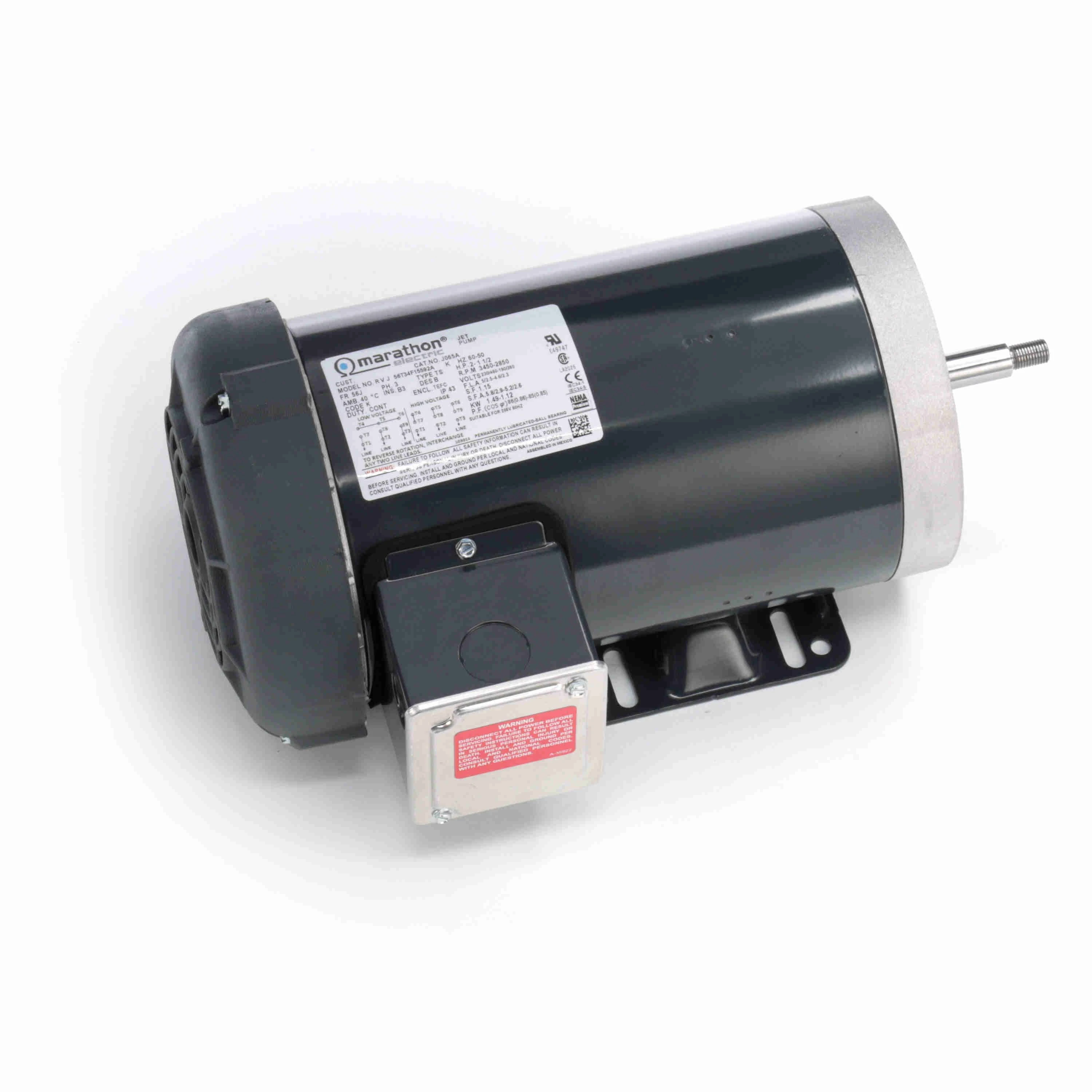

056T34F15592 | Totally Enclosed Fan Cooled | 230/460V AC | 2 hp | 50/60 Hz | Face, Base | 3 | 5/2.5A | - | €871.70 | |
 |
JJ1502-2V | Open Dripproof | 115/230V AC | 1 1/2 hp | 60 Hz | Face | 1 | 14/7A | Capacitor Start | €536.70 | |
 |
EU2002 | Open Dripproof | 115/208-230V AC | 2 hp | 50/60 Hz | Face | 1 | 19.6/10.7-9.8A | Capacitor Start | €633.12 |
