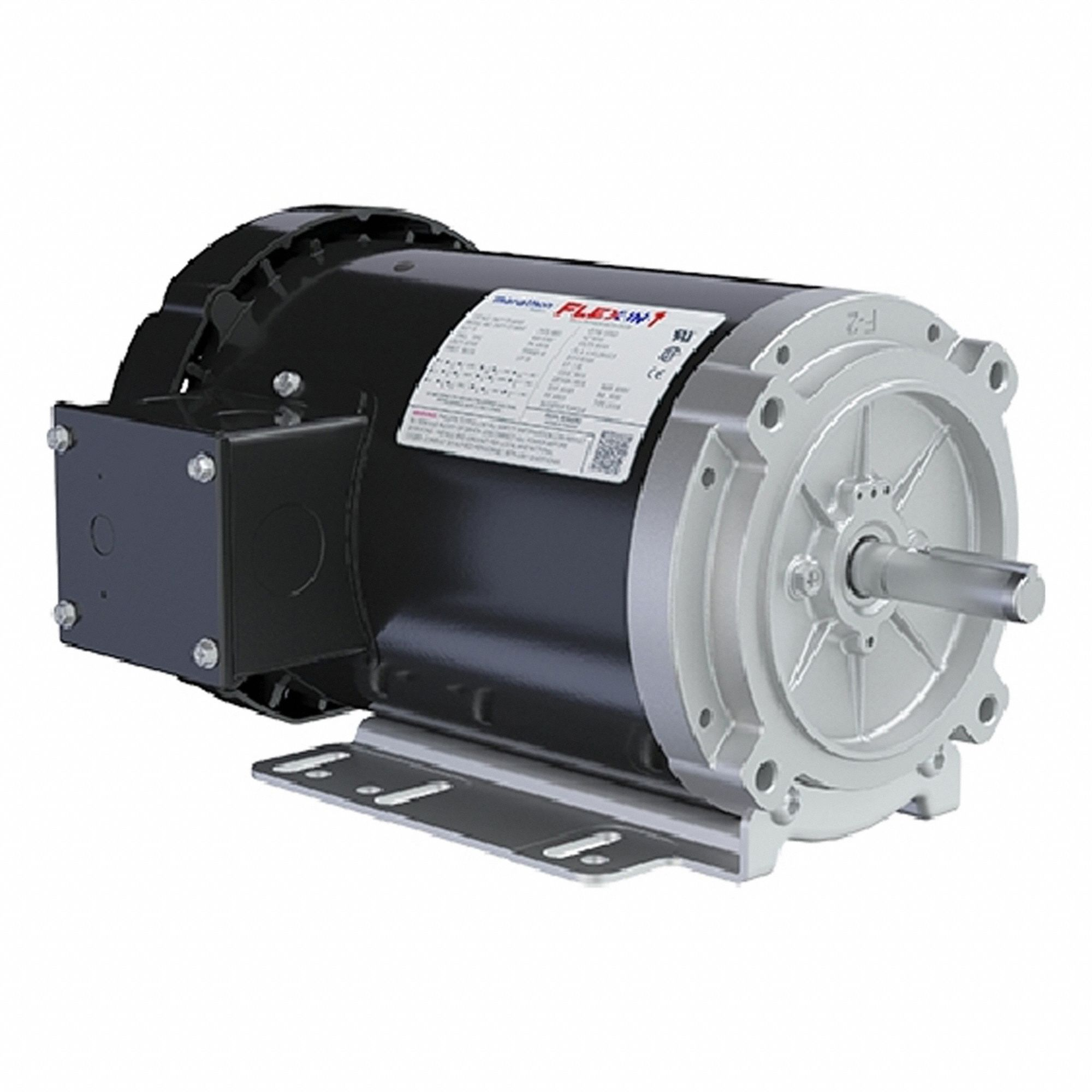

LEESON 056T17F15946 56T17F15946A / FX32FK003 General Purpose Motor, 1.50 HP, 3 Phase, 60 Hz, 575 V, 1800 RPM, 56HC Frame
Item: EA7UDNModel: 056T17F15946Cross Ref: 820HX2 / 56T17F15946A / FX32FK003
In Stock
Get it by Monday, Aug 24
€770.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 1.9A |
| Combination Mounting Holes In Base | 56/143 Shorter Base Motor Option and 56/56H/143/145 Longer Base Motor Option |
| Design Code | A |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure | Totally Enclosed Fan Cooled |
| Frame | 56hc |
| Frame Material | Rolled Steel |
| Frame Type | 56hc |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Kva Code | P |
| Motor Application | General Purpose |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Universal |
| Motor Orientation | Horizontal, Up, Down |
| Motor Service Factor | 1.15 |
| Mounting | Bolt-On Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speeds | 1 |
| Phase | 3 |
| Pole | 4 |
| Power Factor | 71 |
| Resistance Main | 7.9 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Type | NEMA 56 |
| Speed | 1702.04348 RPM , 1725 RPM |
| Thermal Protection | No Protection |
| Voltage | 575V |
| Voltage Compatibility | 575V |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Full Load Amps | Mounting Type | Frequency | Shaft Dia. | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17F15954 | 208-230/460V | 1 1/2 hp | 1.15 | 4.6-4.7/2.3A | Universal | 60 Hz | 5/8" | 3 Phase | €770.33 | |
|
056T34F15671 | 230/460V | 1 1/2 hp | 1.15 | 4/2A | Universal | 60 Hz | 5/8" | 3 Phase | €907.96 | |
|
056T34F15672 | 575V | 1 1/2 hp | 1.15 | 1.6A | Bolt On Base | 60 Hz | 5/8" | 3 Phase | €630.40 | |
 |
056T11F15544 | 230/460/190/380V | 1 hp | 1, 1.15 | 3.8-3.8/1.9A | Bolt On Base | 60 Hz | 5/8" | 3 Phase | €1,097.89 | |
 |
056T34F15679 | 575V | 1 hp | 1.15 | 1.1A | Bolt On Base | 60 Hz | 5/8" | 3 Phase | €574.86 | |
|
056T34F15680 | 208-230/460/190/380V | 1 hp | 1, 1.15 | 3-3/1.5A | Bolt On Base | 60 Hz | 5/8" | 3 Phase | €574.86 | |
 |
056T11F15540 | 230/460/190/380V | 1/2 hp | 1, 1.15 | 2-2.1/1.1A | Bolt On Base | 60 Hz | 5/8" | 3 Phase | €949.52 |
