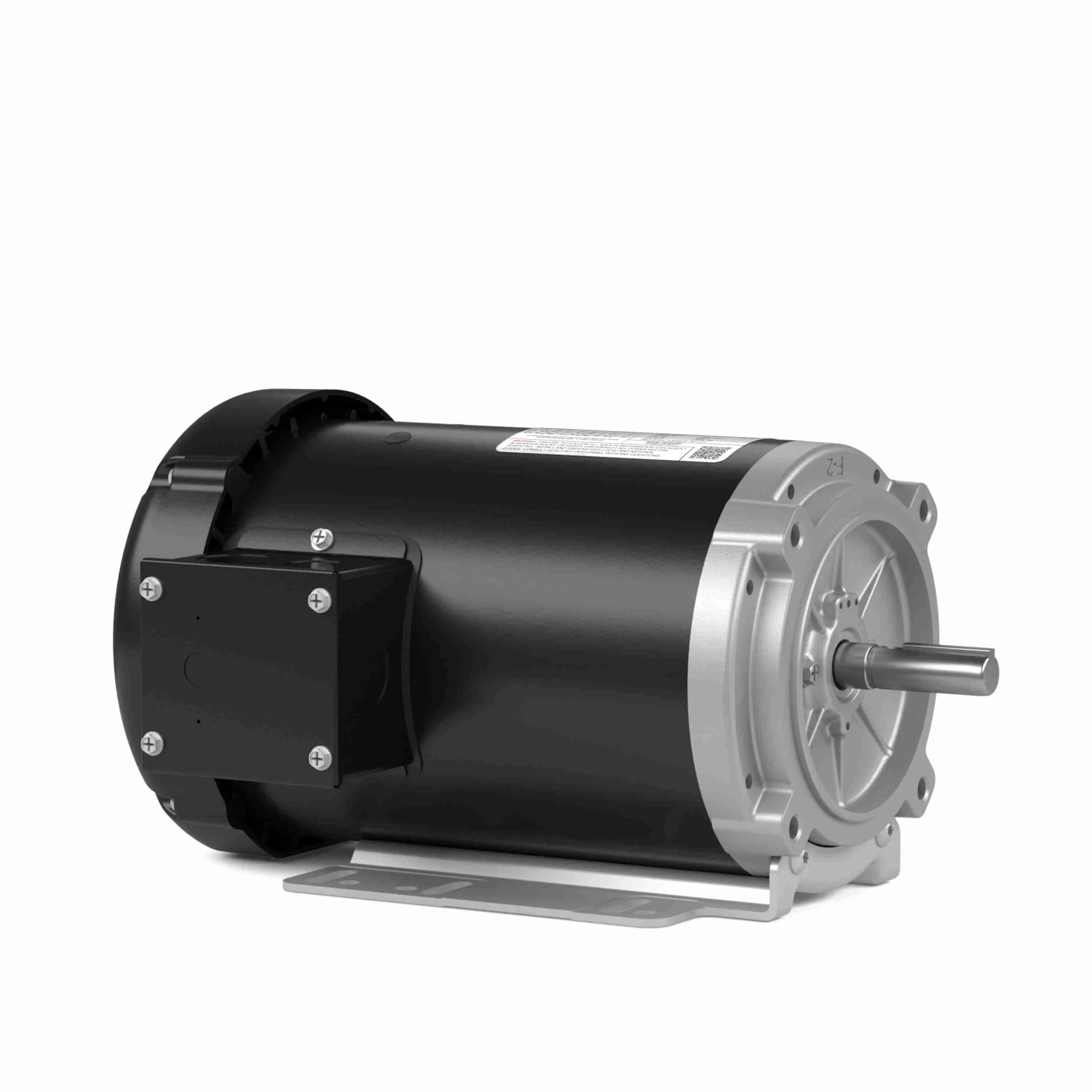

LEESON 056T17F15944 56T17F15944A / FX12FK003 General Purpose Motor, 0.50 HP, 3 Phase, 60 Hz, 575V, 1800 RPM
Item: CT2FUPModel: 056T17F15944Cross Ref: 801V92 / 56T17F15944A / FX12FK003
In Stock
Get it by Monday, Apr 6
€502.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 40°C |
| Amps | 0.95A |
| Assembly/box Mounting | F1, F2, F3 Capable |
| Bearing Type | Ball |
| Curvepoint | 0.333 |
| Design Code | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72.1% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frame Suffix | C |
| Full Load Amps | 0.95A |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Load | 1 |
| Inverter Load Ratio | 10:1 |
| Inverter Load Type | Constant |
| Inverter Rated | Yes |
| Ip Code | 43 |
| Kva Code | M |
| Load | 0.5 |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Universal |
| Motor Orientation | Horizontal, Up, Down |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | None |
| Mounting Type | Bolt On Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | F |
| Nema Rating | NEMA 56 |
| No. Of Poles | 4 |
| Nominal Efficiency | 72.1% |
| Number Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Overall Length | 11 1/16" |
| Phase | 3 |
| Power Factor | 53.3 |
| Resistance Main | 40 ohms |
| Rotation Type | Reversible |
| Rpm | 1725 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Starting Method | Line Or Inverter |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | No Protection |
| Torque | 6 lbs.-ft. |
| Torquepct | 400 |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
