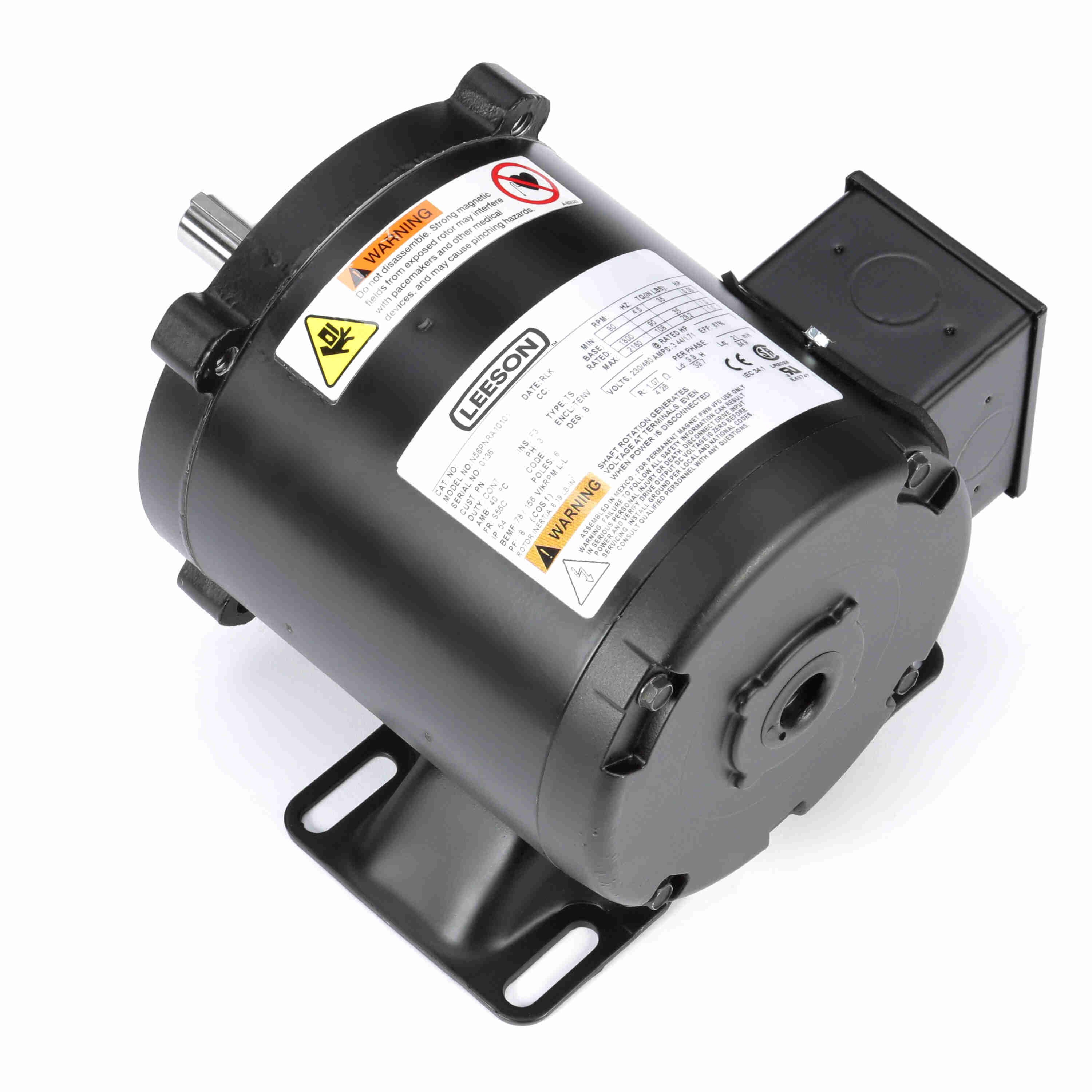

LEESON 056PNRA10101 56PNRA10101A / SY003 Fan and Blower Motor, 1 HP, 3 Phase, 90 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Jul 7
€911.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 (F2 Modification Available) |
| Conduit Box Position | F1/F2 Capable |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Frame | S56Z |
| Frequency | 90 Hz |
| Full Load Amps | 3.44/1.71A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | No |
| Motor Type | Permanent Magnet AC |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1800 RPM |
| No. Of Speed | 1 |
| Phase | 3 |
| Power | 0.75 kW |
| Product Datasheet | leeson-056pnra10101.pdf |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: K3
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Documentation:
Product Variants
| Product | Model | Hp | Full Load Amps | Voltage | Phase | Frequency | Motor Type | Service Factor | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056PNRA10103 | 2 hp | 6.7/3.55A | 230/460V AC | 3 | 90 Hz | Permanent Magnet AC | 1 | Rigid Base | €1,488.96 | |
 |
056PNRA10100 | 1/2 hp | 1.9/0.8A | 230/460V AC | 3 | 90 Hz | Permanent Magnet AC | 1 | - | €784.19 | |
 |

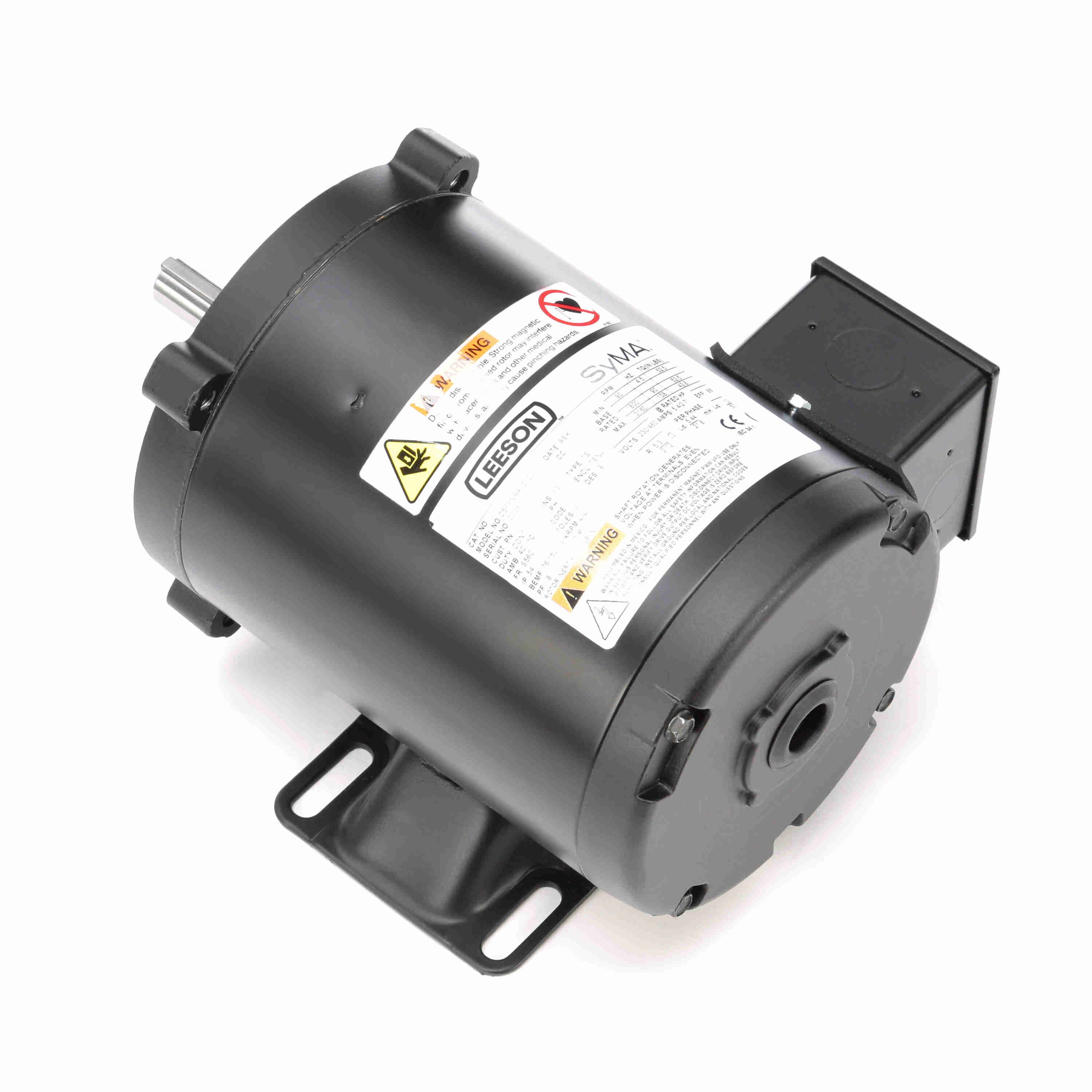

056PNRA10102 | 1 1/2 hp | 5.4/2.7A | 230/460V AC | 3 | 90 Hz | Permanent Magnet AC | 1 | Rigid Base | €1,109.59 |
