LEESON 056C17F5351 T010 / 56C17F5351D Power Tool Motor, 0.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Thursday, Dec 18
10.00% off
€797.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Cord Length | 8 ft. |
| Duty Cycle | Continuous |
| Extended Thru-bolts | No |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.2-4.4A |
| Hp | 1/2 hp |
| Includes | Key |
| Insulation Class | Class B |
| Length Less Shaft | 9 1/2" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 40°C |
| Motor Application | Power Tool |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| On/off Switch | Yes |
| Overall Length | 11 13/16" |
| Phase | 1 |
| Plug Type | 3 Prong Polarized |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/16" |
| Standards | Csa, Ul Recocgnized |
| Thermal Protection | Manual |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Weight | 29 lbs. |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Type | Overall Length | Length Less Shaft | Frame | Phase | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

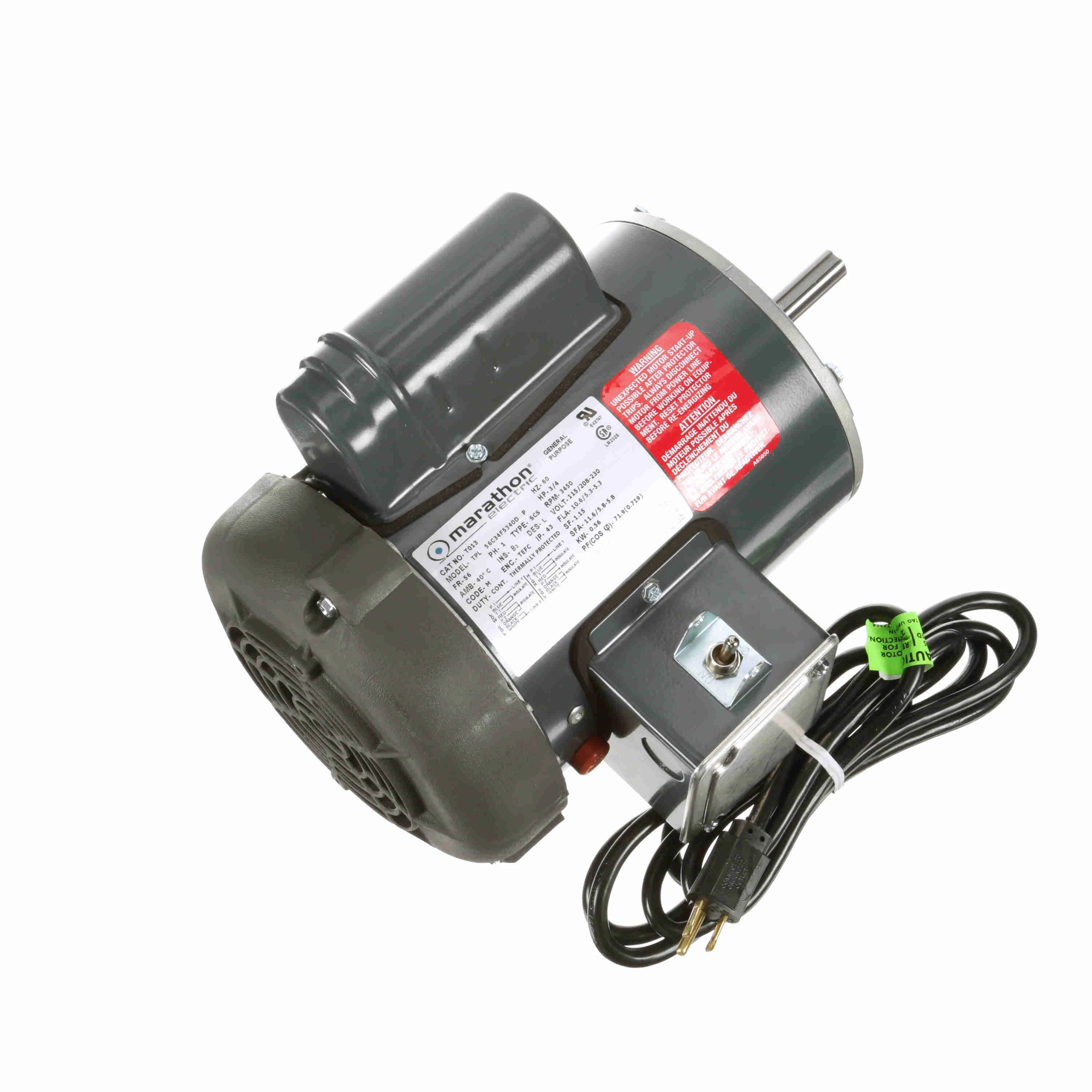

056C34F5340 | 3/4 hp | 3600 RPM | Capacitor Start/Induction Run | 12 5/16" | 10" | 56 | 1 | Totally Enclosed Fan Cooled | €805.47 |
