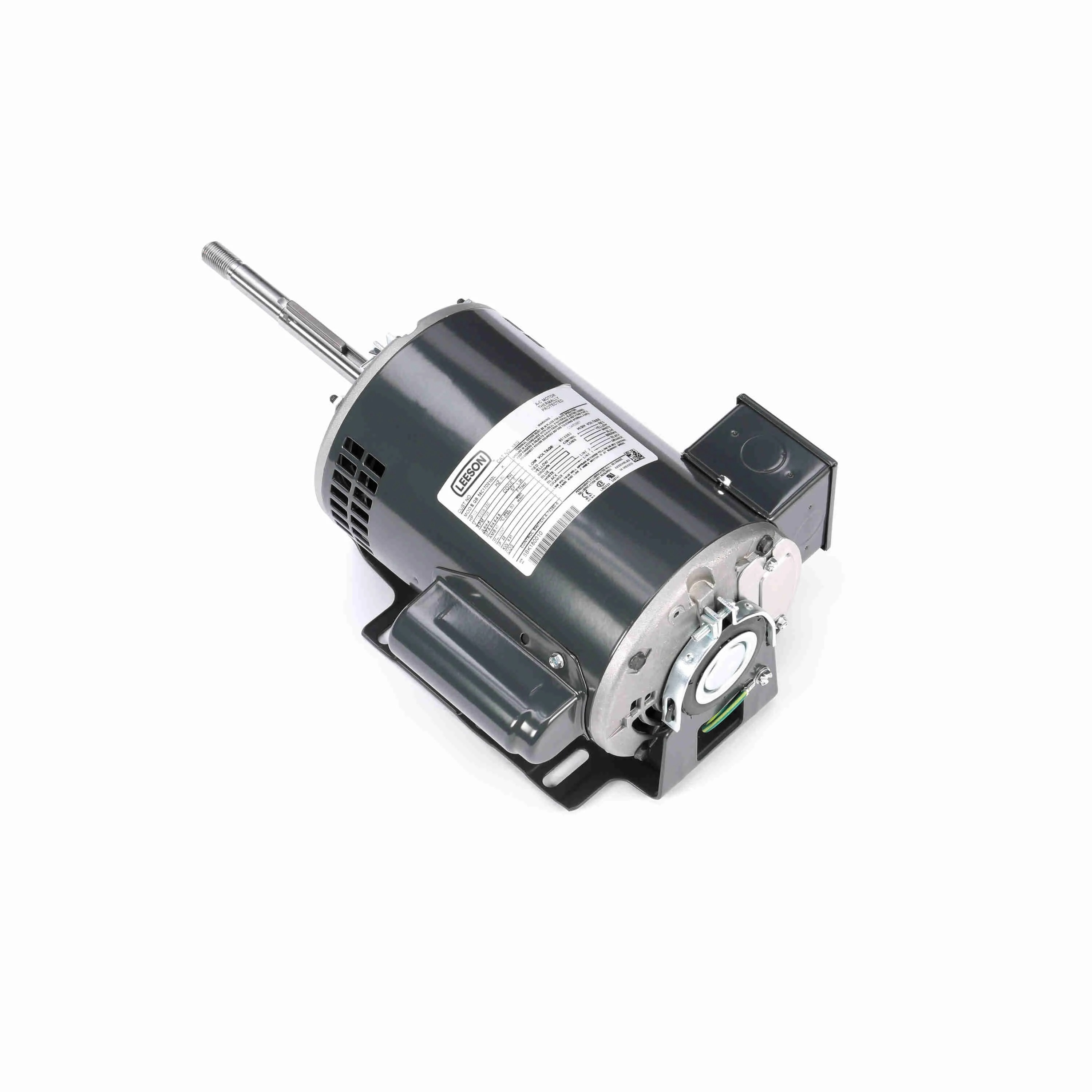

LEESON 056C17D2102 X602 / 56C17D2102L Motor, 0.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Thursday, Dec 18
€607.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Capacitor Included | Yes |
| Capacitor Required | No |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 56Z |
| Frequency | 60 Hz |
| Full Load Amps | 8/4A |
| Full Load Efficiency | 62% |
| Hp | 1/2 hp |
| Includes | 3/4" Shaft Adapter |
| Insulation Class | Class B |
| Length Less Shaft | 9 3/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 62% |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Overall Length | 15 7/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 9 7/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 5 11/16" |
| Shaft Type | Threaded |
| Standards | Csa (Lr2025), Ul (E6312) |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Warranty | 1 yr. |
| Weight | 24 lbs. |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Shaft Rotation | Full Load Amps | Service Factor | Body Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17D2101 | 115/208-230V | 1/3 hp | 56Z | CCWSE | 5.8/2.8-2.9A | 1.35 | 5 5/8" | 14 7/16" | €494.50 | |
 |

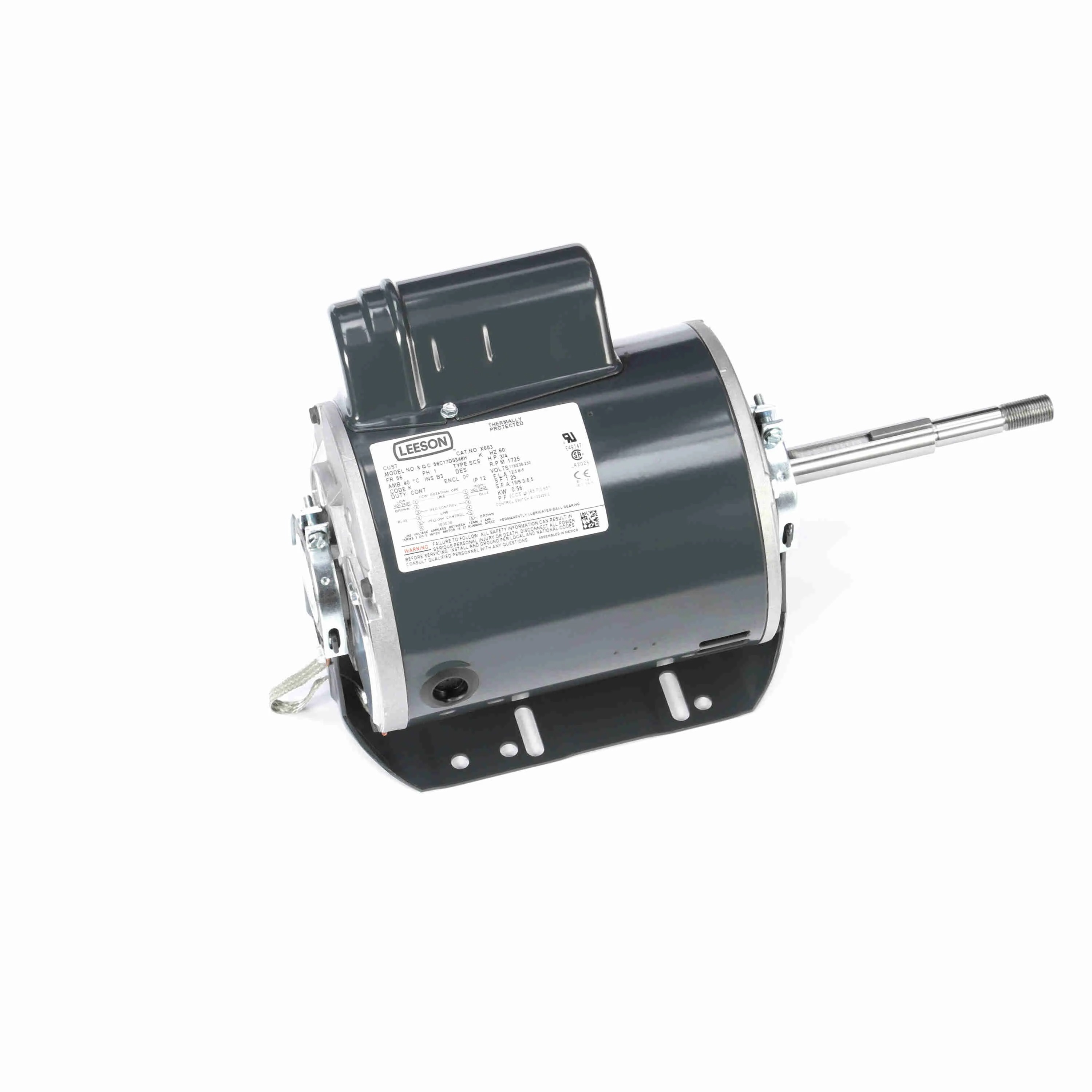

056C17D5346 | 115/208-230V AC | 3/4 hp | 56 | CCW | 12/5.8-6A | 1.25 | 6 1/2" | 15 1/8" | €811.38 |
