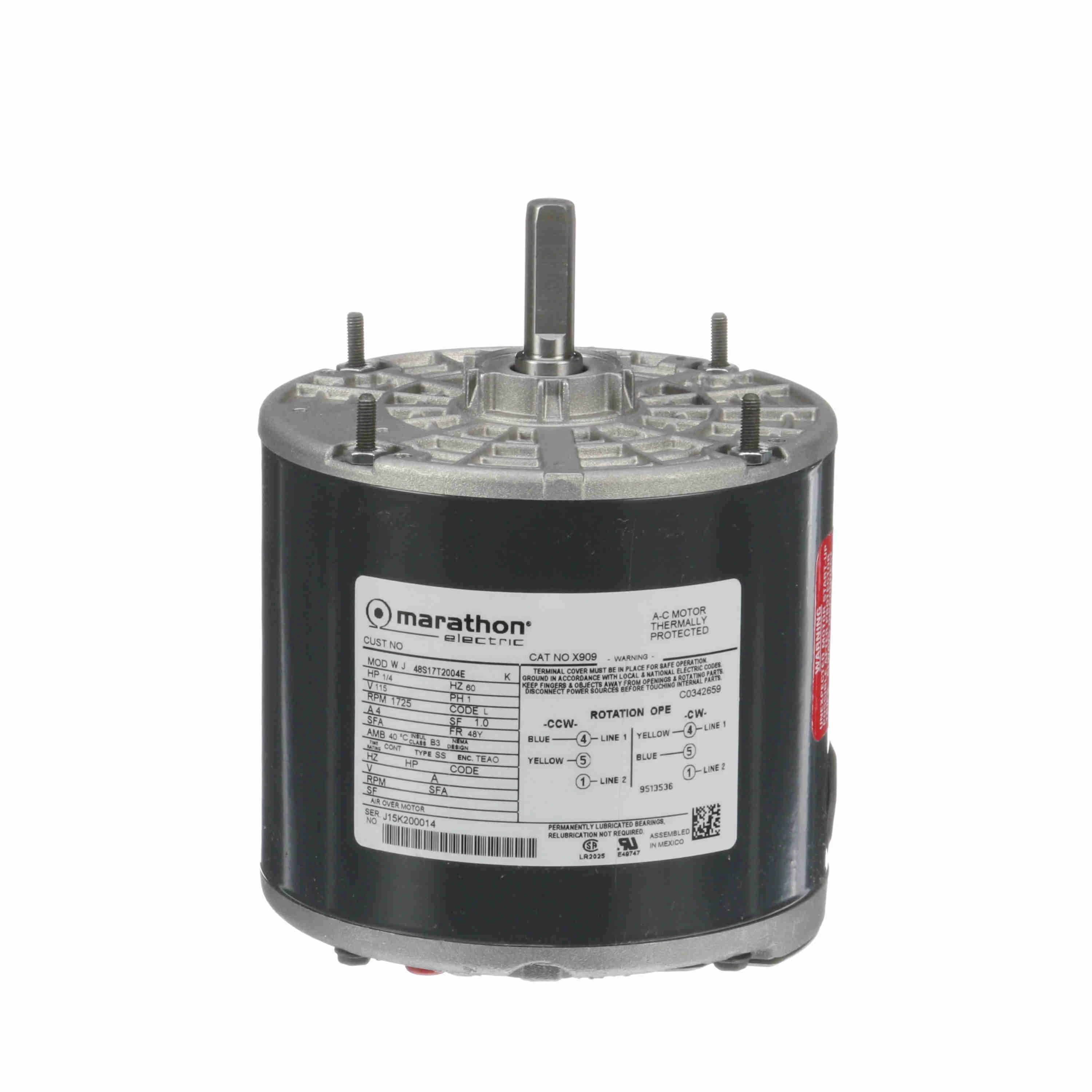

LEESON 048S17T2004 X909 / 48S17T2004E General Purpose Farm Duty Motor, 0.25 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Item: AF8BDYModel: 048S17T2004Cross Ref: 24TM10 / X909 / 48S17T2004E
7 In Stock
Ships within 2 days via
10.00% off
€216.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Color | Gray |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 54% |
| Efficiency Group | Standard |
| Frame | 48Y |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4A |
| Hp | 1/4 hp |
| Ins. Class | Class B |
| Length Less Shaft | 6 1/16" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Manual |
| Motor Type | Split Phase |
| Mounting Type | Stud |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 54% |
| Number Of Speeds | 1 |
| Overall Length | 7 5/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Stud Size | #10-32 |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 10 lbs. |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Motor Design | Frame | Motor Thermal Protection | Motor Shaft Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCP49UN9837S | 208-230V AC | 1/2 hp | 0-1000 RPM | 850 RPM | Permanent Split Capacitor | 56Y | Automatic | Keyed | €433.09 |
