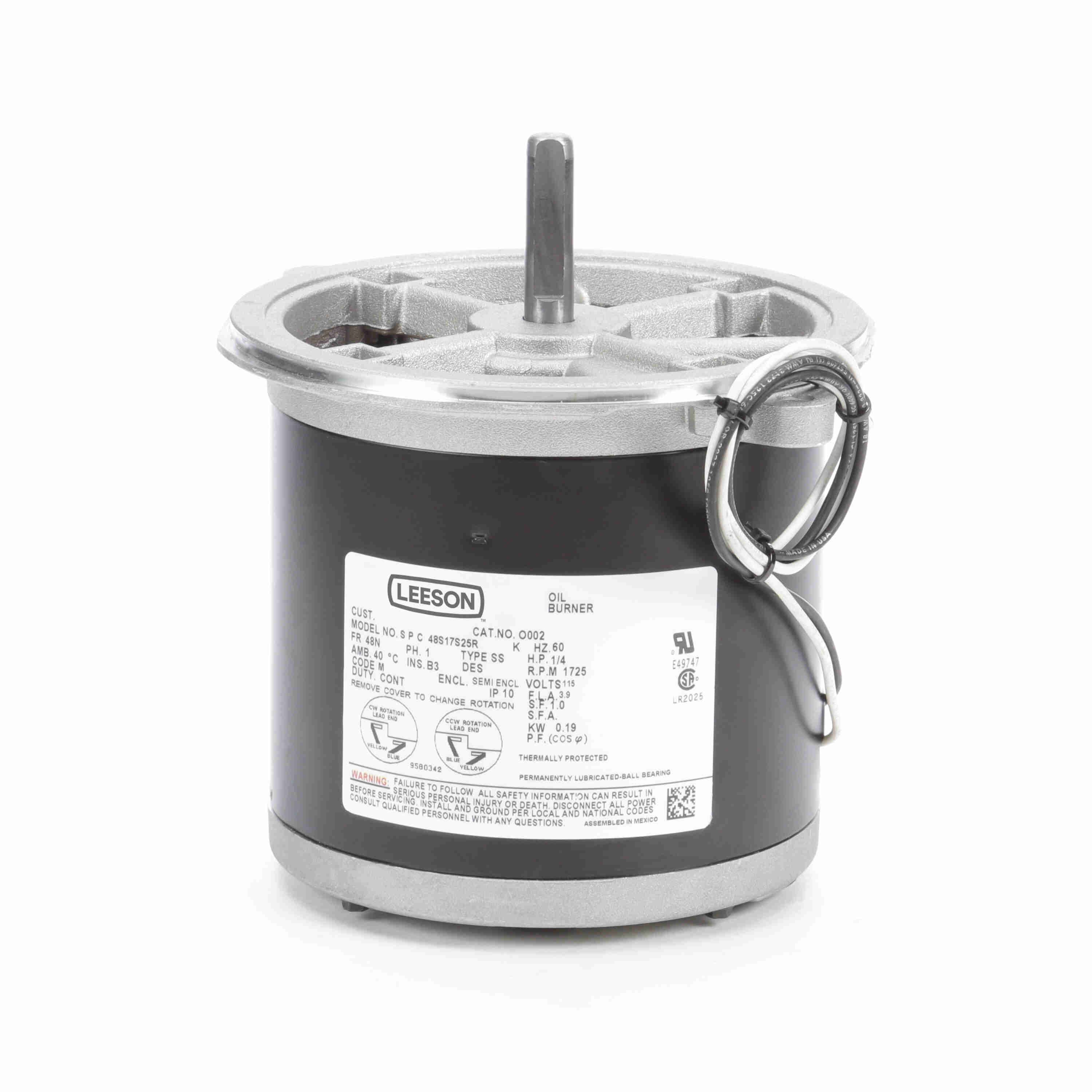

LEESON 048S17S25 O002 / 48S17S25R Fan and Blower Motor, 0.25 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€256.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Oil Burner Motor |
| Ambient (c) | 40 |
| Assembly | F1 Only |
| Base Type | Non Removable |
| Bearing Type | Ball |
| Body Dia. | 6 3/4" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Features | Nema N Or M Flange Direct, Two Bolt |
| Frame | 48N |
| Frequency | 60 Hz |
| Full Load Amps | 3.9A |
| Full Load Efficiency | 60.2% |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Lead Length | 20" |
| Length Less Shaft | 5 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Flange Type | Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Shaft Up |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Oil Burner |
| Motor Thermal Protection | Manual |
| Motor Type | Split Phase |
| Mounting Type | N Flange Footless |
| Nameplate Rpm | 1725 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 60.2% |
| Number Of Speeds | 1 |
| Number Of Studs | 2 |
| Output Kw | 0.19 kW |
| Output Watts | 190 W |
| Overall Length | 7 9/16" |
| Phase | 1 |
| Power | 0.19 kW |
| Removable Base | No |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 3/4" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Weight | 12 lbs. |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: SPLIT PHASE
- KVA Code: M
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Voltage | Nameplate Rpm | Bearing Type | Body Dia. | Overall Length | Shaft Length | Usable @ 200v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH33GN5014U | 1/3 hp | 115V AC | - | Sleeve | 5 5/8" | 8 7/16" | 2 1/8" | No | €350.95 | |
 |
048C34S24 | 1/5 hp | 115/230V AC | 3450 RPM | Ball | 6 3/4" | 8 3/8" | 1 3/4" | Yes | €374.08 | |
 |
048S17T286 | 1/8 hp | 115V AC | 1725 RPM | Ball | 6 3/4" | 7 9/16" | 1 3/4" | No | €229.76 | |
 |
048S17T290 | 1/6 hp | 115V AC | - | Ball | 6 3/4" | 7 9/16" | 1 3/4" | No | €317.40 | |
 |
048C34D2024 | 1/3 hp | 115/208-230V | 3450 RPM | Ball | 6 3/4" | 10 5/16" | 1 3/4" | No | €345.11 | |
 |
048S34S2005 | 1/6 hp | - | 3450 RPM | Ball | 5 5/8" | 7 1/4" | 1 13/16" | No | €285.13 | |
 |
048C34D2028 | 1/2 hp | 115/208-230V AC | 3450 RPM | Ball | 6 3/4" | 10 13/16" | 1 3/4" | No | €399.43 |
