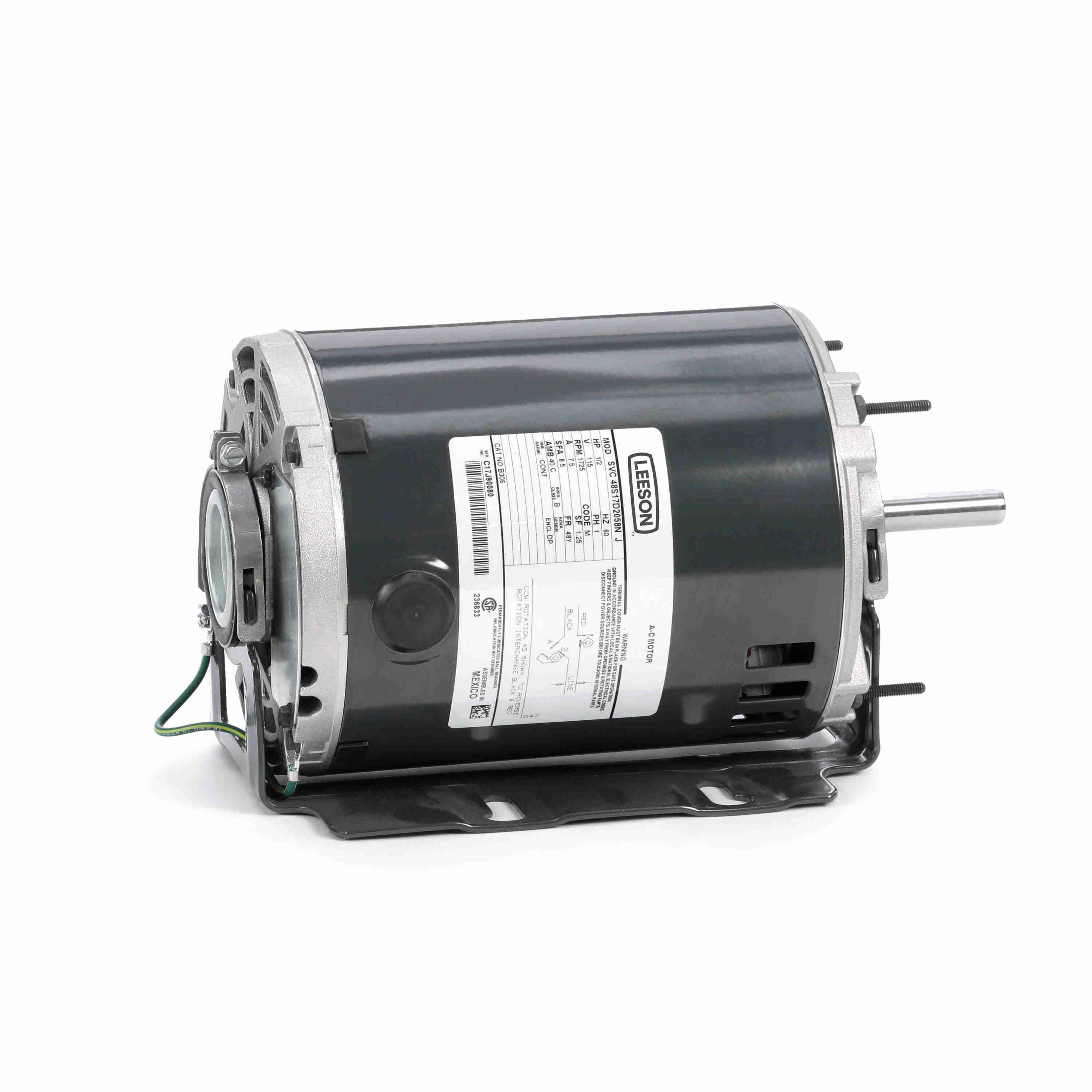

LEESON 048S17D2058 48S17D2058N / B306 Fan and Blower Motor, 0.50 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Wednesday, Aug 26
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€412.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Body Dia. | 5 9/16" |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Dripproof |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 7.5A |
| Hp | 1/2 hp |
| Ins. Class | Class B |
| Length Less Shaft | 7 7/16" |
| Max. Ambient Temp. | 158°F |
| Motor Application | Fan and Blower |
| Motor Bearings | Ball |
| Motor Design | Split Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Mounting Type | Resilient Base Extended Studs |
| Nameplate Speed | 1725 RPM |
| Nema Design | No Design Code |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Overall Length | 1/2" |
| Phase | 1 |
| Power | 0.37 kW |
| Service Factor | 1.25 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 7/8" |
| Shaft Orientation | Horizontal |
| Speed | 1701-1800 RPM |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: SPLIT PHASE
- KVA Code: M
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Mounting Type | Service Factor | Motor Enclosure Design | Frame | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048S17D2017 | 115V AC | 1/6 hp | 3.6A | Resilient Base | 1.35 | Open Dripproof | 48 | CW, CCW | €310.86 | |
 |
5KH39QN5512T | 115V AC | 1/4 hp | 5.1A | Resilient Base | 1.35 | Open Dripproof | 48Y | CCW | €222.86 | |
 |
5KH32FN3083 | 115V AC | 1/4 hp | 5.1A | Resilient Base | 1.35 | Dripproof | 48Z | CCW | €268.55 | |
 |
5KH32HN5620T | 115V AC | 1/3 hp | 6.6A | Resilient Base | 1.35 | Open Dripproof | 48Y | CW | €259.28 | |
 |
048S17D2086 | 115V AC | 1/3 hp | 6.1A | Resilient Base | 1.35 | Dripproof | 48 | Selective CCW | €264.23 | |
 |
5KH35MNA519T | 115V AC | 1/2 hp | 7.9A | Resilient Base | 1.25 | Open Dripproof | 48Y | CW | €529.20 | |
 |
5KH32JN3128 | 115V AC | 1/3 hp | 6.2A | Resilient Base | 1.35 | Dripproof | 48Z | CCW | €309.91 |
