LEESON 048A17T72 X301 / 48A17T72J Fan and Blower Motor, 0.17 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€315.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Efficiency | N/A % |
| Enclosure Type | Totally Enclosed Air Over |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 2.15A |
| Hp | 1/6 hp |
| Insulation Class | Class B |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Extended Studs, Resilient Base |
| Motor Shaft Rotation | Selective CCW |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Base Extended Studs |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Phase | 1 |
| Power | 0.125 kW |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2.81" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 5.9 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: PSC 1 SPEED
- KVA Code: C
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Frame | Shaft Length | Nameplate Rpm | Efficiency | Power | Motor Mounting Position | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

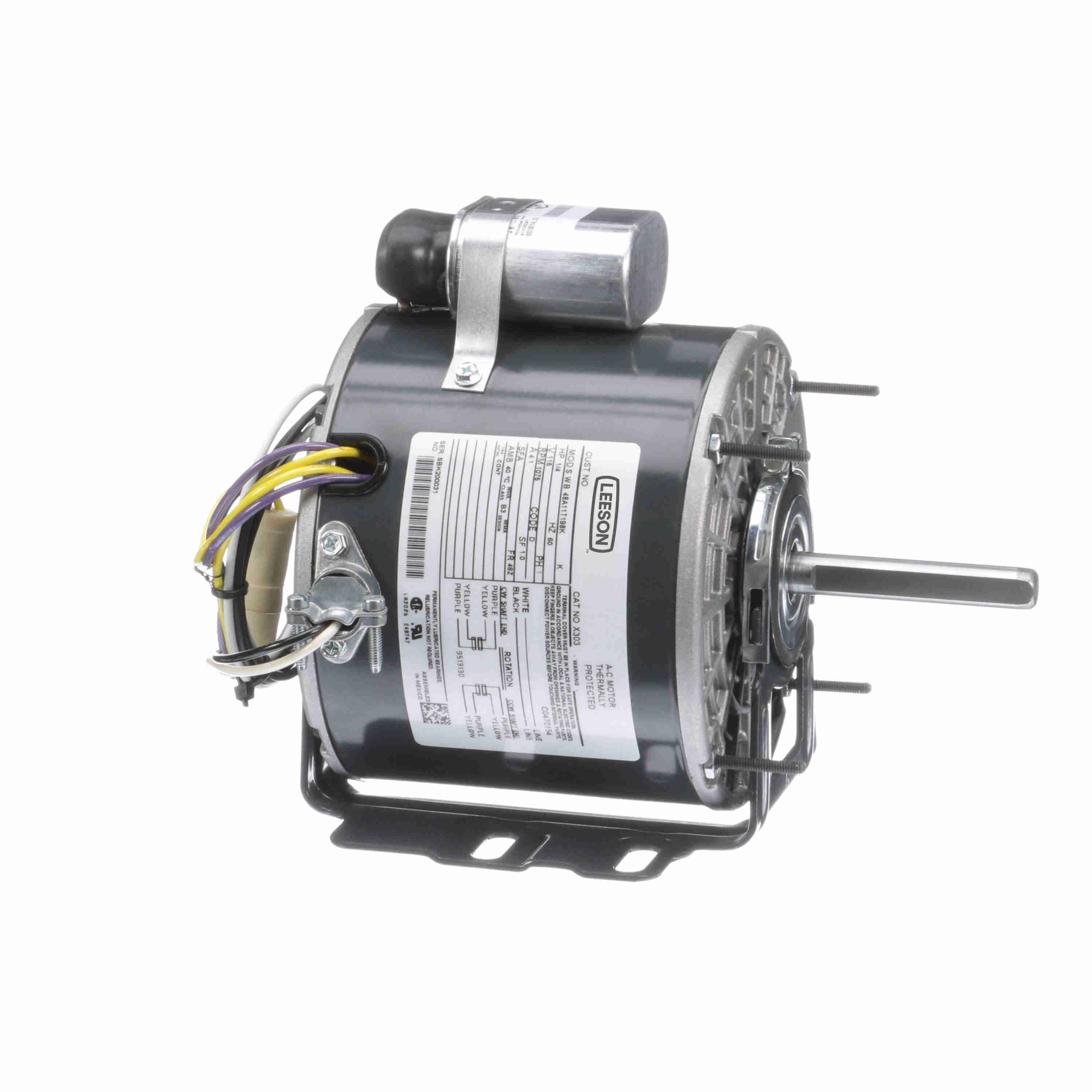

048A11T198 | 1/4 hp | 48Z | 2.81" | 1075 RPM | 59.5% | 0.187 kW | Horizontal | 1 | €311.76 | |
 |

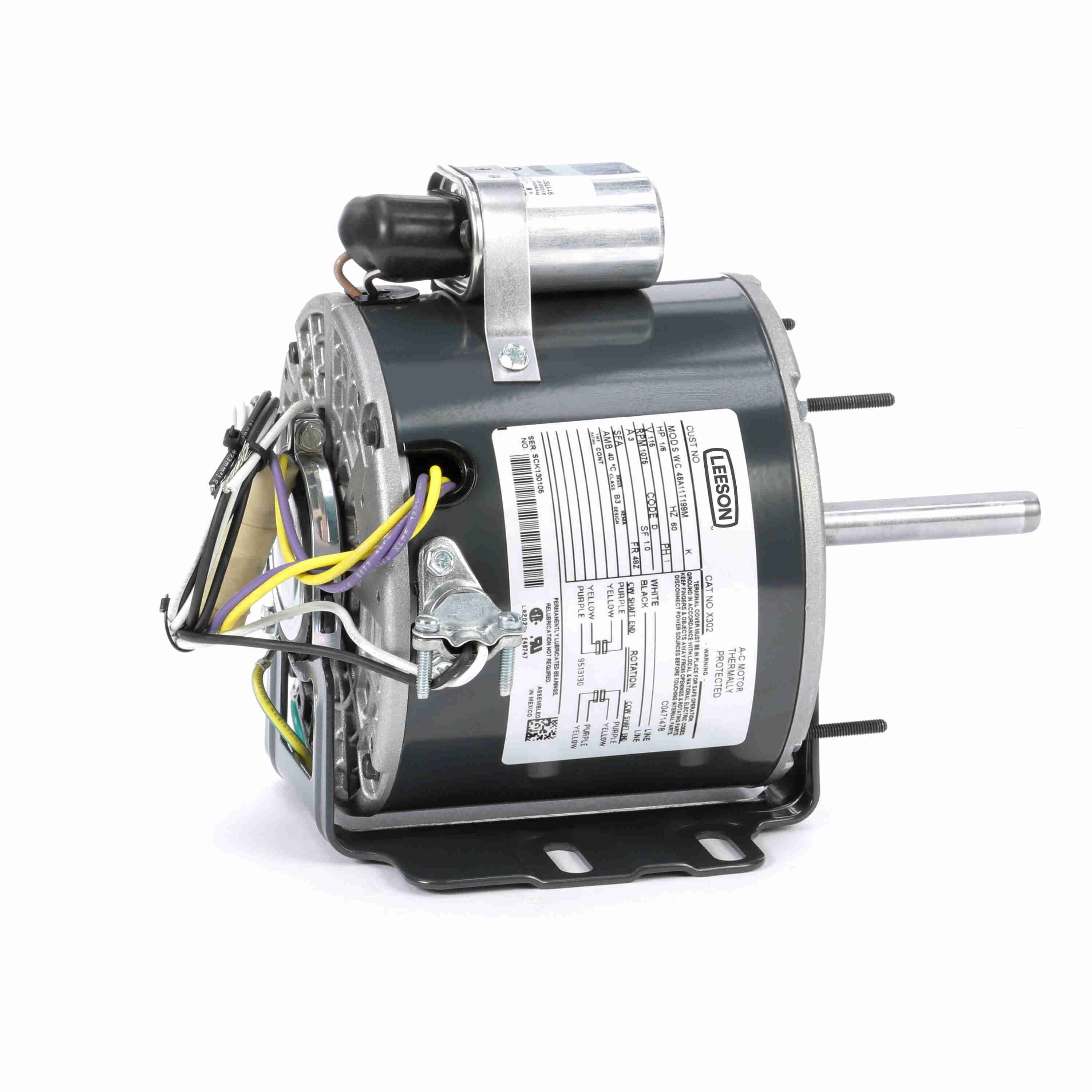

048A11T199 | 1/6 hp | 48Z | 2.81" | - | 55% | 0.125 kW | Horizontal | 1 | €408.18 | |
 |

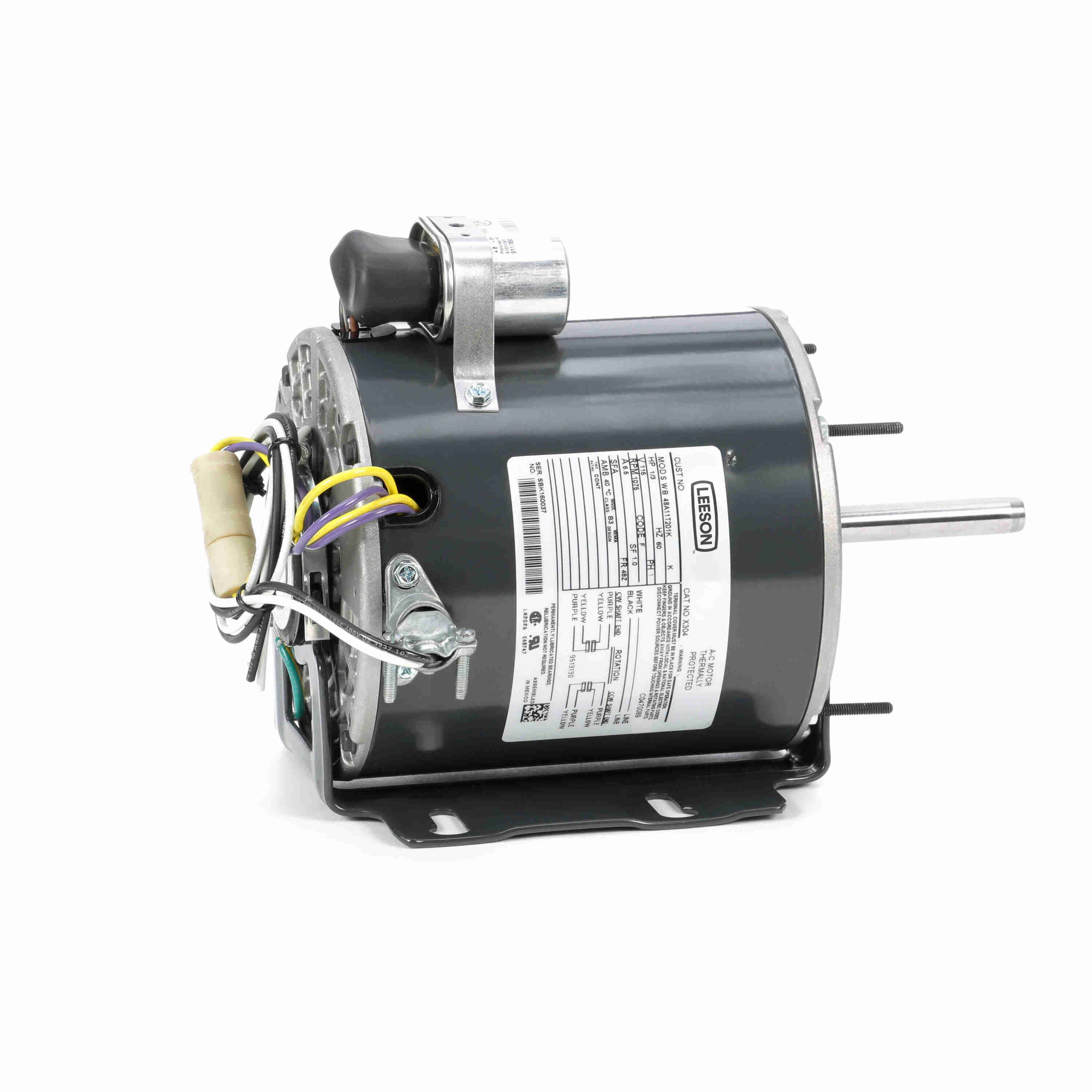

048A11T201 | 1/3 hp | 48Y | 2 13/16" | 1075 RPM | 70% | 0.246 kW | Horizontal | 1 | €461.76 | |
 |

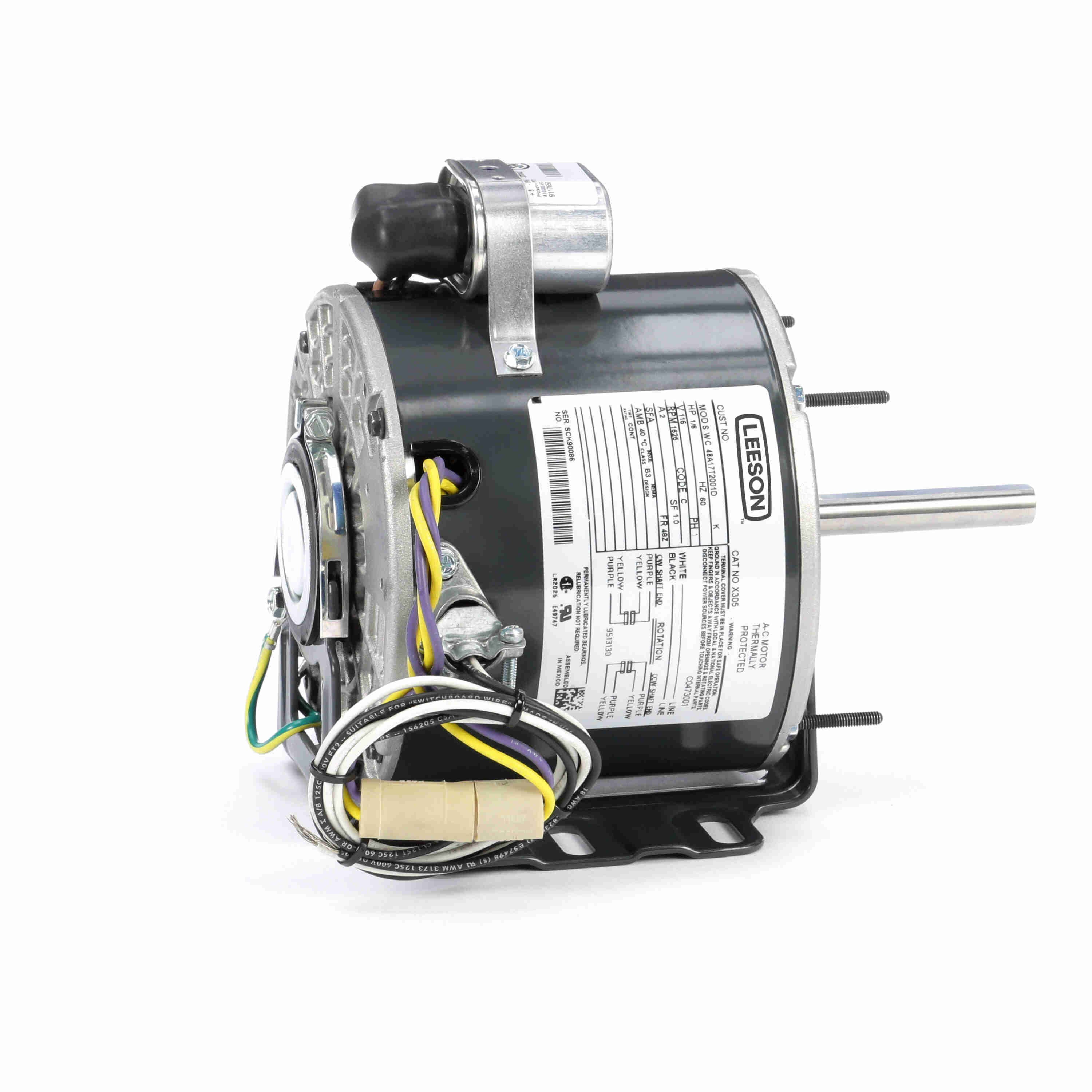

048A17T2001 | 1/6 hp | 48Z | 2.81" | 1625 RPM | Not Applicable | 0.13 kW | Horizontal | 1 | €285.22 |
