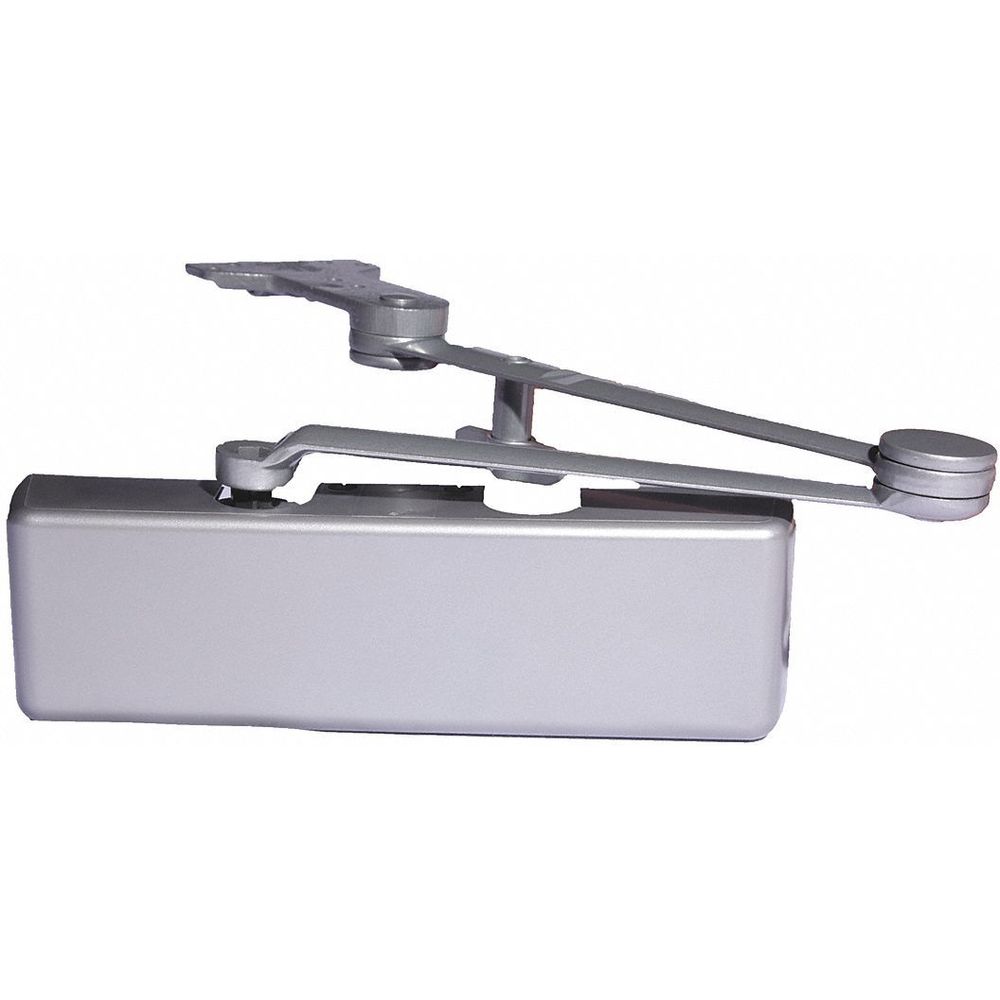

LCN 4040XP-SHCUSH AL Manual Hydraulic Door Closer, Heavy Duty Interior and Exterior, Aluminium
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€918.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Material | Aluminum |
| Arm Type | Parallel |
| Closer Mounting Style | Surface |
| Closer Mounting Type | Parallel |
| Closer Performance | Heavy Duty |
| Closer Series | 4040XP Series |
| Closer Stop Type | Spring |
| Closer Type | Hold Open |
| Color | Gray |
| Door Width Campatibility | 5 ft. |
| Energy Source | Hydraulic |
| Exterior Door Width | Up To 48" |
| Exterior Door Width - Maximum | 4 ft. |
| Finish | Aluminum Painted |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 2 1/4" |
| Housing Depth | 2 1/4" |
| Housing Height | 3 1/2" |
| Housing Length | 12 1/4" |
| Hydraulic/pneumatic | Hydraulic |
| Includes | Full Size Plastic Cover, Mounting Screws |
| Includes Hardware | Hardware Included |
| Indoor/outdoor | Indoor/Outdoor |
| Interior Door Width | Up To 54" |
| Length Between Mounting Holes | 5" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual (m)/automatic (a) | Manual |
| Manual/automatic | Manual |
| Material | Cast Iron |
| Max Door Opening Angle | 110° |
| Max. Door Opening | 110 Degrees |
| Max. Door Opening | 110° |
| Mfr. Series | LCN 4040 Series |
| Mounting Hardware | Included |
| Mounting Style | Hold Open |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Properties | Corrosion Resistant |
| Spring Size | 6 |
| Spring Size | Adjustable 1 to 6 |
| Spring Size - Minimum | 1 |
| Spring Type | Adjustable |
| Ul Fire Rating | UL10B, UL10C |
Shipping Info:
| Ship weight (kg) | 5.96 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Hand Orientation | Closer Type | Spring Type | Spring Size | Manual/automatic | Hydraulic/pneumatic | Closer Mounting Style | Arm Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4811-STD AL | Non Handed | Non Hold Open | Adjustable | 4 | Manual | Pneumatic | Surface | Track | €3,342.05 | |
 |
4011-REG LH AL | Left-Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Regular | €818.29 | |
|
4011-REG RH AL | Right Hand | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Regular | €791.73 | |
 |
4040XP-CUSH AL | Non Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Parallel | €824.89 | |
 |
4040XP-CUSH DKBRZ | Non Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Parallel | €1,009.32 | |
 |
4040XP-HW/PA AL | Non Handed | Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | - | €940.31 | |
 |
4040XP-HW/PA DKBRZ | Non Handed | Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | - | €894.71 |
