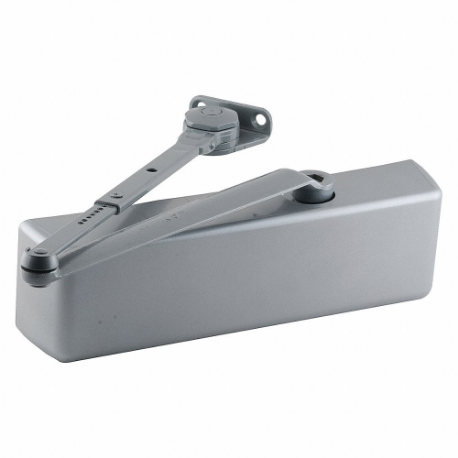

LCN 4040XP-H AL Door Closer, Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€581.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Material | Cast Aluminum |
| Arm Type | Regular |
| Automatic/manual | Manual |
| Closer Mounting Style | Parallel |
| Closer Mounting Type | Parallel |
| Closer Performance | Heavy Duty |
| Closer Series | 4040XP Series |
| Closer Stop Type | Spring |
| Closer Type | Hold Open |
| Color | Gray |
| Door Handing | Non-Handed |
| Door Width Campatibility | 5 ft. |
| Energy Source | Hydraulic |
| Exterior Door Width | 0" to 48" |
| Exterior Door Width-max. | 4 ft. |
| Finish | Aluminum, Painted |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 2 1/4" |
| Housing Depth | 2 1/4" |
| Housing Height | 3 1/2" |
| Housing Length | 12 1/4" |
| Hydraulic/pneumatic | Hydraulic |
| Included | Full Size Cover, Mounting Screws |
| Included Hardware | Hardware Included |
| Interior Door Width | 0" to 54" |
| Interior/exterior | Interior And Exterior |
| Length Between Mounting Holes | 5" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Cast Iron |
| Max. Door Opening | 180° |
| Max. Door Opening Angle | 180° |
| Min. Spring Size | 1 |
| Mounting Hardware | Included |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Datasheet | lcn-4040xp-cush-al.pdf |
| Product Type | Door Closer |
| Properties | Corrosion Resistant |
| Spring Size | 6 |
| Spring Type | Adjustable |
| Ul Fire Rating | UL10B, UL10C |
Shipping Info:
| Ship weight (kg) | 5.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Finish | Color | Housing Length | Housing Depth | Hand Orientation | Ada Compliant | Arm Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4040XP-3049EDA LH AL | Aluminum, Painted | Gray | - | - | Left Hand | Yes | Parallel | Aluminum | €367.07 | |
| 4040XP-3049EDA LH DKBRZ | Dark Bronze Painted | Dark Bronze | - | - | Left Hand | Yes | Parallel | Bronze | €355.20 | |
| 4040XP-3049EDA RH AL | Aluminum, Painted | Gray | - | - | Right Hand | Yes | Parallel | Aluminum | €369.80 | |
| 4040XP-3049 AL | Aluminum, Painted | Gray | - | - | Non Handed | Yes | Parallel | Aluminum | €362.10 | |
| 4040XP-3049 DKBRZ | Dark Bronze Painted | Dark Bronze | - | - | Non Handed | Yes | Parallel | Bronze | €324.15 | |
| 4040XP-3077XL DKBRZ | Dark Bronze Painted | Dark Bronze | - | - | Non Handed | Yes | Regular | Bronze | €306.96 | |
| 4040XP-3077 AL | Aluminum, Painted | Gray | - | - | Non Handed | Yes | Regular | - | €215.84 |
