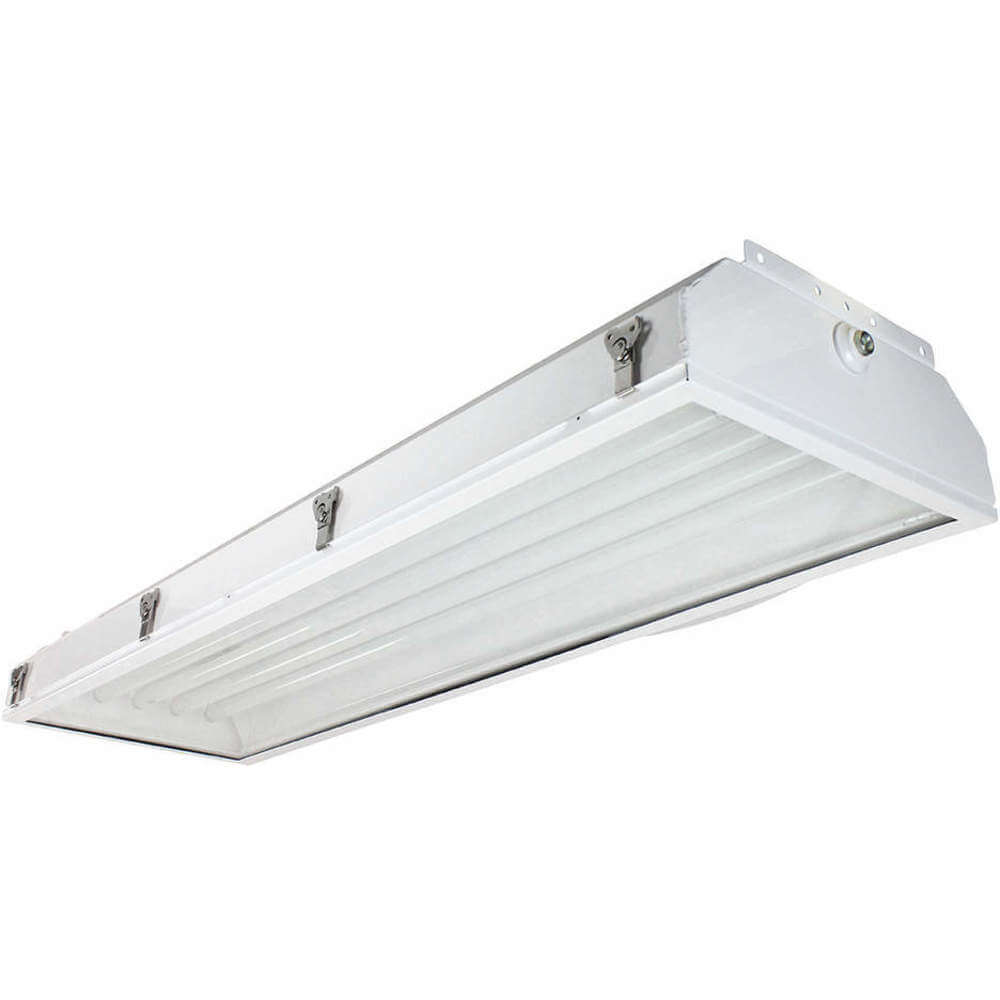

LARSON ELECTRONICS LLC HALS-48-4L-LED Hazardous Location Fixture T8-led 112w
Get it by Wednesday, Dec 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Lighting Fixture |
| Ambient Temp. Range | -22°F to +185°F |
| Baa Compliant | Yes |
| Ca Title 24 Compliant | Yes |
| Color | White |
| Color Temperature | 5600 K |
| Dimmable | No |
| Emergency Battery Backup | No |
| Finish | White |
| Fixture Rated Life | 50000 hrs. |
| Fixture Type | Hazardous Location |
| Fixture Voltage | 120-277V AC |
| Fixture Wattage | 112 W |
| For Bulb Shape | T8 |
| For Bulb Type | LED |
| For Max. Bulb Wattage | 28 W |
| For No. Of Bulbs | 4 |
| Height | 11.812" |
| Housing Color | White |
| Housing Finish | Powder Coat |
| Housing Material | Steel |
| Includes | 3/4" Npt Hub Size, Led Bulbs, Pendant And Wall/Ceiling/Flat Surface Mounting Brackets |
| Ingress Protection Rating | 65 |
| Lamp Included | Yes |
| Lamp Type | Integrated LED |
| Lamp Watts | 28 W |
| Length | 55 3/8" |
| Lens Material | Glass |
| Lighting Certification | Unrated |
| Lighting Technology | LED |
| Lumens | 14000 lm |
| Lumens Per Watt | 125 lm/W |
| Max. Ambient Temp. | 185°F |
| Max. Fixture Wattage | 112 W |
| Min. Ambient Temp. | -22°F |
| Mounting | Pendant, Surface |
| Mounting Location | Surface |
| Number Of Bulbs | 4 |
| Number Of Lamps | 4 |
| Overall Height | 6 1/8" |
| Overall Length | 49 3/4" |
| Overall Width | 15" |
| Safety Rating | Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G |
| Suggested Lamp Item No. | LEDT8-28W-V1 |
| Temperature Code | T4A |
| Ul/csa/etl Listed | Ul 1598A Listed, Ul 595 Listed, Ul Listed |
| Width | 15.719" |
Shipping Info:
| Ship weight (kg) | 26.19 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 138.43 |
| Ship width (cm) | 63.5 |
| HS code | 9405108020 |
Product Details:
- Special Features: Wide Area Beam Spread, 50,000 hr. LED Life
Product Variants
| Product | Model | Ambient Temp. Range | Fixture Wattage | Lamp Type | Number Of Lamps | Lamp Watts | Lens Material | Finish | Fixture Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

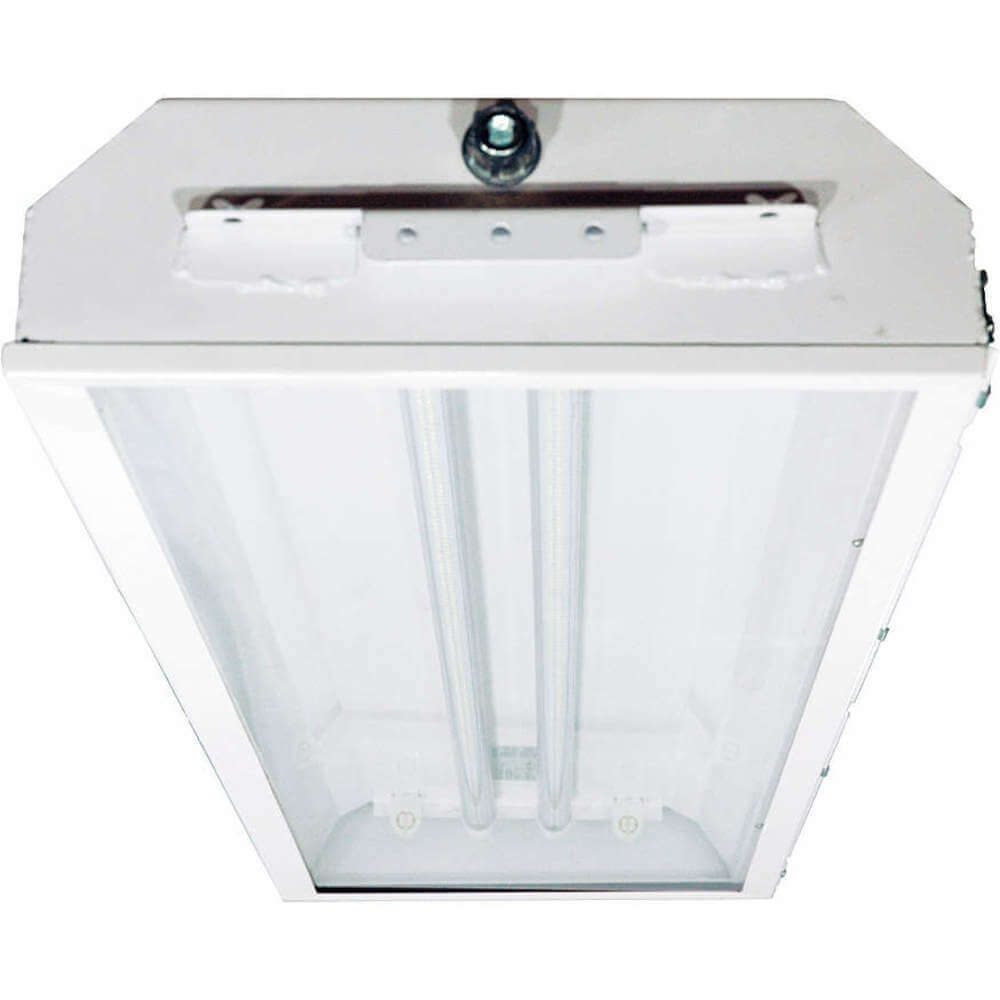

HALS-48-2L-LED | -22°F to +185°F | 56 W | Integrated LED | 2 | 28 W | Glass | White | Hazardous Location | - | RFQ
|
 |

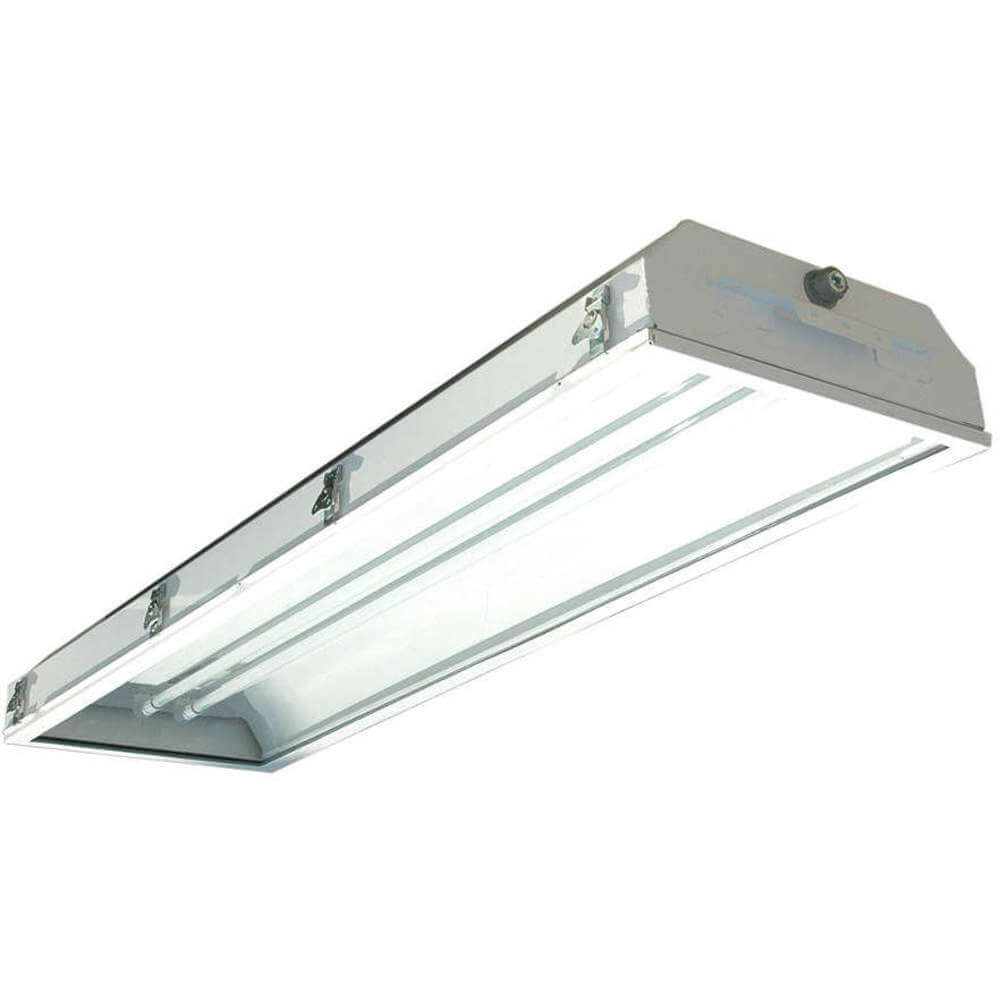

HALS-48-2L-T5HO | -4°F to +158°F | 108 W | Fluorescent | 2 | 54 W | Glass | White | Hazardous Location | - | RFQ
|
 |

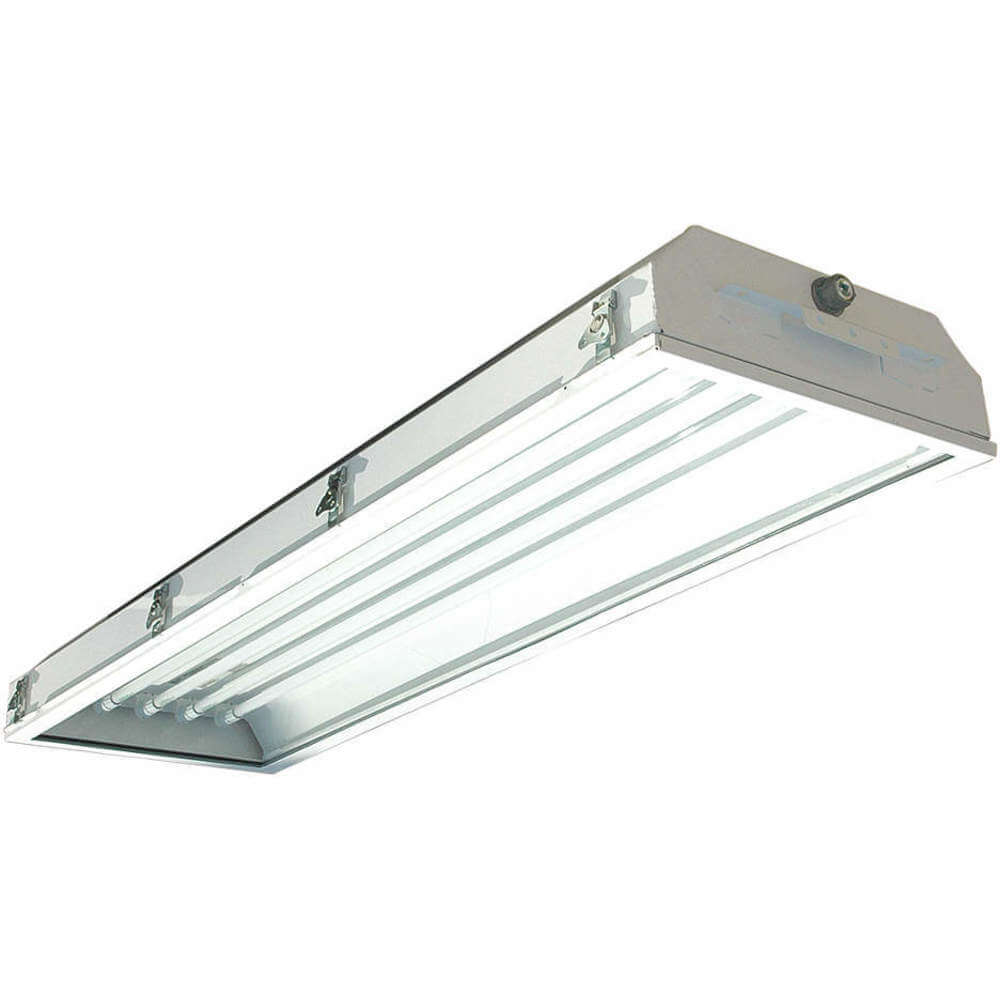

HALS-48-4L-T5HO | -20°C to +70°C | 216 W | Fluorescent | 4 | 54 W | Tempered Glass | White | - | €1,639.31 | |
 |

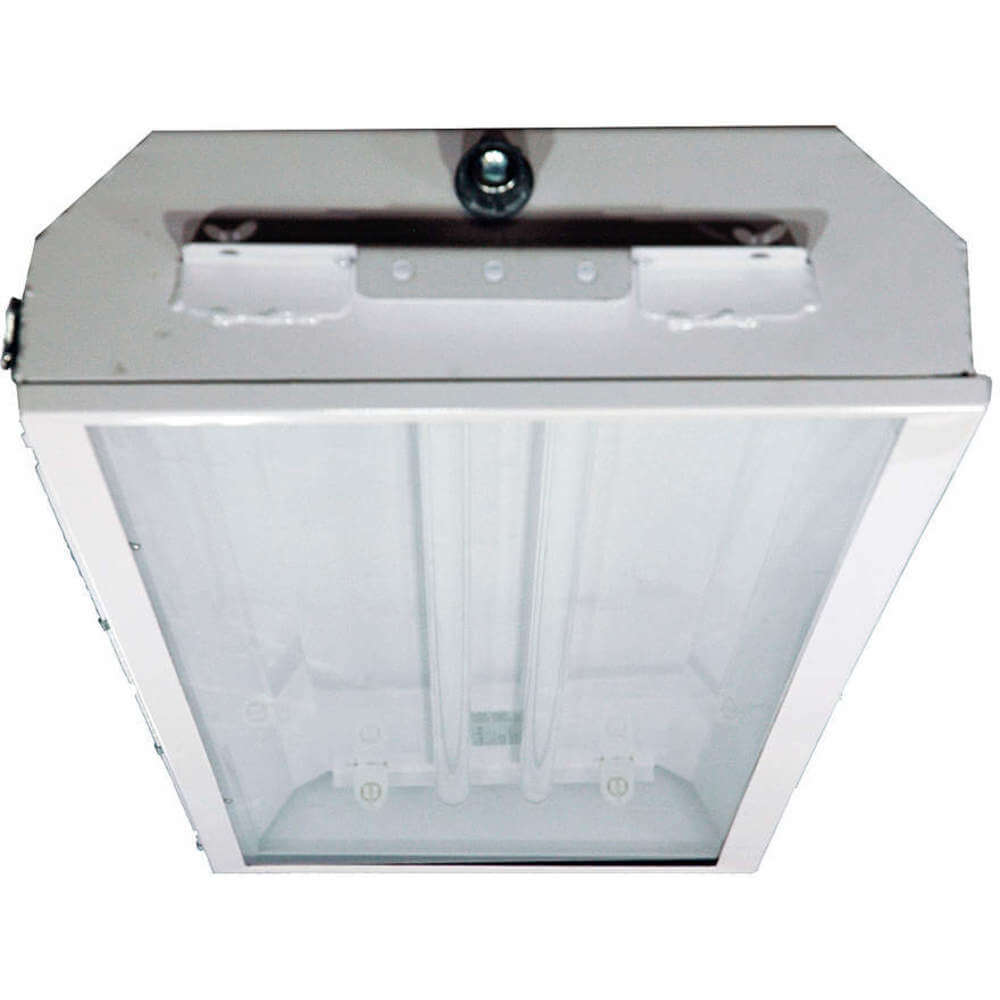

HALS-48-2L-T8 | -22°F to +158°F | 64 W | Fluorescent | 2 | 32 W | Glass | White | - | - | RFQ
|
|
HALS-48-4L-T8 | -4°F to +158°F | 128 W | Fluorescent | 4 | 32 W | Glass | White | Hazardous Location | - | RFQ
|
