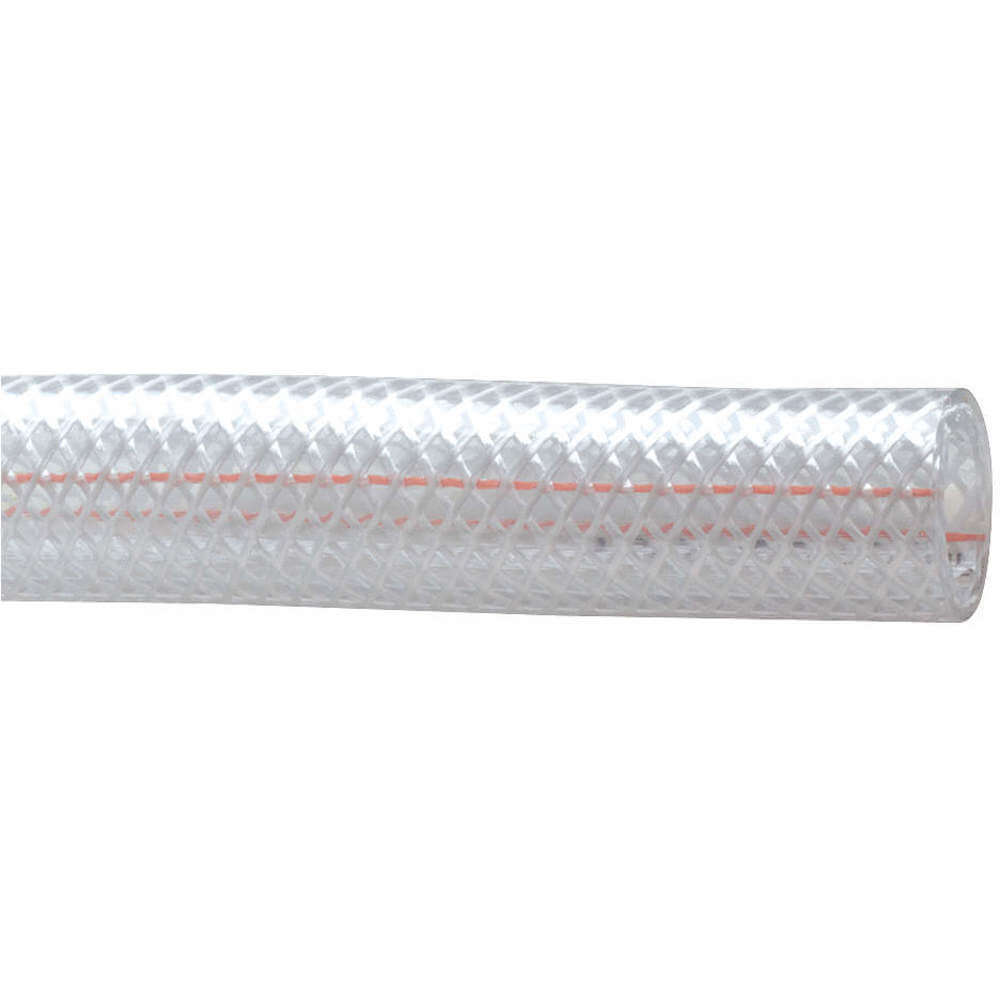

KURIYAMA K3150-16 Braided Tubing Pvc Flexible 1 Inch Id
Get it by Tuesday, Sep 1
13.00% off
€257.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Braided Tubing |
| Application | Air, Beverage, Food, Water |
| Autoclavable | No |
| Bend Radius | 8" |
| Clarity | Clear |
| Color | Clear |
| Features | Non Conductive, Non Marking, Self Extinguishing, Silicone Free |
| Fitting Compatibility | Barbed |
| Flexibility | Flexible |
| Flow Application | Air And Water Lines, Air Breathing Lines, Food And Beverage, Pneumatic Lines, Potable Water Transfer |
| For Fluid Type | Beverages, Deionized Water |
| Hardness | Shore A 73 |
| Industry Application | Liquid Food Products, Packaging Machines, Powdered Food Products |
| Inside Dia. | 1" |
| Length | 100 ft. |
| Material | PVC |
| Material Trade Name | Clearbraid |
| Max. Operating Pressure | 125 psi @ 70°F |
| Max. Operating Temp. | 150°F |
| Max. Vacuum Pressure | 8 in. hg |
| Min. Operating Temp. | 25°F |
| Outside Dia. | 1 5/16" |
| Overall Length | 100 ft. |
| Peristaltic Pump Compatible | No |
| Reinforcement | Polyester Braid With Longitudinal Yarn |
| Resistance Properties | Chemical Resistant |
| Sae Or Metric | SAE |
| Stripe Color | No Stripe |
| Temp. | +25°F to +150°F |
| Tensile Strength | 2200 psi |
| Type | Braided, Flexible |
| Vacuum | 8 |
| Wall Thickness | 0.13" |
Shipping Info:
| Ship weight (kg) | 13.3 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 57.15 |
| HS code | 3917390020 |
| Country of Origin | CA |
Product Variants
| Model | Wall Thickness | Max. Operating Pressure | Max. Vacuum Pressure | Vacuum | Bend Radius | Color | Stripe Color | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

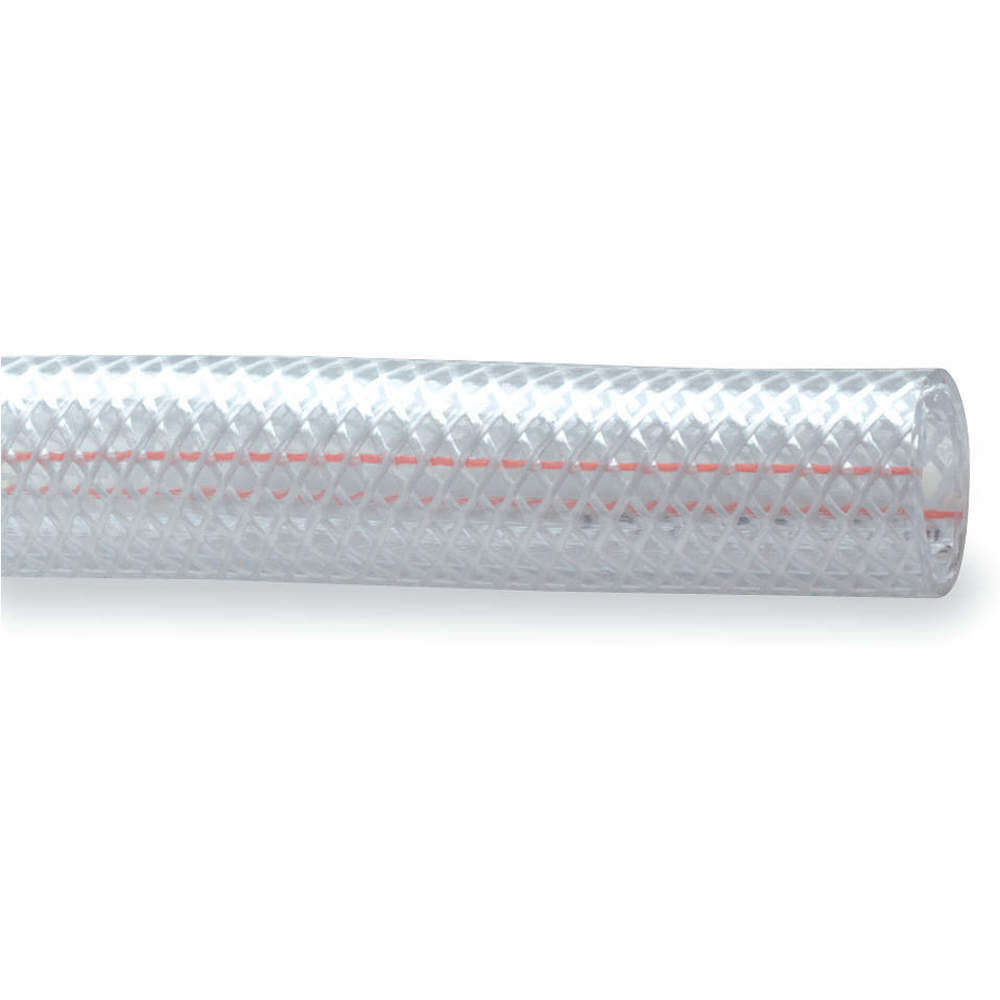

| K3150-05 | 0.09" | 250 psi @ 70°F | 28 in. hg | 28 in. hg | 3/4" | Clear | No Stripe | PVC | €109.99 | |
| K3150-10 | 0.13" | 200 psi @ 70°F | 20 in. hg | 20 | 1 1/4" | Clear | No Stripe | PVC | €180.14 | |
| K3150-20X100 | 0.16" | 100 psi @ 70°F | 8 in. hg | 8 | 1 1/2" | Clear | No Stripe | PVC | €608.65 | |
| K3150-24 | 0.22" | 100 psi @ 70°F | 8 in. hg | 8 | 1 3/4" | Clear | No Stripe | PVC | €727.16 | |
| K3150-04 | 0.09" | 250 psi @ 70°F | 28 in. hg | 28 in. hg | 1 1/2" | Clear | No Stripe | PVC | €84.48 | |
| K3150-06 | 0.09" | 225 psi @ 70°F | 28 in. hg | 28 in. hg | 2" | Clear | No Stripe | PVC | €106.54 | |
| K3150-08 | 0.13" | 200 psi @ 70°F | 28 in. hg | 28 in. hg | 2 1/2" | Clear | No Stripe | PVC | €150.23 |
