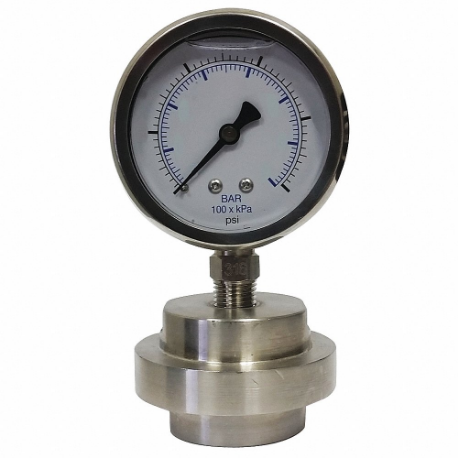

KODIAK CONTROLS KC301L2515/DSM3511LP Pressure Gauge With Diaphragm Seal, 0 To 15 PSI, Kc301/Dsm35Lp, 2 1/2 Inch Dial
Item: CR7KGDModel: KC301L2515/DSM3511LPCross Ref: 45MU15
7 In Stock
Ships within 2 days via
13.00% off
€162.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Seal |
| Accuracy | -1.6% to +1.6% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Ambient Operating Temp. | 20°F to 160°F |
| Ambient Temp. | +20°F to +160°F |
| Application | Chemical Industries, Highly Corrosive, Hydraulics, Pumps, R, O Systems |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Calibration Certificate Included | NIST With Data |
| Case Color | Stainless Steel |
| Case Construction | Corrosion Resistant |
| Case Depth | 1 7/25" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Thick Or Corrosive Media Compatible With 316 Stainless Steel |
| Dial Color | White |
| Diaphragm Seal Process Connection | Threaded |
| Diaphragm Seal Type | Welded |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Hazardous Location Rating | Not Rated |
| Included | Mini Diaphragm Seal |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | NEMA 4X |
| Lens Material | Polycarbonate |
| Liquid-filled Case | Yes |
| Mfr. Series | KC301, DSM35LP |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 15 psi |
| Pressure Gauge Type | Industrial Pressure Gauge With Diaphragm Seal |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 15 psi |
| Primary Scale Minor Graduations | 0.2 |
| Primary Scale Numeric Increments | 3.0 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Female |
| Process Connection Gender | Female |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +400°F |
| Removable Bezel | No |
| Scale Type | Dual |
| Seal Compatible Process Media | Air or Liquid Compatible with 316SS |
| Seal Connection Size | 1/4" |
| Seal Diaphragm Grade | Grade 316 |
| Seal Diaphragm Material | Stainless Steel |
| Seal Diaphragm Material Grade | Grade 316 |
| Seal External Grade | Grade 316 |
| Seal External Material | Stainless Steel |
| Seal Fill Liquid | Mineral Oil |
| Seal Lower Housing Grade | Grade 316 |
| Seal Lower Housing Material | Stainless Steel |
| Seal Max. Working Pressure | 2500 psi |
| Seal Process Temp. | -40°F to +400°F |
| Secondary Pressure Range | 0 Bar to 1 Bar |
| Secondary Pressure Scale Color | Blue |
| Secondary Scale Units | Bar |
| Sensor Grade | Grade 316 |
| Sensor Material | Stainless Steel |
| Socket Grade | Grade 316 |
| Socket Material | Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Stainless Steel |
| Wetted Parts Grade | Grade 316 |
| Wetted Parts Material | 316 Stainless Steel, 316 Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.79 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Pressure | Process Connection Gender | Pressure Type | Dry Dampening Feature | Case Dia. | Case Depth | Secondary Pressure Range | Diaphragm Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
KC301L25100/DSF14-M | 0 psi to 100 psi | Male | Pressure | None | 2 4/5" | 1 7/25" | 0 Bar to 7 Bar | Welded | €217.85 | |
 |
KC301L251000/DSM3511 | 0 psi to 1000 psi | Female | Pressure | None | 2 4/5" | 1 7/25" | 0 Bar to 69 Bar | Welded | €150.93 | |
 |
KC301L251000/DSM3512 | 0 psi to 1000 psi | Female | Pressure | None | 2 4/5" | 1 7/25" | 0 Bar to 69 Bar | Welded | €141.40 | |
 |
KC301L251000/DSF14-M | 0 psi to 1000 psi | Male | Pressure | None | 2 4/5" | 1 7/25" | 0 Bar to 69 Bar | Welded | €217.85 | |
 |
KC301L25100/PLDS-PVC-T11 | 0 psi to 100 psi | Female | Pressure | None | 2 4/5" | 1 7/25" | 0 Bar to 7 Bar | Bonded | €204.78 | |
 |
KC301L25100/PLDS-PVC-T12 | 0 psi to 100 psi | Female | Pressure | None | 2 4/5" | 1 7/25" | 0 Bar to 7 Bar | Bonded | €204.78 | |
 |
KC301L25100/DSM3512 | 0 psi to 100 psi | Female | Pressure | None | 2 4/5" | 1 7/25" | 0 Bar to 7 Bar | Welded | €141.42 |
