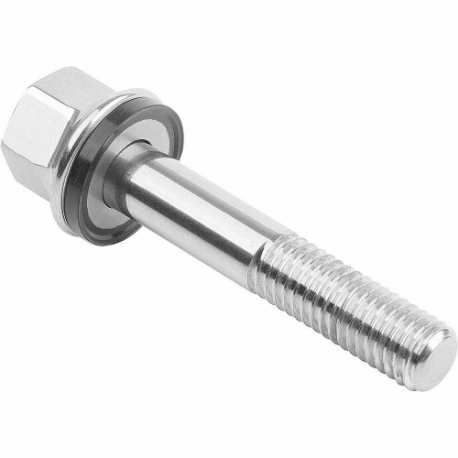

KIPP K1595.101X50 Bolt, 14 mm Head Ht., 16 mm Head Wd., 22 mm Head Dia., Polished, HT, Right Hand
Item: CR7BEFModel: K1595.101X50Cross Ref: 802K12
7 In Stock
Ships within 2 days via
10.00% off
€49.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt |
| Drive | Hex |
| Drive Size | 16 mm |
| Drive Type | External Hex |
| Fastener Length | 50 mm |
| Features | Hexagon Head Screw With Collar And The Hygienic Usit Seal And Shim Washer Assures A Cavity-Free Seal, Ideal For Sterile Areas |
| Finish | Polish |
| Flange Diameter | 22 mm |
| Flange Type | Standard |
| Head Dia. | 22 mm |
| Head Height | 14 mm |
| Head Style | Hex Flange |
| Head Width | 16 mm |
| Includes Nuts | No |
| Includes Washers | Yes |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | Grade 316L |
| Max. Temp. | 150°C |
| Min. Temp. | -40°C |
| Min. Thread Length | 26 mm |
| Overall Length | 64 mm |
| Recommended Hole Size | 10.2 mm |
| Rohs Compliant | Yes |
| Seal Material | Black EPDM |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Size | M10 |
| Thread Style | Partially Threaded |
| Type | Sanitary Hex Head Screws |
| Washer Inside Dia. | 10.1 mm |
| Washer Material | Stainless Steel |
| Washer Outside Dia. | 21.2 mm |
| Washer Standards | EHEDG |
| Washer Thickness | 1.5 mm |
| Washer Type | Hygienic Usit Seal, Shim |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
