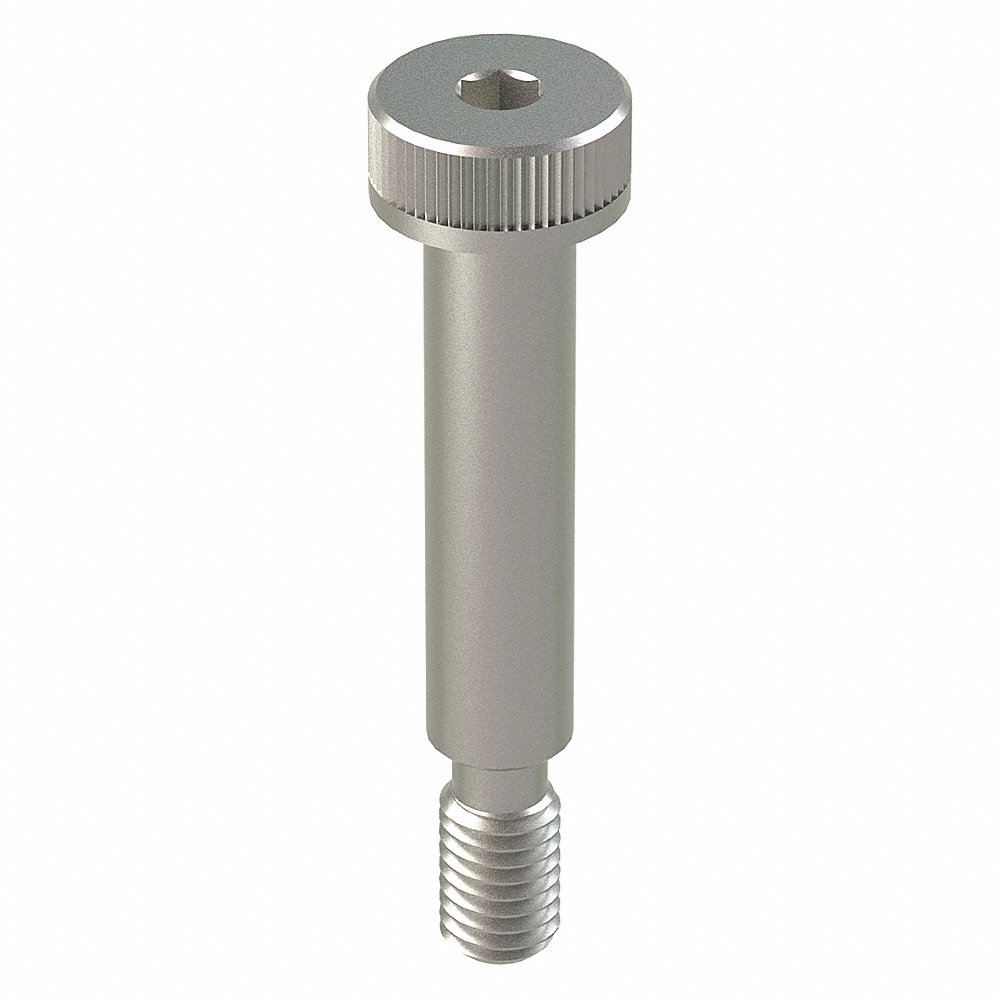

GRAINGER M51044.060.0025 Shoulder Screw, M5x0.8 Thread Size, 25 mm Shoulder Lg., 4.5 mm Head Ht., Plain
Item: AG2KMFModel: M51044.060.0025Cross Ref: 31KG49
7 In Stock
Ships within 2 days via
5.00% off
€102.71 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | Iso 7379 |
| Display Qty | 5 |
| Drive Size | 3 mm |
| Drive Type | Socket |
| Grade | Grade 18-8 |
| Head Dia. | 10 mm |
| Head Height | 4.5 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Heat Treatment | No Heat Treatment |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Head Height | 4.5 mm |
| Max. Temp. | Not Rated |
| Min. Head Height | 4.32 mm |
| Min. Temp. | Not Rated |
| Min. Yield Strength | Not Rated |
| Precision Screw | No |
| Proof Load | Not Rated |
| Resistance Properties | Corrosion Resistant |
| Rockwell Hardness | Not Rated |
| Screw Head Height | 6mm |
| Shear Strength | Not Rated |
| Shoulder Dia. | 6 mm |
| Shoulder Dia. Tolerance | -0.04 mm to 0 mm |
| Shoulder Length | 25 mm |
| Shoulder Length Tolerance | 0 mm to 0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | Not Rated |
| Thread Direction | Right Hand |
| Thread Fit | Class 5G, Class 6G |
| Thread Length | 9.5 mm |
| Thread Locking | No |
| Thread Size | M5 x 0.8 |
| Thread Type | Metric Coarse |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 7318158030 |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51044.031.0025 | 1/2" | 5/16" | 1/4" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €6.56 | |
 |
U51044.031.0031 | 1/2" | 5/16" | 5/16" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €14.38 | |
 |
U51044.031.0037 | 1/2" | 5/16" | 3/8" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €58.09 | |
 |
U51044.031.0050 | 1/2" | 5/16" | 1/2" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €6.80 | |
 |
U51044.031.0062 | 1/2" | 5/16" | 5/8" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €7.38 | |
 |
U51044.031.0075 | 7/16" | 5/16" | 3/4" | 7/16" | 7/32" | Standard Shoulder Screw | -0.005" to +0.005" | 0.1915" to 0" | 5 | €55.98 | |
 |
U51044.037.0031 | 9/16" | 3/8" | 5/16" | 1/2" | 1/4" | Precision | -0.005" to +0.005" | - | 5 | €9.77 |
